Hewlett Packard Enterprise Superdome Flex 280 343283 SPECjbb2015-MultiJVM max-jOPS
299065 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Fort Collins, Colorado Test date: October 15, 2020
SPEC license #: 3 Hardware Availability: Nov-2020 Software Availability: Sep-2020 Publication: Fri Nov 6 14:33:41 EST 2020
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationRack Mount Chassis
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)3072
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSuperdome Flex 280
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableNov-2020
ModelSuperdome Flex 280
Form Factor5U Rack
CPU NameIntel Xeon Platinum 8380H CPU
CPU Characteristics28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
Version1.0.140
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk2 x 1 TB 7200 RPM SATA
File SystemXFS
Memory Amount (GB)3072
# and size of DIMM(s)24 x 128 GB
Memory Details128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)4 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRedHat
Vendor URLhttp://redhat.com/
Version4.18.0-193.el8.x86_64
AvailableApril-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOpenJDK 15
VendorOpenJDK (openjdk.java.net)
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-bit Server VM, version 15
AvailableSep-2020
Bitness64
Notes

Community Support:

Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Memory Patrol Scrubbing=Disabled
  • Snoop Throttle Configuration=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SELinux=disabled
  • tuned-adm profile=latency-performance
  • ulimit -n 655350
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 155000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m

Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-server -Xms350g -Xmx350g -Xmn340g -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -Xnoclassgc -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:UseAVX=0

Tuning
    Used numactl to affinitize each Backend JVM to each NUMA node
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m

Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 335109 339196 343283 347369 351456
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 247245 308545 312632 316719 316719 299065
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 4087 / 8173 - / 4087 - / 4087 - / 4087 - / 4087 - / 4087
1000us 232942 / 228855 12260 / 16347 8173 / 12260 4087 / 8173 4087 / 8173 - / 4087
5000us 331023 / 335109 322849 / 326936 208422 / 212508 163468 / 167555 106254 / 110341 - / 4087
10000us 331023 / 335109 326936 / 331023 298329 / 302416 286069 / 290156 245202 / 249289 20433 / 24520
25000us 335109 / 339196 331023 / 335109 322849 / 326936 318763 / 322849 306502 / 310589 49040 / 24520
50000us 335109 / 339196 331023 / 335109 322849 / 326936 322849 / 326936 310589 / 314676 69474 / 24520
75000us 335109 / 339196 331023 / 335109 322849 / 326936 322849 / 326936 314676 / 318763 196162 / 77647
100000us 335109 / 339196 331023 / 335109 322849 / 326936 322849 / 326936 314676 / 318763 245202 / 77647
200000us 335109 / 339196 331023 / 335109 326936 / 331023 322849 / 326936 318763 / 322849 306502 / 294242
500000us 339196 / 343283 335109 / 339196 326936 / 331023 326936 / 331023 322849 / 326936 314676 / 318763
1000000us 343283 / - 339196 / 343283 335109 / 339196 331023 / 335109 331023 / 335109 322849 / 326936
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

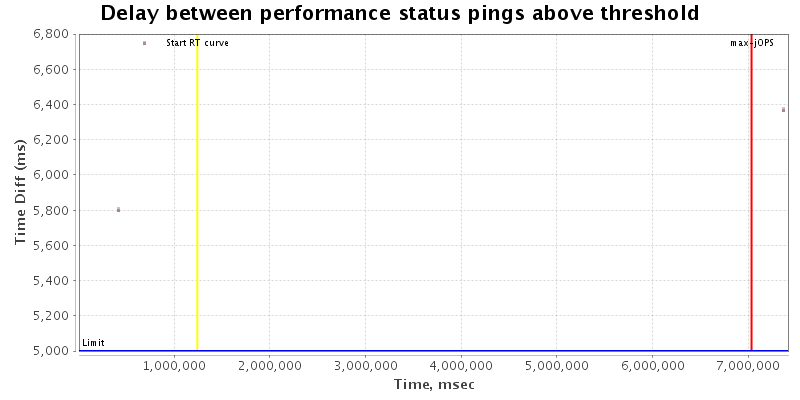

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 12
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 224 {Tier1=198, Tier2=53, Tier3=23}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 408670 IR
High-bound (settled) is 363283 IR
