SPECjbb2015
Copyright © 2015-2021 Standard Performance Evaluation Corporation
ASUSTeK Computer Inc. RS700-E10-RS12U 252973 SPECjbb2015-Composite max-jOPS
215468 SPECjbb2015-Composite critical-jOPS
Tested by: ASUSTeK Computer Inc. Test Sponsor: ASUSTeK Computer Inc. Test location: Taipei, Taiwan Test date: May 24, 2021
SPEC license #: 9016 Hardware Availability: May-2021 Software Availability: Apr-2021 Publication: Thu Jun 17 13:36:44 EDT 2021
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores80
Total Threads160
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameRS700-E10-RS12U
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
AvailableMay-2021
ModelRS700-E10-RS12U
Form Factor1U
CPU NameIntel Xeon Platinum 8380
CPU Characteristics40 Core, 2.3 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System80
Cores Per Chip40
Threads Per System160
Threads Per Core2
VersionVersion 0502
CPU Frequency (MHz)2300
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk1 x 1 TB SATA SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 1 GbE NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.3.18-22-default
AvailableJul-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 16.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 16.0.1
AvailableApr-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • Engine Boost = Aggressive
  • SNC = Enable SNC2 (2-clusters)
  • VT-d = Disabled
  • Patrol Scrub = Disabled
  • SR-IOV Support = Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(2)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms975g -Xmx975g -Xmn965g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=192 -XX:SurvivorRatio=180 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:+UseTransparentHugePages -XX:-UseFastStosb -XX:+UseUnalignedLoadStores -XX:+UseXMMForArrayCopy -XX:+UseXMMForObjInit -XX:+UseFPUForSpilling
Tuning Used numactl to run on all available nodes
  • numactl --cpunodebind=0-3 --interleave=0-3
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 250032 252973 255915 258856 261798
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 148548 216694 236795 245129 248561 215468
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2942 - / 2942 - / 2942 - / 2942 - / 2942 - / 2942
1000us 185318 / 5883 67656 / 2942 - / 2942 - / 2942 - / 2942 - / 2942
5000us 252973 / - 238266 / 241207 179435 / 161785 144136 / 147077 76480 / 79422 14708 / 11766
10000us 252973 / - 250032 / 252973 223558 / 226499 194142 / 197084 147077 / 150019 70597 / 20591
25000us 252973 / - 252973 / - 250032 / 252973 238266 / 241207 220616 / 214733 70597 / 20591
50000us 252973 / - 252973 / - 250032 / 252973 250032 / 252973 238266 / 235324 94130 / 20591
75000us 252973 / - 252973 / - 252973 / - 250032 / 252973 247090 / 241207 135311 / 20591
100000us 252973 / - 252973 / - 252973 / - 252973 / - 247090 / 250032 135311 / 20591
200000us 252973 / - 252973 / - 252973 / - 252973 / - 250032 / 252973 170610 / 114720
500000us 252973 / - 252973 / - 252973 / - 252973 / - 252973 / - 211792 / 173551
1000000us 252973 / - 252973 / - 252973 / - 252973 / - 252973 / - 250032 / 247090

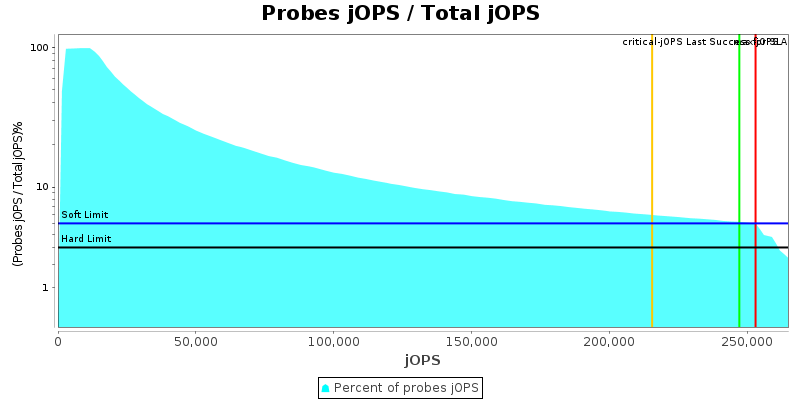

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

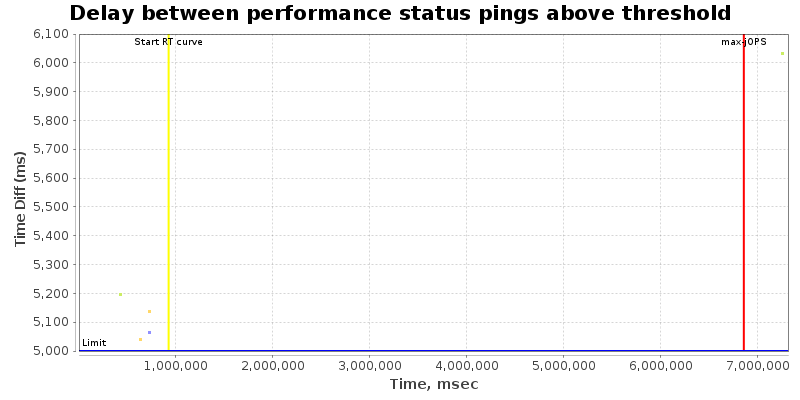

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 32
specjbb.forkjoin.workers 160 {Tier1=124, Tier2=1, Tier3=20}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 160 8
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 294155 IR
High-bound (settled) is 272636 IR
Copyright © 2015-2021 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
