Hewlett-Packard Company ProLiant DL380 G5 (2.66GHz, Intel Xeon L5430 processor) | SPECpower_ssj2008 = 734 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Mar 24, 2009 |
Hardware Availability: | Jun-2008 | Software Availability: | Apr-2008 | Publication: | Apr 8, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

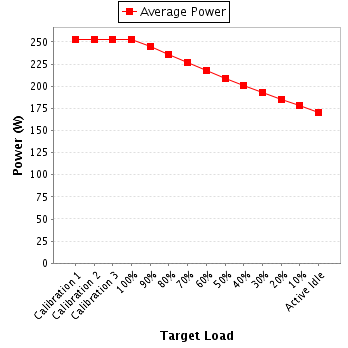

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 252 | 22.2 |
Calibration 2 | 253 | 22.1 |
Calibration 3 | 253 | 22.1 |
100% | 253 | 22.1 |
90% | 245 | 22.1 |
80% | 236 | 22.1 |
70% | 227 | 22.1 |
60% | 218 | 22.1 |
50% | 209 | 21.9 |
40% | 201 | 21.9 |
30% | 193 | 21.9 |
20% | 185 | 21.9 |
10% | 178 | 21.9 |
Active Idle | 170 | 21.9 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91GB45371 |
Connectivity: | GPIB |
Input Connection: | Default |
Calibration Institute: | NIST |
Accredited by: | HP Metrology |
Calibration Label: | 705420 |
Date of Calibration: | 26-Nov-2008 |
PTDaemon Host System: | Controller |
PTDaemon Host OS: | Windows XP Professional |
PTDaemon Version: | 1.3.2-e0c92e60 |
Setup Description: | -- |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 4.20.0.0 |
Connectivity: | USB |
PTDaemon Host System: | Controller |
PTDaemon Host OS: | Windows XP Professional |
Setup Description: | -- |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 205 | 300 | 1.28 | 2 | 0.962 | 252 | -- |
Calibration 2 | 205 | 300 | 1.28 | 2 | 0.962 | 253 | -- |
Calibration 3 | 205 | 300 | 1.28 | 2 | 0.962 | 253 | -- |
100% | 205 | 300 | 1.28 | 2 | 0.962 | 253 | -- |
90% | 205 | 300 | 1.25 | 2 | 0.960 | 245 | -- |
80% | 205 | 300 | 1.20 | 2 | 0.957 | 236 | -- |
70% | 205 | 300 | 1.16 | 2 | 0.954 | 227 | -- |
60% | 205 | 300 | 1.12 | 2 | 0.951 | 218 | -- |
50% | 205 | 300 | 1.08 | 2 | 0.947 | 209 | -- |
40% | 205 | 300 | 1.04 | 2 | 0.943 | 201 | -- |
30% | 205 | 300 | 0.999 | 2 | 0.940 | 193 | -- |
20% | 205 | 300 | 0.964 | 2 | 0.936 | 185 | -- |
10% | 205 | 300 | 0.930 | 2 | 0.932 | 178 | -- |
Active Idle | 206 | 300 | 0.891 | 2 | 0.929 | 170 | -- |
