Huawei Technologies Co., Ltd XH310 | ssj_ops@100% = 331,086 ssj_ops@100% per JVM = 165,543 |
||||
Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Oct 12, 2009 |
Hardware Availability: | Jul-2010 | Software Availability: | Jun-2010 | Publication: | Nov 10, 2010 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 329,473 | ||
Calibration 2 | 332,313 | ||
Calibration 3 | 332,481 | ||
ssj_ops@calibrated=332,397 | |||
100% | 99.6% | 332,397 | 331,086 |
90% | 89.9% | 299,157 | 298,939 |
80% | 80.3% | 265,918 | 266,887 |
70% | 70.3% | 232,678 | 233,583 |
60% | 59.7% | 199,438 | 198,604 |
50% | 49.8% | 166,199 | 165,610 |
40% | 40.0% | 132,959 | 133,023 |
30% | 29.7% | 99,719 | 98,723 |
20% | 20.2% | 66,479 | 67,033 |
10% | 9.9% | 33,240 | 32,807 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 4 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Huawei Technologies Co., Ltd |
Model: | XH310 |
Form Factor: | 1U |
CPU Name: | Intel Xeon X3480 |
CPU Characteristics: | Quad-Core, 3.06GHz, 8MB L3 Cache |
CPU Frequency (MHz): | 3067 |
CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
Hardware Threads: | 8 (2 / core) |
CPU(s) Orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 8 |
# and size of DIMM: | 2 x 4 GB |
Memory Details: | 4GB 2Rx8 PC3L-10600E ECC |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | 1 x 160GB SSD 2.5" SATA |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82576EB Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Power Saver enabled in OS |
Operating System (OS): | Windows Server 2008 R2, Enterprise Edition |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [0x0F,0xF0] |
JVM Instances: | 2 |
JVM Initial Heap (MB): | 1900 |
JVM Maximum Heap (MB): | 1900 |
JVM Address Bits: | 64 |
Boot Firmware Version: | FUSAV015 |
Management Firmware Version: | V015 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | IBM Websphere application server V7.0 for Windows on X86-64bit |

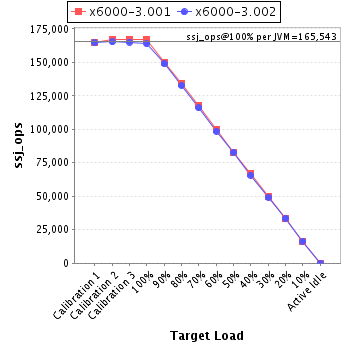

JVM Instance | ssj_ops@100% |
---|---|
x6000-3.001 | 167,241 |
x6000-3.002 | 163,845 |
ssj_ops@100% | 331,086 |
ssj_ops@100% per JVM | 165,543 |

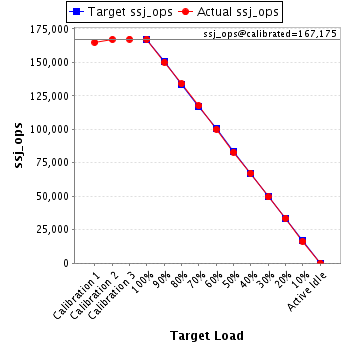

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 164,928 | ||
Calibration 2 | 167,039 | ||
Calibration 3 | 167,311 | ||
ssj_ops@calibrated=167,175 | |||
100% | 100.0% | 167,175 | 167,241 |
90% | 89.8% | 150,458 | 150,109 |
80% | 80.2% | 133,740 | 134,041 |
70% | 70.4% | 117,023 | 117,639 |
60% | 59.8% | 100,305 | 100,031 |
50% | 49.6% | 83,588 | 82,933 |
40% | 40.2% | 66,870 | 67,236 |
30% | 29.6% | 50,153 | 49,487 |
20% | 20.1% | 33,435 | 33,630 |
10% | 9.8% | 16,718 | 16,374 |
Active Idle | 0 | 0 |

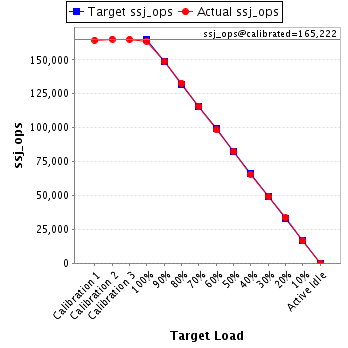

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 164,545 | ||
Calibration 2 | 165,273 | ||
Calibration 3 | 165,170 | ||
ssj_ops@calibrated=165,222 | |||
100% | 99.2% | 165,222 | 163,845 |
90% | 90.1% | 148,699 | 148,830 |
80% | 80.4% | 132,177 | 132,846 |
70% | 70.2% | 115,655 | 115,944 |
60% | 59.7% | 99,133 | 98,574 |
50% | 50.0% | 82,611 | 82,676 |
40% | 39.8% | 66,089 | 65,787 |
30% | 29.8% | 49,566 | 49,235 |
20% | 20.2% | 33,044 | 33,403 |
10% | 9.9% | 16,522 | 16,433 |
Active Idle | 0 | 0 |
