SPECsfs2008_nfs.v3 Result

EMC Corporation : Celerra VG8 Server Failover Cluster, 2 Data Movers (1 stdby) / Symmetrix VMAX
SPECsfs2008_nfs.v3 = 135521 Ops/Sec (Overall Response Time = 1.92 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
13521 0.9
27056 1.0
40730 1.2
54289 1.4
67857 1.7
81592 2.0
95206 2.4
108604 2.8
122448 3.6
135521 4.6
Performance Graph


Product and Test Information

Tested By EMC Corporation
Product Name Celerra VG8 Server Failover Cluster, 2 Data Movers (1 stdby) / Symmetrix VMAX
Hardware Available August 2010
Software Available August 2010
Date Tested July 2010
SFS License Number 47
Licensee Locations Hopkinton, MA

The Celerra VG8 Gateway Server system is a consolidation of file-based servers with NAS (NFS, CIFS) applications configured in an 1+1 High-Availability cluster. The servers deliver network services over high-speed Gigabit Ethernet. The cluster tested here consists of one active Data Mover that provides 8 Jumbo-frame capable Gigabit Ethernet interfaces and one stand-by Data Mover to provide high availability. The Celerra VG8 is a gateway to Shared Storage Array Symmetrix VMAX. The Symmetrix VMAX is a storage architecture using 4 VMAX engines interconnected via a set of multiple active 4 Gbit/s FC HBAs connecting to the fabric.

Configuration Bill of Materials

Item No Qty Type Vendor Model/Name Description
1 1 Enclosure EMC VG8-DME0 Celerra VG8 empty Data Mover add on enclosure
2 1 Enclosure EMC VG8-DME1 Celerra VG8 empty Data Mover add on enclosure
3 2 Data Mover EMC VG8-DM-8A Celerra VG8 Data Mover, 8 GbE ports, 4 FC ports
4 1 Control station EMC VG8-CSB Celerra VG8 control station (Administration only)
5 2 Software EMC VG8-UNIX-L Celerra VG8 UNIX License
6 1 Intelligent Storage Array Engine EMC SB-64-BASE Symmetrix VMAX Base Engine, 64 GB Cache
7 3 Intelligent Storage Array Engine EMC SB-ADD64NDE Symmetrix VMAX Add Engine, 64 GB Cache
8 16 FE IO Module EMC SB-FE80000 Symmetrix VMAX Front End IO Module with multimode SFP's
9 32 Drive Enclosure EMC SB-DE15-DIR Symmetrix VMAX Direct Connect Storage Bay, Drive Enclosure
10 304 FC Disk SEAGATE NS4154501B Symmetrix VMAX Cheetah 450 GB 15K.6 4 Gbit/s FC Disks
11 8 FC Disk SEAGATE NS4154501B Symmetrix VMAX Cheetah 450 GB 15K.6 4 Gbit/s FC Disks
12 4 Standby Power Supply EMC SB-DB-SPS VMAX Standby Power Supply
13 1 FC Switch EMC EMC DS-5100B 40 port Fibre Channel Switch

Server Software

OS Name and Version DART 6.0.36.2
Other Software EMC Celerra Control Station Linux 2.6.18-128.1.1.6005.EMC
Filesystem Software Celerra UxFS File System

Server Tuning

Name Value Description
ufs syncInterval 22500 Timeout between UFS log flushes
file asyncThresholdPercentage 80 Total cached dirty blocks for NFSv3 async writes
ufs cgHighWaterMark 131071 Defines the system's high water mark for the number of CG entries in CG cache
ufs inoBlkHashSize 170669 Inode block hash size
kernel autoreboot 600 Delay until autoreboot
ufs updateAccTime 0 Disable access time updates
ufs nFlushDir 64 Number of UxFS directory and indirect blocks flush threads
file prefetch 0 Disable DART read pre-fetch
ufs inoHighWaterMark 65536 Number of dirty inode buffers per filesystem
nfs thrdToStream 16 Number of NFS flush threads per stream
ufs inoHashTableSize 1000003 Inode hash table size
kernel maxStrToBeProc 32 Number of network streams to process at once
ufs nFlushIno 96 Number of UxFS inode blocks flush threads
ufs nFlushCyl 64 Number of UxFS cylinder group blocks flush threads
nfs nthreads 6 Number of threads dedicated to serve nfs requests
nfs withoutCollector 1 Enable NFS-to-CPU thread affinity
file dnlcNents 12500000 Directory name lookup cache size
nfs ofCachesize 1080000 NFS openfile cache size
file cachedNodes 1536000 filesystem vnodes cache size
tcp backlog 128 Connection limit for a given port
nfs start nfsd 4 Number of NFS daemons

Server Tuning Notes


Disks and Filesystems

Description Number of Disks Usable Size
This set of 304 FC disks is divided into 152 2-disk RAID1 pairs, each with 4 LUs per drive, exported as 304 logical volumes. All data file systems reside on these disks. 304 18.8 TB
This set of FC disks consists of 4 2-disk RAID1 pairs, each with 2 LUs per drive, exported as 8 logical volumes. These disks are reserved for Celerra system use. 8 900.0 GB
Total 312 19.7 TB
Number of Filesystems 4
Total Exported Capacity 19234 GB
Filesystem Type UxFS
Filesystem Creation Options Default
Filesystem Config Each filesystem is striped (32 KB element size), across 76 disks (304 logical volumes) for fs1 fs2 fs3 and fs4
Fileset Size 15806.5 GB

The drives were configured as 152 RAID1 pairs. 38 RAID1 pairs were assigned to each Symmetrix VMAX engine. Each RAID1 pair had 6 LUNS created on it, of which only 1 LUN was used per RAID1 pair. 4 stripes were created, one per 38 RAID1 pair group with a stripe element of 32K. 4 file systems were created, 1 per stripe. A Symmetrix VMAX engine provided access to the drives of 1 file system. All 4 file systems were mounted on the Celerra Data Mover. All 4 file systems were exported by the Celerra Data Mover. Each client mounted all 4 file systems through each network interface of the Celerra.

Network Configuration

Item No Network Type Number of Ports Used Notes
1 Jumbo Gigabit Ethernet 8 This is the Gigabit network interface used for the active Data Mover.

Network Configuration Notes

All Gigabit network interfaces were connected to a Cisco 6509 switch.

Benchmark Network

An MTU size of 9000 was set for all connections to the switch. Each Data Mover was connected to the network via 8 ports. The LG1 class workload machines were connected with one port.

Processing Elements

Item No Qty Type Description Processing Function
1 1 CPU Single socket Intel Six Core Westmere 2.8 GHz VG8 with QPI speed 6400 MHz for each Data Mover server. 1 chip active for the workload. (1 standby not in the quantity) NFS protocol, UxFS filesystem

Processing Element Notes

Each Data Mover has one physical processor.

Memory

Description Size in GB Number of Instances Total GB Nonvolatile
Each Data Mover main memory. (24 GB in the standby Data Mover not in the quantity) 24 1 24 V
Symmetrix VMAX storage array battery backed global memory. (64 GB per Symmetrix VMAX engine) 64 4 256 NV
Grand Total Memory Gigabytes     280

Memory Notes

The Symmetrix VMAX was configured with a total of 256 GB of memory. The memory is backed up with sufficient battery power to safely destage all the cached data onto the disk in the event of a power failure.

Stable Storage

4 NFS file systems were used. Each RAID1 pair had 4 LUs bound on it. Each file system was striped over a quarter of the logical volumes. The storage array had 8 Fibre Channel connections, 4 per Data Mover. In this configuration, NFS stable write and commit operations are not acknowledged until after the storage array has acknowledged that the related data has been stored in stable storage (i.e. NVRAM or disk).

System Under Test Configuration Notes

The system under test consisted of one Celerra VG8 Gateway Data Mover attached to a Symmetrix VMAX Storage Array with 8 FC links. The Data Movers were running DART 6.0.36.2. 8 GbE Ethernet ports on the Data Mover were connected to the network.

Other System Notes

Failover is supported by an additional Celerra Data Mover that operates in stand-by mode. In the event of the Data Mover failure, the standby unit takes over the function of the failed unit. The stand-by Data Mover does not contribute to the performance of the system and it is not included in the components listed above.

Test Environment Bill of Materials

Item No Qty Vendor Model/Name Description
1 18 Dell Dell PowerEdge 1850 Dell server with 1 GB RAM and the Linux 2.6.9-42.ELsmp operating system

Load Generators

LG Type Name LG1
BOM Item # 1
Processor Name Intel(R) Xeon(TM) CPU 3.60GHz
Processor Speed 3.6 GHz
Number of Processors (chips) 2
Number of Cores/Chip 2
Memory Size 1 GB
Operating System Linux 2.6.9-42.ELsmp
Network Type 1 x Broadcom BCM5704 NetXtreme Gigabit Ethernet

Load Generator (LG) Configuration

Benchmark Parameters

Network Attached Storage Type NFS V3
Number of Load Generators 18
Number of Processes per LG 32
Biod Max Read Setting 5
Biod Max Write Setting 5
Block Size AUTO

Testbed Configuration

LG No LG Type Network Target Filesystems Notes
1..18 LG1 1 /fs1,/fs2,/fs3,/fs4 N/A

Load Generator Configuration Notes

All filesystems were mounted on all clients, which were connected to the same physical and logical network.

Uniform Access Rule Compliance

Each client has the same file systems mounted from the active Data Mover.

Other Notes

Failover is supported by an additional Celerra Data Mover that operates in stand-by mode. In the event of the Data Mover failure, the standby unit takes over the function of the failed unit. The stand-by Data Mover does not contribute to the performance of the system and it is not included in the components listed above.

The Symmetrix VMAX was configured with 256 GB of memory, 64 GB per VMAX engine. The memory is backed up with sufficient battery power to safely destage all cached data onto the disk in the event of a power failure.

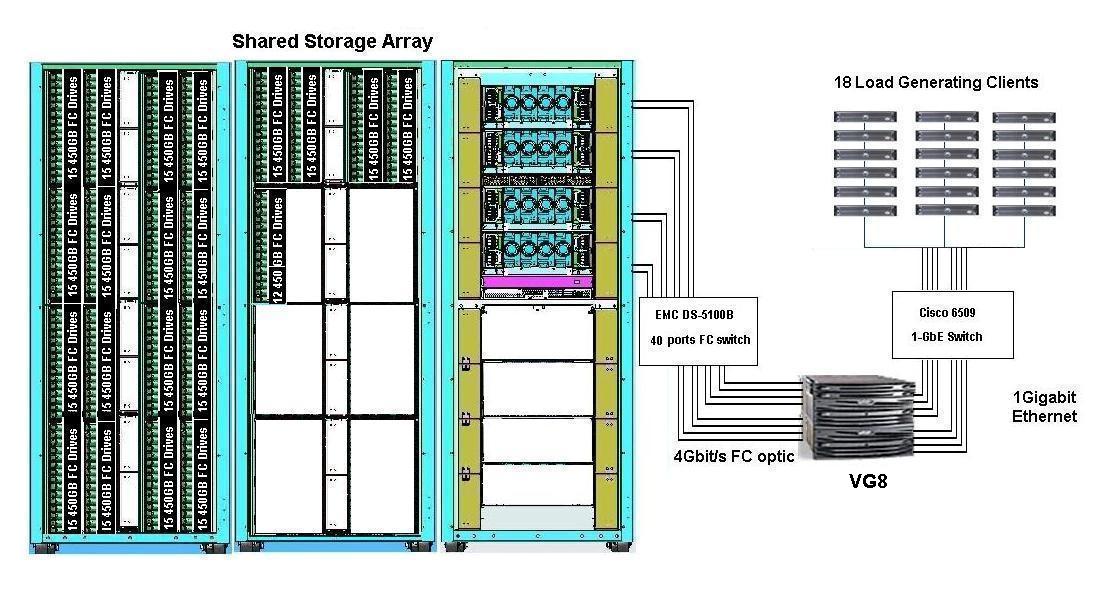

Config Diagrams


Generated on Wed Aug 25 11:57:22 2010 by SPECsfs2008 HTML Formatter
Copyright © 1997-2008 Standard Performance Evaluation Corporation

First published at SPEC.org on 25-Aug-2010
