SPECsfs97.v2 Result

IBM Corporation :RS/6000 Model 7026-M80
SPECsfs97.v2 =27210 Ops/Sec (Overall Response Time = 3.73 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
26912.4
54363.4
81403.1
108753.0
135863.2
163313.3
190493.8
217524.3
245905.7
2721010.4

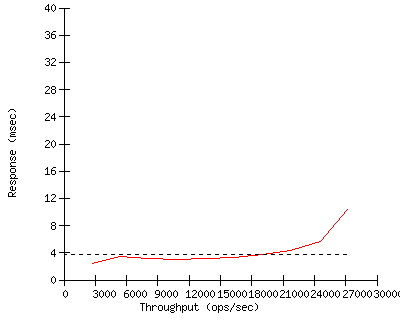

Performance Graph


Configuration

Server Configuration and Availability
Vendor IBM Corporation
Hardware Available June 2000
Software AvailableJune 2000
Date TestedApril 2000
SFS License Number11
Licensee LocationsAustin, Texas

CPU, Memory and Power
Model Name RS/6000 Model 7026-M80
Processor 500MHz RS64-III
# of Processors 8
Primary Cache 128KBI+128KBD on chip
Secondary Cache 4MB(I+D) off chip
Other Cache None
UPS N/A
Other Hardware N/A
Memory Size 8 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionAIX 4.3.3 plus APAR IY09807
Other Software N/A
File System JFS
NFS version 2

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 252
Fileset Size 261.1 GB

Network Subsystem
Network Type Jumbo Frame Gigabit
Network Controller Desc. Gigabit Ethernet-SX PCI Adapter
Number Networks 3 (N1-N3)
Number Network Controllers3
Protocol Type TCP

Switch Type 3 Alteon ACEswitch 180 Ethernet Switches
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4
Number of Disks 289
Number of Filesystems 252 (F1-F252)
File System Creation Opsdefault
File System Config See Other Notes

Disk Controller Wide/Ultra-2 SCSI I/O Controller
# of Controller Type 1
Number of Disks 1
Disk Type 9.1GB 7200rpm 16-bit SCSI (P/N 25L1861)
File Systems on Disks OS, page space
Special Config Notes N/A

Disk Controller IBM SSA 160 SerialRAID Adapter
# of Controller Type 3 (i=0,1,2)
Number of Disks 96/96/96
Disk Type 18.2GB 10000rpm SSA (P/N 34L8485)
File Systems on Disks F[(i*84)+1] - F[(i+1)*84], i=0,1,2
Special Config Notes SSA adapters/disks configured in JBOD mode

Load Generator (LG) Configuration
Number of Load Generators 9
Number of Processes per LG28
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model RS/6000 Model 43P-260
Number and Type Processors2 200MHz POWER3
Memory Size 512MB
Operating System AIX 4.3.3
Compiler CSet++ 3.1.3
Compiler Options '-DSETPGRP_SYSV' and 'EXTRA_LINTFLAGS= -Nn6000 -Nd4000'
Network Type Gigabit Ethernet-SX PCI Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1,F85,F169,F2,F86,F170,F3,F87,F171,...,F9,F93,F177,F10N/A
2LG1N1F94,F178,F11,F95,F179,F12,F96,F180,F13,...,F102,F186,F19,F103N/A
3LG1N1F187,F20,F104,F188,F21,F105,F189,F22,F106,...,F195,F28,F112,F196N/A
4LG1N2F29,F113,F197,F30,F114,F198,F31,F115,F199,...,F37,F121,F205,F38N/A
5LG1N2F122,F206,F39,F123,F207,F40,F124,F208,F41,...,F130,F214,F47,F131N/A
6LG1N2F215,F48,F132,F216,F49,F133,F217,F50,F134,...,F223,F56,F140,F224N/A
7LG1N3F57,F141,F225,F58,F142,F226,F59,F143,F227,...,F65,F149,F233,F66N/A
8LG1N3F150,F234,F67,F151,F235,F68,F152,F236,F69,...,F158,F242,F75,F159N/A
9LG1N3F243,F76,F160,F244,F77,F161,F245,F78,F162,...,F251,F84,F168,F252N/A


Other Notes


Wed May 17 14:00:37 2000

First published at SPEC.org on 16-May-2000
