SPECsfs97.v3 Result

EMC Corporation :Celerra 507 Cluster (1FS)
SPECsfs97.v3 =8787 Ops/Sec (Overall Response Time = 2.24 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
8461.2
17011.6
25331.8
33842.4
42392.1
50852.4
59302.4
67932.7
76093.1
84493.7
87875.4

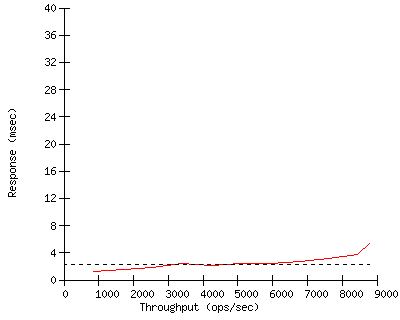

Performance Graph


Configuration

Server Configuration and Availability
Vendor EMC Corporation
Hardware Available July 2000
Software AvailableAugust 2000
Date TestedJune 2000
SFS License Number47
Licensee LocationsHopkinton, MA

CPU, Memory and Power
Model Name Celerra 507 Cluster (1FS)
Processor 700 MHz Pentium III, Slot I
# of Processors 1
Primary Cache 16KBI+16KBD on chip
Secondary Cache 256KB ATC on chip
Other Cache N/A
UPS N/A
Other Hardware 1 Control Station, Model 506
Memory Size 512 MB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionData Access in Real Time (DART) v2.1.15.200
Other Software UnixWare v2.1.3 on Control Station
File System UxFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 192
Fileset Size 84.6 GB

Network Subsystem
Network Type Jumbo Frame Gigabit
Network Controller Desc. Alteon AceNIC Rev C
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type UDP

Switch Type 1 Alteon ACEswitch 180
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 1
Number of Disks 34
Number of Filesystems 1 (F1)
File System Creation Opsdefault
File System Config Striped across 32 volumes with 8KB stripe unit

Disk Controller Symmetrix Model 8430 with 4 UWDSCSI connections
# of Controller Type 1
Number of Disks 34
Disk Type Seagate Cheetah 36GB
File Systems on Disks RootFS (1), UxFS log (1), File System F1 (32)
Special Config Notes 16GB memory in Symmetrix, code 5266.15.13S

Load Generator (LG) Configuration
Number of Load Generators 2
Number of Processes per LG32
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model SPARC Ultra Enterprise 2
Number and Type Processors2 x 296 MHz UltraSPARC
Memory Size 512 MB
Operating System Solaris 2.5.1
Compiler SC4.0
Compiler Options M.solaris2
Network Type Alteon AceNIC (Rev A) with Alteon driver v2.0.24

LG Type LG2
LG Model SPARC Ultra Enterprise 2
Number and Type Processors2 x 296 MHz UltraSPARC
Memory Size 512 MB
Operating System Solaris 2.6
Compiler SC4.0
Compiler Options M.solaris2
Network Type Alteon AceNIC (Rev A) with Alteon driver v2.0.24

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1N/A
2LG2N1F1N/A


Other Notes


Wed Jun 28 12:18:11 2000

First published at SPEC.org on 27-Jun-2000
