SPECsfs97.v2 Result

Network Appliance, Inc. :F840 Scalable Storage Network Cluster (16-node, non-failover, UDP, 448x18GB FCAL, 16xGbE)
SPECsfs97.v2 =250573 Ops/Sec (Overall Response Time = 1.58 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
250250.9
499401.2
748071.3
998891.5
1280591.4
1545871.6
1787341.8
2024282.2
2258222.5
2505733.0

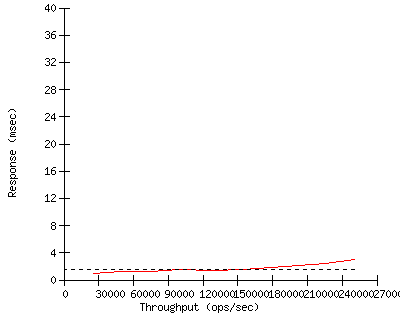

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available August 2000
Software AvailableOctober 2000
Date TestedSeptember 2000
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name F840 Scalable Storage Network Cluster (16-node, non-failover, UDP, 448x18GB FCAL, 16xGbE)
Processor 733-MHz Intel Pentium III Coppermine
# of Processors 16 (1 per node)
Primary Cache 16 KB I + 16 KB D
Secondary Cache 256 KB on-die
Other Cache n/a
UPS none
Other Hardware none
Memory Size 49152 MB (3072 MB per node)
NVRAM Size 2048 MB (128 MB per node)
NVRAM Type DIMMs on PCI cards
NVRAM Description15-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 5.3.7
Other Software none
File System WAFL
NFS version 2

Server Tuning
Buffer Cache Size default
# NFS Processes n/a
Fileset Size 2417.4 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. X1025B PCI adapter card
Number Networks 1 (N1)
Number Network Controllers16 (1 per node)
Protocol Type UDP

Switch Type Foundry Networks: 8 FastIrons, 1 BigIron
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 32
Number of Disks 448 (64 7-bay JBOD shelves)
Number of Filesystems 16
File System Creation Opschecksum_blocks off
File System Config 1 RAID-group of 27 disks

Disk Controller X2040B FC-AL adapter card (128 KB RAM standard)
# of Controller Type 32
Number of Disks 448 (14 per controller)
Disk Type X221 18GB FC-AL
File Systems on Disks F1-F16
Special Config Notes none

Load Generator (LG) Configuration
Number of Load Generators 64
Number of Processes per LG16
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Intel ISP1100 Internet Server Platform
Number and Type Processors1x700-MHz Pentium III
Memory Size 512 MB
Operating System Linux 2.2.5-14-5.0 (Red Hat 6.2)
Compiler egcs-2.91.66
Compiler Options -DNO_T_TYPES -DUSE_INTTYPES
Network Type integrated Intel Pro/100+ 100BASE-T

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
64LG1N1F1-F16N/A


Other Notes


Mon Sep 25 11:41:00 2000

First published at SPEC.org on 20-Sep-2000
