SPECsfs97.v3 Result

Compaq Computer Corporation :Compaq AlphaServer ES40 Model 6/667
SPECsfs97.v3 =14157 Ops/Sec (Overall Response Time = 3.14 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
14001.1
28341.3
42771.5
57131.7
71072.2
85142.5
99423.3
113624.0
127815.1
1415717.9

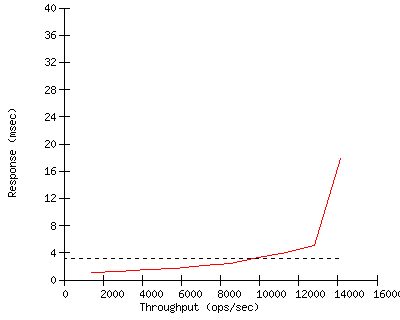

Performance Graph


Configuration

Server Configuration and Availability
Vendor Compaq Computer Corporation
Hardware Available February 2000
Software AvailableSeptember 2000
Date TestedNovember 2000
SFS License Number2
Licensee LocationsNashua, NH

CPU, Memory and Power
Model Name Compaq AlphaServer ES40 Model 6/667
Processor 667 MHz 21264A
# of Processors 4
Primary Cache 64KB(I)+64KB(D) on chip
Secondary Cache 8MB off chip
Other Cache None
UPS Compaq R6000 UPS, 6000VA RACKMOUNT UPS, US
Other Hardware N/A
Memory Size 16 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionCompaq Tru64 UNIX V5.1 (Rev. 732)
Other Software N/A
File System UFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic (UBC Cache)
# NFS Processes 96 kernel threads
Fileset Size 137.3 GB

Network Subsystem
Network Type Jumbo Frame Gigabit
Network Controller Desc. PCI to Gigabit Ethernet Controller (DEGPA-SA)
Number Networks 2 (N1-N2)
Number Network Controllers2
Protocol Type UDP

Switch Type 1 x ALTEON WebSystems Alteon 180
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 5
Number of Disks 73
Number of Filesystems 36 (F0-F35)
File System Creation Opsdefault
File System Config default

Disk Controller Internal Ultra SCSI controller
# of Controller Type 1
Number of Disks 1
Disk Type DS-RZ1CF-VW (4.3GB Ultra SCSI, 7200rpm)
File Systems on Disks OS, swap
Special Config Notes OS (partitions A & G), Swap (partitions B & H)

Disk Controller PCI to Fibre Channel Controller (DS-KGPSA-CA)
# of Controller Type 4
Number of Disks 72
Disk Type DS-RZ1CF-VW (4.3GB Ultra SCSI, 7200rpm)
File Systems on Disks F0-F35
Special Config Notes See Other notes

Load Generator (LG) Configuration
Number of Load Generators 6
Number of Processes per LG36
Biod Max Read Setting 6
Biod Max Write Setting 6

LG Type LG1
LG Model Digital Personal Workstation 600au
Number and Type Processors1 600MHz 21164A
Memory Size 1GB
Operating System Compaq Tru64 UNIX V5.0A (Rev. 1094) (see Other Notes)
Compiler cc
Compiler Options M.dec_unix
Network Type PCI to Gigabit Ethernet Controller (DEGPA-SA)

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F0, F1..F35see Other Notes
2LG1N2F1, F2...F35, F0see Other Notes
3LG1N1F2, F3...F35, F0, F1see Other Notes
4LG1N2F3, F4...F35, F0, F1, F2see Other Notes
5LG1N1F4, F5...F35, F0, F1, F2, F3see Other Notes
6LG1N2F5, F6...F35, F0, F1, F2, F3, F4see Other Notes


Other Notes


Wed Nov 29 11:24:32 2000

First published at SPEC.org on 14-Nov-2000
