SPECsfs97.v3 Result

Network Appliance, Inc. :NetApp F840 (UDP, 42x36GB FCAL, GbE)
SPECsfs97.v3 =11626 Ops/Sec (Overall Response Time = 1.44 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
11121.1
22321.3
33521.5
46861.2
58411.2
69001.3
78791.7
90541.6
100892.0
112562.3
116262.8

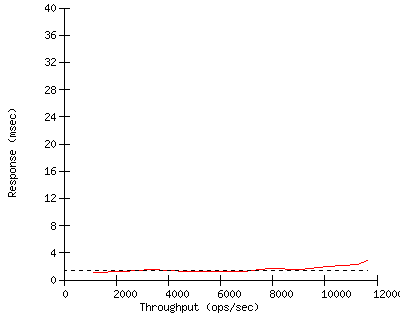

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available December 2000
Software AvailableDecember 2000
Date TestedJanuary 2001
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name NetApp F840 (UDP, 42x36GB FCAL, GbE)
Processor 733-MHz Intel Pentium III Coppermine
# of Processors 1
Primary Cache 16 KB I + 16 KB D
Secondary Cache 256 KB on-die
Other Cache N/A
UPS none
Other Hardware none
Memory Size 3072 MB
NVRAM Size 128 MB
NVRAM Type DIMM on PCI card
NVRAM Description15-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 6.0.1R1
Other Software none
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 112.2 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. X1025B PCI adapter card
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type UDP

Switch Type NetGear FS518
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 42
Number of Filesystems 1
File System Creation Opsdefault
File System Config 5 RAID-groups of 8 disks each

Disk Controller X2040B FC-AL adapter card (128 KB RAM standard)
# of Controller Type 2
Number of Disks 7,7,7/7,7,7
Disk Type X231A 36GB 10000RPM FC-AL
File Systems on Disks F1/F1
Special Config Notes none

Load Generator (LG) Configuration
Number of Load Generators 8
Number of Processes per LG4
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Intel ISP1100 Internet Server Platform
Number and Type Processors1x700-MHz Pentium III
Memory Size 512 MB
Operating System Linux 2.2.14-5.0 (Red Hat 6.2)
Compiler egcs-2.91.66
Compiler Options -g -DNO_T_TYPES -DUSE_INTTYPES
Network Type integrated Intel Pro/100+ 100BASE-T

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../8LG1N1F1N/A


Other Notes


Tue Feb 6 14:57:03 2001

First published at SPEC.org on 06-Feb-2001
