SPECsfs97.v2 Result

IBM Corporation :RS/6000 7025 Model F50
SPECsfs97.v2 =2217 Ops/Sec (Overall Response Time = 5.58 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
2192.5
4392.9
6593.3
8763.7
11024.4
13255.5
15506.7
17697.7
19949.7
221715.9

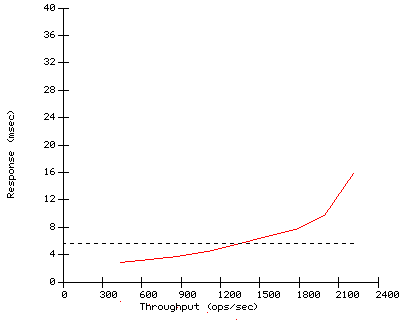

Performance Graph


Configuration

Server Configuration and Availability
Vendor IBM Corporation
Hardware Available April 1997
Software AvailableApril 1997
Date TestedNovember 1997
SFS License Number11
Licensee LocationsAustin, Texas

CPU, Memory and Power
Model Name RS/6000 7025 Model F50
Processor 166MHz PowerPC 604e
# of Processors 2
Primary Cache 32KBI+32KBD on chip
Secondary Cache 256KB(I+D) off chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 1GB
NVRAM Size 4MB
NVRAM Type Battery-backed
NVRAM Description4MB per SSA disk adapter

Server Software
OS Name and VersionAIX Version 4.2.1
Other Software N/A
File System JFS
NFS version 2

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 100
Fileset Size 21.3 GB

Network Subsystem
Network Type FDDI
Network Controller Desc. SysKonnect PCI FDDI Adapter (48110040)
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type N/A
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 5
Number of Disks 97
Number of Filesystems 64
File System Creation Opsdefault
File System Config default

Disk Controller Integrated SCSI-2 Fast/Wide
# of Controller Type 1
Number of Disks 1
Disk Type 2.2GB 16-bit SCSI
File Systems on Disks OS, page space
Special Config Notes

Disk Controller IBM SSA Enhanced RAID Adapter (14104500)
# of Controller Type 4
Number of Disks 24
Disk Type 4.5GB SSA (89H4941)
File Systems on Disks F1-F16, F17-F32, F33-F48, F49-F64
Special Config Notes SSA adapter configured in non-RAID mode.

Load Generator (LG) Configuration
Number of Load Generators 2
Number of Processes per LG32
Biod Max Read Setting 4
Biod Max Write Setting 4

LG Type LG1
LG Model RS/6000 Model 39H
Number and Type ProcessorsPower2 77Mhz
Memory Size 512MB
Operating System AIX 4.2.1
Compiler CSet++ 3.1.1
Compiler Options N/A
Network Type IBM MCA FDDI dual ring adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1,F3,F5,F7,...,F63
2LG1N1F2,F4,F6,F8,...,F64


Other Notes


Wed Jan 28 10:21:10 1998
