SPECsfs97.v3 Result

Network Appliance, Inc. :NetApp F630
SPECsfs97.v3 =3345 Ops/Sec (Overall Response Time = 3.75 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
2931.9
5932.2
8872.4
11872.7
14913.1
17813.5
20833.8
23884.4
26775.0
29976.2
30516.6
30786.9
31317.0
31777.4
32257.5
32848.1
33459.3

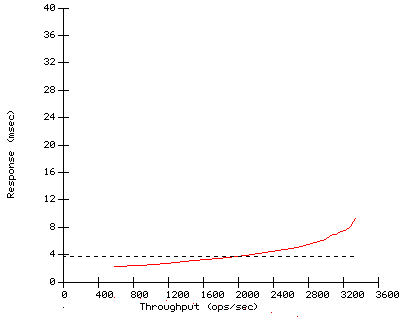

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available June 1997
Software AvailableJanuary 1998
Date TestedNovember 1997
SFS License Number33
Licensee LocationsSanta Clara, CA

CPU, Memory and Power
Model Name NetApp F630
Processor 500MHz Alpha 21164A
# of Processors 1
Primary Cache 8KBI+8KBD on chip
Secondary Cache 96KB(I+D) on chip
Other Cache 2MB(I+D) off chip
UPS N/A
Other Hardware N/A
Memory Size 512 MB
NVRAM Size 32MB
NVRAM Type NVRAM SIMMs on PCI card
NVRAM Description6-month battery-backed shelf-life

Server Software
OS Name and VersionNetApp OS version 5.0 beta
Other Software N/A
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes see notes
Fileset Size 32.4 GB

Network Subsystem
Network Type FDDI
Network Controller Desc. x1102 (SA TP) MLT3 FDDI Adaptor
Number Networks 3 (N1-N3)
Number Network Controllers3
Protocol Type UDP

Switch Type N/A
Bridge Type N/A
Hub Type N/A
Other Network Hardware DEC Concentrator

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 26
Number of Filesystems 1
File System Creation Opsdefault
File System Config default

Disk Controller Dual-Channel Fast/Wide/Differential SCSI
# of Controller Type 2
Number of Disks 26 (2 X623 13-disk shelf-pairs)
Disk Type 9-GB Seagate Barracuda
File Systems on Disks F1
Special Config Notes two RAID groups (13 disks each)

Load Generator (LG) Configuration
Number of Load Generators 9
Number of Processes per LG4
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Sun Microsystems Ultra 1/170
Number and Type Processors1 167-MHz UltraSPARC
Memory Size 128MB
Operating System Solaris 2 version 2.5.1
Compiler gcc 2.6.3
Compiler Options see SPEC-supplied wrapper & makefile
Network Type FDDI

LG Type LG2
LG Model Sun Microsystems Ultra 2
Number and Type Processors1 168-MHz UltraSPARC-II
Memory Size 128MB
Operating System Solaris 2 version 2.6
Compiler gcc 2.6.3
Compiler Options see SPEC-supplied wrapper & makefile
Network Type FDDI

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1,4,7LG1N1F1
2,5,8LG1N2F1
3LG1N3F1
6,9LG2N3F1


Other Notes


Wed Jan 28 10:21:16 1998
