SPECsfs97.v3 Result

Sun Microsystems Inc. :Sun Enterprise 4002
SPECsfs97.v3 =10592 Ops/Sec (Overall Response Time = 5.66 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
10202.4
20833.4
30914.5
41464.9
52024.8
62365.6
72886.4
82676.9
92967.7
1040013.9
1047613.2
1059216.0

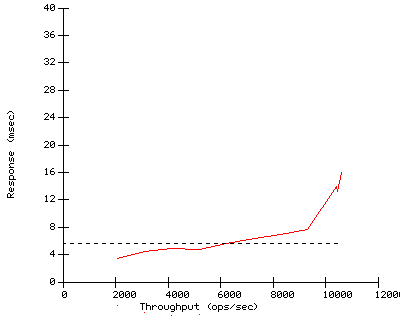

Performance Graph


Configuration

Server Configuration and Availability
Vendor Sun Microsystems Inc.
Hardware Available March 1998
Software AvailableMay 1996
Date TestedFebruary 1998
SFS License Number6
Licensee LocationsPalo Alto, CA

CPU, Memory and Power
Model Name Sun Enterprise 4002
Processor 336 MHz UltraSPARC II
# of Processors 12
Primary Cache 16KBI+16KBD on chip
Secondary Cache 4MB(I+D) off chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 6 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionSolaris 2.5.1
Other Software N/A
File System UFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 383
Fileset Size 102.1 GB

Network Subsystem
Network Type 100Mbit Sun FastEthernet
Network Controller Desc. SunSwift 100baseT f/w SCSI SBus Adapter
Number Networks 6 (N1-N6)
Number Network Controllers6
Protocol Type UDP

Switch Type 2 SunSwitch (N1, N4)
Bridge Type N/A
Hub Type 4 CISCO FastHub 104T (N2, N3, N5, N6)
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 9
Number of Disks 196
Number of Filesystems 192 (F1-F192)
File System Creation Opsdefault
File System Config default

Disk Controller On-board SCSI-2
# of Controller Type 1
Number of Disks 4
Disk Type 2GB 7200rpm
File Systems on Disks OS, swap
Special Config Notes

Disk Controller FC SBUS Adapter (FC25/S)/FC Optical Module (FC25/OM)
# of Controller Type 8
Number of Disks 192
Disk Type 2GB 7200rpm
File Systems on Disks F1-24,F25-F48,F49-F72, F73-F96,F97-F120,F121-F144, F145-F168,F169-F192
Special Config Notes SPARCstorage Array 102 each w/ 24 drives

Load Generator (LG) Configuration
Number of Load Generators 16
Number of Processes per LG12
Biod Max Read Setting 5
Biod Max Write Setting 5

LG Type LG1
LG Model Ultra1-170
Number and Type Processors1 167MHz UltraSPARC
Memory Size 128MB
Operating System Solaris 2.6
Compiler SC3.0
Compiler Options N/A
Network Type SunSwift 100baseT f/w SCSI SBus Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/3/4LG1N1F1,..,F177/F2,..,F178/F3,..,F179/F4,..,F180
5/6LG1N2F5,..,F181/F6,..,F182
7/8LG1N3F7,..,F183/F8,..,F184
9/10/11/12LG1N4F9,..,F185/F10,..,F186/F11,..,F187/F12,..,F188
13/14LG1N5F13,..,F189/F14,..,F190
15/16LG1N6F15,..,F191/F16,..,F192


Other Notes


Wed Feb 25 14:41:40 1998
