SPECsfs97_R1.v3 Result

EMC Corp. :Celerra 510 cluster (2FS, non-failover)
SPECsfs97_R1.v3 =33128 Ops/Sec (Overall Response Time = 2.51 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
33101.6
66811.6
99661.7
132441.7
166952.0
200692.3
233292.8
268193.4
301814.2
331288.5

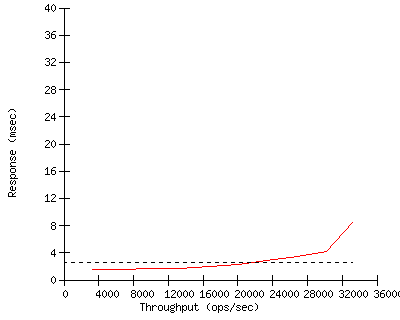

Performance Graph


Configuration

Server Configuration and Availability
Vendor EMC Corp.
Hardware Available January 2002
Software AvailableJanuary 2002
Date TestedApril 17 2002
SFS License Number47
Licensee LocationsHopkinton, MA

CPU, Memory and Power
Model Name Celerra 510 cluster (2FS, non-failover)
Processor 866 MHz Pentium III
# of Processors 4
Primary Cache 16KBI+16KBD on chip
Secondary Cache 256KB(I+D) on chip
Other Cache N/A
UPS N/A
Other Hardware 1 507 Control Station, 1 Brocade Silkworm 2800
Memory Size 6 GB (3GB per node)
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionDart 4.0.14.0
Other Software Redhat Linux 6.2 on Control Station
File System UxFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 156
Fileset Size 319.1 GB

Network Subsystem
Network Type Jumbo Gigabit Ethernet
Network Controller Desc. Alteon AceNIC
Number Networks 2
Number Network Controllers4 (2 per node)
Protocol Type TCP

Switch Type Extreme BlackDiamond Gbe (Jumbo)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4
Number of Disks 92
Number of Filesystems 2
File System Creation Opsdefault
File System Config striped across 44 disk luns with a 64K stripe unit

Disk Controller Emulex LP8000DC Fibre Channel
# of Controller Type 4
Number of Disks 92
Disk Type Seagate Cheetah 73GB 10K RPM
File Systems on Disks OS (2), UxFS Log (2), Filesystem F1(44) F2(44)
Special Config Notes 16GB memory on Symmetrix. See notes below

Load Generator (LG) Configuration
Number of Load Generators 10
Number of Processes per LG26
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Sun Sparc 220R
Number and Type Processors2x450 MHz Sparc
Memory Size 512 MB
Operating System Solaris 2.8
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserver Gbe

LG Type LG2
LG Model Sun Sparc 420R
Number and Type Processors2x450 MHz Sparc
Memory Size 1 GB
Operating System Solaris 2.8
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserver Gbe

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG11F1,F2,F1,F2..N/A
2LG11F1,F2,F1,F2..N/A
3LG11F1,F2,F1,F2..N/A
4LG11F1,F2,F1,F2..N/A
5LG11F1,F2,F1,F2..N/A
6LG22F1,F2,F1,F2..N/A
7LG22F1,F2,F1,F2..N/A
8LG22F1,F2,F1,F2..N/A
9LG22F1,F2,F1,F2..N/A
10LG12F1,F2,F1,F2..N/A


Other Notes


Generated on Tue Apr 30 16:56:20 2002 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 30-Apr-2002
