SPECsfs97_R1.v3 Result

Spinnaker Networks :SpinServer 4100 (5-node Scalable Cluster)
SPECsfs97_R1.v3 =134385 Ops/Sec (Overall Response Time = 1.90 msec)

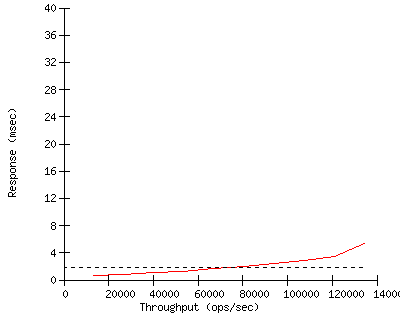

Performance Graph


Server Configuration and Availability
Vendor Spinnaker Networks
Hardware Available June 2003
Software AvailableJune 2003
Date TestedJune 2003
SFS License Number84
Licensee LocationsPittsburgh, PA

CPU, Memory and Power
Model Name SpinServer 4100 (5-node Scalable Cluster)
Processor 2.8 GHz Intel Xeon
# of Processors 10 (2 per node)
Primary Cache 12 K uops I + 8 KB D on-chip
Secondary Cache 512 KB on-chip
Other Cache N/A
UPS APC Smart-UPS 1000 (1 per node)
Other Hardware none
Memory Size 20 GB (4 GB per node)
NVRAM Size 8.5 GB (1.7 GB per node)
NVRAM Type UPS backed write cache and mirrored local SCSI drives
NVRAM Descriptionsee notes

Server Software
OS Name and VersionSpinFS 2.1
Other Software none
File System SpinFS
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 1276.5 GB

Network Subsystem
Network Type Jumbo Frame Gigabit Ethernet
Network Controller Desc. 1316-0014-01 (PCI Adapter)
Number Networks 2 (N1-Client, N2-Cluster)
Number Network Controllers15 (1 Client and 2 Clusters per node)
Protocol Type TCP

Switch Type Extreme Summit 7i
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 5 (1 per node)
Number of Disks 240 (48 per node)
Number of Filesystems 1 namespace (see notes)
File System Creation Opsdefault
File System Config 45 RAID-Groups of 5 disks each

Disk Controller 1316-0015-01 (2Gb FC-AL Adapter)
# of Controller Type 5 (dual-ported)
Number of Disks 240
Disk Type 1320-0008-01 (146GB, 10K RPM)
File Systems on Disks F1
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 15
Number of Processes per LG45
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Dell PowerEdge 1550
Number and Type Processors2x1.0-GHz Pentium III
Memory Size 1024 MB
Operating System Linux 2.4.9-31smp (Red Hat 7.2)
Compiler gcc 2.96
Network Type 3COM 3C996-T GigE, MTU=9000

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes

Other Notes

Generated on Wed Jul 23 11:40:09 2003 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 24-Jun-2003
