SPECsfs97_R1.v3 Result

Hitachi Data Systems :NetApp GF940c Failover Cluster / HDS 9980V (32GB cache)
SPECsfs97_R1.v3 =36698 Ops/Sec (Overall Response Time = 0.99 msec)

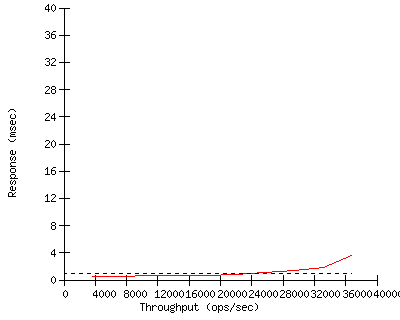

Performance Graph


Server Configuration and Availability
Vendor Hitachi Data Systems
Hardware Available April 2003
Software AvailableMay 2003
Date TestedMarch 2003
SFS License Number276
Licensee LocationsSanta Clara, CA

CPU, Memory and Power
Model Name NetApp GF940c Failover Cluster / HDS 9980V (32GB cache)
Processor 1.8-GHz Intel Pentium 4
# of Processors 2 cores, 2 chips, 1 core/chip (1 per node)
Primary Cache 12 K uops I + 8 KB D
Secondary Cache 512 KB on-die
Other Cache N/A
UPS APC Silcon 80KW
Other Hardware X1925A cluster adapter card (see notes)
Memory Size 38912 MB
NVRAM Size 512 MB (256 MB per node)
NVRAM Type DIMMs on PCI cards
NVRAM Descriptionminimum 7-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 6.4.1
Other Software Cluster Option
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 348.1 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. X1025D PCI adapter card
Number Networks 1 (N1)
Number Network Controllers2 (1 per node)
Protocol Type TCP

Switch Type Extreme BlackDiamond 6816 (N1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4
Number of Disks 128
Number of Filesystems 2
File System Creation Opsdefault
File System Config 32 RAID-5 groups of 4 disks each

Disk Controller X2050A FC-AL adapter card (256 KB RAM standard)
# of Controller Type 4
Number of Disks 32/32/32/32
Disk Type DKR2D-J72FC
File Systems on Disks F1/F1/F2/F2
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 32
Number of Processes per LG4
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Supermicro SuperServer 6010H
Number and Type Processors2 x 1.0-GHz Pentium III
Memory Size 1024 MB
Operating System SunOS 5.8 Generic_108529-11 i86pc i386
Compiler cc, used SFS97_R1 Precompiled Binaries
Compiler Options N/A
Network Type Intel Pro/1000 T Server Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes

Other Notes

Generated on Thu Apr 14 14:55:27 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 08-Jul-2003
