SPECsfs97_R1.v3 Result

EMC Corp. :Celerra 514x1+1 Failover Cluster / Symmetrix DMX1000-P
SPECsfs97_R1.v3 =26156 Ops/Sec (Overall Response Time = 1.59 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
23850.7
48051.0
71931.2
96501.2
120411.3
144721.4
169071.6
193301.7
217592.1
242132.8
261566.1

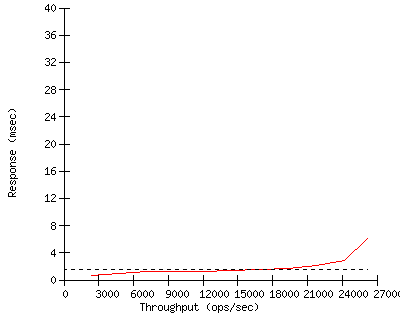

Performance Graph


Configuration

Server Configuration and Availability
Vendor EMC Corp.
Hardware Available November 2003
Software AvailableNovember 2003
Date TestedNovember 2003
SFS License Number47
Licensee LocationsHopkinton, MA

CPU, Memory and Power
Model Name Celerra 514x1+1 Failover Cluster / Symmetrix DMX1000-P
Processor 1.6 GHz Pentium 4
# of Processors 2
Primary Cache 16KBI+16KBD on chip
Secondary Cache 512KB(I+D) on chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 4 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionDart 5.1.20.99
Other Software Redhat Linux 7.2 on Control Station
File System fs1
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 4
Fileset Size 253.1 GB

Network Subsystem
Network Type Jumbo Gigabit Ethernet
Network Controller Desc. Intel 4-port card
Number Networks 1
Number Network Controllers2
Protocol Type TCP

Switch Type Cisco 6509 Gbit Switch
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 1 (2 ports)
Number of Disks 68
Number of Filesystems 1
File System Creation OpsN/A
File System Config Striped across 66 disk LUNs with 32K stripe unit

Disk Controller Emulex LP9000DC Fibre Channel
# of Controller Type 1
Number of Disks 68
Disk Type Seagate Cheetah 146GB 10K RPM
File Systems on Disks OS and UxFS log (2) Filesystem fs1 (66)
Special Config Notes 32GB memory on Symmetrix DMX1000-P

Load Generator (LG) Configuration
Number of Load Generators 6
Number of Processes per LG24
Biod Max Read Setting 5
Biod Max Write Setting 5

LG Type LG1
LG Model Sun Sparc 220R
Number and Type Processors2 x 450 MHz Sparc
Memory Size 512 MB
Operating System Solaris 2.8
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserver Gbe

LG Type LG2
LG Model Sun Sparc 420R
Number and Type Processors2 x 450 MHz Sparc
Memory Size 1 GB
Operating System Solaris 2.8
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserver Gbe

LG Type LG3
LG Model Sun Sparc 220R
Number and Type Processors2 x 360 MHz Sparc
Memory Size 512 MB
Operating System Solaris 2.8
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserver Gbe

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG11/fs1../fs1N/A
2..5LG21/fs1../fs1N/A
6LG31/fs1../fs1N/A


Other Notes


Generated on Wed Dec 10 14:32:28 2003 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 10-Dec-2003
