SPECsfs97_R1.v3 Result

ONStor, Inc. :ONStor SF4440-HA (2-filer cluster) / 3PAR InServ S400 Storage Server
SPECsfs97_R1.v3 =71334 Ops/Sec (Overall Response Time = 1.69 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
70020.5
141720.5
210330.7
282440.9
353201.3
424001.7
495432.2
567262.6
639813.4
713345.9

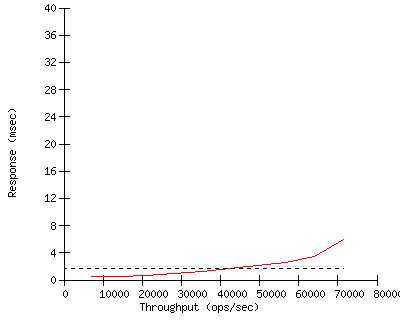

Performance Graph


Configuration

Server Configuration and Availability
Vendor ONStor, Inc.
Hardware Available Feb 2004
Software AvailableFeb 2004
Date TestedDec 2003
SFS License Number2192
Licensee LocationsLos Gatos, CA, USA

CPU, Memory and Power
Model Name ONStor SF4440-HA (2-filer cluster) / 3PAR InServ S400 Storage Server
Processor 750 Mhz Broadcom BCM1250
# of Processors 8 (see notes)
Primary Cache 32 KB I + 32 KB D on chip
Secondary Cache 512 KB (I+D) on chip
Other Cache N/A
UPS N/A
Other Hardware Brocade SilkWorm 3800
Memory Size 16 GB (2 * 8 GB per filer) + 32 GB (3PAR InServ) (see notes)
NVRAM Size 0
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionEverON 1.0.1
Other Software 3PAR InForm OS 2.1.1
File System STOR-FS
NFS version 3

Server Tuning
Buffer Cache Size dynamic
# NFS Processes N/A
Fileset Size 676.9 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. custom (see notes)
Number Networks 2
Number Network Controllers2 (N1-Client, N2-Cluster)
Protocol Type TCP

Switch Type Extreme networks - summit 7i - model 11704
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 240
Number of Filesystems 16
File System Creation OpsN/A
File System Config 16 TPVV striped across 60 disks (see notes)

Disk Controller 2 FC controllers each with 4 ports
# of Controller Type 1
Number of Disks 240
Disk Type Hitachi 18 GB 10 K RPM - FC disks
File Systems on Disks vol1-vol8, vol101-vol108
Special Config Notes N/A

Load Generator (LG) Configuration
Number of Load Generators 16
Number of Processes per LG32
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Rackable PC
Number and Type Processors1 Ghz Intel Pentium III
Memory Size 1 GB
Operating System SunOS 5.8 Generic_108529-11 i86pc i386 i86pc
Compiler N/A
Compiler Options N/A
Network Type Intel(R) PRO/1000 Network Connection

LG Type LG2
LG Model Rackable PC
Number and Type Processors1 Ghz Intel Pentium III
Memory Size 512 MB
Operating System SunOS 5.7 Generic_106542-08 i86pc i386 i86pc
Compiler N/A
Compiler Options N/A
Network Type Intel(R) PRO/1000 Network Connection

LG Type LG3
LG Model Rackable PC
Number and Type Processors1 Ghz Intel Pentium III
Memory Size 1 GB
Operating System Red Hat Linux release 7.1 (Seawolf) Kernel 2.4.2-2 on an i686
Compiler gcc version 2.96 20000731 (Red Hat Linux 7.1 2.96-81)
Compiler Options N/A
Network Type Intel(R) PRO/1000 Network Connection

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG31/vol1, /vol2, /vol3, /vol4, /vol5, /vol6, /vol7, /vol8, /vol101, /vol102, /vol103, /vol104, /vol105, /vol106, /vol107, /vol108, /vol1, /vol2, /vol3, /vol4, /vol5, /vol6, /vol7, /vol8, /vol101, /vol102, /vol103, /vol104, /vol105, /vol106, /vol107, /vol108N/A
2-13LG11/vol1, /vol2, /vol3, /vol4, /vol5, /vol6, /vol7, /vol8, /vol101, /vol102, /vol103, /vol104, /vol105, /vol106, /vol107, /vol108, /vol1, /vol2, /vol3, /vol4, /vol5, /vol6, /vol7, /vol8, /vol101, /vol102, /vol103, /vol104, /vol105, /vol106, /vol107, /vol108N/A
14-16LG21/vol1, /vol2, /vol3, /vol4, /vol5, /vol6, /vol7, /vol8, /vol101, /vol102, /vol103, /vol104, /vol105, /vol106, /vol107, /vol108, /vol1, /vol2, /vol3, /vol4, /vol5, /vol6, /vol7, /vol8, /vol101, /vol102, /vol103, /vol104, /vol105, /vol106, /vol107, /vol108N/A


Other Notes


Generated on Wed Jan 21 16:46:31 2004 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 21-Jan-2004
