SPECsfs97_R1.v3 Result

EMC Corp. :Celerra NS700G Cluster / CLARiiON CX700x2
SPECsfs97_R1.v3 =71482 Ops/Sec (Overall Response Time = 2.54 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
58810.9
119361.0
180301.3
239601.6
298031.9
359212.1
419882.5
480252.7
541203.3
599373.6
662434.6
7148211.2

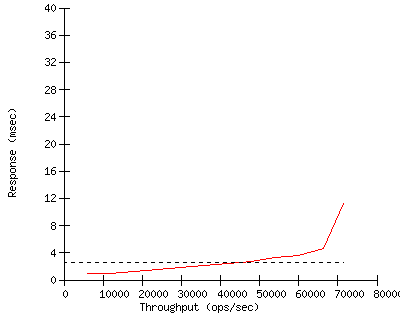

Performance Graph


Configuration

Server Configuration and Availability
Vendor EMC Corp.
Hardware Available February 2004
Software AvailableFebruary 2004
Date TestedFebruary 2004
SFS License Number47
Licensee LocationsHopkinton, MA

CPU, Memory and Power
Model Name Celerra NS700G Cluster / CLARiiON CX700x2
Processor 3.06GHz Intel Xeon P4
# of Processors 4 (2 per Data Mover)
Primary Cache Execution Trace Cache 12K uOPs + Data Cache 8KB
Secondary Cache 512KB (unified)
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 8 GB (4GB per Data Mover)
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionDart 5.2
Other Software Redhat Linux 7.2 on Control Station
File System UxFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 4 per Data Mover
Fileset Size 689.3 GB

Network Subsystem
Network Type Jumbo Gigabit Ethernet
Network Controller Desc. Gigabit Ethernet Controller
Number Networks 1
Number Network Controllers4 (2 per Data Mover)
Protocol Type TCP

Switch Type Cisco 6509 Gbit Switch (Jumbo)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 8 [2 per Storage Processor (SP), 4 SPs]
Number of Disks 248
Number of Filesystems 2
File System Creation OpsN/A
File System Config Each filesystem is striped (8KB element size), across 120 disk (40 LUNs)

Disk Controller Integrated 2Gb Fibre Channel
# of Controller Type 8 [2 per SP, 4 SPs]
Number of Disks 248 (dual ported)
Disk Type Seagate Fibre Channel 146GB 10k-rpm
File Systems on Disks OS and UxFS Log1 (5), UxFS Log2 (3), Filesystem fs1 (120), Filesystem fs2 (120)
Special Config Notes 4GB cache per SP on storage array. 3072 MB mirrored write cache per SP. See notes below.

Load Generator (LG) Configuration
Number of Load Generators 22
Number of Processes per LG32
Biod Max Read Setting 5
Biod Max Write Setting 5

LG Type LG1
LG Model Sun Sparc 220R
Number and Type Processors2 x 450 MHz Sparc
Memory Size 512 MB
Operating System Solaris 2.8
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserver Gbe

LG Type LG2
LG Model Sun Sparc 420R
Number and Type Processors2 x 450 MHz Sparc
Memory Size 1 GB
Operating System Solaris 2.8
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserver Gbe

LG Type LG3
LG Model Sun Sparc 220R
Number and Type Processors2 x 450 MHz Sparc
Memory Size 1 GB
Operating System Solaris 2.8
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserver Gbe

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1..12LG11/fs1,/fs2../fs1,/fs2N/A
13..21LG21/fs1,/fs2../fs1,/fs2N/A
22LG31/fs1,/fs2../fs1,/fs2N/A


Other Notes


Generated on Tue Mar 2 16:41:32 2004 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 02-Mar-2004
