SPECsfs97_R1.v3 Result

IBM Corporation :IBM eServer p5 570 (1.9GHz, 4 CPU, TCP, Linux)
SPECsfs97_R1.v3 =81889 Ops/Sec (Overall Response Time = 1.19 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
81900.5
165020.7
248520.9
331421.1
414761.2
499561.2
583271.3
667741.5
748562.4
818892.7

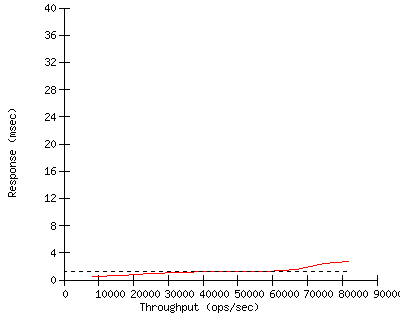

Performance Graph


Configuration

Server Configuration and Availability
Vendor IBM Corporation
Hardware Available August 2004
Software AvailableJanuary 2005
Date TestedJanuary 2005
SFS License Number11
Licensee LocationsAustin, Texas

CPU, Memory and Power
Model Name IBM eServer p5 570 (1.9GHz, 4 CPU, TCP, Linux)
Processor 1.9GHz POWER5
# of Processors 4 cores, 2 chips, 2 cores/chip (SMT on)
Primary Cache 64KBI+32KBD (on chip)/core
Secondary Cache 1920KB unified (on chip)/chip
Other Cache 36MB unified (off chip)/DCM, 2 DCMs/SUT
UPS N/A
Other Hardware N/A
Memory Size 64 GB
NVRAM Size 10 GB (10 x 1GB)
NVRAM Type 1GB battery-backed DRAM per controller
NVRAM Description5-day battery; cache bypass on battery failure

Server Software
OS Name and VersionSUSE LINUX Enterprise Server 9 SP1 for IBM POWER
Other Software N/A
File System OS on EXT3, test file systems on JFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 170
Fileset Size 788.1 GB

Network Subsystem
Network Type Jumbo Frame Gigabit
Network Controller Desc. IBM Dual Port 10/100/1000 Base-TX Ethernet
Number Networks 7 (N1-N7)
Number Network Controllers4(See Other Notes)
Protocol Type TCP

Switch Type N/A
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 11
Number of Disks 351
Number of Filesystems 70 (F1-F70)
File System Creation Opsdefault
File System Config default

Disk Controller PCI-X Dual Channel Ultra320 SCSI Adapter (integrated)
# of Controller Type 1
Number of Disks 1
Disk Type 72GB 15Krpm 16-Bit LVD SCSI Disk Drive
File Systems on Disks OS, page space
Special Config Notes N/A

Disk Controller IBM Fiber Channel Adapter (FC 6239)
# of Controller Type 10
Number of Disks 350
Disk Type 18.2GB 15Krpm 2Gb FC
File Systems on Disks F1-F7,F8-F14,F15-F21,F22-F28,...,F64-F70
Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators 7
Number of Processes per LG30
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model IBM eServer xSeries 335
Number and Type Processors2 x 2.0GHz Intel Xeon(HT disabled)
Memory Size 1 GB
Operating System RedHat 9.0
Compiler gcc (GCC) 3.2.2 20030222 (Red Hat Linux 3.2.2-5)
Compiler Options -O -DNO_T_TYPES -DUSE_INTTYPES -lm
Network Type Integrated Broadcom Gigabit

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1,F8,F15,F22,...,F64,F2,F9,F16,F23,...,F65,F3,F10,F17,F24,...,F66N/A
2LG1N2F2,F9,F16,F23,...,F65,F3,F10,F17,F24,...,F66,F4,F11,F18,F25,...,F67N/A
3LG1N3F3,F10,F17,F24,...,F66,F4,F11,F18,F25,...,F67,F5,F12,F19,F26,...,F68N/A
4LG1N4F4,F11,F18,F25,...,F67,F5,F12,F19,F26,...,F68,F6,F13,F20,F27,...,F69N/A
5LG1N5F5,F12,F19,F26,...,F68,F6,F13,F20,F27,...,F69,F7,F14,F21,F28,...,F70N/A
6LG1N6F6,F13,F20,F27,...,F69,F7,F14,F21,F28,...,F70,F1,F8,F15,F22,...,F64N/A
7LG1N7F7,F14,F21,F28,...,F70,F1,F8,F15,F22,...,F64,F2,F9,F16,F23,...,F65N/A


Other Notes


Generated on Tue Mar 1 18:20:24 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 01-Mar-2005
