SPECsfs97_R1.v3 Result

IBM Corporation :IBM System p5 550Q (1500 MHz, 8 CPU, TCP)
SPECsfs97_R1.v3 =118391 Ops/Sec (Overall Response Time = 1.47 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
118500.5
235660.6
355820.7
475890.9
595801.1
715051.3
835861.6
955132.1
1072603.5
1183915.2

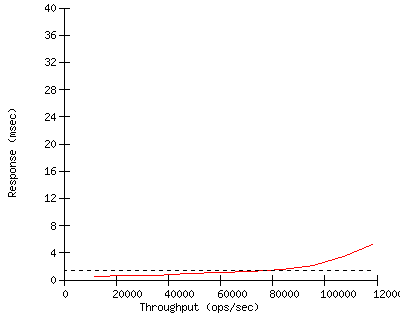

Performance Graph


Configuration

Server Configuration and Availability
Vendor IBM Corporation
Hardware Available October 2005
Software AvailableOctober 2005
Date TestedAugust 2005
SFS License Number11
Licensee LocationsAustin, Texas

CPU, Memory and Power
Model Name IBM System p5 550Q (1500 MHz, 8 CPU, TCP)
Processor 1.50GHz POWER5+
# of Processors 8 cores, 4 chips, 2 cores/chip (SMT enabled)
Primary Cache 64KBI+32KBD on chip per core
Secondary Cache 1920KB unified on chip per chip
Other Cache 2x36MB unified off chip per QCM, 2 QCMs in SUT
UPS N/A
Other Hardware N/A
Memory Size 64 GB
NVRAM Size 14 GB (14 x 1GB)
NVRAM Type 1GB battery-backed DRAM per controller
NVRAM Description5-day battery; cache bypass on battery failure

Server Software
OS Name and VersionAIX 5L V5.3 (64-bit)
Other Software N/A
File System Enhanced JFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 1
Fileset Size 1134.3 GB

Network Subsystem
Network Type Jumbo Frame Gigabit
Network Controller Desc. IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter
Number Networks 6 (N1-N6)
Number Network Controllers3
Protocol Type TCP

Switch Type N/A
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 15
Number of Disks 491
Number of Filesystems 98 (F1-F98)
File System Creation Opsdefault
File System Config See Other Notes

Disk Controller PCI-X Dual Channel Ultra320 SCSI Adapter (integrated)
# of Controller Type 1
Number of Disks 1
Disk Type 36.4GB 10Krpm 16-Bit LVD SCSI Disk Drive
File Systems on Disks OS, page space
Special Config Notes N/A

Disk Controller IBM 2Gb Fiber Channel Adapter (FC 5716)
# of Controller Type 14
Number of Disks 490
Disk Type 18.2GB 15Krpm 2Gb FC
File Systems on Disks F1-F7,F8-F14,F15-F21,...,F92-F98
Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators 6
Number of Processes per LG98
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model IBM eServer pSeries 615 Model 6C3
Number and Type Processors2 x 1.2GHz POWER4+
Memory Size 4 GB
Operating System AIX 5L V5.2 ML01 plus APAR IY44149
Compiler N/A, SFS97_R1 pre-compiled binaries
Compiler Options N/A
Network Type IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98N/A
2LG1N2F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98N/A
3LG1N3F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98N/A
4LG1N4F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98N/A
5LG1N5F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98N/A
6LG1N6F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98N/A


Other Notes


Generated on Tue Oct 25 15:12:39 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 25-Oct-2005
