| CPU2006 license: | 22 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Nov-2006 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | Dual Core, 2.66 GHz |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | SATA II 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP, 64 bit Edition |
| Compiler: | Intel C++ Compiler for EM64T-based applications - version 9.1, Build 20061104 Intel Fortran Compiler for EM64T-based applications - version 9.1, Build 20061104 Microsoft Visual Studio 2005 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

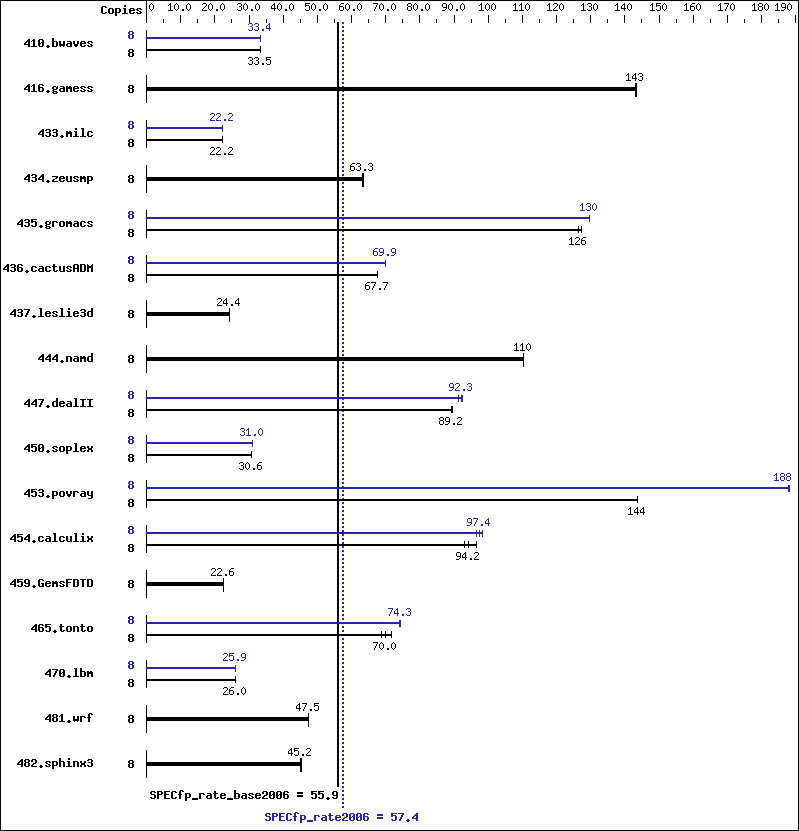

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3249 | 33.5 | 3251 | 33.4 | 3247 | 33.5 | 8 | 3251 | 33.4 | 3253 | 33.4 | 3249 | 33.5 |
| 416.gamess | 8 | 1094 | 143 | 1094 | 143 | 1093 | 143 | 8 | 1094 | 143 | 1094 | 143 | 1093 | 143 |
| 433.milc | 8 | 3300 | 22.3 | 3303 | 22.2 | 3301 | 22.2 | 8 | 3311 | 22.2 | 3315 | 22.2 | 3315 | 22.2 |
| 434.zeusmp | 8 | 1154 | 63.1 | 1151 | 63.3 | 1145 | 63.6 | 8 | 1154 | 63.1 | 1151 | 63.3 | 1145 | 63.6 |
| 435.gromacs | 8 | 452 | 126 | 449 | 127 | 452 | 126 | 8 | 441 | 130 | 441 | 130 | 440 | 130 |
| 436.cactusADM | 8 | 1411 | 67.7 | 1413 | 67.6 | 1412 | 67.7 | 8 | 1368 | 69.9 | 1370 | 69.8 | 1367 | 69.9 |
| 437.leslie3d | 8 | 3086 | 24.4 | 3086 | 24.4 | 3086 | 24.4 | 8 | 3086 | 24.4 | 3086 | 24.4 | 3086 | 24.4 |
| 444.namd | 8 | 582 | 110 | 582 | 110 | 582 | 110 | 8 | 582 | 110 | 582 | 110 | 582 | 110 |
| 447.dealII | 8 | 1022 | 89.5 | 1026 | 89.2 | 1026 | 89.2 | 8 | 991 | 92.3 | 1002 | 91.4 | 992 | 92.3 |
| 450.soplex | 8 | 2180 | 30.6 | 2180 | 30.6 | 2180 | 30.6 | 8 | 2152 | 31.0 | 2152 | 31.0 | 2153 | 31.0 |
| 453.povray | 8 | 296 | 144 | 296 | 144 | 296 | 144 | 8 | 226 | 188 | 226 | 188 | 226 | 188 |
| 454.calculix | 8 | 709 | 93.1 | 701 | 94.2 | 684 | 96.4 | 8 | 672 | 98.2 | 678 | 97.4 | 683 | 96.6 |
| 459.GemsFDTD | 8 | 3759 | 22.6 | 3760 | 22.6 | 3758 | 22.6 | 8 | 3759 | 22.6 | 3760 | 22.6 | 3758 | 22.6 |
| 465.tonto | 8 | 1125 | 70.0 | 1100 | 71.6 | 1147 | 68.7 | 8 | 1059 | 74.3 | 1064 | 74.0 | 1060 | 74.3 |
| 470.lbm | 8 | 4232 | 26.0 | 4232 | 26.0 | 4232 | 26.0 | 8 | 4239 | 25.9 | 4238 | 25.9 | 4238 | 25.9 |
| 481.wrf | 8 | 1882 | 47.5 | 1884 | 47.4 | 1882 | 47.5 | 8 | 1882 | 47.5 | 1884 | 47.4 | 1882 | 47.5 |
| 482.sphinx3 | 8 | 3449 | 45.2 | 3451 | 45.2 | 3447 | 45.2 | 8 | 3449 | 45.2 | 3451 | 45.2 | 3447 | 45.2 |
Platform Notes
BIOS default settings have been used, except: High Bandwith Option Enabled
General Notes
'start /b /wait /affinity' command is used to bind CPU(s) to processes For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -F950000000 |
C++ benchmarks:
| -fast -Qcxx-features -F950000000 |
Fortran benchmarks:
| -fast -F950000000 |
Benchmarks using both Fortran and C:
| -fast -F950000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 |
| 470.lbm: | Same as 433.milc |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 |
| 436.cactusADM: | Same as 435.gromacs |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
