SPEC® CFP2006 Result

Sun Microsystems

Sun Fire X2200 M2

SPECfp®_rate2006 = 35.4

SPECfp_rate_base2006 = 33.6

CPU2006 license:	6	Test date:	Apr-2007
Test sponsor:	Sun Microsystems	Hardware Availability:	Feb-2007
Tested by:	Sun Microsystems	Software Availability:	Aug-2006

Hardware
CPU Name:	AMD Opteron 2210
CPU Characteristics:
CPU MHz:	1800
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8x2GB, DDR2-667 CL5 ECC Reg Dual Rank)
Disk Subsystem:	SATA, 250 GB,7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux AS release 4 Update 5
Compiler:	QLogic PathScale Compiler Suite, Release 2.5
Auto Parallel:	No
File System:	ext3
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

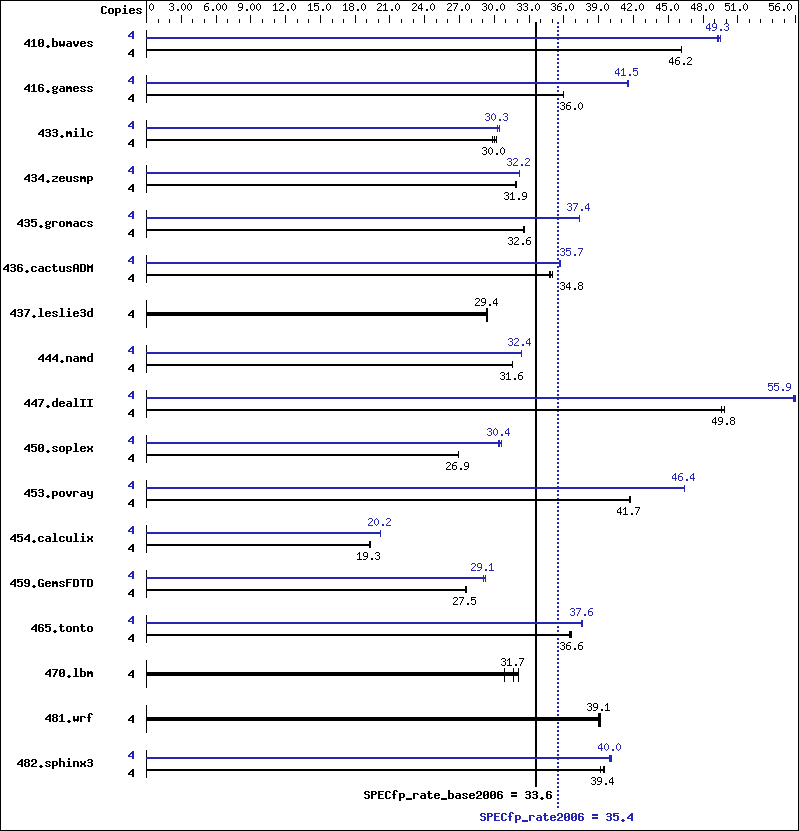

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	1178	46.2	1177	46.2	1178	46.1	4	1102	49.3	1098	49.5	1103	49.3
416.gamess	4	2176	36.0	2176	36.0	2175	36.0	4	1886	41.5	1886	41.5	1886	41.5
433.milc	4	1230	29.8	1225	30.0	1215	30.2	4	1205	30.5	1212	30.3	1212	30.3
434.zeusmp	4	1140	31.9	1142	31.9	1142	31.9	4	1132	32.2	1132	32.2	1132	32.2
435.gromacs	4	878	32.5	876	32.6	875	32.6	4	764	37.4	765	37.3	764	37.4
436.cactusADM	4	1374	34.8	1372	34.8	1367	35.0	4	1338	35.7	1339	35.7	1342	35.6
437.leslie3d	4	1282	29.3	1279	29.4	1277	29.4	4	1282	29.3	1279	29.4	1277	29.4
444.namd	4	1016	31.6	1016	31.6	1016	31.6	4	992	32.3	992	32.4	992	32.4
447.dealII	4	918	49.9	923	49.6	918	49.8	4	820	55.8	817	56.0	819	55.9
450.soplex	4	1240	26.9	1241	26.9	1240	26.9	4	1091	30.6	1100	30.3	1096	30.4
453.povray	4	511	41.7	511	41.7	510	41.7	4	459	46.4	459	46.4	459	46.4
454.calculix	4	1709	19.3	1713	19.3	1713	19.3	4	1633	20.2	1633	20.2	1633	20.2
459.GemsFDTD	4	1545	27.5	1544	27.5	1537	27.6	4	1458	29.1	1453	29.2	1459	29.1
465.tonto	4	1080	36.5	1074	36.7	1076	36.6	4	1048	37.6	1048	37.6	1047	37.6
470.lbm	4	1781	30.9	1736	31.7	1714	32.1	4	1781	30.9	1736	31.7	1714	32.1
481.wrf	4	1145	39.0	1140	39.2	1143	39.1	4	1145	39.0	1140	39.2	1143	39.1
482.sphinx3	4	1991	39.2	1974	39.5	1976	39.4	4	1947	40.0	1944	40.1	1950	40.0

General Notes

taskset utility used to bind CPU(s) to processes
Default BIOS settings were used.

Base Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64 -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-Ofast

C++ benchmarks:

-Ofast

Fortran benchmarks:

-Ofast

Benchmarks using both Fortran and C:

-Ofast

Base Other Flags

Peak Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_TABLE_WORKAROUND
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast
470.lbm:	basepeak = yes
482.sphinx3:	Same as 433.milc

C++ benchmarks:

444.namd:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast
447.dealII:	-Ofast -m32 -fno-exceptions
450.soplex:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:IEEE_arith=3 -CG:load_exe=0 -CG:movnti=1 -LNO:minvariant=off -fno-exceptions
453.povray:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-fast-math

Fortran benchmarks:

410.bwaves:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:Ofast -OPT:IEEE_arith=3 -LNO:blocking=off -LNO:ignore_feedback=off
416.gamess:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-Ofast -CG:local_fwd_sched=on -LNO:blocking=off -LNO:interchange=off -LNO:fu=10 -LNO:full_unroll_outer=on
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-Ofast -LNO:fission=2 -LNO:prefetch=0
465.tonto:	-Ofast -CG:local_fwd_sched=on -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:	-O3 -OPT:rsqrt=2 -OPT:ro=3
436.cactusADM:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch_ahead=5 -LNO:ou_prod_max=10 -LNO:full_unroll=5 -ipa
454.calculix:	-Ofast -CG:prefetch=off -LNO:simd=0 -OPT:unroll_times_max=8 -WOPT:mem_opnds=on
481.wrf:	basepeak = yes

Peak Other Flags

C benchmarks:

-IPA:max_jobs=4

C++ benchmarks:

-IPA:max_jobs=4

Fortran benchmarks:

-IPA:max_jobs=4

Benchmarks using both Fortran and C:

-IPA:max_jobs=4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.30.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.30.xml.
