SPEC® CFP2006 Result

IBM Corporation

IBM BladeCenter LS41 (AMD Opteron 8220)

SPECfp®2006 = 13.3

SPECfp_base2006 = 12.5

CPU2006 license:	11	Test date:	Jul-2007
Test sponsor:	IBM Corporation	Hardware Availability:	Feb-2007
Tested by:	IBM Corporation	Software Availability:	Mar-2007

Hardware
CPU Name:	AMD Opteron 8220
CPU Characteristics:
CPU MHz:	2800
FPU:	Integrated
CPU(s) enabled:	8 cores, 4 chips, 2 cores/chip
CPU(s) orderable:	1, 2, 3, 4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	32 GB (16 x 2GB DDR2-5300 ECC)
Disk Subsystem:	1 x 36 GB SAS, 10000 RPM
Other Hardware:	None

Software
Operating System:	SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler:	QLogic PathScale Compiler Suite, Release 3.0
Auto Parallel:	No
File System:	ext3
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	MicroQuill SmartHeap 8.1

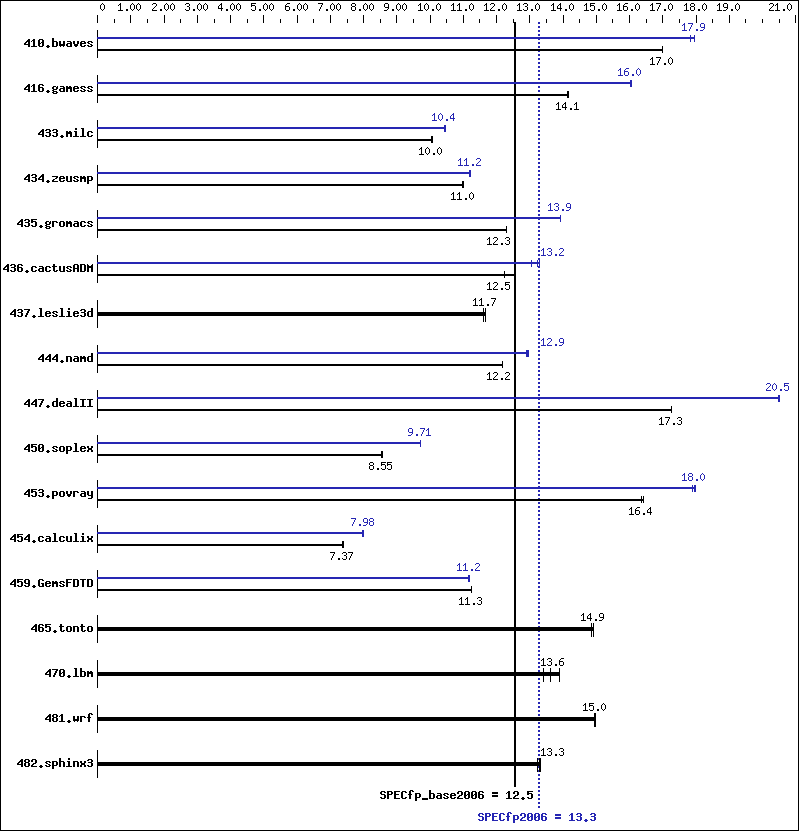

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	799	17.0	800	17.0	800	17.0	758	17.9	762	17.8	756	18.0
416.gamess	1385	14.1	1384	14.1	1382	14.2	1223	16.0	1221	16.0	1219	16.1
433.milc	914	10.0	914	10.0	911	10.1	878	10.5	879	10.4	879	10.4
434.zeusmp	827	11.0	827	11.0	828	11.0	813	11.2	810	11.2	812	11.2
435.gromacs	580	12.3	580	12.3	581	12.3	512	13.9	512	13.9	513	13.9
436.cactusADM	952	12.6	954	12.5	976	12.2	898	13.3	916	13.0	903	13.2
437.leslie3d	806	11.7	810	11.6	806	11.7	806	11.7	810	11.6	806	11.7
444.namd	658	12.2	658	12.2	658	12.2	620	12.9	619	13.0	621	12.9
447.dealII	663	17.3	663	17.3	663	17.3	558	20.5	558	20.5	557	20.5
450.soplex	978	8.53	973	8.57	975	8.55	859	9.71	859	9.71	858	9.72
453.povray	324	16.4	325	16.4	325	16.4	296	18.0	296	18.0	297	17.9
454.calculix	1119	7.37	1120	7.37	1117	7.39	1034	7.98	1034	7.98	1034	7.98
459.GemsFDTD	943	11.3	943	11.3	943	11.3	951	11.2	950	11.2	950	11.2
465.tonto	660	14.9	662	14.9	660	14.9	660	14.9	662	14.9	660	14.9
470.lbm	990	13.9	1008	13.6	1025	13.4	990	13.9	1008	13.6	1025	13.4
481.wrf	747	15.0	746	15.0	746	15.0	747	15.0	746	15.0	746	15.0
482.sphinx3	1466	13.3	1472	13.2	1464	13.3	1466	13.3	1472	13.2	1464	13.3

General Notes

 taskset utility used to bind CPU(s) to processes
DSPEC_CPU_TABLE_WORKAROUND was used for portability when compiling 447.dealII
due to compilation being performed on SLES 9 SP3

Base Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64 -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-Ofast

C++ benchmarks:

-Ofast

Fortran benchmarks:

-Ofast -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

-Ofast -OPT:malloc_alg=1

Base Other Flags

Peak Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_TABLE_WORKAROUND
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-Ofast -CG:cflow=off -LNO:prefetch=1 -OPT:malloc_alg=1
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-exceptions
447.dealII:	-Ofast -INLINE:aggressive=on -LNO:opt=0 -OPT:alias=disjoint -m32 -fno-exceptions
450.soplex:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:IEEE_arith=3 -CG:load_exe=0 -CG:movnti=1 -LNO:minvariant=off -LNO:prefetch=1 -fno-exceptions
453.povray:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-fast-math

Fortran benchmarks:

410.bwaves:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:Ofast -OPT:IEEE_arith=3 -LNO:blocking=off -LNO:ignore_feedback=off
416.gamess:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-Ofast -CG:local_fwd_sched=on -LNO:blocking=off -LNO:interchange=off -LNO:fu=10 -LNO:full_unroll_outer=on
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-Ofast -LNO:fission=2 -LNO:prefetch=0
465.tonto:	basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:	-O3 -OPT:rsqrt=2 -OPT:ro=3
436.cactusADM:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch=3 -LNO:prefetch_ahead=5 -LNO:ou_prod_max=10 -LNO:full_unroll=5 -ipa
454.calculix:	-Ofast -LNO:simd=0 -WOPT:mem_opnds=on
481.wrf:	basepeak = yes

Peak Other Flags

C benchmarks:

-IPA:max_jobs=2

C++ benchmarks:

-IPA:max_jobs=2

Fortran benchmarks:

-IPA:max_jobs=2

Benchmarks using both Fortran and C:

-IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.xml.
