SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY BX620 S3, Intel Xeon processor E5345,
2.33 GHz

CPU2006 license: 22 Test date: Jul-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Jan-2007
Tested by: Fujitsu Siemens Computers Software Availability: Jun-2007

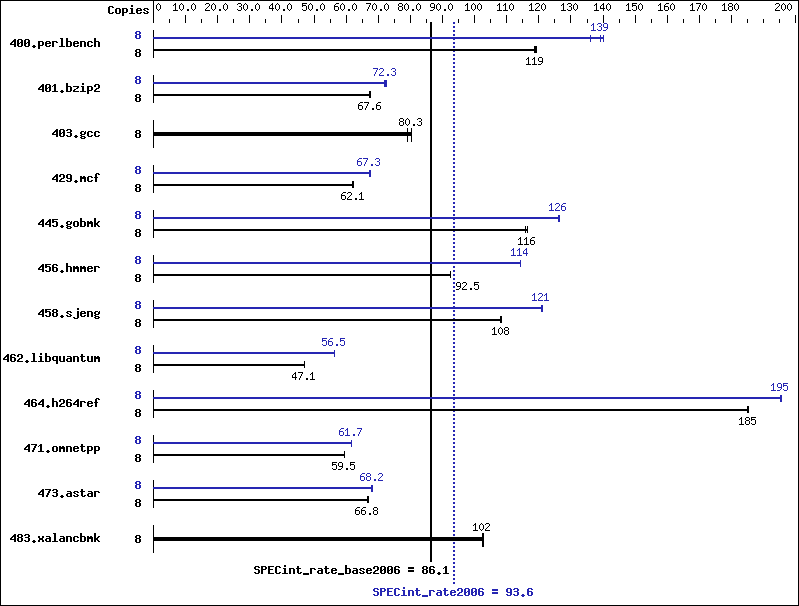

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5345
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2333
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: Seagate ST936701SS (SAS, 36GB, 10000rpm)
Other Hardware: None
Software
Operating System: SUSE LINUX Enterprise Server 10 (x86_64), Kernel
2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 10.0 - Build 20070308, Package-ID:
l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Smart Heap Library, Version 8.1
binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 656 119   658 119   656 119   8 574 136   561 139   558 140
401.bzip2 8 1146 67.4 1143 67.6 1141 67.7 8 1066 72.4 1071 72.1 1068 72.3
403.gcc 8 802 80.3 813 79.2 801 80.4 8 802 80.3 813 79.2 801 80.4
429.mcf 8 1174 62.1 1174 62.2 1175 62.1 8 1082 67.4 1085 67.3 1084 67.3
445.gobmk 8 721 116   725 116   720 116   8 664 126   665 126   666 126
456.hmmer 8 807 92.5 807 92.5 806 92.6 8 654 114   654 114   653 114
458.sjeng 8 895 108   894 108   894 108   8 801 121   802 121   799 121
462.libquantum 8 3524 47.0 3522 47.1 3522 47.1 8 2936 56.5 2935 56.5 2935 56.5
464.h264ref 8 957 185   955 185   955 185   8 905 196   906 195   907 195
471.omnetpp 8 840 59.5 841 59.5 840 59.5 8 810 61.7 812 61.6 810 61.7
473.astar 8 841 66.8 838 67.0 842 66.7 8 823 68.2 823 68.3 826 68.0
483.xalancbmk 8 537 103   539 102   539 102   8 537 103   539 102   539 102

General Notes


 All binaries were built with 32-bit Intel compiler except:
 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel
 compiler by changing the path for include and library files.

 BIOS configuration:
 Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable

 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -L/opt/SmartHeap_8_1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -I/opt/intel/cce/10.0.023/include   -L/opt/intel/cce/10.0.023/lib
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -I/opt/intel/cce/10.0.023/include   -L/opt/intel/cce/10.0.023/lib

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
401.bzip2:  -fast
403.gcc:  basepeak = yes
429.mcf:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -prefetch   -L/opt/SmartHeap_8_1/lib -lsmartheap
445.gobmk:  Same as 400.perlbench
456.hmmer:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2
458.sjeng:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4
462.libquantum:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -prefetch   -opt-streaming-stores always
464.h264ref:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -ansi-alias   -L/opt/SmartHeap_8_1/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/FSC_Intel_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/FSC_Intel_flags.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 12:41:58 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 August 2007.
