SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision 390 (Intel X6800, 2.93 GHz)

CPU2006 license: 55 Test date: Aug-2007
Test sponsor: Dell Inc. Hardware Availability: Sep-2007
Tested by: Dell Inc. Software Availability: Jun-2007

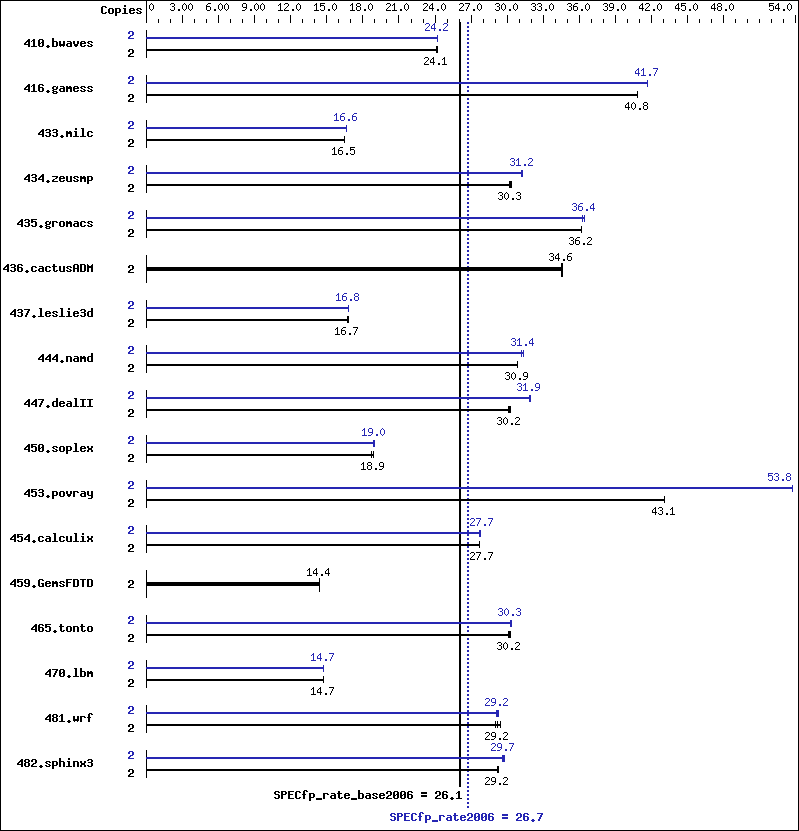

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme X6800
CPU Characteristics: 1066 MHz Bus Speed
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB 667 MHz ECC CL5 DDR2)
Disk Subsystem: 1 x 80 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows XP Professional x64 Edition SP2
Compiler: Intel C++ Compiler for Intel 64, Version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Intel Visual Fortran Compiler for Intel 64,
Version 10.0
Build 20070426 Package ID: W_FC_P_10.0.025
Microsoft Visual Studio 2005 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.0 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1128 24.1 1128 24.1 1124 24.2 2 1124 24.2 1124 24.2 1124 24.2
416.gamess 2 959 40.8 959 40.8 959 40.8 2 939 41.7 939 41.7 939 41.7
433.milc 2 1117 16.4 1116 16.5 1116 16.5 2 1105 16.6 1105 16.6 1106 16.6
434.zeusmp 2 603 30.2 600 30.3 601 30.3 2 583 31.2 582 31.2 583 31.2
435.gromacs 2 395 36.2 395 36.2 395 36.2 2 394 36.3 392 36.4 392 36.4
436.cactusADM 2 691 34.6 692 34.6 692 34.6 2 691 34.6 692 34.6 692 34.6
437.leslie3d 2 1123 16.7 1121 16.8 1123 16.7 2 1121 16.8 1122 16.8 1121 16.8
444.namd 2 520 30.9 520 30.9 520 30.9 2 515 31.2 512 31.4 512 31.4
447.dealII 2 758 30.2 757 30.2 759 30.1 2 718 31.9 718 31.9 716 31.9
450.soplex 2 891 18.7 883 18.9 883 18.9 2 882 18.9 878 19.0 878 19.0
453.povray 2 247 43.1 247 43.1 247 43.1 2 198 53.7 198 53.8 198 53.8
454.calculix 2 596 27.7 595 27.7 595 27.7 2 595 27.7 596 27.7 595 27.7
459.GemsFDTD 2 1477 14.4 1475 14.4 1474 14.4 2 1477 14.4 1475 14.4 1474 14.4
465.tonto 2 653 30.1 652 30.2 651 30.2 2 649 30.3 649 30.3 649 30.3
470.lbm 2 1864 14.7 1864 14.7 1864 14.7 2 1865 14.7 1864 14.7 1864 14.7
481.wrf 2 770 29.0 765 29.2 759 29.4 2 763 29.3 765 29.2 766 29.1
482.sphinx3 2 1334 29.2 1336 29.2 1331 29.3 2 1318 29.6 1309 29.8 1312 29.7

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -D_Complex=   -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -D_Complex=   -DSPEC_CPU_P64
436.cactusADM:  -D_Complex=   -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -D_Complex=   -DSPEC_CPU_P64   -DBOOST_NO_INTRINSIC_WCHAR_T   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -D_Complex=   -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -D_Complex=   -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -D_Complex=   -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Oa   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
470.lbm:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
482.sphinx3:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
450.soplex:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
453.povray:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  ONESTEP   -fast   /F950000000    -link /FORCE:MULTIPLE
416.gamess:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F950000000    -link /FORCE:MULTIPLE
434.zeusmp:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F950000000    -link /FORCE:MULTIPLE
437.leslie3d:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -fast   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.windows.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.windows.flags.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 13:06:30 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 4 September 2007.
