SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro (Test Sponsor: Intel Corporation)

Supermicro X7DB8+ (Intel Xeon processor E5335,
2.00 GHz)

SPECfp®2006 = 16.9

CPU2006 license: 13 Test date: Aug-2007
Test sponsor: Intel Corporation Hardware Availability: Jul-2007
Tested by: Intel Corporation Software Availability: Nov-2007

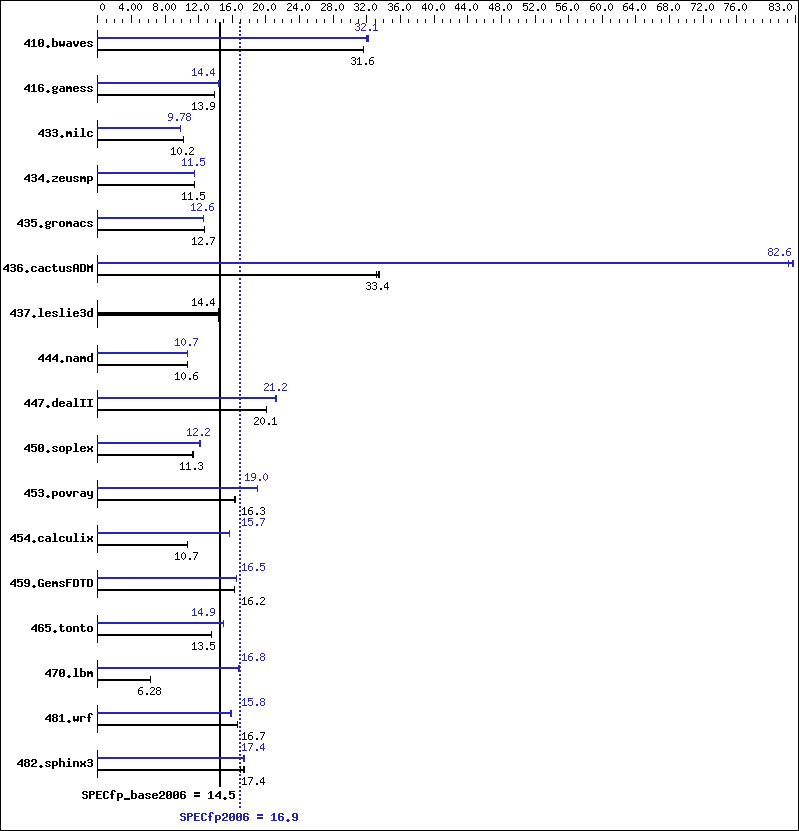

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5335
CPU Characteristics: Quad Core, 2.00 GHz
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 * 2GB Samsung PC2-5300F, 2 rank,
CL5-5-5, ECC)
Disk Subsystem: Seagate, SCSI, 73GB, 10Krpm, 1 disk only
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10 SP1 RC1,
Kernel
linux-cbgm 2.6.16.43-0.5-smp for x86_64
Compiler: Intel C++ and Fortran Compiler for Linux32 and
Linux64
Version 10.1 Build 20070725
Auto Parallel: Yes
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 430 31.6  430 31.6  429 31.7  423 32.1  425 32.0  423 32.1
416.gamess 1410 13.9  1409 13.9  1409 13.9  1356 14.4  1360 14.4  1358 14.4
433.milc 897 10.2  899 10.2  899 10.2  938 9.78 937 9.79 938 9.78
434.zeusmp 789 11.5  788 11.5  789 11.5  790 11.5  790 11.5  790 11.5
435.gromacs 563 12.7  563 12.7  563 12.7  568 12.6  568 12.6  568 12.6
436.cactusADM 357 33.5  358 33.4  361 33.1  146 82.1  145 82.6  145 82.7
437.leslie3d 653 14.4  655 14.3  653 14.4  653 14.4  655 14.3  653 14.4
444.namd 754 10.6  754 10.6  753 10.6  750 10.7  749 10.7  749 10.7
447.dealII 570 20.1  572 20.0  570 20.1  539 21.2  540 21.2  539 21.2
450.soplex 734 11.4  737 11.3  737 11.3  686 12.2  687 12.1  685 12.2
453.povray 325 16.4  327 16.3  326 16.3  280 19.0  280 19.0  280 19.0
454.calculix 770 10.7  771 10.7  773 10.7  526 15.7  526 15.7  527 15.7
459.GemsFDTD 653 16.2  654 16.2  653 16.2  642 16.5  642 16.5  642 16.5
465.tonto 728 13.5  730 13.5  726 13.5  659 14.9  659 14.9  658 15.0
470.lbm 2181 6.30 2191 6.27 2187 6.28 818 16.8  818 16.8  817 16.8
481.wrf 670 16.7  671 16.7  672 16.6  706 15.8  705 15.8  707 15.8
482.sphinx3 1151 16.9  1120 17.4  1121 17.4  1123 17.4  1115 17.5  1122 17.4

General Notes

Bios settings:
Hardware Prefetcher:      Enabled
Adjacent Sector Prefetch: Enabled
All benchmarks compiled in 64-bit mode except
450.soplex, 470.lbm and 482.sphinx3, for peak, are
compiled in 32-bit mode

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -parallel

C++ benchmarks:

 -fast   -parallel

Fortran benchmarks:

 -fast   -parallel

Benchmarks using both Fortran and C:

 -fast   -parallel

Peak Compiler Invocation

C benchmarks (except as noted below):

 /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux32/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux32/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux32/bin/icpc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux32/include

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch   -parallel
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch   -parallel
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -parallel   -prefetch   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.33.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.33.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 12:37:13 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 18 September 2007.
