| CPU2006 license: | 97 | Test date: | Jul-2007 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Jun-2007 |
| Tested by: | Acer Incorporated | Software Availability: | Feb-2007 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 2212 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (16x1GB, DDR2-667 CL5 ECC Reg) |
| Disk Subsystem: | 1 x SATA, 160 GB |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 EM64T (kernel 2.6.16.21-0.8-smp) |
| Compiler: | QLogic PathScale Compiler Suite, Release 3.0 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap 8.0 32 bit Library for Linux |

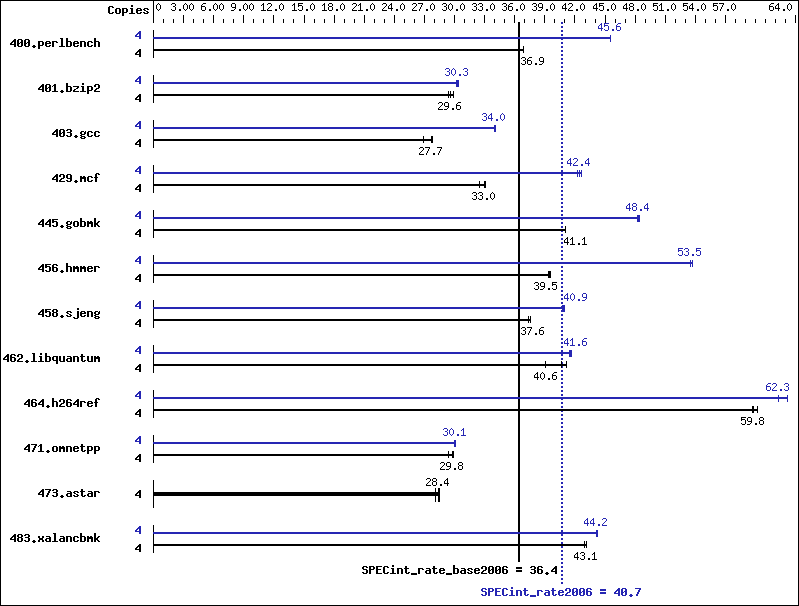

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 1073 | 36.4 | 1060 | 36.9 | 1059 | 36.9 | 4 | 858 | 45.5 | 858 | 45.6 | 857 | 45.6 |
| 401.bzip2 | 4 | 1315 | 29.4 | 1305 | 29.6 | 1290 | 29.9 | 4 | 1269 | 30.4 | 1280 | 30.2 | 1273 | 30.3 |
| 403.gcc | 4 | 1196 | 26.9 | 1161 | 27.7 | 1157 | 27.8 | 4 | 947 | 34.0 | 948 | 33.9 | 945 | 34.1 |
| 429.mcf | 4 | 1123 | 32.5 | 1106 | 33.0 | 1101 | 33.1 | 4 | 864 | 42.2 | 859 | 42.4 | 855 | 42.7 |
| 445.gobmk | 4 | 1023 | 41.0 | 1022 | 41.1 | 1022 | 41.1 | 4 | 868 | 48.4 | 867 | 48.4 | 869 | 48.3 |
| 456.hmmer | 4 | 947 | 39.4 | 944 | 39.5 | 946 | 39.5 | 4 | 694 | 53.7 | 698 | 53.5 | 698 | 53.5 |
| 458.sjeng | 4 | 1295 | 37.4 | 1288 | 37.6 | 1287 | 37.6 | 4 | 1189 | 40.7 | 1184 | 40.9 | 1183 | 40.9 |
| 462.libquantum | 4 | 2120 | 39.1 | 2041 | 40.6 | 2014 | 41.2 | 4 | 2001 | 41.4 | 1992 | 41.6 | 1992 | 41.6 |
| 464.h264ref | 4 | 1482 | 59.7 | 1481 | 59.8 | 1472 | 60.1 | 4 | 1400 | 63.2 | 1422 | 62.2 | 1421 | 62.3 |
| 471.omnetpp | 4 | 850 | 29.4 | 839 | 29.8 | 835 | 29.9 | 4 | 833 | 30.0 | 830 | 30.1 | 831 | 30.1 |
| 473.astar | 4 | 999 | 28.1 | 990 | 28.4 | 985 | 28.5 | 4 | 999 | 28.1 | 990 | 28.4 | 985 | 28.5 |
| 483.xalancbmk | 4 | 643 | 42.9 | 640 | 43.2 | 640 | 43.1 | 4 | 625 | 44.2 | 625 | 44.2 | 624 | 44.2 |
General Notes
taskset utility used to bind cores to processes
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -Ofast -OPT:malloc_alg=1 |
C++ benchmarks:
| -Ofast -m32 -L/cpu2006/mpaton/1.0/amd514K8.lib/32 -lsmartheap |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:opt=0 |
| 401.bzip2: | -O3 -LNO:ou_prod_max=10 -OPT:Ofast -OPT:alias=disjoint |
| 403.gcc: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast |
| 429.mcf: | -m32 -O3 -ipa -L/cpu2006/mpaton/1.0/amd514K8.lib/32 -lsmartheap |
| 445.gobmk: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=disjoint -LNO:simd=0 -LNO:minvariant=off -WOPT:retype_expr=on |
| 456.hmmer: | -O2 -OPT:alias=disjoint -OPT:malloc_alg=1 -CG:cflow=0 |
| 458.sjeng: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=50000 -IPA:pu_reorder=2 |
| 462.libquantum: | -O3 -ipa -CG:local_fwd_sched=on -IPA:space=1000 |
| 464.h264ref: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 |
C++ benchmarks:
| 471.omnetpp: | -Ofast -CG:gcm=off -m32 -L/cpu2006/mpaton/1.0/amd514K8.lib/32 -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -Ofast -m32 -OPT:unroll_times_max=8 -L/cpu2006/mpaton/1.0/amd514K8.lib/32 -lsmartheap |
