| CPU2006 license: | 3388 | Test date: | Sep-2007 |
|---|---|---|---|
| Test sponsor: | ACTION S.A. | Hardware Availability: | Aug-2007 |
| Tested by: | ACTION S.A. | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | 1066 MHz system bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8 x 1 GB 667MHz CL5 DDR2 FB-DIMM SDRAM) |
| Disk Subsystem: | 160 GB SATA, 7200rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows 2003 Server Enterprise Edition Service Pack 1 |
| Compiler: | Intel C++ Compiler for IA32 version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.0 |

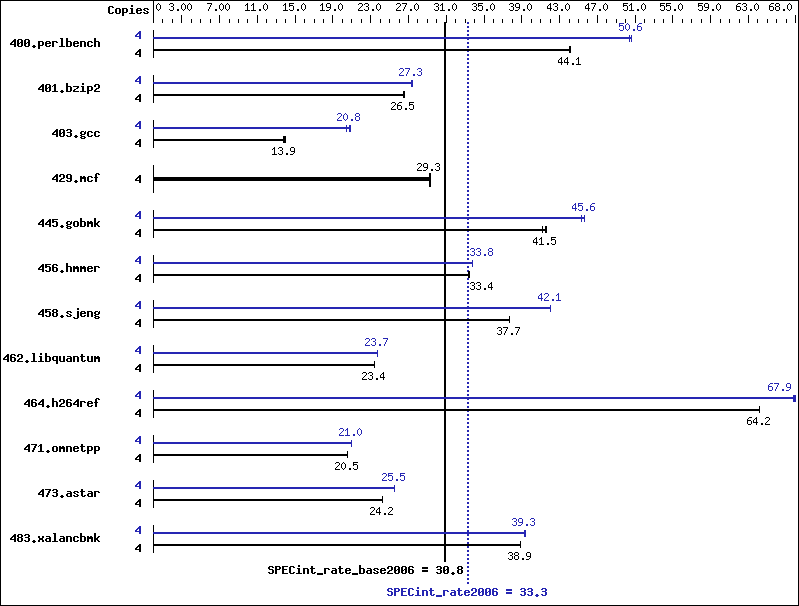

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 886 | 44.1 | 886 | 44.1 | 885 | 44.1 | 4 | 773 | 50.6 | 773 | 50.6 | 776 | 50.4 |
| 401.bzip2 | 4 | 1457 | 26.5 | 1458 | 26.5 | 1454 | 26.6 | 4 | 1413 | 27.3 | 1410 | 27.4 | 1413 | 27.3 |
| 403.gcc | 4 | 2306 | 14.0 | 2317 | 13.9 | 2346 | 13.7 | 4 | 1547 | 20.8 | 1549 | 20.8 | 1575 | 20.4 |
| 429.mcf | 4 | 1245 | 29.3 | 1247 | 29.3 | 1245 | 29.3 | 4 | 1245 | 29.3 | 1247 | 29.3 | 1245 | 29.3 |
| 445.gobmk | 4 | 1011 | 41.5 | 1009 | 41.6 | 1018 | 41.2 | 4 | 919 | 45.6 | 919 | 45.7 | 926 | 45.3 |
| 456.hmmer | 4 | 1117 | 33.4 | 1118 | 33.4 | 1117 | 33.4 | 4 | 1105 | 33.8 | 1105 | 33.8 | 1105 | 33.8 |
| 458.sjeng | 4 | 1284 | 37.7 | 1284 | 37.7 | 1284 | 37.7 | 4 | 1151 | 42.1 | 1151 | 42.1 | 1151 | 42.1 |
| 462.libquantum | 4 | 3544 | 23.4 | 3544 | 23.4 | 3544 | 23.4 | 4 | 3489 | 23.8 | 3497 | 23.7 | 3496 | 23.7 |
| 464.h264ref | 4 | 1380 | 64.2 | 1380 | 64.1 | 1379 | 64.2 | 4 | 1303 | 67.9 | 1306 | 67.8 | 1304 | 67.9 |
| 471.omnetpp | 4 | 1218 | 20.5 | 1218 | 20.5 | 1218 | 20.5 | 4 | 1191 | 21.0 | 1191 | 21.0 | 1192 | 21.0 |
| 473.astar | 4 | 1158 | 24.2 | 1159 | 24.2 | 1158 | 24.2 | 4 | 1101 | 25.5 | 1101 | 25.5 | 1101 | 25.5 |
| 483.xalancbmk | 4 | 710 | 38.9 | 710 | 38.9 | 710 | 38.9 | 4 | 702 | 39.3 | 703 | 39.3 | 703 | 39.3 |
General Notes
Product description located as of 8/2007: http://www.actina.pl Binaries were built on Windows XP Professional SP2 Start command was used to bind processes to CPUs
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 -link /FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec_div- -Qansi-alias /F512000000 -link /FORCE:MULTIPLE |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 462.libquantum: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
