| CPU2006 license: | 001176 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Nov-2007 |
| Tested by: | Supermicro | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5420 |
| CPU Characteristics: | Quad Core, 2.50GHz |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 * 2 GB PC2-5300 FBDIMM, CL-5-5-5, ECC) |
| Disk Subsystem: | 500GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, kernel 2.6.16.46-0.12-default |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

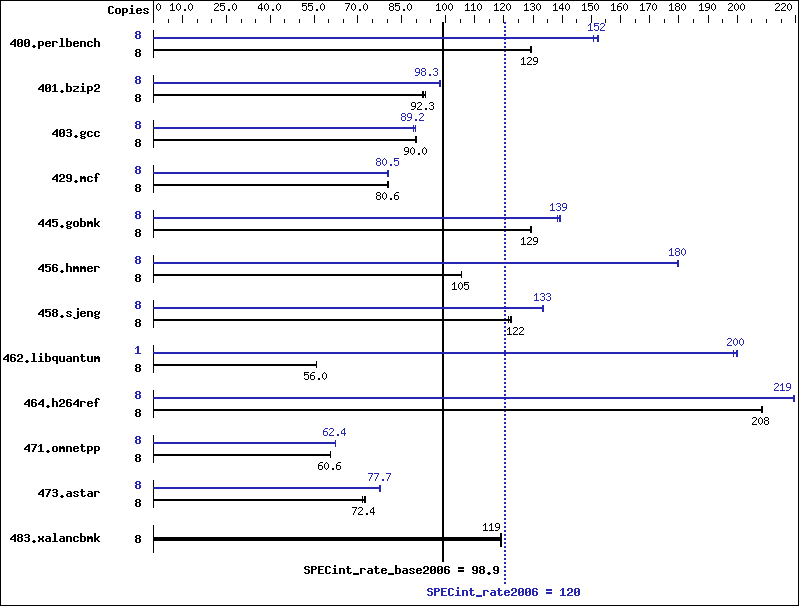

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 606 | 129 | 605 | 129 | 604 | 129 | 8 | 513 | 152 | 518 | 151 | 514 | 152 |
| 401.bzip2 | 8 | 839 | 92.0 | 836 | 92.3 | 830 | 93.0 | 8 | 785 | 98.3 | 784 | 98.4 | 787 | 98.1 |
| 403.gcc | 8 | 717 | 89.9 | 715 | 90.1 | 716 | 90.0 | 8 | 718 | 89.7 | 722 | 89.2 | 724 | 89.0 |
| 429.mcf | 8 | 909 | 80.3 | 905 | 80.6 | 905 | 80.6 | 8 | 905 | 80.6 | 909 | 80.3 | 906 | 80.5 |
| 445.gobmk | 8 | 649 | 129 | 649 | 129 | 650 | 129 | 8 | 603 | 139 | 606 | 138 | 602 | 139 |
| 456.hmmer | 8 | 708 | 105 | 708 | 105 | 707 | 106 | 8 | 415 | 180 | 415 | 180 | 415 | 180 |
| 458.sjeng | 8 | 790 | 123 | 791 | 122 | 796 | 122 | 8 | 727 | 133 | 725 | 134 | 725 | 133 |
| 462.libquantum | 8 | 2964 | 55.9 | 2962 | 56.0 | 2962 | 56.0 | 1 | 104 | 199 | 104 | 200 | 104 | 200 |
| 464.h264ref | 8 | 848 | 209 | 850 | 208 | 850 | 208 | 8 | 808 | 219 | 807 | 219 | 807 | 219 |
| 471.omnetpp | 8 | 825 | 60.6 | 825 | 60.6 | 825 | 60.6 | 8 | 802 | 62.4 | 802 | 62.3 | 802 | 62.4 |
| 473.astar | 8 | 775 | 72.4 | 784 | 71.7 | 773 | 72.7 | 8 | 724 | 77.6 | 723 | 77.7 | 723 | 77.7 |
| 483.xalancbmk | 8 | 464 | 119 | 464 | 119 | 463 | 119 | 8 | 464 | 119 | 464 | 119 | 463 | 119 |
General Notes
Tested systems can be used with CSE-825S2-R700LPV case, To ensure system stability, a 700W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5000/X7DB8+.cfm The system bus runs at 1333 MHz
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
