| CPU2006 license: | 001176 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Nov-2007 |
| Tested by: | Supermicro | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5460 |
| CPU Characteristics: | Quad Core, 3.16GHz |
| CPU MHz: | 3160 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8 * 1 GB PC2-5300 FBDIMM, CL-5-5-5, ECC) |
| Disk Subsystem: | 500GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, kernel 2.6.16.46-0.12-default |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

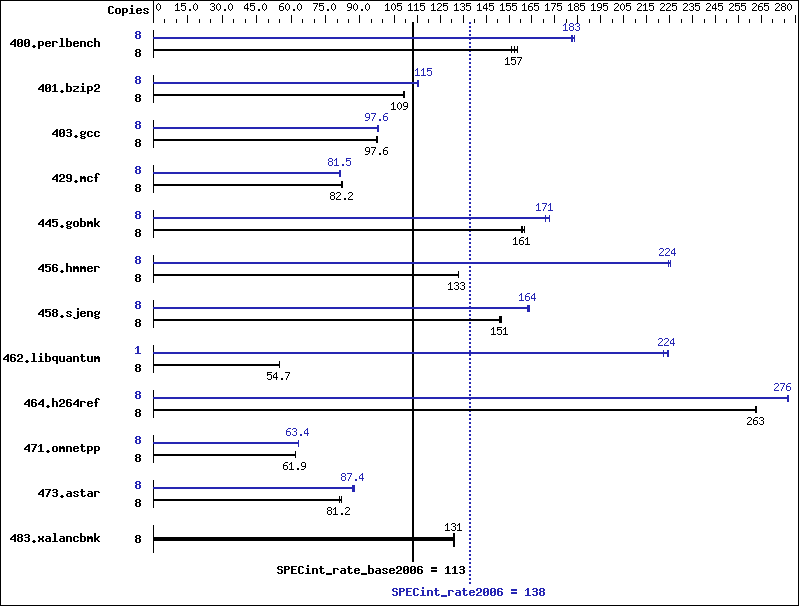

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 493 | 159 | 501 | 156 | 497 | 157 | 8 | 426 | 183 | 427 | 183 | 429 | 182 |
| 401.bzip2 | 8 | 706 | 109 | 705 | 110 | 708 | 109 | 8 | 671 | 115 | 668 | 116 | 671 | 115 |
| 403.gcc | 8 | 661 | 97.4 | 660 | 97.6 | 659 | 97.7 | 8 | 660 | 97.6 | 660 | 97.6 | 656 | 98.1 |
| 429.mcf | 8 | 887 | 82.2 | 886 | 82.4 | 889 | 82.1 | 8 | 895 | 81.5 | 898 | 81.3 | 895 | 81.5 |
| 445.gobmk | 8 | 522 | 161 | 524 | 160 | 519 | 162 | 8 | 491 | 171 | 491 | 171 | 487 | 172 |
| 456.hmmer | 8 | 561 | 133 | 562 | 133 | 562 | 133 | 8 | 333 | 224 | 331 | 225 | 333 | 224 |
| 458.sjeng | 8 | 638 | 152 | 639 | 151 | 642 | 151 | 8 | 592 | 164 | 594 | 163 | 591 | 164 |
| 462.libquantum | 8 | 3028 | 54.7 | 3026 | 54.8 | 3028 | 54.7 | 1 | 92.5 | 224 | 92.4 | 224 | 93.2 | 222 |
| 464.h264ref | 8 | 674 | 263 | 674 | 263 | 674 | 263 | 8 | 641 | 276 | 640 | 277 | 641 | 276 |
| 471.omnetpp | 8 | 809 | 61.8 | 807 | 61.9 | 807 | 61.9 | 8 | 790 | 63.3 | 789 | 63.4 | 789 | 63.4 |
| 473.astar | 8 | 692 | 81.2 | 684 | 82.2 | 694 | 80.9 | 8 | 646 | 86.9 | 643 | 87.4 | 640 | 87.8 |
| 483.xalancbmk | 8 | 422 | 131 | 421 | 131 | 421 | 131 | 8 | 422 | 131 | 421 | 131 | 421 | 131 |
General Notes
Tested systems can be used with CSE-812L-520U case, To ensure system stability, a 550W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5000/X7DBU.cfm The system bus runs at 1333 MHz
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
