| CPU2006 license: | 22 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5420 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | Seagate ST973451SS (SAS, 73GB, 15000rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | Smart Heap Library, Version 8.1 binutils-2.17.tar.gz, Version 2.17 |

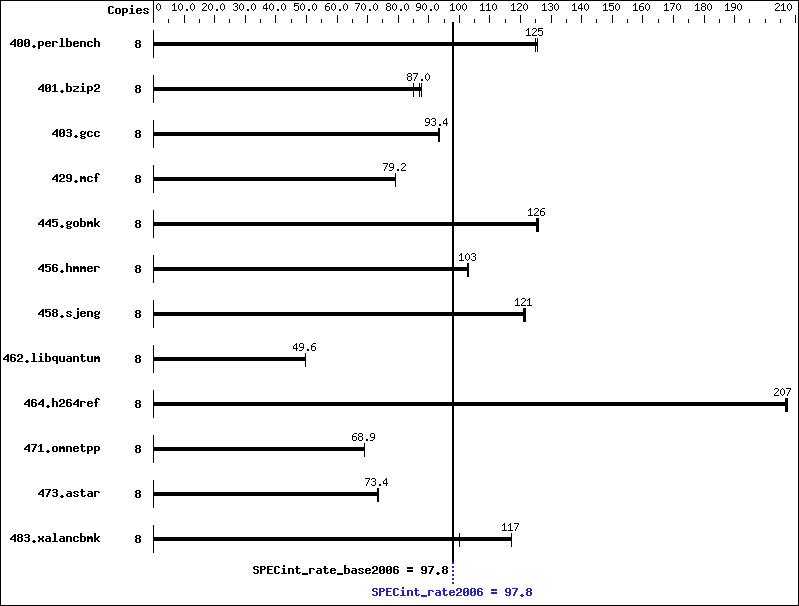

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 623 | 126 | 626 | 125 | 626 | 125 | 8 | 623 | 126 | 626 | 125 | 626 | 125 |
| 401.bzip2 | 8 | 910 | 84.9 | 887 | 87.0 | 882 | 87.6 | 8 | 910 | 84.9 | 887 | 87.0 | 882 | 87.6 |
| 403.gcc | 8 | 688 | 93.6 | 691 | 93.2 | 690 | 93.4 | 8 | 688 | 93.6 | 691 | 93.2 | 690 | 93.4 |
| 429.mcf | 8 | 921 | 79.2 | 922 | 79.2 | 920 | 79.3 | 8 | 921 | 79.2 | 922 | 79.2 | 920 | 79.3 |
| 445.gobmk | 8 | 667 | 126 | 668 | 126 | 670 | 125 | 8 | 667 | 126 | 668 | 126 | 670 | 125 |
| 456.hmmer | 8 | 725 | 103 | 725 | 103 | 727 | 103 | 8 | 725 | 103 | 725 | 103 | 727 | 103 |
| 458.sjeng | 8 | 800 | 121 | 799 | 121 | 797 | 121 | 8 | 800 | 121 | 799 | 121 | 797 | 121 |
| 462.libquantum | 8 | 3340 | 49.6 | 3340 | 49.6 | 3340 | 49.6 | 8 | 3340 | 49.6 | 3340 | 49.6 | 3340 | 49.6 |
| 464.h264ref | 8 | 857 | 207 | 855 | 207 | 855 | 207 | 8 | 857 | 207 | 855 | 207 | 855 | 207 |
| 471.omnetpp | 8 | 726 | 68.9 | 725 | 68.9 | 725 | 69.0 | 8 | 726 | 68.9 | 725 | 68.9 | 725 | 69.0 |
| 473.astar | 8 | 764 | 73.5 | 765 | 73.4 | 768 | 73.1 | 8 | 764 | 73.5 | 765 | 73.4 | 768 | 73.1 |
| 483.xalancbmk | 8 | 472 | 117 | 553 | 99.9 | 472 | 117 | 8 | 472 | 117 | 553 | 99.9 | 472 | 117 |
General Notes
This result has been produced with binaries provided and compiled by Intel. BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | basepeak = yes |
| 401.bzip2: | basepeak = yes |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | basepeak = yes |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | basepeak = yes |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
