| CPU2006 license: | 11 | Test date: | Feb-2008 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2007 |
| Tested by: | IBM Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 Binutils 2.17.50.0.15 |

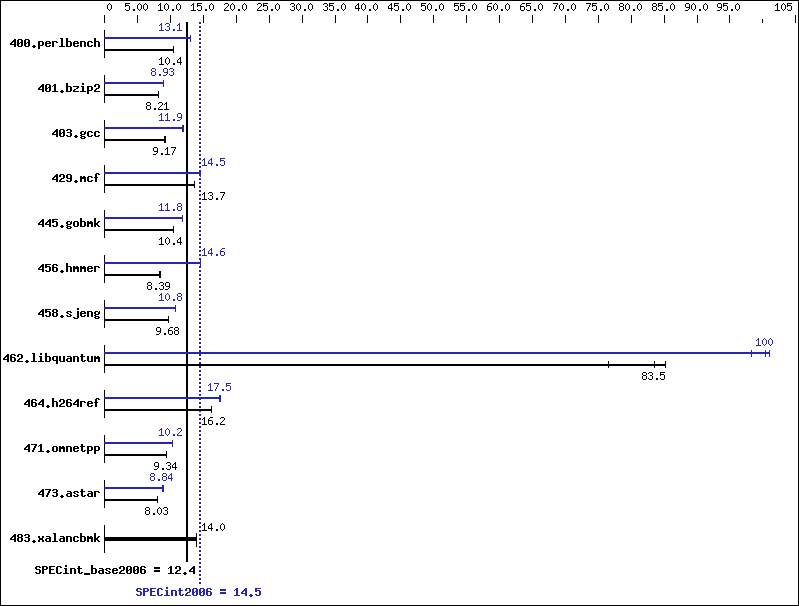

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 936 | 10.4 | 937 | 10.4 | 934 | 10.5 | 747 | 13.1 | 746 | 13.1 | 747 | 13.1 |
| 401.bzip2 | 1180 | 8.18 | 1176 | 8.21 | 1175 | 8.22 | 1082 | 8.92 | 1080 | 8.93 | 1078 | 8.95 |
| 403.gcc | 874 | 9.21 | 880 | 9.15 | 878 | 9.17 | 677 | 11.9 | 677 | 11.9 | 677 | 11.9 |
| 429.mcf | 668 | 13.7 | 668 | 13.7 | 669 | 13.6 | 630 | 14.5 | 626 | 14.6 | 629 | 14.5 |
| 445.gobmk | 1009 | 10.4 | 1009 | 10.4 | 1009 | 10.4 | 891 | 11.8 | 891 | 11.8 | 890 | 11.8 |
| 456.hmmer | 1112 | 8.39 | 1111 | 8.40 | 1111 | 8.39 | 640 | 14.6 | 641 | 14.6 | 642 | 14.5 |
| 458.sjeng | 1247 | 9.70 | 1259 | 9.61 | 1250 | 9.68 | 1121 | 10.8 | 1124 | 10.8 | 1120 | 10.8 |
| 462.libquantum | 271 | 76.5 | 243 | 85.1 | 248 | 83.5 | 206 | 100 | 205 | 101 | 211 | 98.3 |
| 464.h264ref | 1360 | 16.3 | 1367 | 16.2 | 1363 | 16.2 | 1264 | 17.5 | 1262 | 17.5 | 1262 | 17.5 |
| 471.omnetpp | 668 | 9.35 | 669 | 9.34 | 669 | 9.34 | 611 | 10.2 | 611 | 10.2 | 610 | 10.3 |
| 473.astar | 879 | 7.99 | 874 | 8.03 | 874 | 8.03 | 794 | 8.84 | 795 | 8.83 | 790 | 8.89 |
| 483.xalancbmk | 493 | 14.0 | 493 | 14.0 | 494 | 14.0 | 493 | 14.0 | 493 | 14.0 | 494 | 14.0 |
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode Hardware Sector Prefetch Enabled and Adjacent Sector Prefetch Enabled OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to null
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
