SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL365 G5
(2.3 GHz AMD Opteron 2356)

SPECfp®2006 = 17.8

CPU2006 license: 3 Test date: Mar-2008
Test sponsor: Hewlett-Packard Company Hardware Availability: Mar-2008
Tested by: Hewlett-Packard Company Software Availability: May-2008

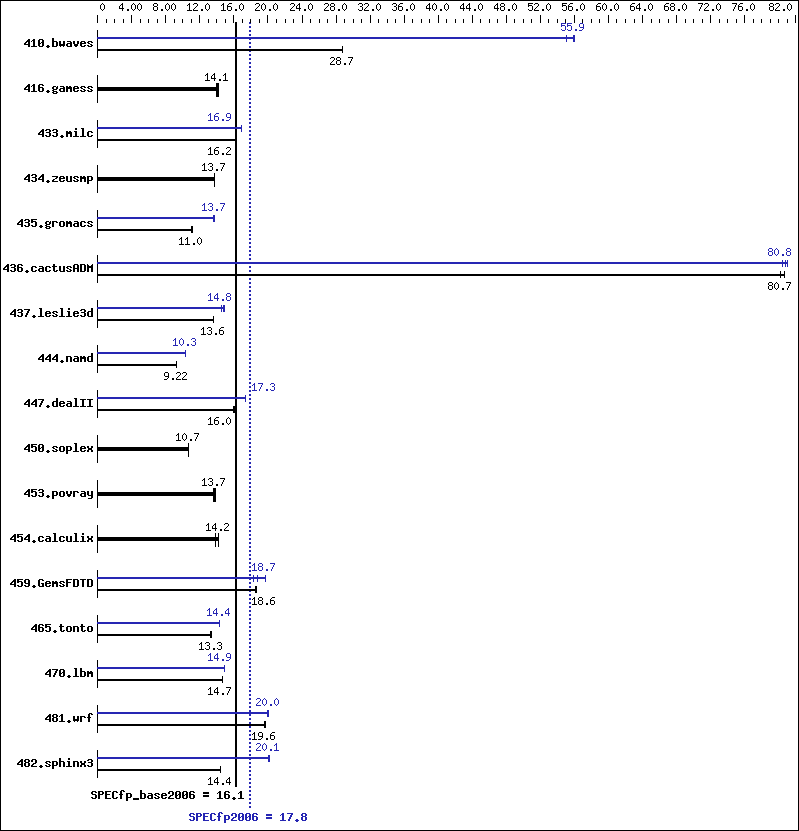

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2356
CPU Characteristics:
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB, PC2-5300P CL5)
Disk Subsystem: 1x72 GB 10 K SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
Auto Parallel: Yes
File System: ext2
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: binutils-2.18.50

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 473 28.7  473 28.7  473 28.7  243 55.9 247 55.1 243 56.0
416.gamess 1386 14.1  1401 14.0  1387 14.1  1386 14.1 1401 14.0 1387 14.1
433.milc 564 16.3  566 16.2  566 16.2  542 16.9 542 16.9 542 16.9
434.zeusmp 665 13.7  666 13.7  665 13.7  665 13.7 666 13.7 665 13.7
435.gromacs 644 11.1  647 11.0  647 11.0  521 13.7 524 13.6 521 13.7
436.cactusADM 148 80.7  148 80.7  149 80.2  148 80.8 149 80.4 147 81.1
437.leslie3d 693 13.6  691 13.6  690 13.6  633 14.8 646 14.5 634 14.8
444.namd 869 9.23 869 9.22 870 9.22 780 10.3 781 10.3 779 10.3
447.dealII 714 16.0  714 16.0  716 16.0  660 17.3 659 17.4 660 17.3
450.soplex 781 10.7  781 10.7  782 10.7  781 10.7 781 10.7 782 10.7
453.povray 390 13.6  385 13.8  387 13.7  390 13.6 385 13.8 387 13.7
454.calculix 580 14.2  581 14.2  598 13.8  580 14.2 581 14.2 598 13.8
459.GemsFDTD 570 18.6  571 18.6  570 18.6  567 18.7 580 18.3 537 19.8
465.tonto 738 13.3  741 13.3  739 13.3  685 14.4 685 14.4 686 14.3
470.lbm 937 14.7  938 14.7  934 14.7  922 14.9 925 14.9 920 14.9
481.wrf 569 19.6  571 19.6  568 19.7  558 20.0 557 20.1 559 20.0
482.sphinx3 1349 14.4  1350 14.4  1348 14.5  967 20.2 970 20.1 973 20.0

Operating System Notes

 Environment stack size set to 'unlimited'
 Max locked memory set to 2097152
 PGI_HUGE_PAGES set to 896
 Total number of huge pages available is 7168
 NCPUS set to number of cores
 numactl used to bind processes to CPUs

Platform Notes

BIOS configuration:
  Power Regulator set to Static High Performance Mode

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -fastsse   -Msmartalloc=huge:896   -Mconcur   -Msafeptr   -Mfprelaxed   -Mipa=jobs:8   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:896   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
482.sphinx3:  -Mpfi(pass 1)   -Mipa=jobs:8(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mipa=jobs:8(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mconcur=noaltcode(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -Mnodepchk   -Munroll=n:4   -Munroll=m:8   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -fast   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -Mnovect   -alias=ansi   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
450.soplex:  basepeak = yes
453.povray:  basepeak = yes

Fortran benchmarks:

410.bwaves:  -fastsse   -Mloop32   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -Mconcur   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur=noaltcode   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi
459.GemsFDTD:  -Mpfi(pass 1)   -Mipa=jobs:8(pass 2)   -Mipa=fast(pass 2)   -Mipa=inlinenopfo(pass 2)   -Mconcur(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:896   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
465.tonto:  -fast   -O4   -Mfprelaxed   -Msmartalloc=huge:896   -Mprefetch=distance:8   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mvect=noaltcode   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Mconcur   -Mfpapprox=rsqrt   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -fastsse   -Mfprelaxed   -Mconcur   -Msmartalloc   -Mdse   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
454.calculix:  basepeak = yes
481.wrf:  -fast   -Mfprelaxed   -Msmartalloc=huge:896   -Mconcur=noaltcode   -Mvect=noaltcode   -Mprefetch=distance:8   -tp barcelona-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 18:00:11 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 3 April 2008.
