| CPU2006 license: | 20 | Test date: | Aug-2008 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2008 |
| Tested by: | Bull SAS | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7210 |
| CPU Characteristics: | 1066 MHz system bus |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 4 chips, 2 cores/chip |
| CPU(s) orderable: | 1 to 4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (16x2 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x146 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE LINUX Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.17.50.0.15 SmartHeap library V8.1 |

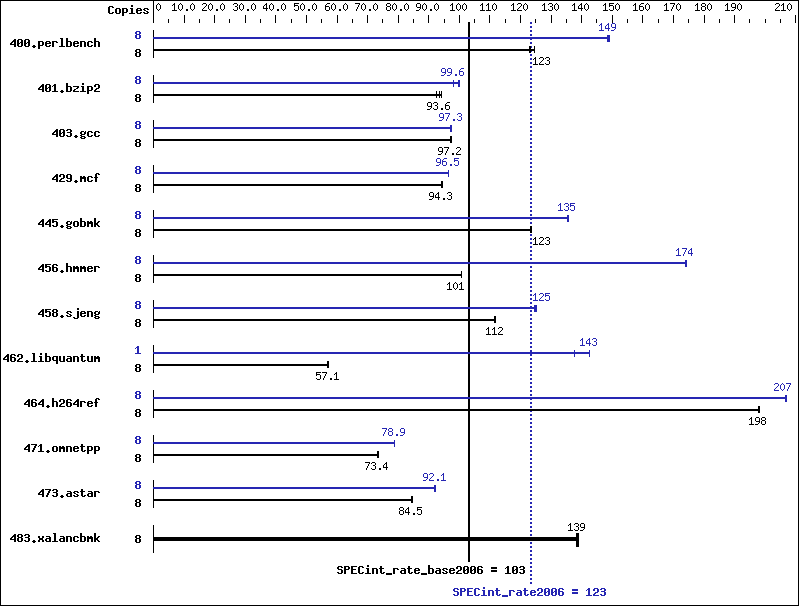

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 628 | 124 | 634 | 123 | 636 | 123 | 8 | 524 | 149 | 526 | 149 | 525 | 149 |
| 401.bzip2 | 8 | 820 | 94.1 | 833 | 92.7 | 825 | 93.6 | 8 | 786 | 98.2 | 773 | 99.9 | 775 | 99.6 |
| 403.gcc | 8 | 662 | 97.2 | 662 | 97.2 | 661 | 97.4 | 8 | 662 | 97.3 | 663 | 97.1 | 662 | 97.3 |
| 429.mcf | 8 | 773 | 94.4 | 775 | 94.1 | 774 | 94.3 | 8 | 756 | 96.5 | 757 | 96.3 | 756 | 96.5 |
| 445.gobmk | 8 | 680 | 123 | 680 | 123 | 680 | 123 | 8 | 620 | 135 | 619 | 135 | 619 | 136 |
| 456.hmmer | 8 | 740 | 101 | 741 | 101 | 741 | 101 | 8 | 429 | 174 | 429 | 174 | 429 | 174 |
| 458.sjeng | 8 | 866 | 112 | 868 | 112 | 865 | 112 | 8 | 777 | 125 | 775 | 125 | 772 | 125 |
| 462.libquantum | 8 | 2905 | 57.1 | 2913 | 56.9 | 2902 | 57.1 | 1 | 145 | 143 | 151 | 138 | 145 | 143 |
| 464.h264ref | 8 | 894 | 198 | 894 | 198 | 895 | 198 | 8 | 856 | 207 | 856 | 207 | 856 | 207 |
| 471.omnetpp | 8 | 683 | 73.3 | 681 | 73.4 | 680 | 73.5 | 8 | 634 | 78.8 | 634 | 78.9 | 634 | 78.9 |
| 473.astar | 8 | 665 | 84.5 | 665 | 84.4 | 664 | 84.6 | 8 | 609 | 92.2 | 610 | 92.1 | 610 | 92.0 |
| 483.xalancbmk | 8 | 398 | 139 | 399 | 138 | 398 | 139 | 8 | 398 | 139 | 399 | 138 | 398 | 139 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode BIOS settings : Hardware Prefetcher : Disabled Adjacent Cache-Line Prefetch : Disabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
