| CPU2006 license: | 9008 | Test date: | Aug-2008 |
|---|---|---|---|
| Test sponsor: | ACTION S.A. | Hardware Availability: | Dec-2007 |
| Tested by: | Piotr Nowicki | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3210 |
| CPU Characteristics: | 2.13 GHz, 8 MB L2, 1066 MHz bus |
| CPU MHz: | 2130 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4x 1 GB PC2-5300 ECC) |
| Disk Subsystem: | 1x 250 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.17.50.0.15 |

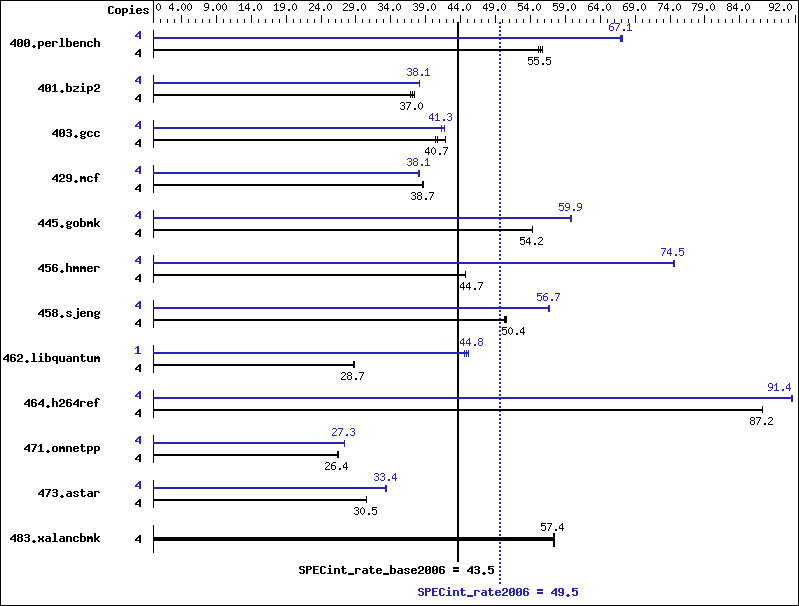

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 708 | 55.2 | 705 | 55.5 | 702 | 55.7 | 4 | 581 | 67.2 | 582 | 67.1 | 584 | 66.9 |
| 401.bzip2 | 4 | 1042 | 37.0 | 1034 | 37.3 | 1049 | 36.8 | 4 | 1013 | 38.1 | 1011 | 38.2 | 1014 | 38.1 |
| 403.gcc | 4 | 797 | 40.4 | 770 | 41.8 | 792 | 40.7 | 4 | 780 | 41.3 | 773 | 41.7 | 780 | 41.3 |
| 429.mcf | 4 | 942 | 38.7 | 942 | 38.7 | 946 | 38.6 | 4 | 957 | 38.1 | 961 | 38.0 | 957 | 38.1 |
| 445.gobmk | 4 | 774 | 54.2 | 773 | 54.2 | 773 | 54.3 | 4 | 700 | 59.9 | 702 | 59.8 | 701 | 59.9 |
| 456.hmmer | 4 | 835 | 44.7 | 835 | 44.7 | 836 | 44.6 | 4 | 502 | 74.4 | 500 | 74.7 | 501 | 74.5 |
| 458.sjeng | 4 | 962 | 50.3 | 958 | 50.5 | 961 | 50.4 | 4 | 855 | 56.6 | 854 | 56.7 | 853 | 56.7 |
| 462.libquantum | 4 | 2895 | 28.6 | 2890 | 28.7 | 2883 | 28.7 | 1 | 462 | 44.8 | 465 | 44.6 | 460 | 45.1 |
| 464.h264ref | 4 | 1015 | 87.2 | 1015 | 87.2 | 1015 | 87.2 | 4 | 969 | 91.4 | 968 | 91.4 | 968 | 91.5 |
| 471.omnetpp | 4 | 947 | 26.4 | 947 | 26.4 | 945 | 26.5 | 4 | 914 | 27.3 | 914 | 27.3 | 915 | 27.3 |
| 473.astar | 4 | 919 | 30.6 | 922 | 30.5 | 920 | 30.5 | 4 | 844 | 33.3 | 840 | 33.4 | 841 | 33.4 |
| 483.xalancbmk | 4 | 481 | 57.4 | 481 | 57.4 | 481 | 57.3 | 4 | 481 | 57.4 | 481 | 57.4 | 481 | 57.3 |
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode. Taskset command was used to bind processes to CPUs.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
