| CPU2006 license: | 9006 | Test date: | Jul-2015 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jun-2015 |
| Tested by: | NEC Corporation | Software Availability: | Oct-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2699 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 2300 |
| FPU: | Integrated |
| CPU(s) enabled: | 18 cores, 1 chip, 18 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 45 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 64 GB (4 x 16 GB 2Rx4 PC4-2133P-R) |
| Disk Subsystem: | NEC Storage M100 via Fibre Channel (See additional details below) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.6 (Santiago) Kernel 2.6.32-504.el6.x86_64 |
| Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

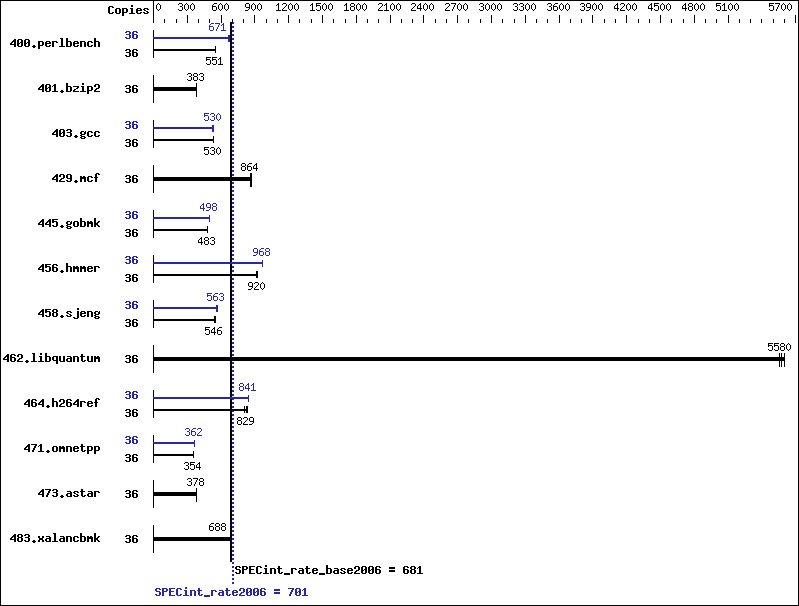

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 36 | 638 | 551 | 639 | 551 | 639 | 551 | 36 | 526 | 669 | 524 | 671 | 522 | 674 |
| 401.bzip2 | 36 | 909 | 382 | 908 | 383 | 905 | 384 | 36 | 909 | 382 | 908 | 383 | 905 | 384 |
| 403.gcc | 36 | 548 | 529 | 545 | 531 | 546 | 530 | 36 | 547 | 530 | 544 | 533 | 555 | 522 |
| 429.mcf | 36 | 380 | 864 | 382 | 859 | 377 | 871 | 36 | 380 | 864 | 382 | 859 | 377 | 871 |
| 445.gobmk | 36 | 782 | 483 | 782 | 483 | 784 | 482 | 36 | 759 | 498 | 759 | 498 | 759 | 497 |
| 456.hmmer | 36 | 365 | 920 | 366 | 918 | 364 | 922 | 36 | 347 | 967 | 346 | 970 | 347 | 968 |
| 458.sjeng | 36 | 798 | 546 | 799 | 545 | 798 | 546 | 36 | 773 | 563 | 773 | 563 | 772 | 564 |
| 462.libquantum | 36 | 134 | 5560 | 133 | 5600 | 134 | 5580 | 36 | 134 | 5560 | 133 | 5600 | 134 | 5580 |
| 464.h264ref | 36 | 961 | 829 | 958 | 831 | 988 | 806 | 36 | 945 | 843 | 949 | 840 | 947 | 841 |
| 471.omnetpp | 36 | 636 | 354 | 631 | 357 | 635 | 354 | 36 | 620 | 363 | 625 | 360 | 622 | 362 |
| 473.astar | 36 | 669 | 378 | 670 | 377 | 665 | 380 | 36 | 669 | 378 | 670 | 377 | 665 | 380 |
| 483.xalancbmk | 36 | 360 | 690 | 361 | 688 | 361 | 688 | 36 | 360 | 690 | 361 | 688 | 361 | 688 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Settings: Energy Performance: Performance Patrol Scrub: Disabled Storage Configuration for Disk Subsystem: NEC Storage M100 has 4 x 600 GB 10000 RPM SAS disks under RAID-10 configuration mounted over 8Gbps Fibre Channel interface with these options "defaults" in the /etc/fstab.
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Compiler Invocation
C benchmarks:
| icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 | |
| 400.perlbench: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | basepeak = yes |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
