Composite Scores
SPECapc for Creo measures how long it takes for your system to render and manipulate a variety of scenes. Each test represents a usage model, and each composite score below is based on a weighted geometric mean of all scenes and rendering modes.
Composites
| Composite | Resolution | Score - No AA |
|---|---|---|
| CPU Composite Score | 3840x2160 | 2.67 |
| GPU Composite Score | 3840x2160 | 2.52 |
| SubTests | Resolution | Score - No AA |
| CPU | 3840x2160 | 2.71 |
| Render Studio CPU | 3840x2160 | 1.79 |
| CPU Convert | 3840x2160 | 2.63 |
| Shaded Graphics | 3840x2160 | 2.51 |
| Shaded Edge Graphics | 3840x2160 | 2.35 |
| Shaded Reflection Graphics | 3840x2160 | 2.54 |
| No Hidden Graphics | 3840x2160 | 2.72 |
| Hidden Graphics | 3840x2160 | 3.06 |
Benchmark Information
| Benchmark | ||
|---|---|---|
| Name | SPECapc for Creo® 9 Benchmark | |
| Version | 9.1.0-beta3 | |
| Application Name | PTC Creo Parametric | |
| Application Version | 9.0.4.0 | |
| Submission | ||
| Test Date | Thu Jul 06 2023 21:11:24 GMT-0700 (Pacific Daylight Time) | |
| Submission Candidate | Yes | |
| Submitting Company | HP | |
| Comments | Windows Power Plan set to High Perfomance. GPU driver HP SoftPaq https://support.hp.com/us-en/drivers/selfservice/swdetails/hp-z2-tower-g9-workstation-desktop-pc/2100987204/swItemId/vc-309443-1 | |
System Configuration
| Workstation | ||
|---|---|---|
| Manufacturer | HP | |
| Model | HP Z2 Tower G9 Workstation Desktop PC | |
| BIOS Name | U50 Ver. 02.01.05 | |
| Manufacturer | HP | |
| Serial Number | USZ2G9T097 | |
| Version | HPQOEM - 0 | |
| SMBIOS Version | U50 Ver. 02.01.05 | |
| OS Name | Microsoft Windows 11 Pro | |
| Build Number | 22621 | |
| Graphics | ||
| Name | NVIDIA RTX A4000 | |
| Driver Version | 31.0.15.2889 | |
| Screen Resolution | 3840 x 2160 | |
| Name | Intel(R) UHD Graphics | |
| Driver Version | 31.0.101.3675 | |
| Screen Resolution | 3840 x 2160 | |
| Screen Scaling | 100% | |
| Processor | ||
| Name | 13th Gen Intel(R) Core(TM) i9-13900K | |
| Address Width | 64-bit | |
| Nominal Clock Speed | 3000 MHz | |
| Number Of Cores | 24 | |
| Number Of Logical Processors | 32 | |
| Memory | ||
| DIMM Name | Physical Memory | |
| Memory Speed | 4800 MHz | |
| Memory Capacity | 32 GB | |
| DIMM Name | Physical Memory | |
| Memory Speed | 4800 MHz | |
| Memory Capacity | 32 GB | |
| Disk Drives | ||
| Drive Model | NVMe MTFDKBA1T0TFH-1BC1AABHA | |
| Drive Capacity | 953.86 GB | |
| Drive Model | NVMe MTFDKBA1T0TFH-1BC1AABHA | |
| Drive Capacity | 953.86 GB | |
| Display | ||
| HP Z27xs G3 4K DreamColor Display | 3840 x 2160 | |
| Default Monitor | 3840 x 2160 | |
Test List
The table below lists the subtests used to compute the composite results shown in the SCORES tab. It also lists the run time of each subtest and compares with the reference time (in seconds). The Test Type column indicates the model name and the composite the test contribues to.
Tests
| Test Type | Snapshot | Step Name | Time | Reference |
|---|---|---|---|---|
| Worldcar: CPU |  | Explode/unexplode model | 9 | 19 |
| Section model | 40 | 108 | ||
| Regenerate asm | 6 | 16 | ||
| Retessellate | 5 | 15 | ||
| Run mass properties analysis | 4 | 12 | ||
| Drawing | 7 | 21 | ||
| Worldcar: Render Studio CPU |  | Render to png/jpg/tif settings | 22 | 79 |
| Render studio spin/pan/zoom | 126 | 113 | ||
| Worldcar: CPU Convert | (no snapshot) | Export to iges format | 8 | 21 |
| Worldcar: Shaded Graphics |  | Shaded mode spin/pan/zoom | 20 | 55 |
| Create explode lines | 4 | 10 | ||
| Explode shaded spin/pan/zoom | 9 | 22 | ||
| Clipped shaded mode spin/pan/zoom | 33 | 92 | ||
| Create pattern; curve; x-sec at angle | 18 | 46 | ||
| Worldcar: Shaded Edge Graphics |  | Shaded with edges mode spin/pan/zoom | 27 | 73 |
| Worldcar: Shaded Reflection Graphics |  | Shaded with reflection mode spin/pan/zoom | 32 | 81 |
| Shaded reflection mode with oit body spin/pan/zoom | 31 | 80 | ||
| Set up complex lighting | 8 | 21 | ||
| Shaded reflection mode with complex lighting spin/pan/zoom | 29 | 78 | ||
| Shaded reflection mode with ssao spin/pan/zoom | 46 | 103 | ||
| Shaded reflection mode with background spin/pan/zoom | 31 | 85 | ||
| Worldcar: No Hidden Graphics |  | No-hidden mode spin/pan/zoom | 33 | 88 |
| Worldcar: Hidden Graphics |  | Hidden line mode spin/pan/zoom | 14 | 42 |

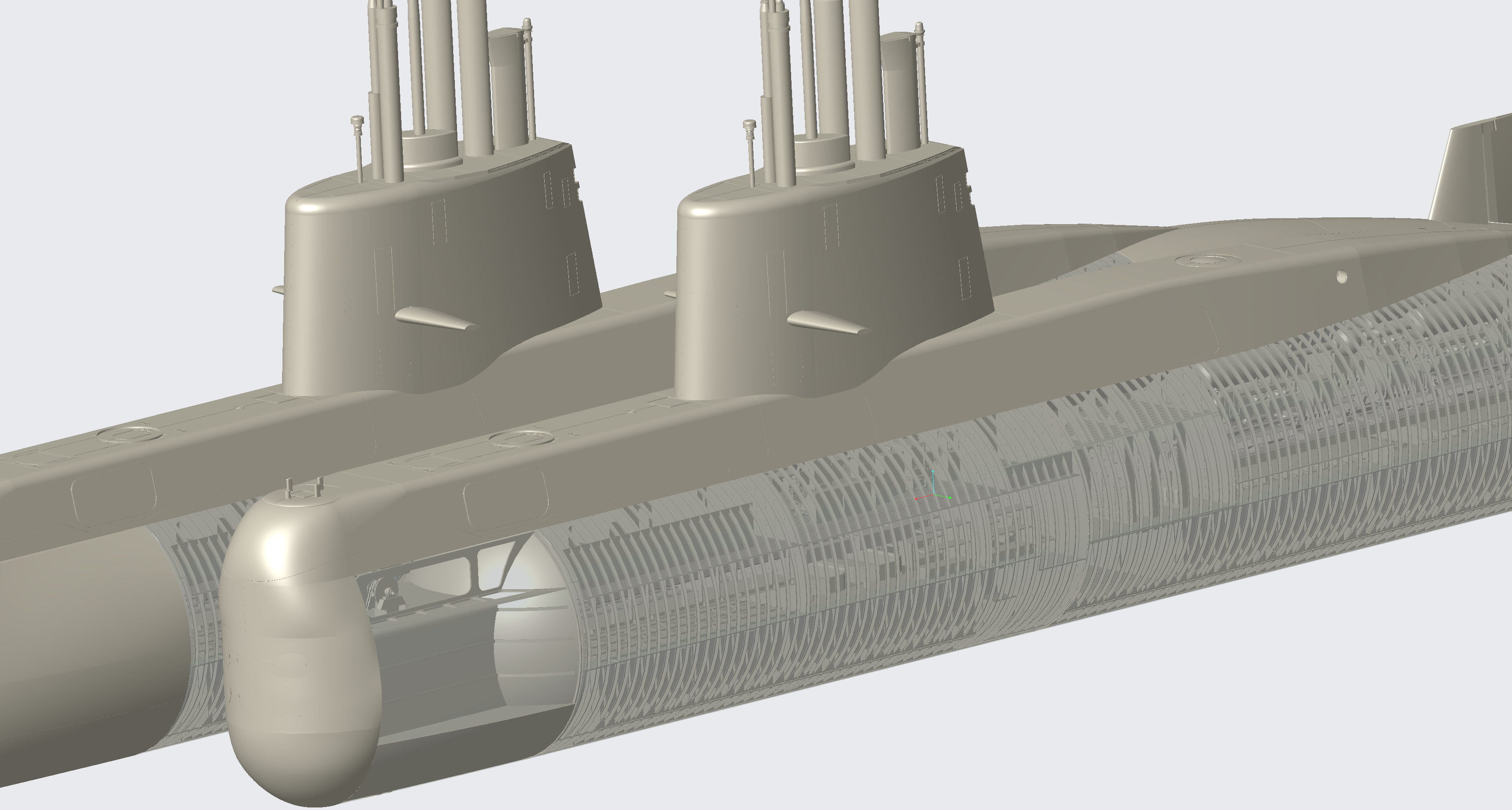

| Submarine: CPU |  | Regenerate asm | 8 | 19 |
| Retessellate | 6 | 17 | ||
| Run mass properties analysis | 8 | 23 | ||
| Submarine: Shaded Graphics |  | Shaded mode spin/pan/zoom | 43 | 88 |
| Clipped plane shaded mode spin/pan/zoom | 34 | 98 | ||
| Submarine: Shaded Edge Graphics |  | Shaded with edges mode spin/pan/zoom | 23 | 47 |

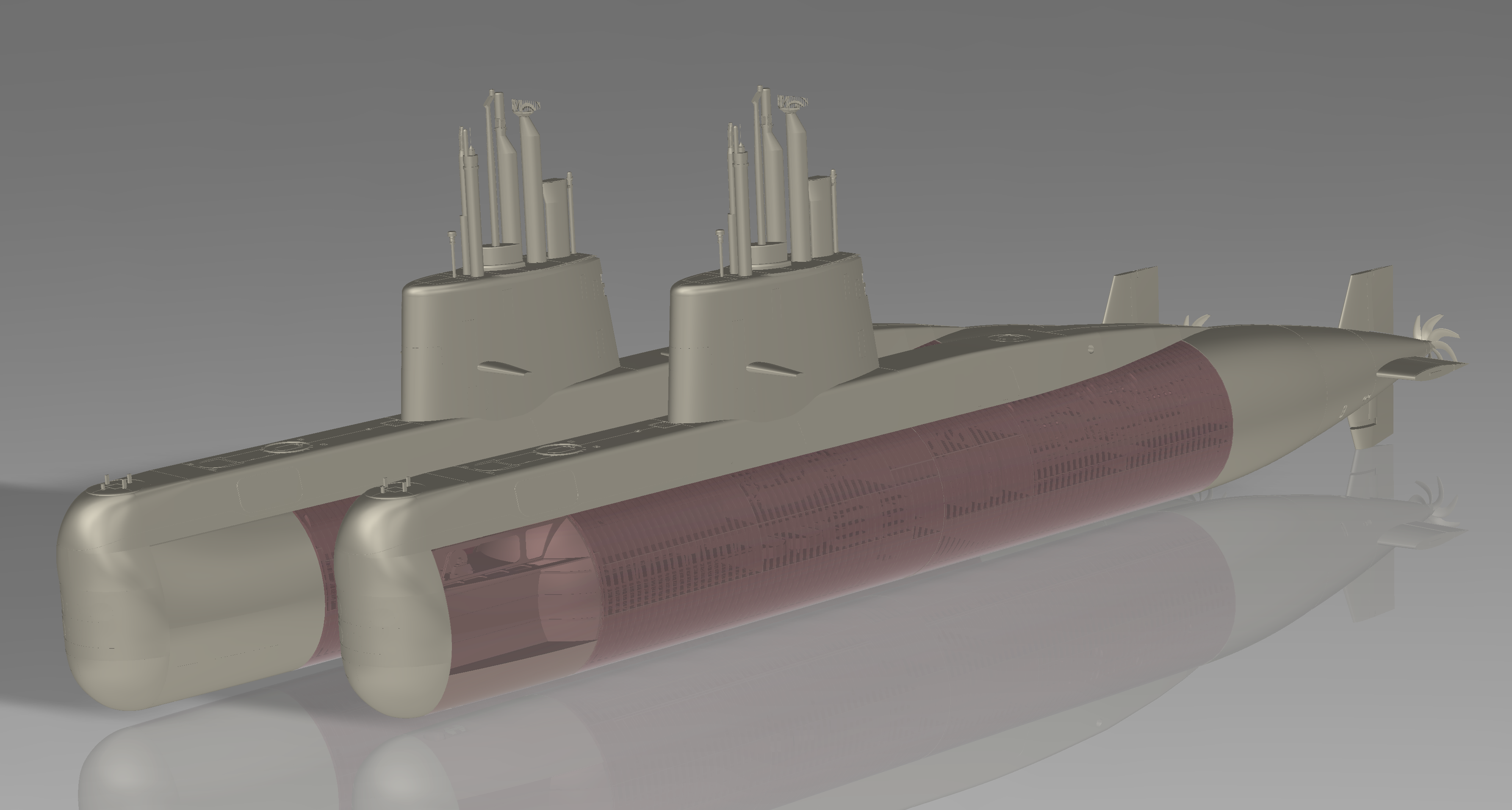

| Submarine: Shaded Reflection Graphics |  | Shaded reflection mode with oit body spin/pan/zoom | 30 | 76 |
| Shaded reflection mode with ssao spin/pan/zoom | 93 | 192 | ||
| Shaded reflection mode in perspective render mode spin/pan/zoom | 20 | 61 | ||
| Submarine: No Hidden Graphics |  | No-hidden mode spin/pan/zoom | 37 | 103 |

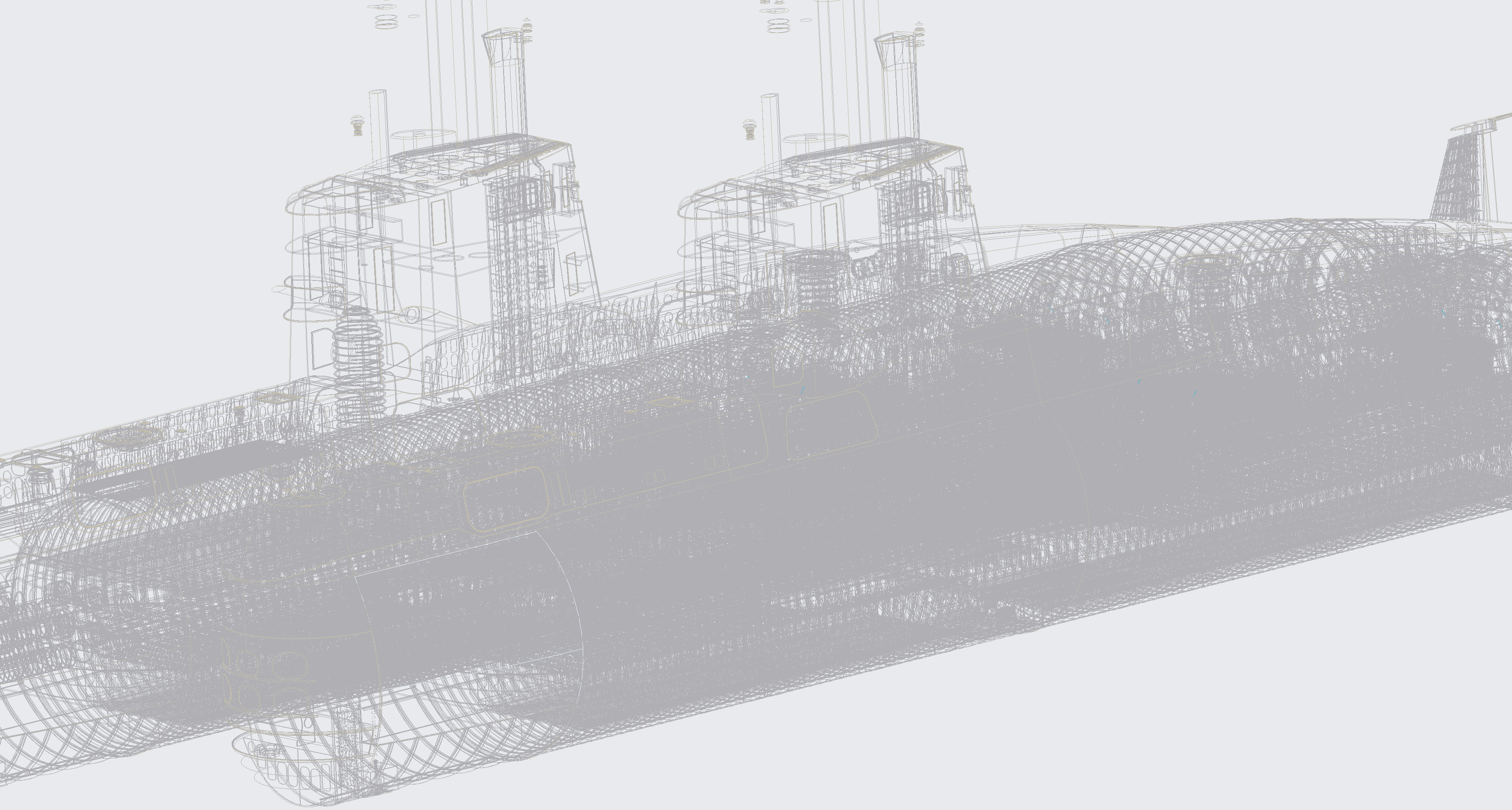

| Submarine: Hidden Graphics |  | Hidden line mode spin/pan/zoom | 17 | 53 |
