SPECviewperf 13 Results

http://www.spec.org/gwpg

Scores Configuration 3dsmax-06catia-05creo-02energy-02maya-05medical-02showcase-02snx-03sw-04

Composite Scores

SPECviewperf measures the frame rate, or frames per second (FPS), at which your graphics card can render scenes across a wide variety of applications and usage models. Each viewset represents an application or a usage model, and each composite score below is based on a weighted geometric mean of many different scenes and rendering modes.

Composites by Viewset

To explore a viewset in more detail, including the measured frame rate for each test of which the composite score is comprised, click on the viewset name in the menu to the left.

Viewset	Composite Score	Window
3dsmax-06	43.26	1900 x 1060
catia-05	54.37	1900 x 1060
creo-02	54.75	1900 x 1060
energy-02	4.17	1900 x 1060
maya-05	54.97	1900 x 1060
medical-02	10.61	1900 x 1060
showcase-02	18.82	1900 x 1060
snx-03	64.64	1900 x 1060
sw-04	68.45	1900 x 1060

Benchmark Information

Benchmark
Name	SPECgpc SPECviewperf 13 Benchmark
Version	13.0.0
Submission
Test Date	Thu May 10 2018 13:22:52 GMT-0500 (Central Daylight Time)
Submission Candidate	Yes
Submitting Company	Dell Technologies
Comments	Disabled v-sync, using the 389.08 driver available here: http://www.dell.com/support/home/us/en/19/drivers/driversdetails?driverId=R3JP4

System Configuration

Workstation
Manufacturer	Dell Inc.
Model	Precision 3530
BIOS Name	1.1.2
Manufacturer	Dell Inc.
Serial Number	H693PN2
Version	DELL - 1072009
SMBIOS Version	1.1.2
OS Name	Microsoft Windows 10 Pro
Build Number	16299
Graphics
Name	NVIDIA Quadro P600
Driver Version	23.21.13.8908
Name	Intel(R) UHD Graphics P630
Driver Version	23.20.16.4973
Resolution	1920 x 1080
DPI	96 (Scale Factor: 100%)
Processor
Name	Intel(R) Xeon(R) E-2176M CPU @ 2.70GHz
Address Width	64-bit
Nominal Clock Speed	2712 MHz
Number Of Cores	6
Number Of Logical Processors	12
Memory
DIMM A	8 GB 2667 MHz
DIMM B	8 GB 2667 MHz
Disk Drives
Drive Model	KXG50ZNV512G NVMe TOSHIBA 512GB
Drive Capacity	476.94 GB
Display
Default Monitor
Generic PnP Monitor

3dsmax-06

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

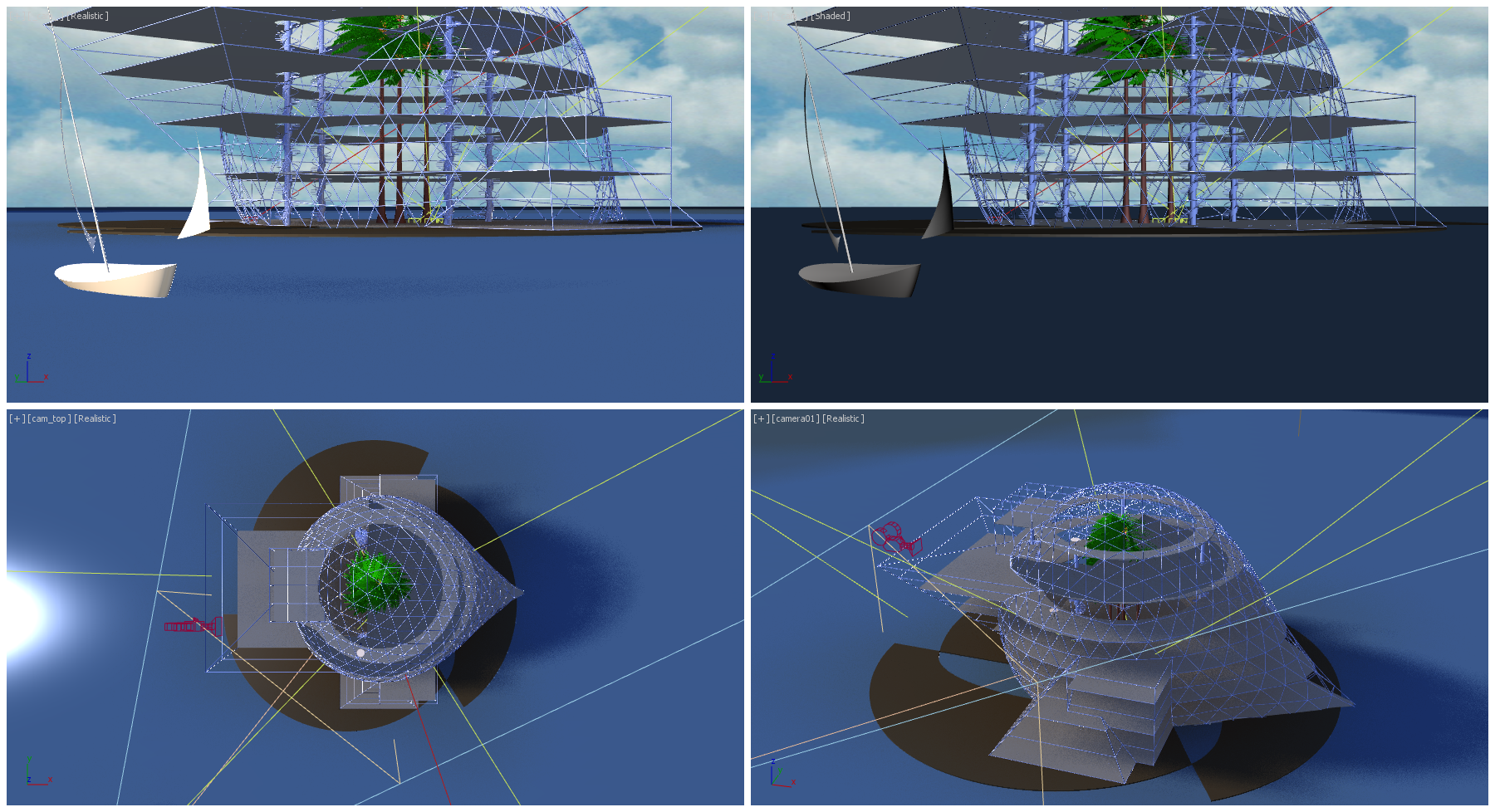

1	3dsmax_Arch_Shaded	32.59	9.52	500	15.34	05/10/18 13:23:18

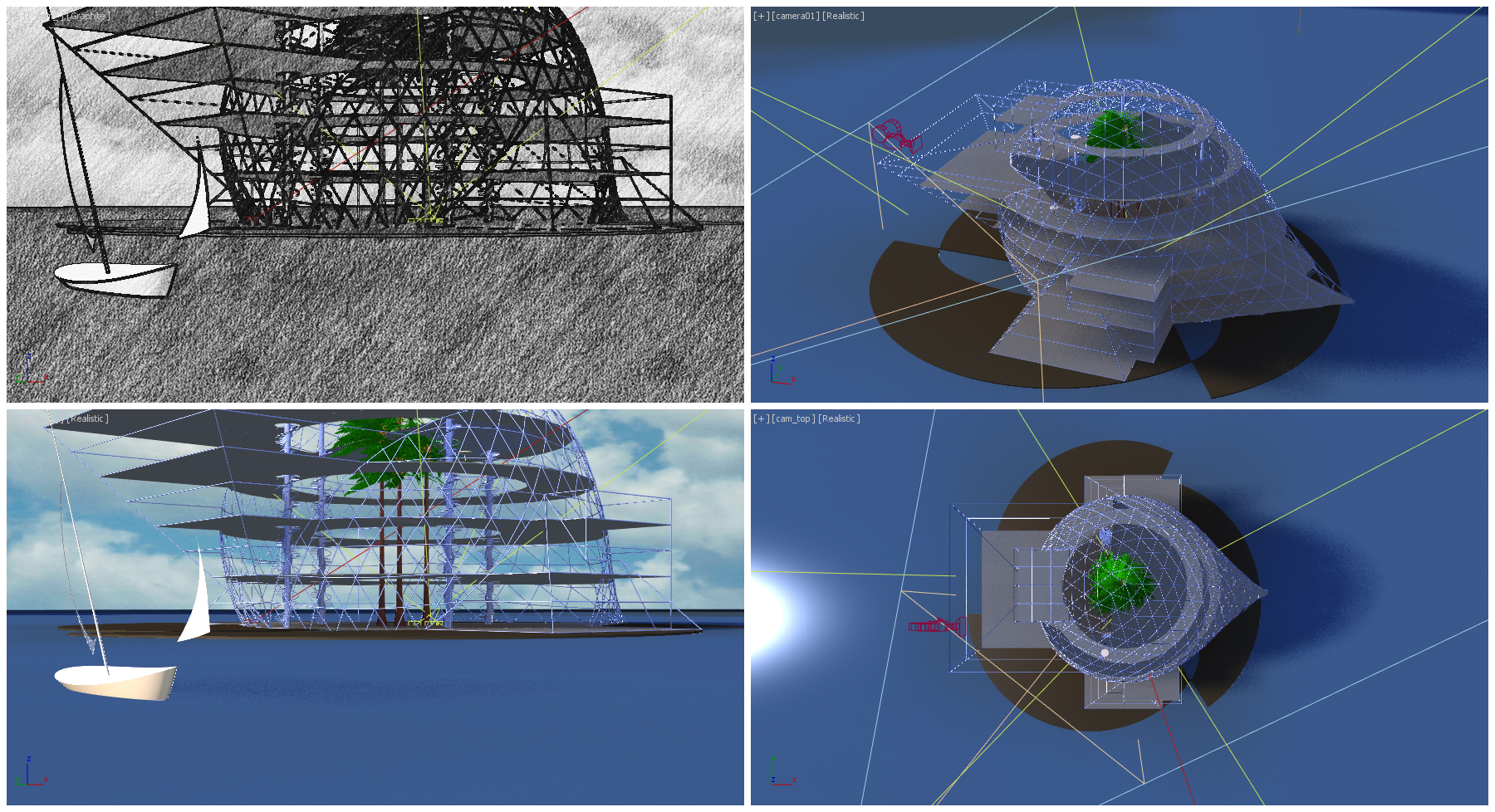

2	3dsmax_Arch_Graphite	22.03	9.52	350	15.89	05/10/18 13:23:37

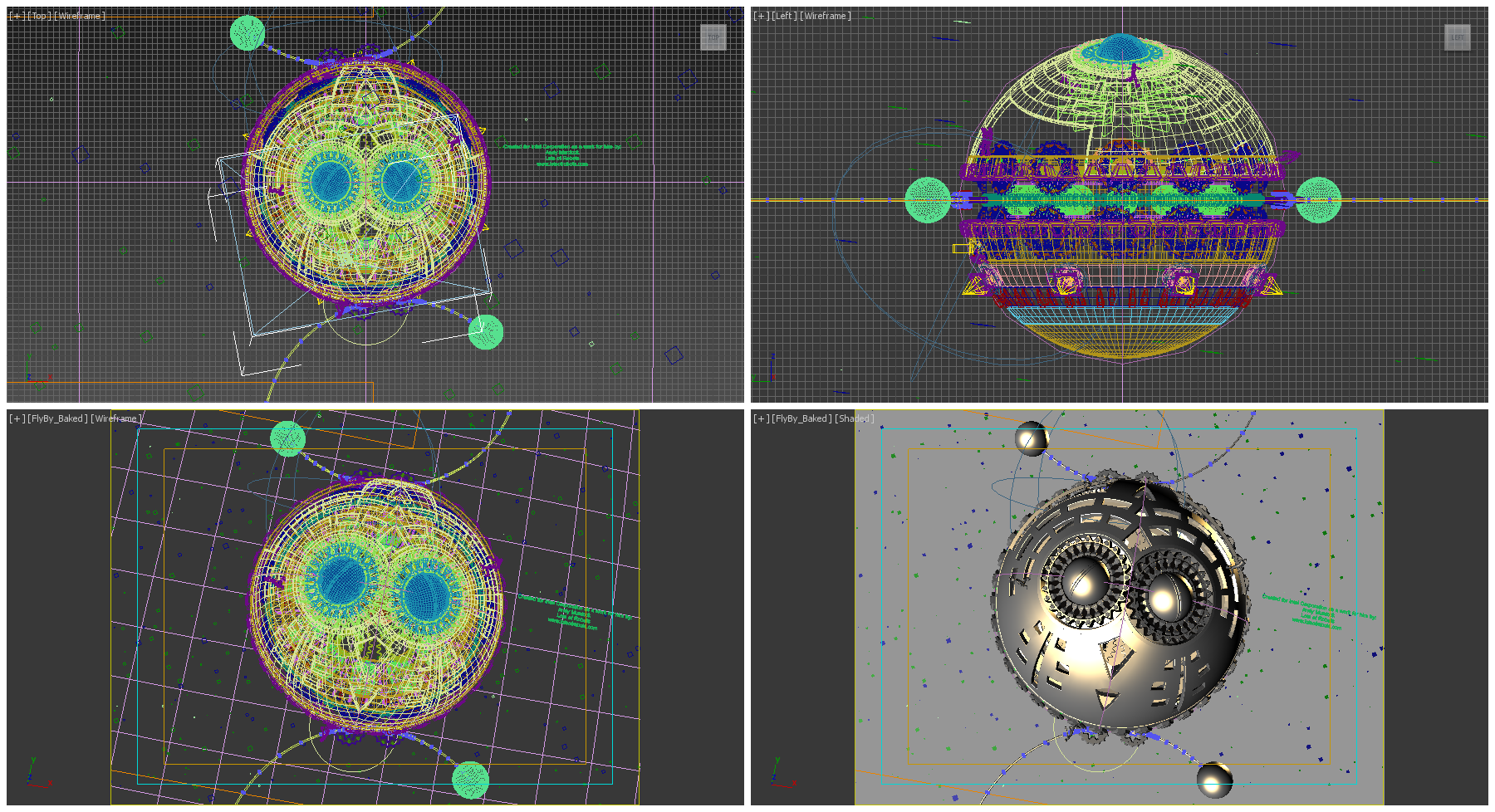

3	3dsmax_Space_Wireframe	80.81	9.52	1250	15.47	05/10/18 13:23:56

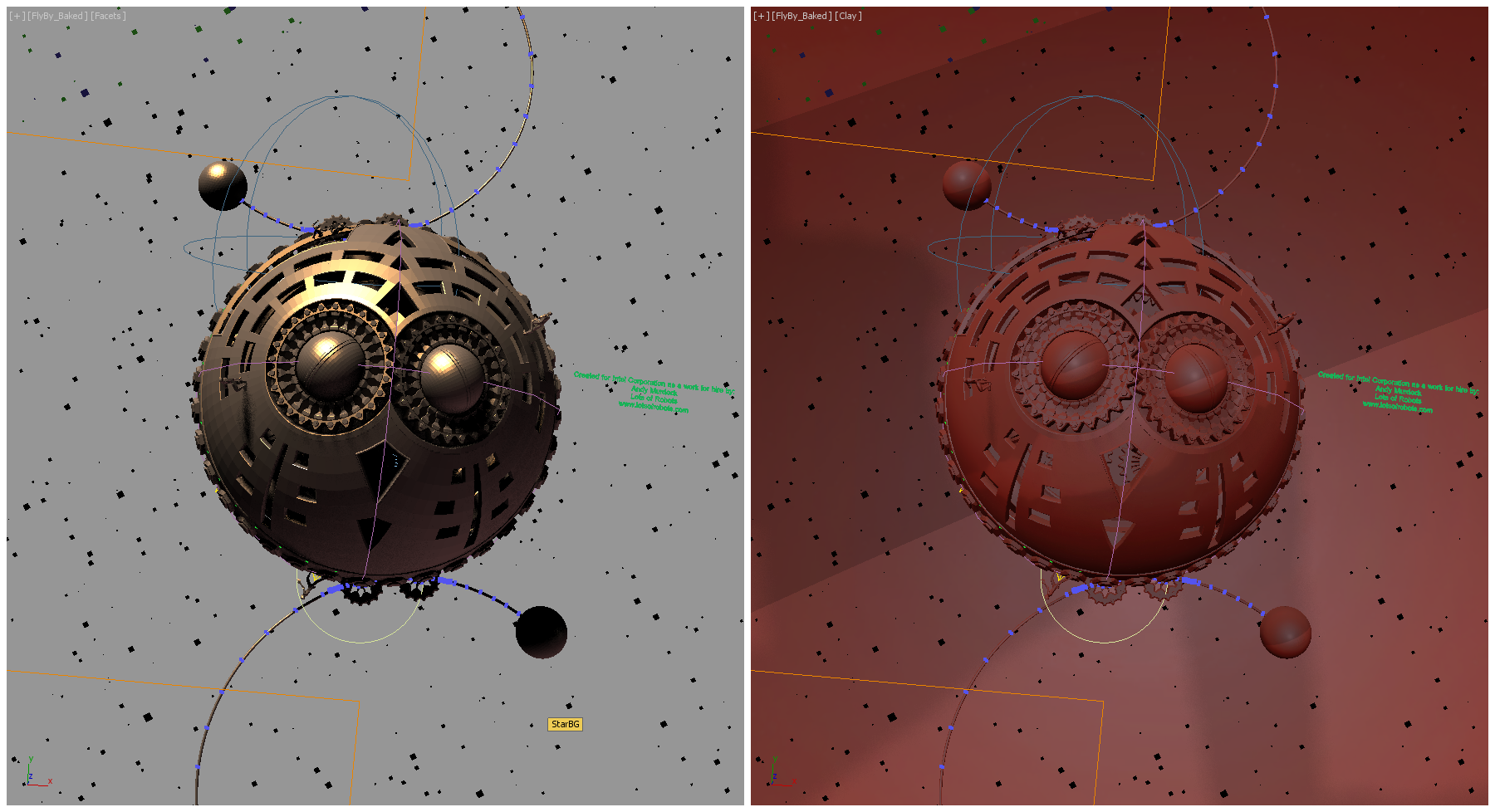

4	3dsmax_Space_Clay	28.66	9.52	450	15.7	05/10/18 13:24:14

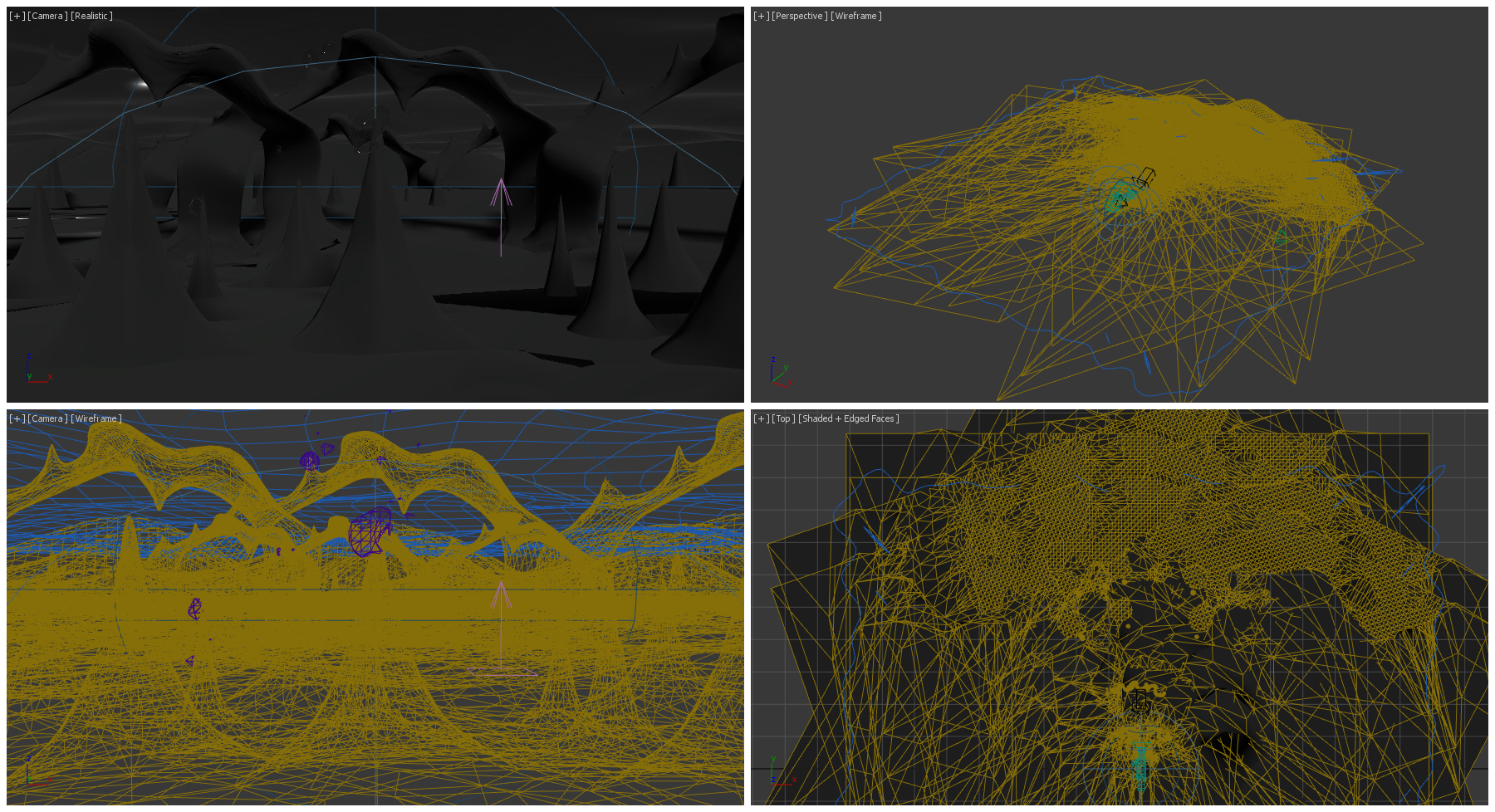

5	3dsmax_Underwater_Wireframe	78.85	9.52	1200	15.22	05/10/18 13:24:31

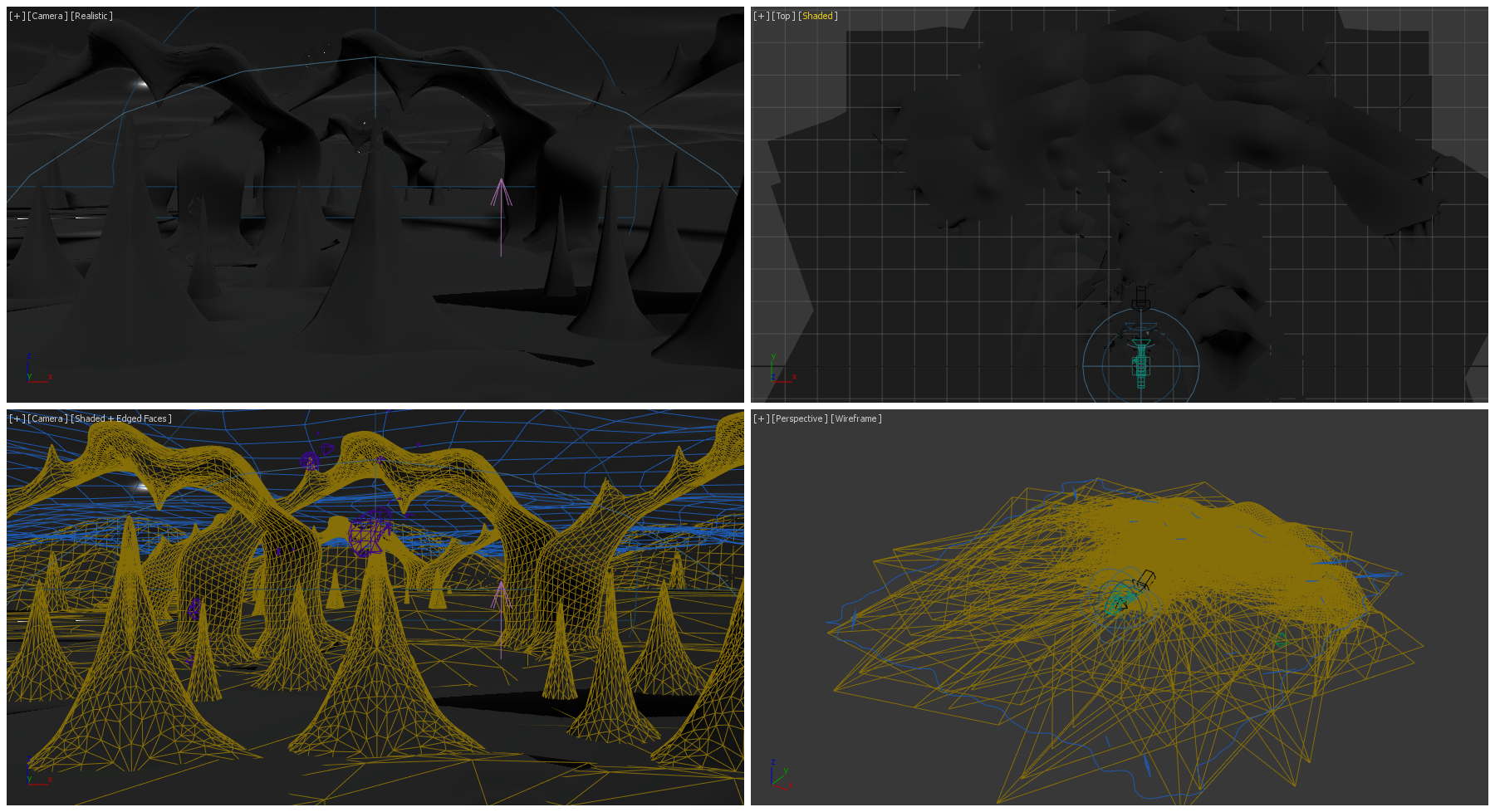

6	3dsmax_Underwater_Shaded	51.82	9.52	800	15.44	05/10/18 13:24:49

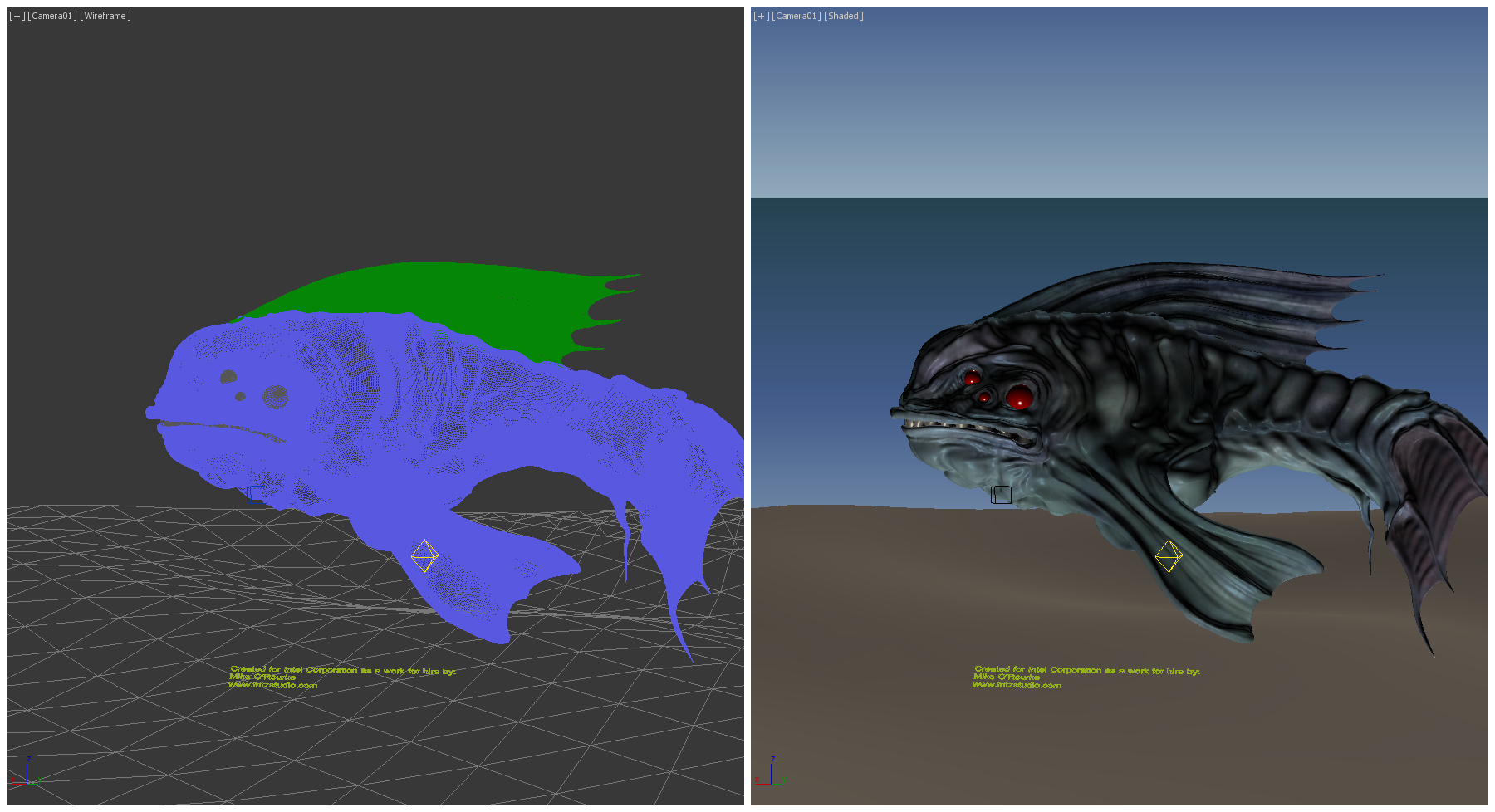

7	3dsmax_HugeFish_Wireframe	101.03	9.52	1525	15.09	05/10/18 13:25:08

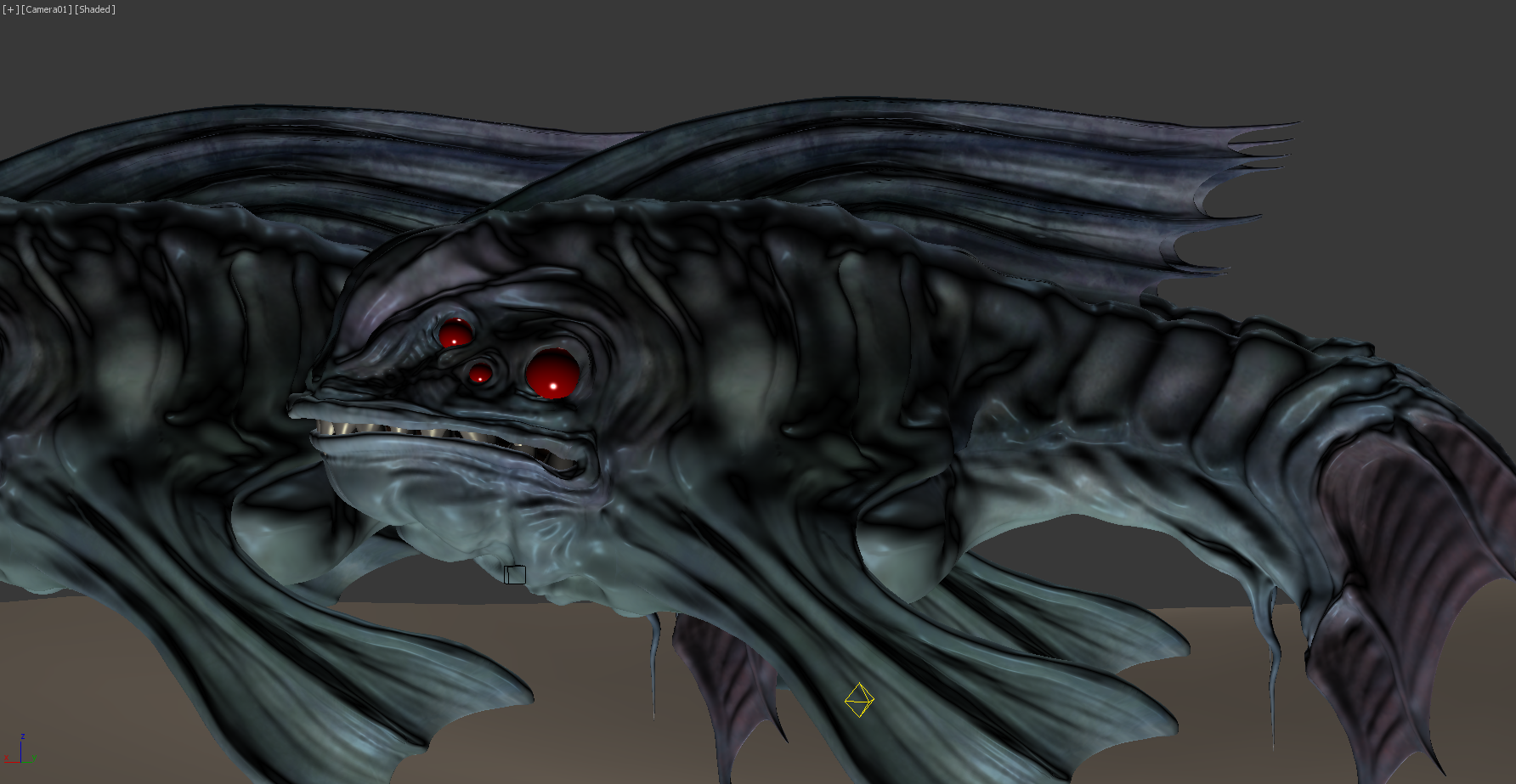

8	3dsmax_HugeFish_Shaded	77.85	9.52	1175	15.09	05/10/18 13:25:28

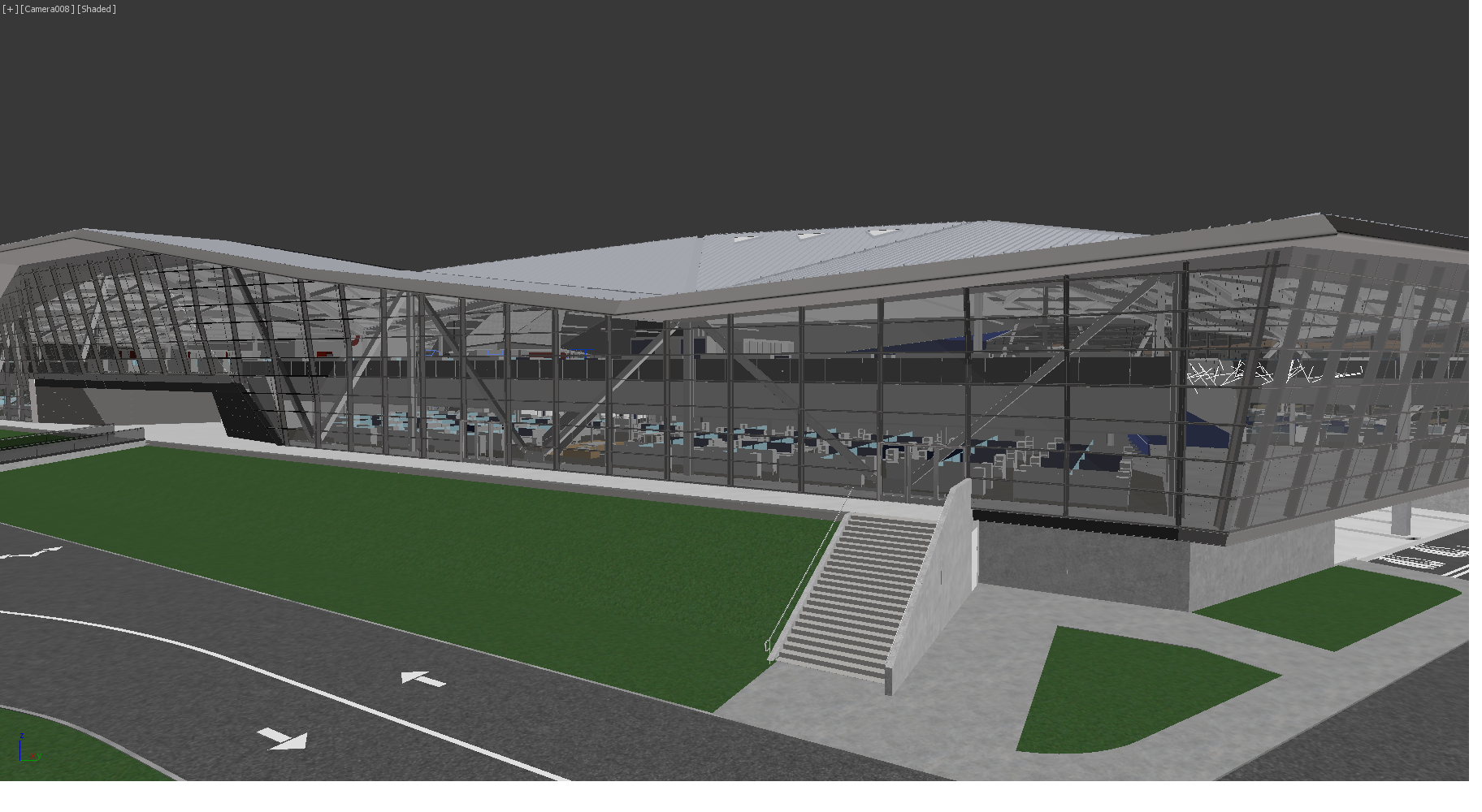

9	3dsmax_Office_Realistic	44.75	9.52	700	15.64	05/10/18 13:25:47
10	3dsmax_Office_Shaded	11.69	9.52	200	17.11	05/10/18 13:26:12
11	3dsmax_Office_RealisticMats	29.24	4.8	450	15.39	05/10/18 13:26:33

Screen Grabs Folder
Text Log File
XML Result File

catia-05

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

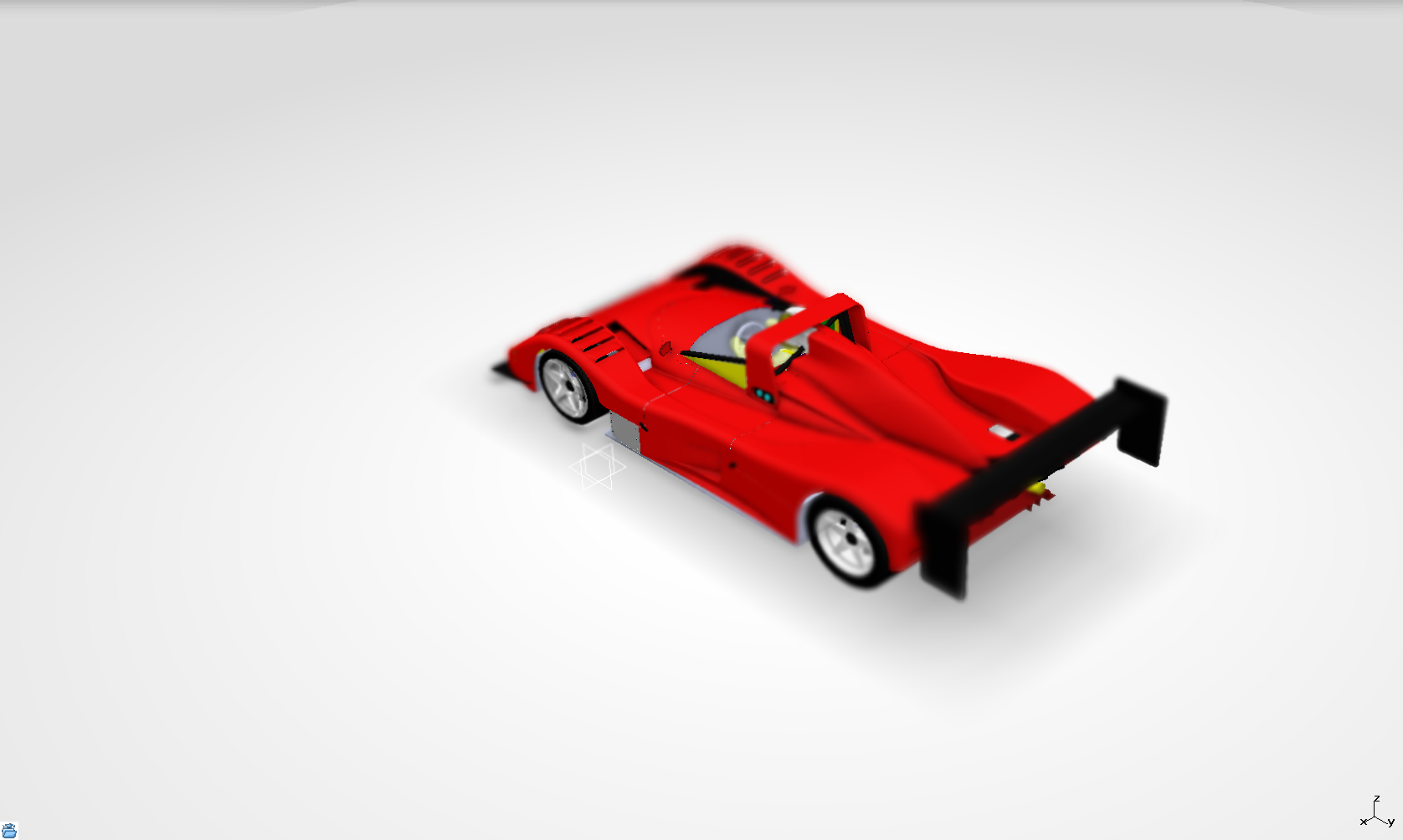

1	CATIA_car_dof	51.4	2.75	1440	28.02	05/10/18 13:27:03

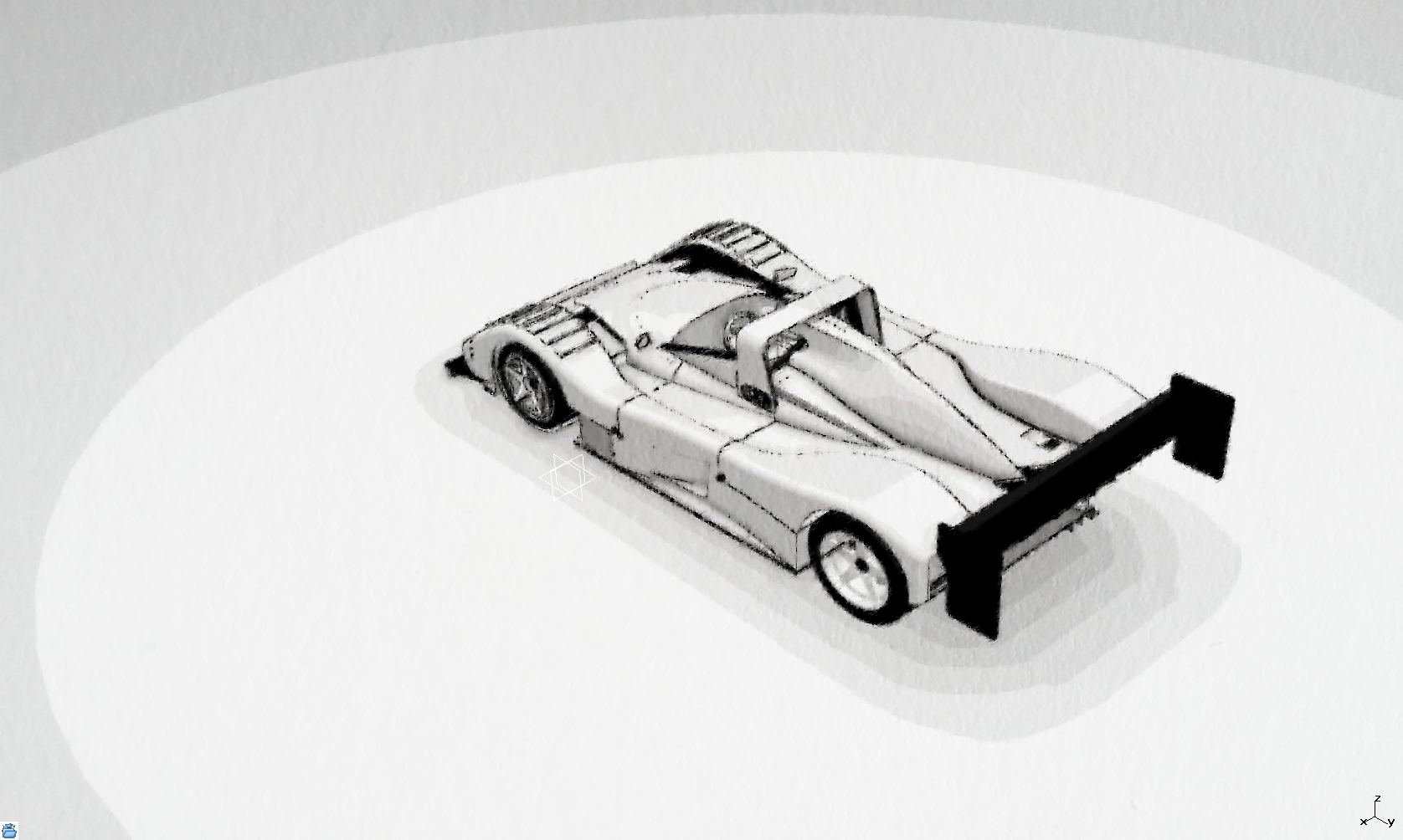

2	CATIA_car_pencil	54.99	2.75	1440	26.19	05/10/18 13:27:31

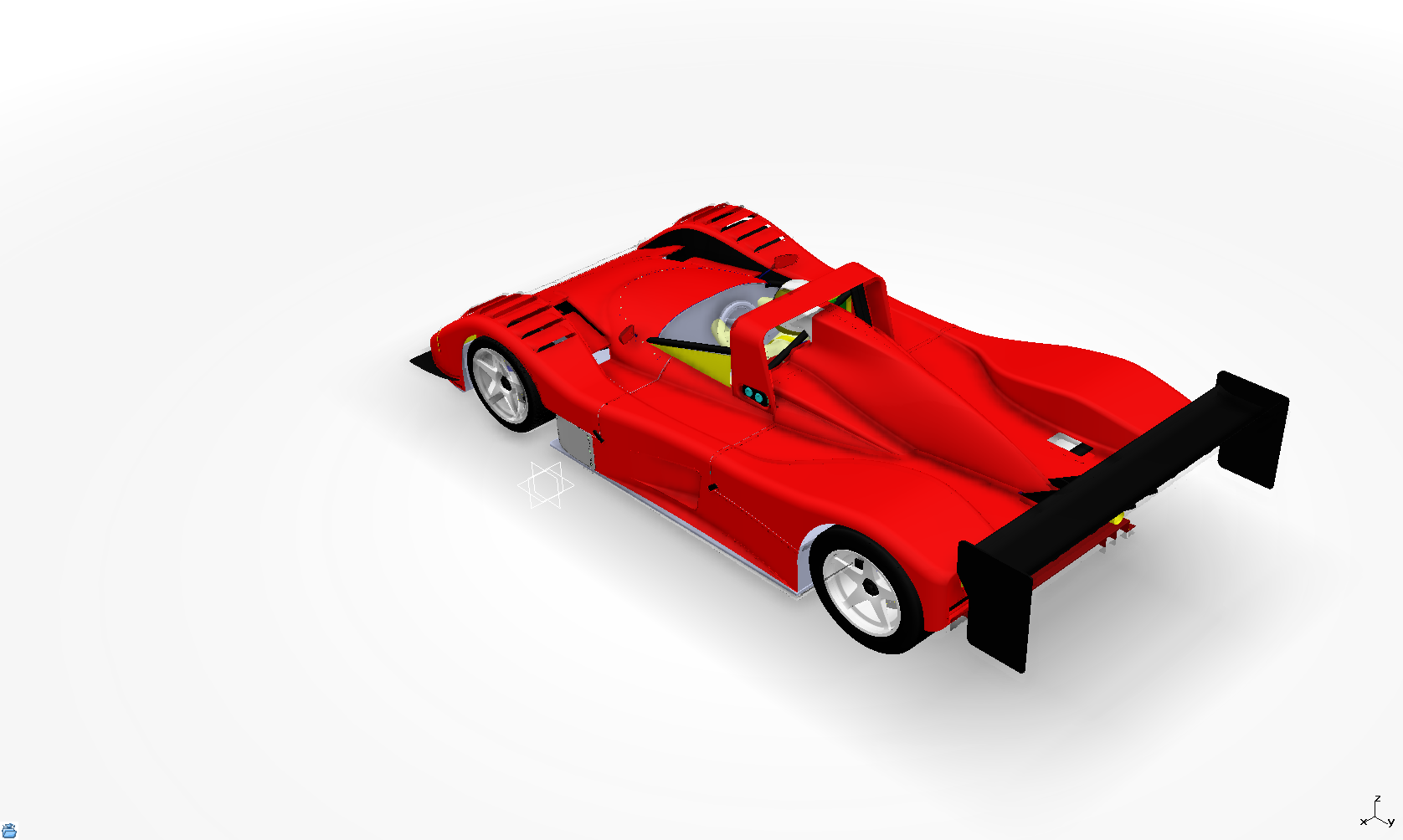

3	CATIA_car_ssao	67.22	9.89	1440	21.42	05/10/18 13:27:53

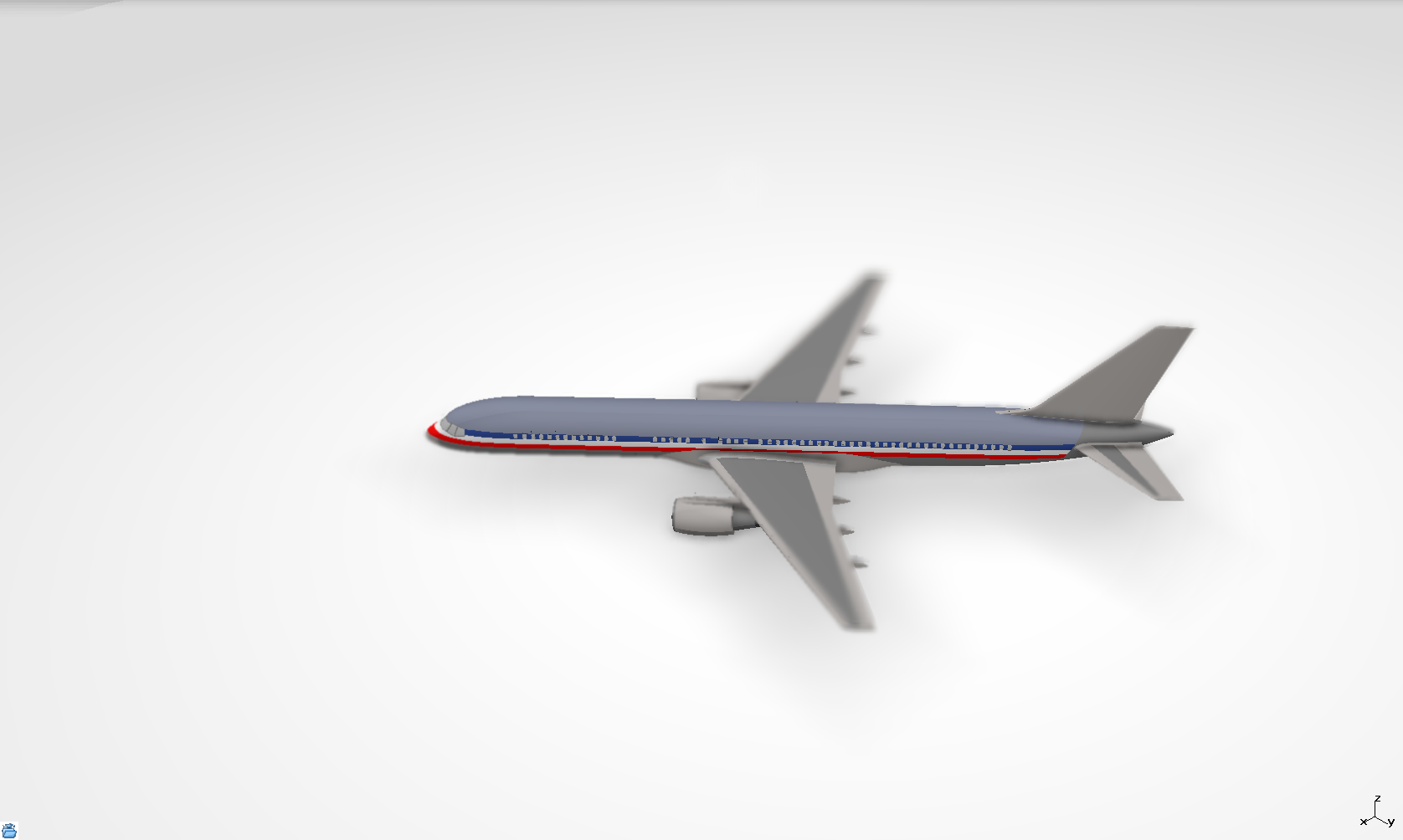

4	CATIA_plane_dof	60.08	2.75	1440	23.97	05/10/18 13:28:18

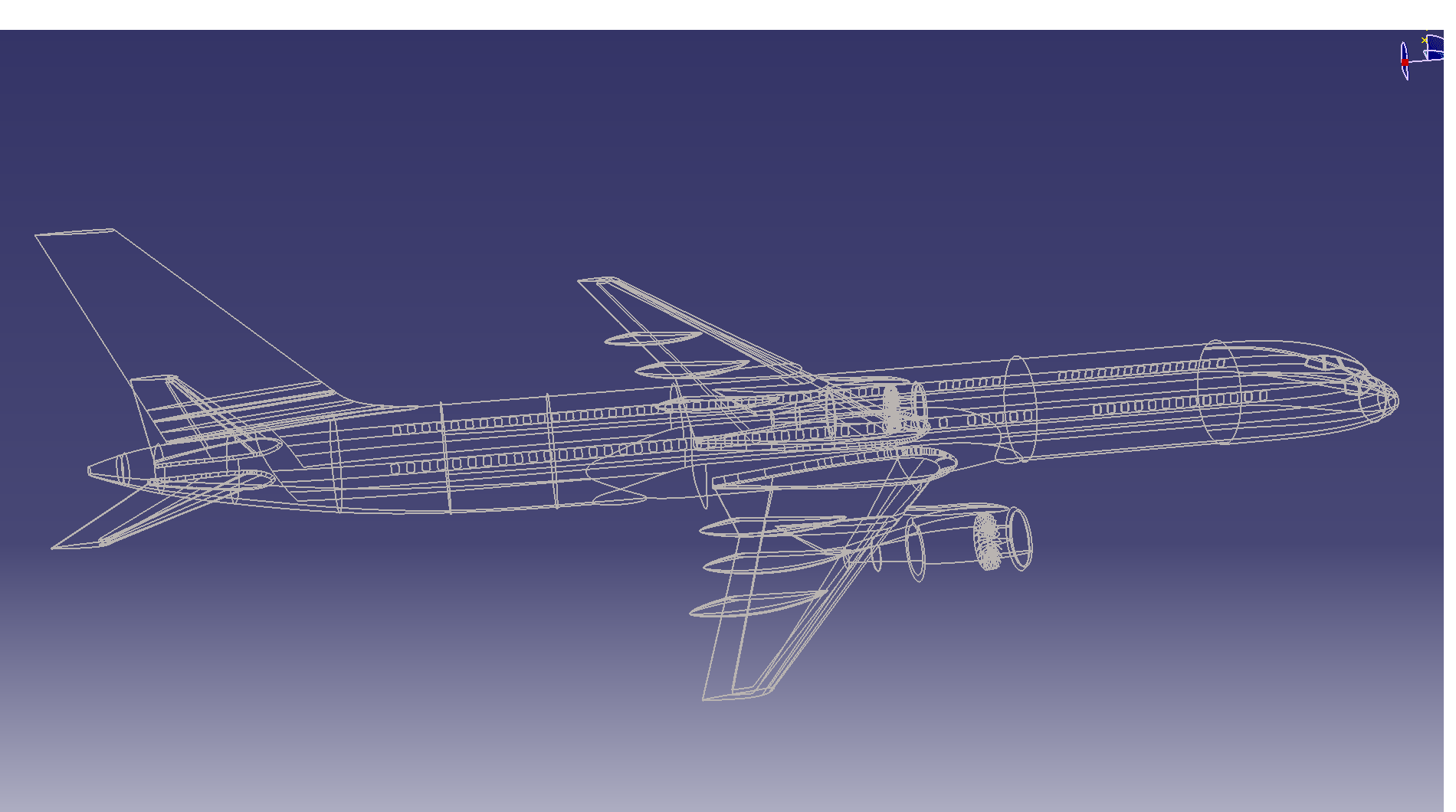

5	CATIA_plane_edges	1028.89	0	20160	19.59	05/10/18 13:28:38

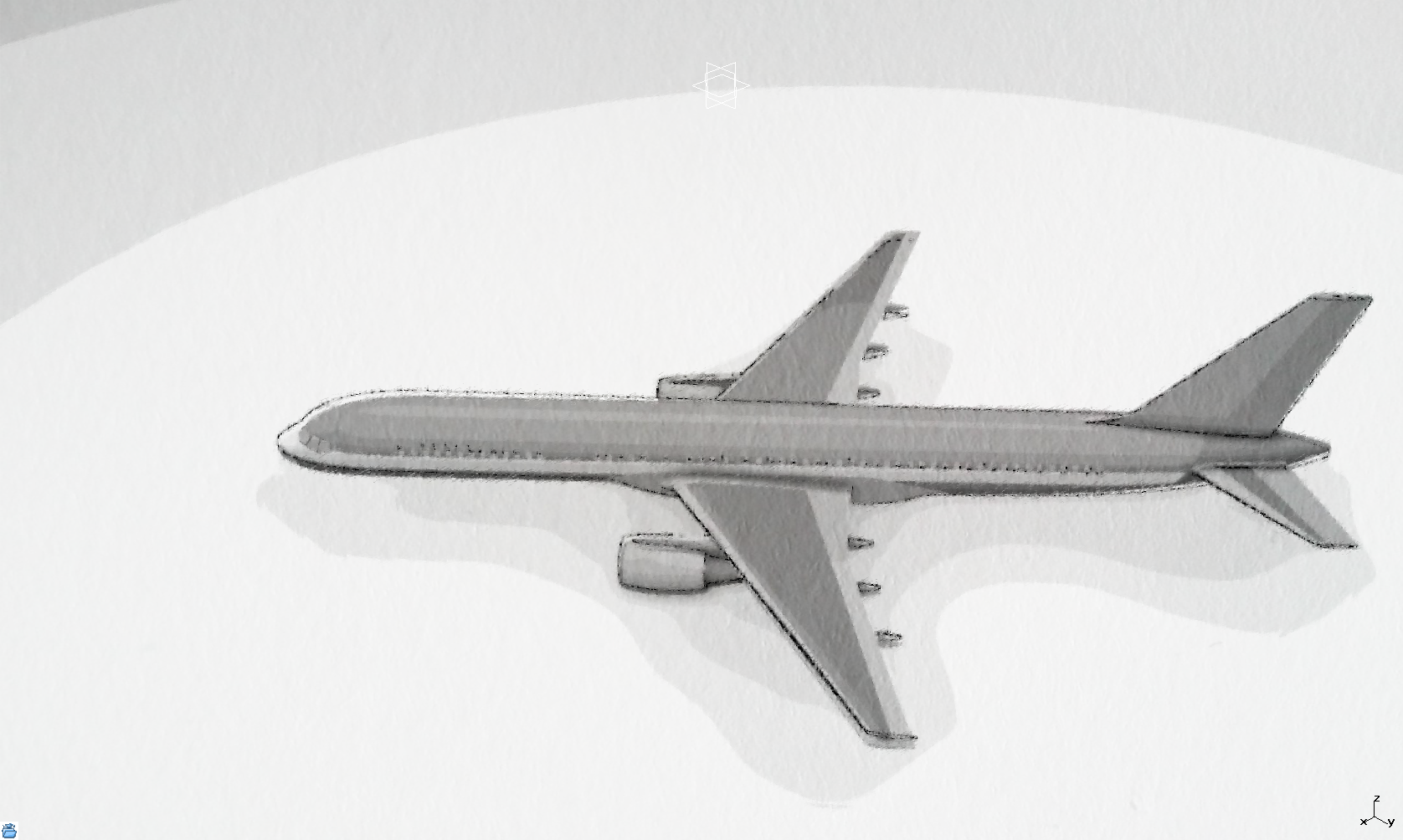

6	CATIA_plane_pencil	64.18	2.75	1440	22.44	05/10/18 13:29:02

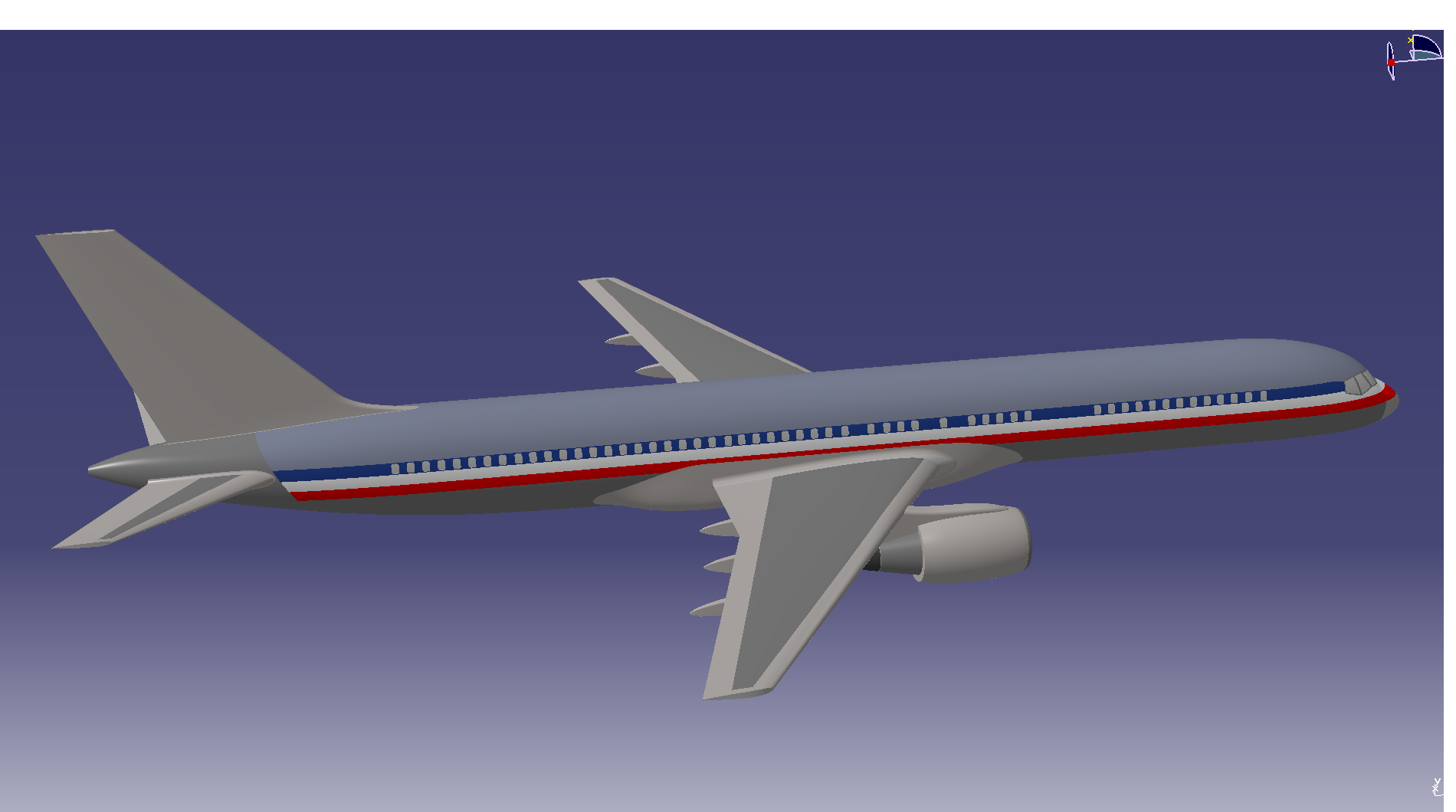

7	CATIA_plane_shaded	102.09	9.89	2160	21.16	05/10/18 13:29:24

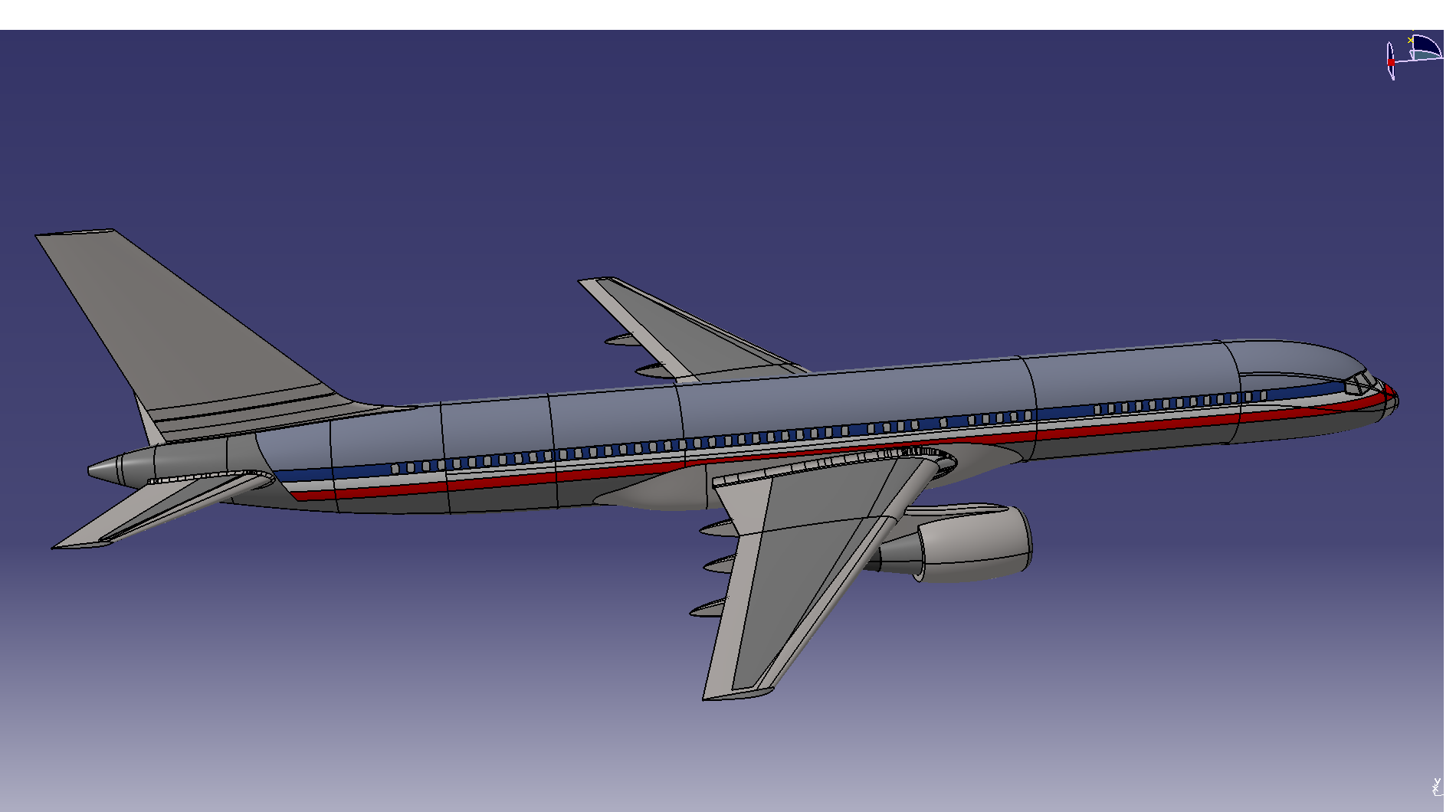

8	CATIA_plane_shadedEdges	99.88	9.89	2160	21.63	05/10/18 13:29:47

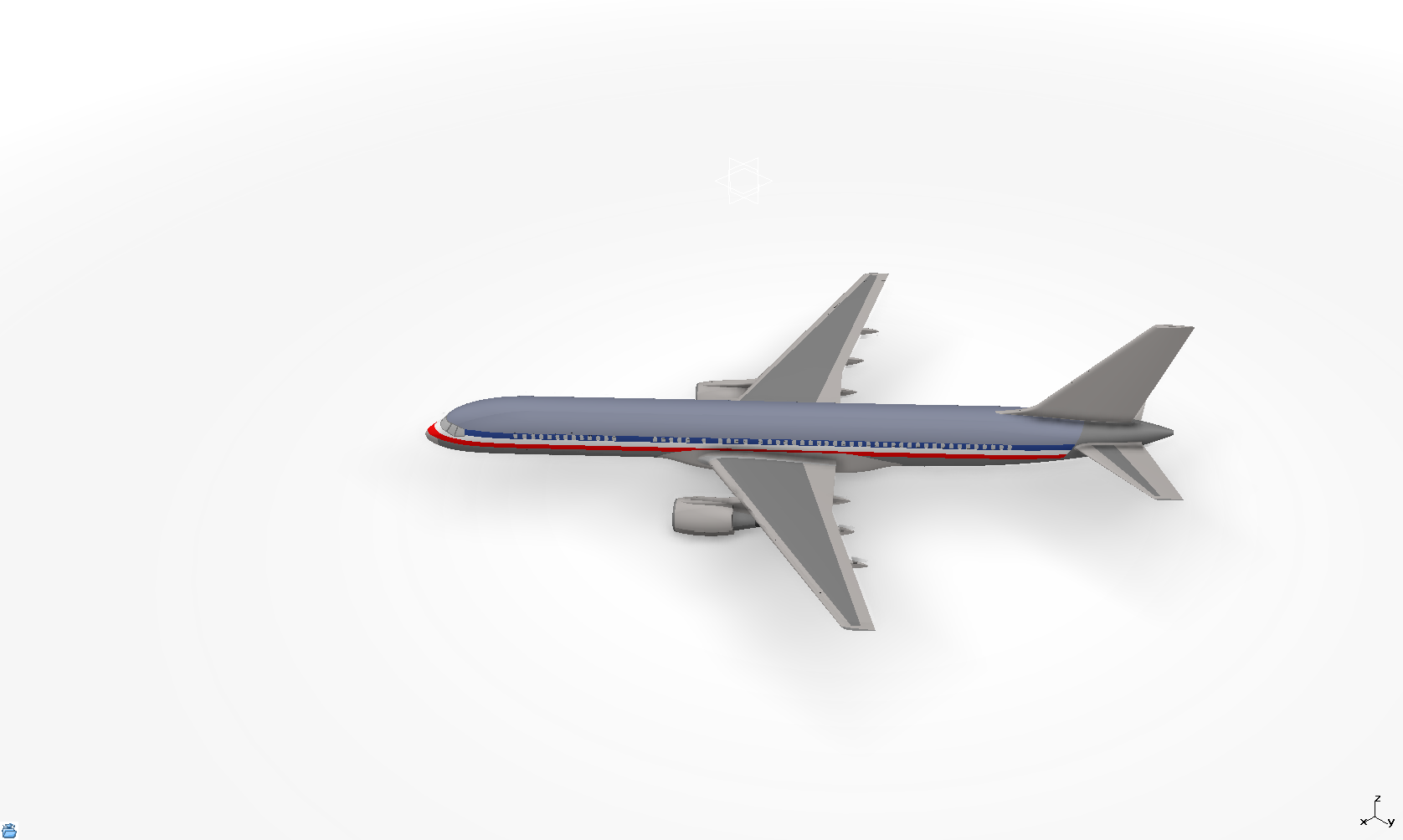

9	CATIA_plane_ssao	93.91	9.89	2160	23	05/10/18 13:30:11

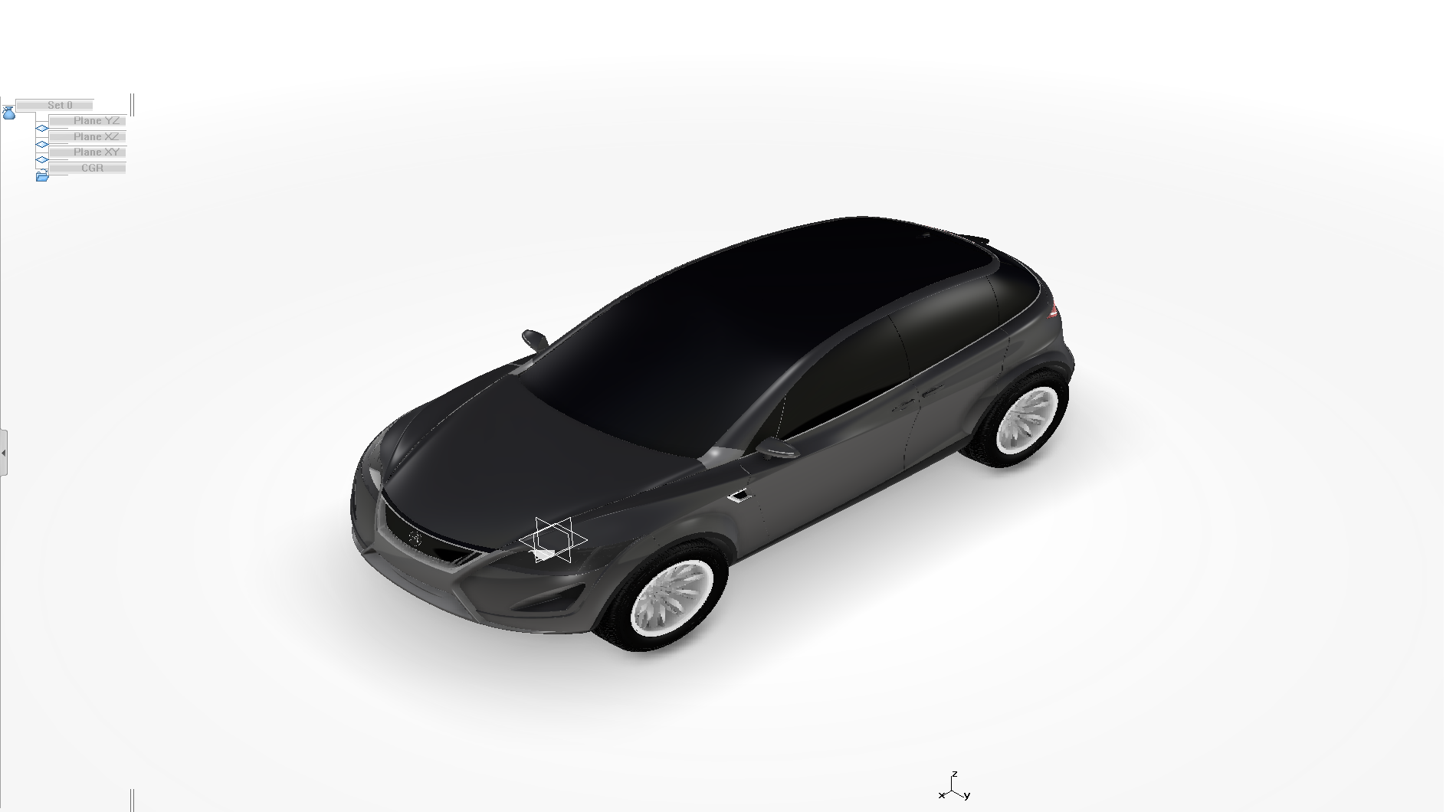

10	CATIA_car_01	35.53	9.89	720	20.26	05/10/18 13:30:34

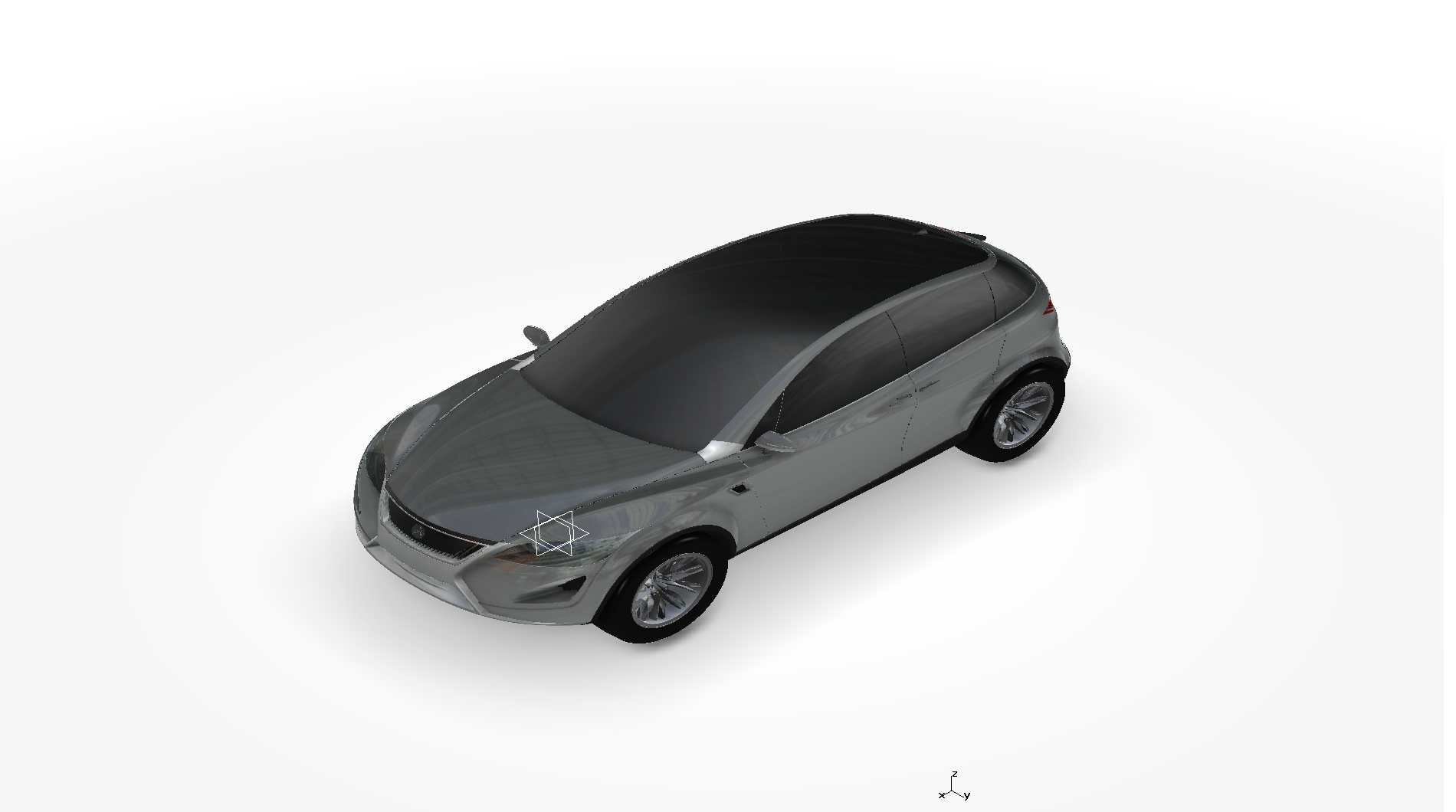

11	CATIA_car_02	52.09	9.89	1080	20.74	05/10/18 13:30:57

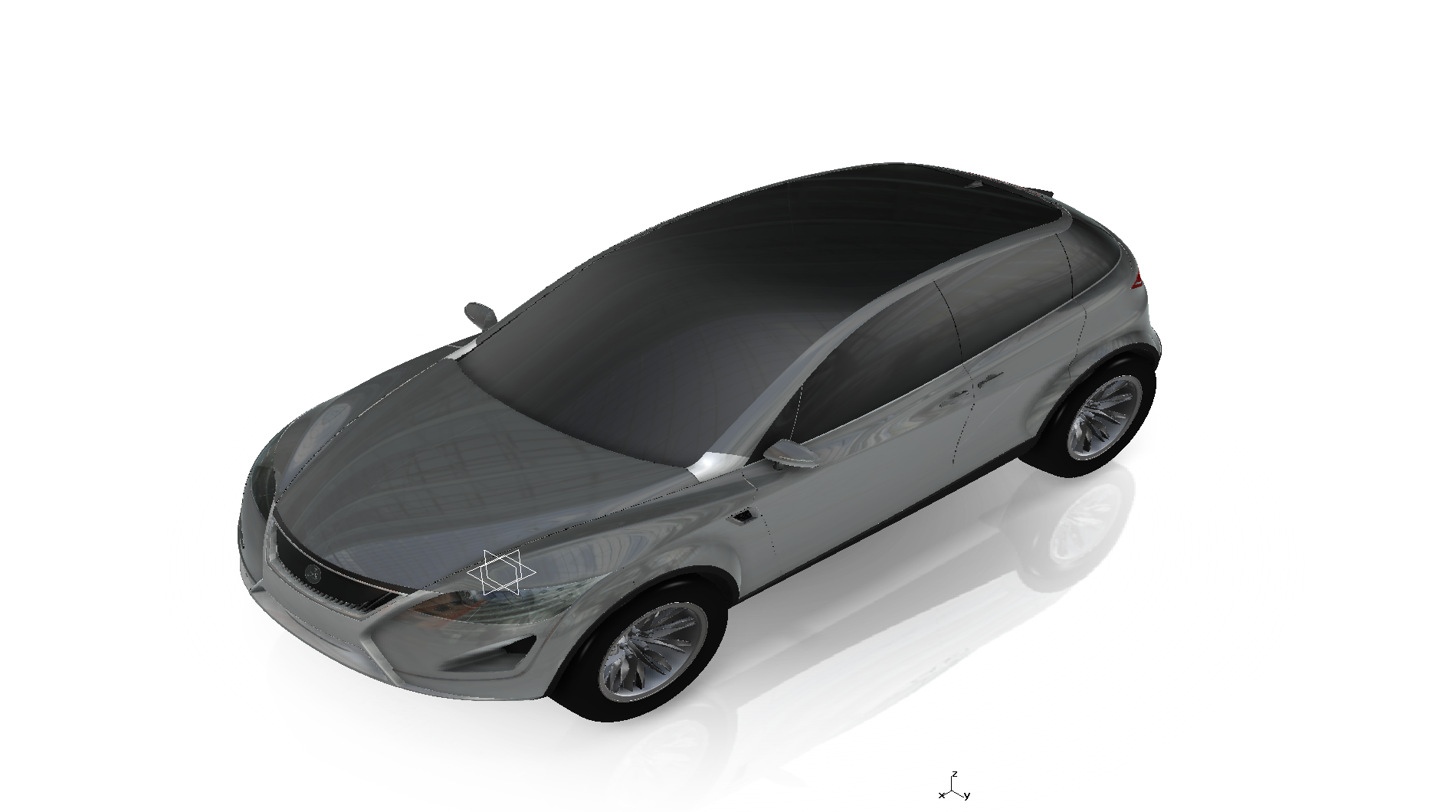

12	CATIA_car_04	38.43	9.88	720	18.74	05/10/18 13:31:18

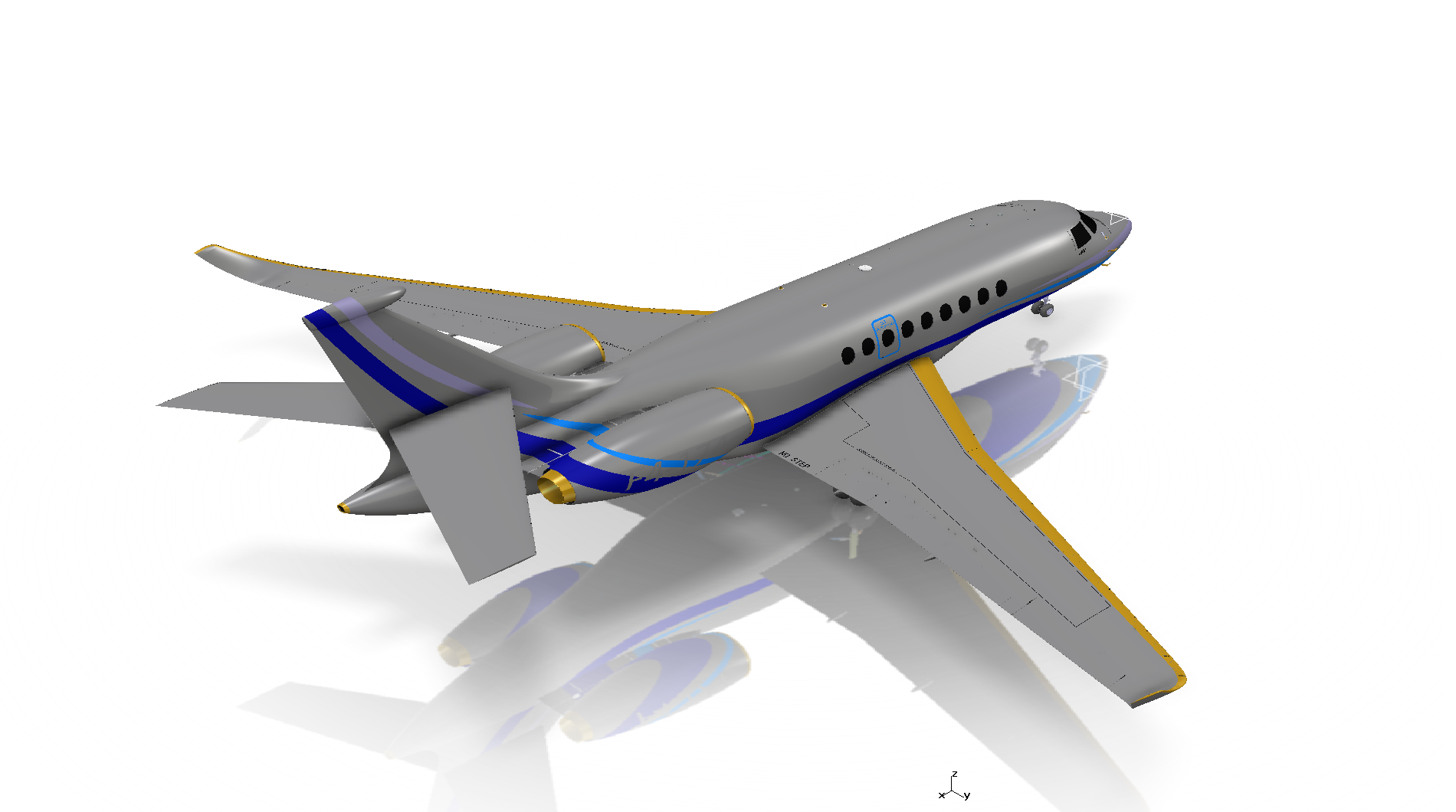

13	CATIA_plane_01	30	9.89	720	24	05/10/18 13:31:44

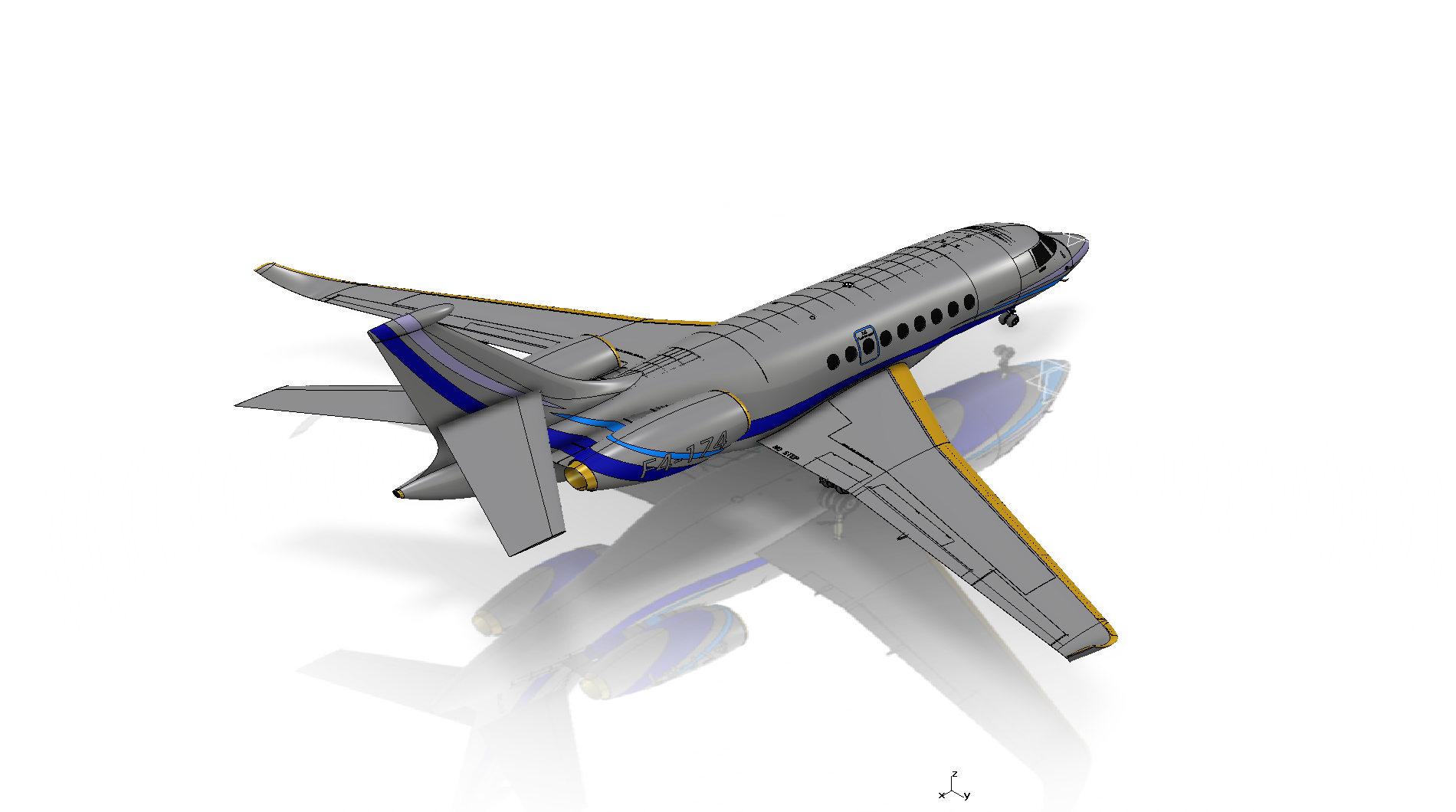

14	CATIA_plane_02	28.41	9.89	720	25.34	05/10/18 13:32:13

Screen Grabs Folder
Text Log File
XML Result File

creo-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

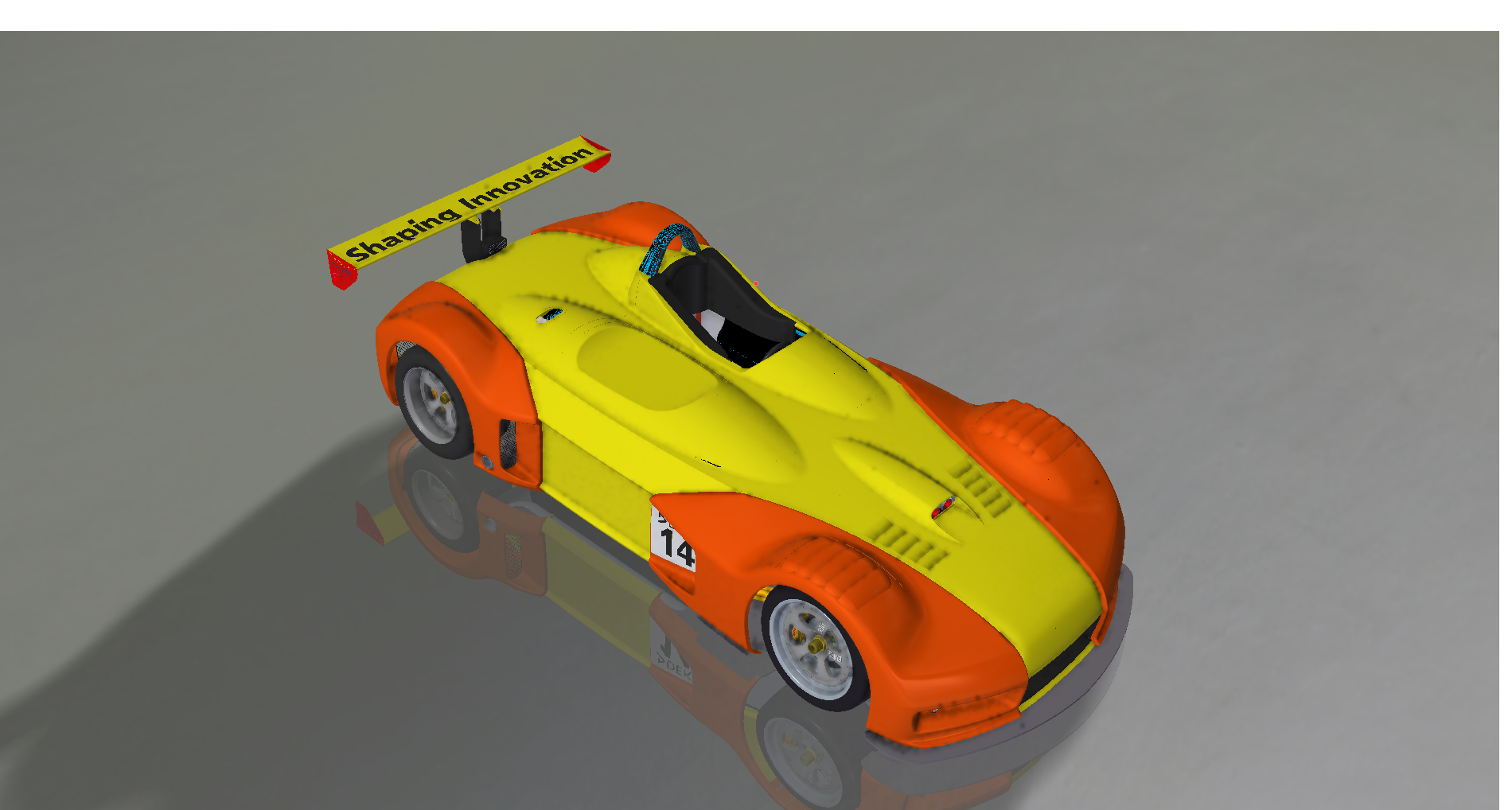

1	Creo_02_test_01	13.19	6.66	348	26.39	05/10/18 13:32:48
2	Creo_02_test_02	11.33	6.67	174	15.36	05/10/18 13:34:31

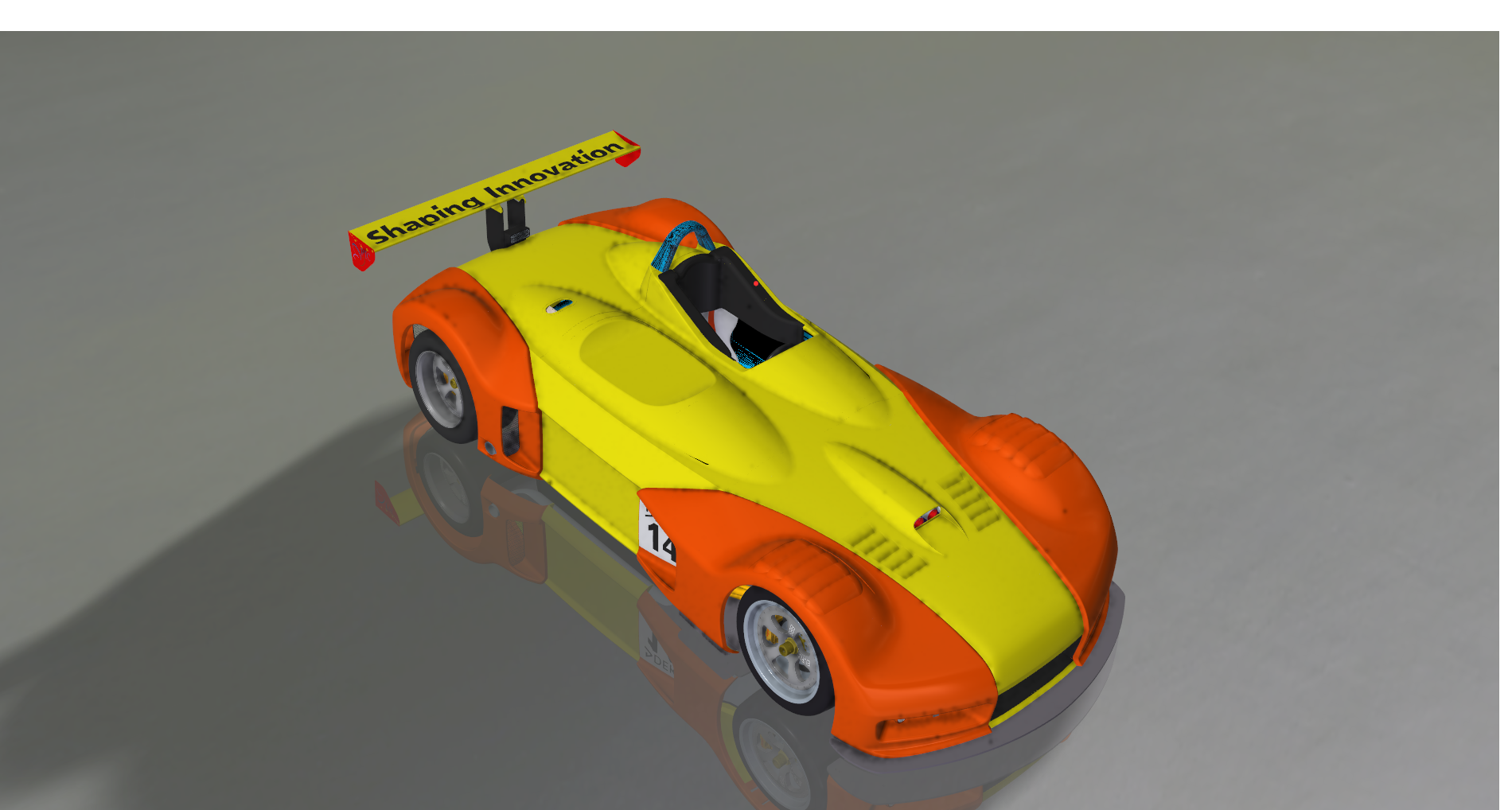

3	Creo_02_test_03	10.73	6.67	174	16.22	05/10/18 13:35:20

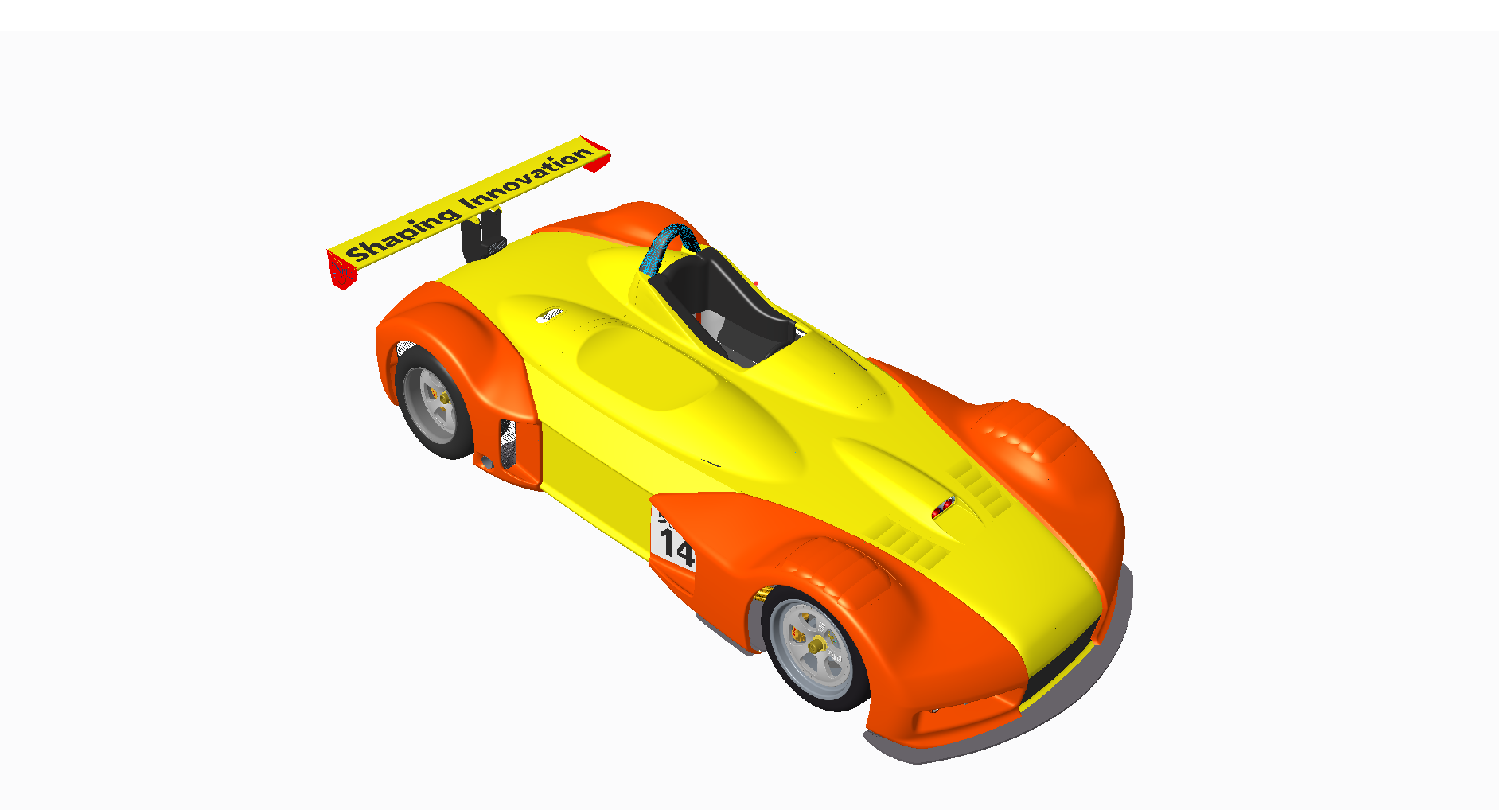

4	Creo_02_test_04	55.34	10	875	15.81	05/10/18 13:35:55

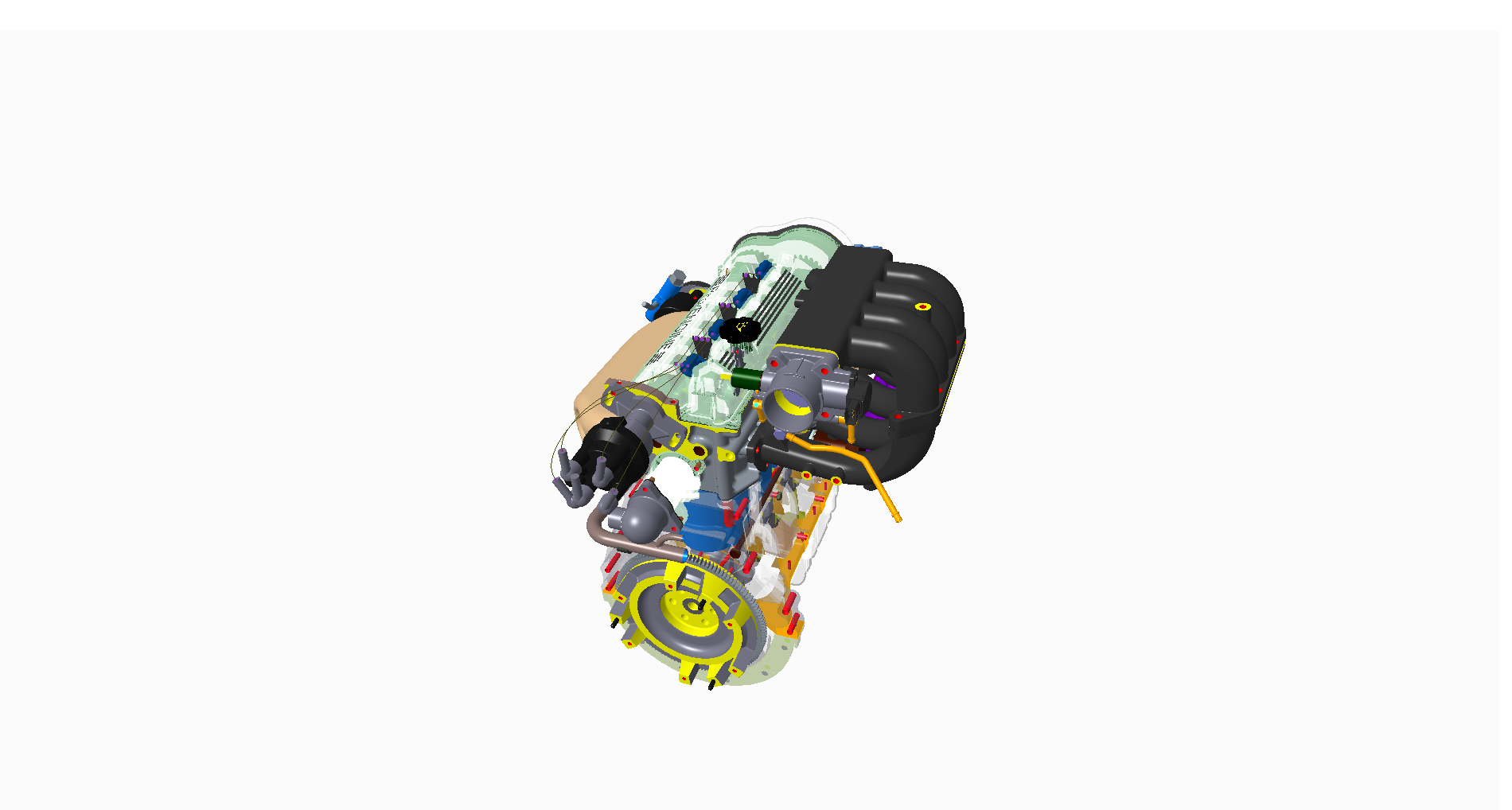

5	Creo_02_test_05	90.69	10	1512	16.67	05/10/18 13:37:57

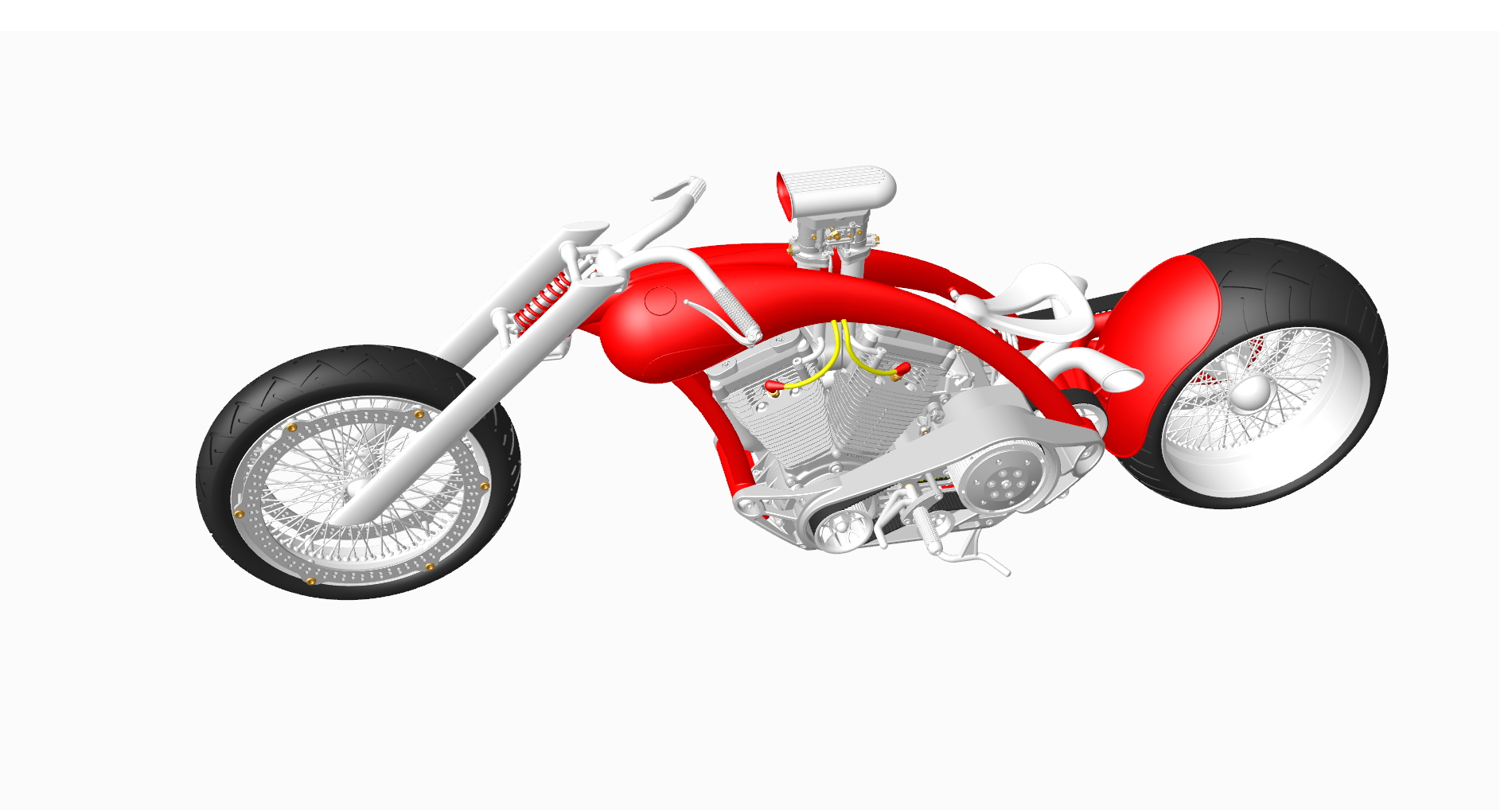

6	Creo_02_test_06	90.51	10	1400	15.47	05/10/18 13:38:14

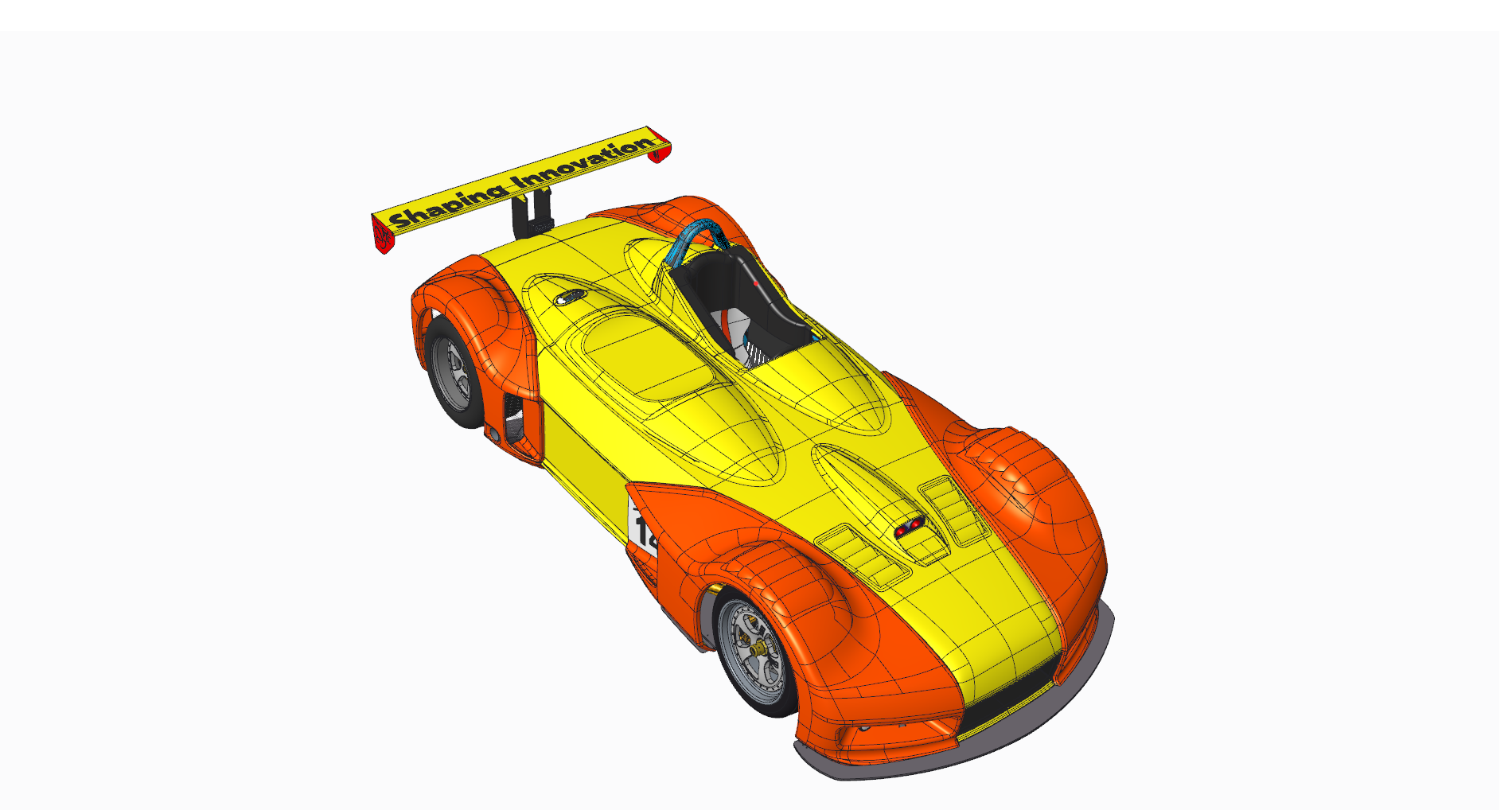

7	Creo_02_test_07	35.9	7.5	700	19.5	05/10/18 13:38:40

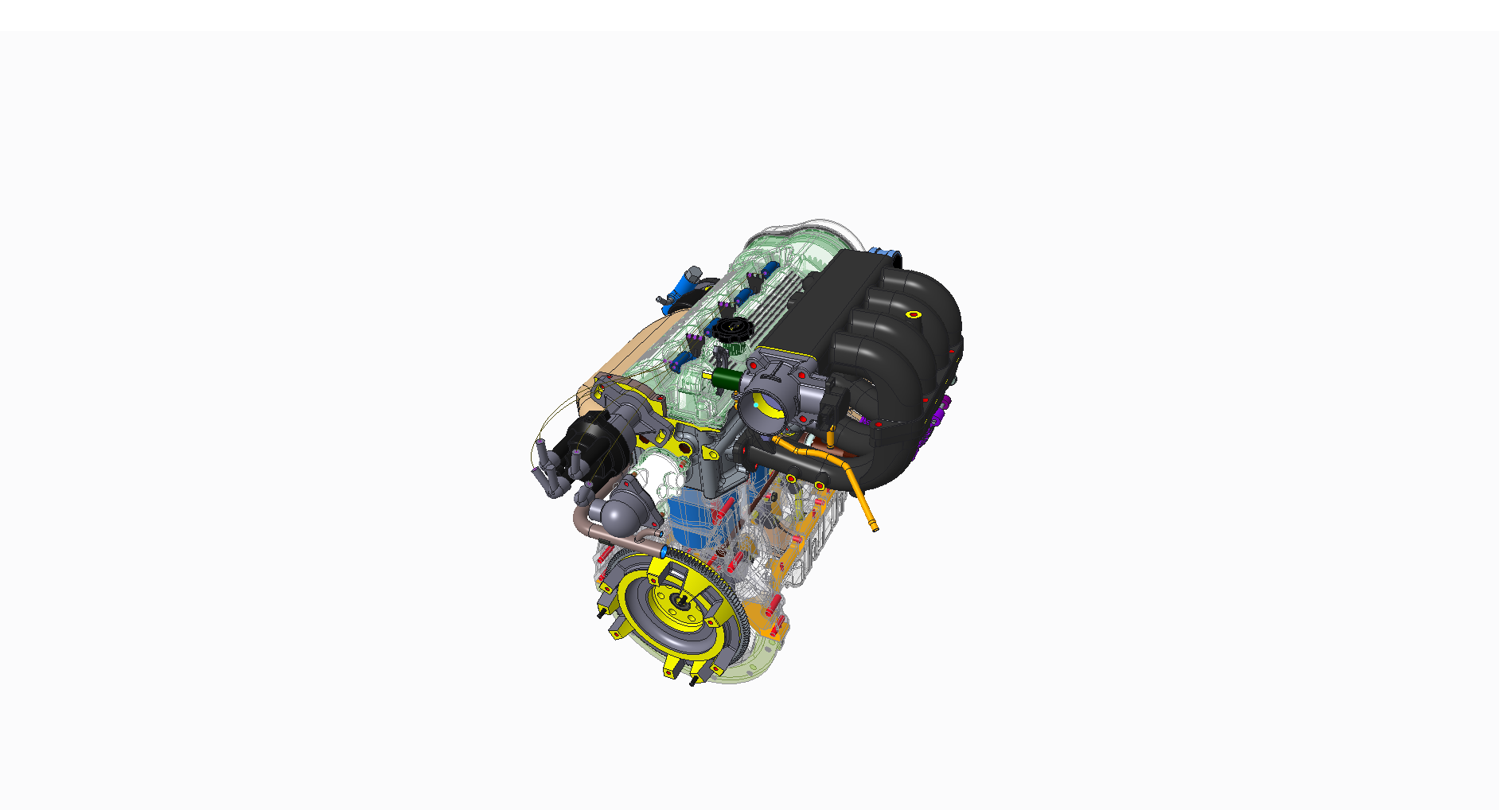

8	Creo_02_test_08	80.87	7.5	1323	16.36	05/10/18 13:41:20

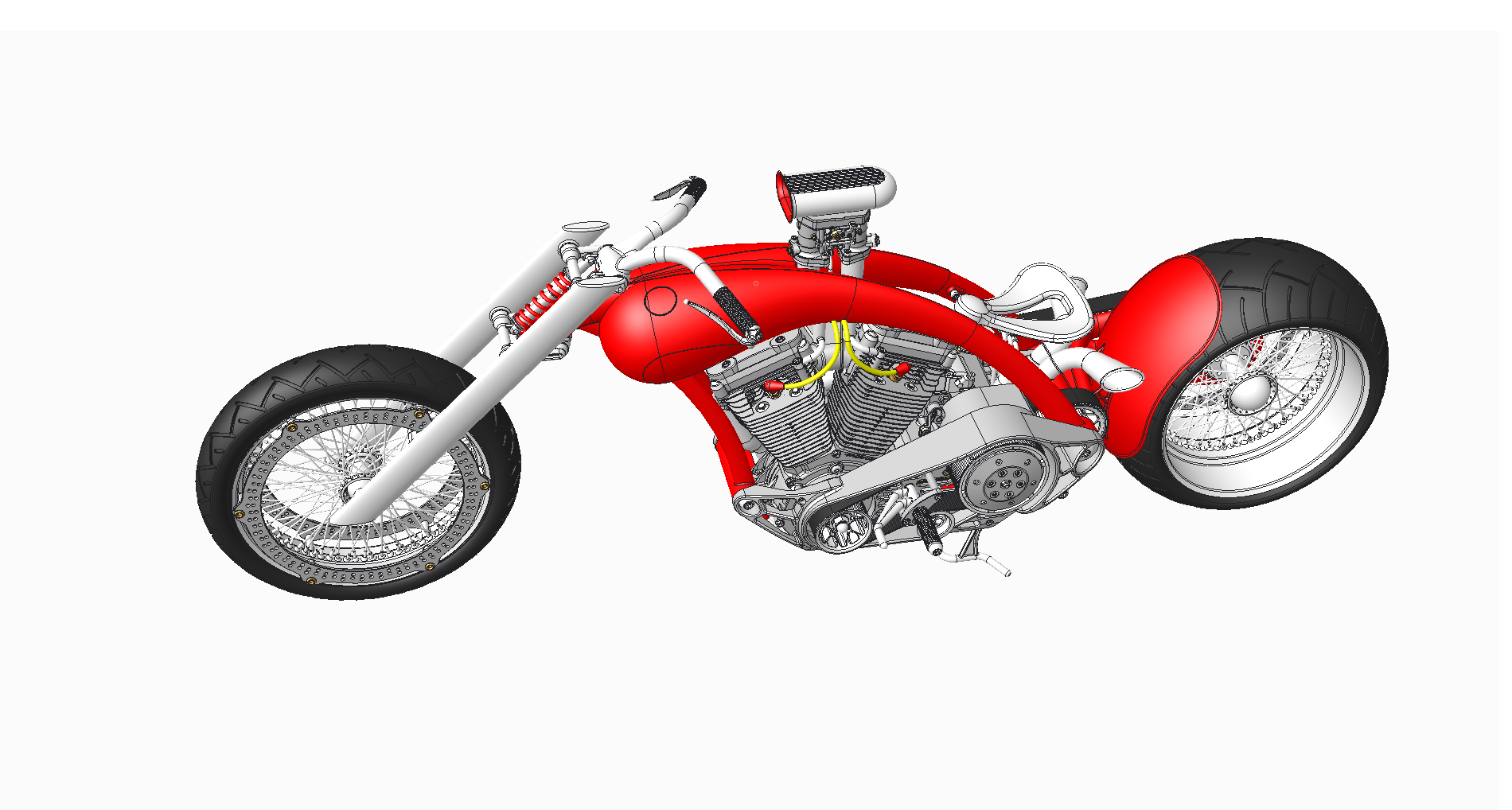

9	Creo_02_test_09	92.56	7.5	1400	15.13	05/10/18 13:41:37

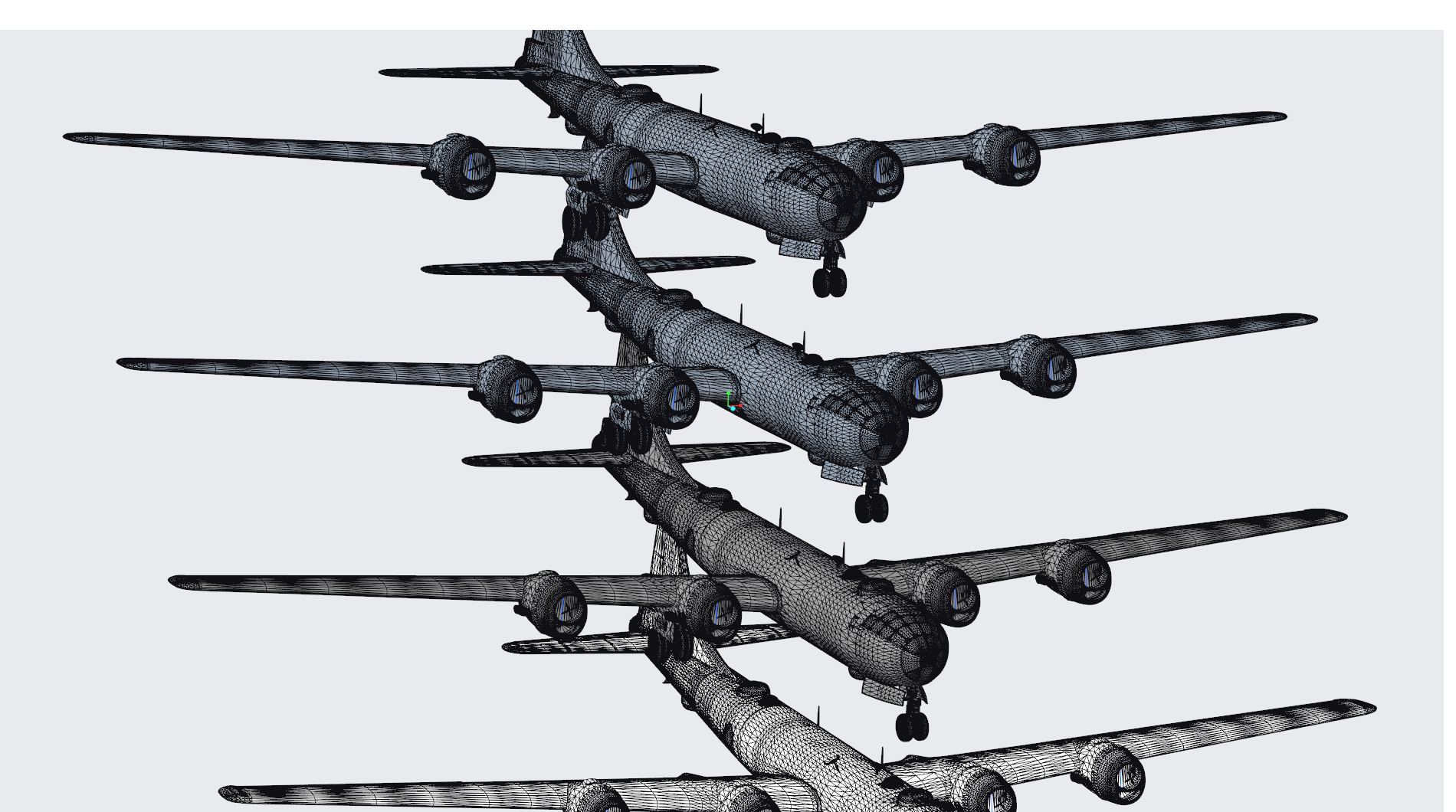

10	Creo_059_10	72.46	7.5	1088	15.02	05/10/18 13:41:55

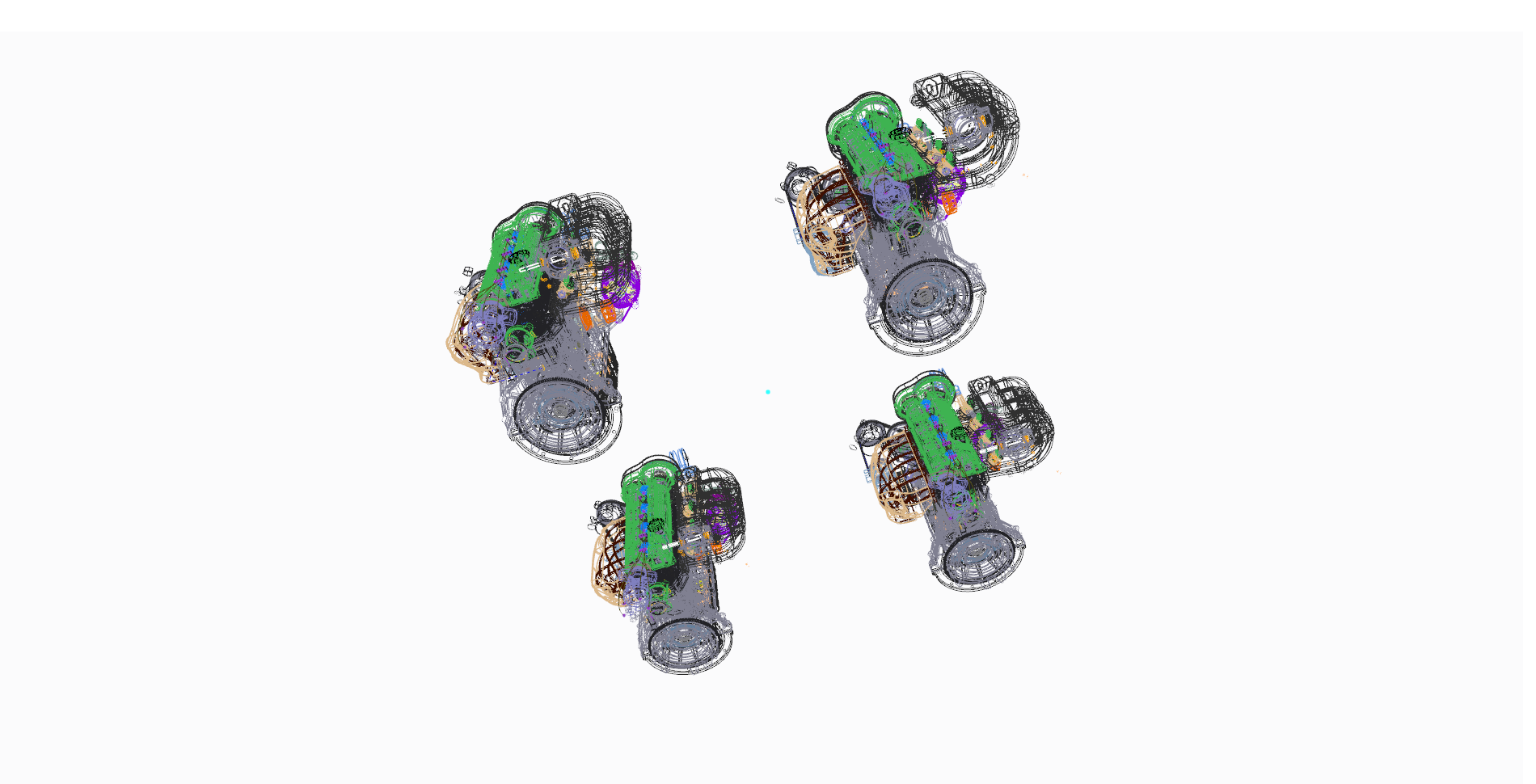

11	Creo_02_test_11	313.08	3.33	4750	15.17	05/10/18 13:42:13

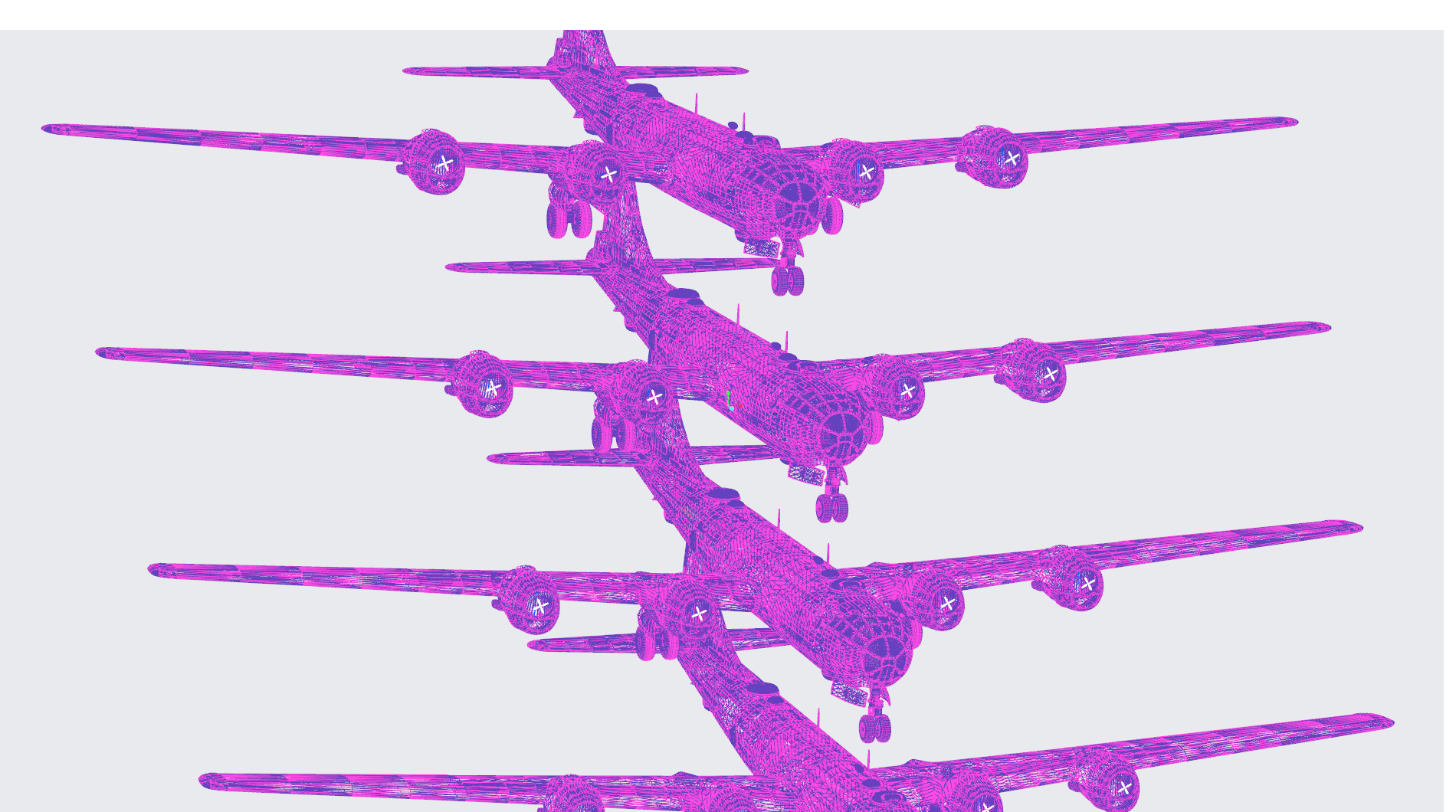

12	Creo_057_12	178.07	3.34	2671	15	05/10/18 13:42:31

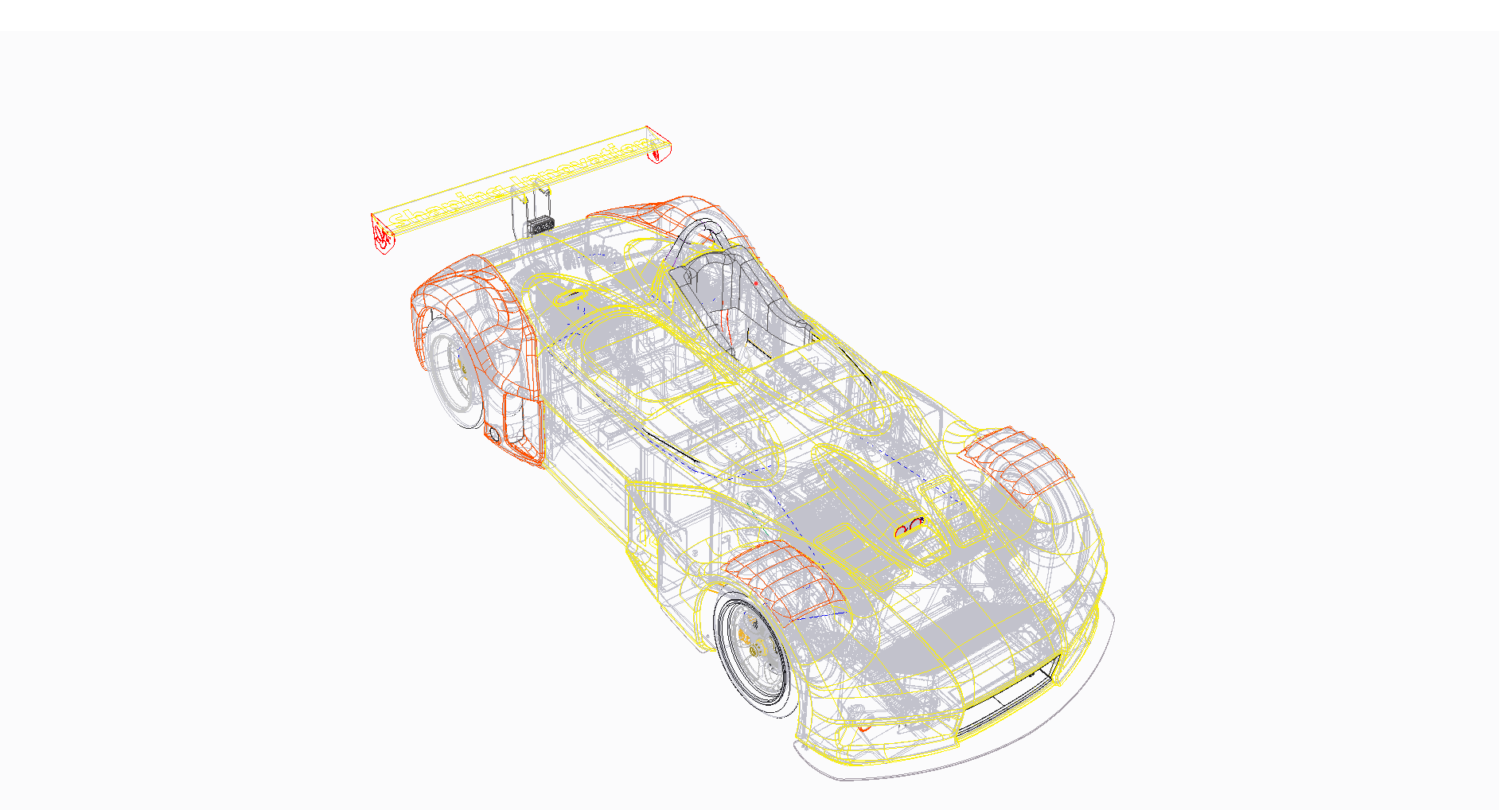

13	Creo_02_test_13	44.18	3.33	700	15.84	05/10/18 13:42:54

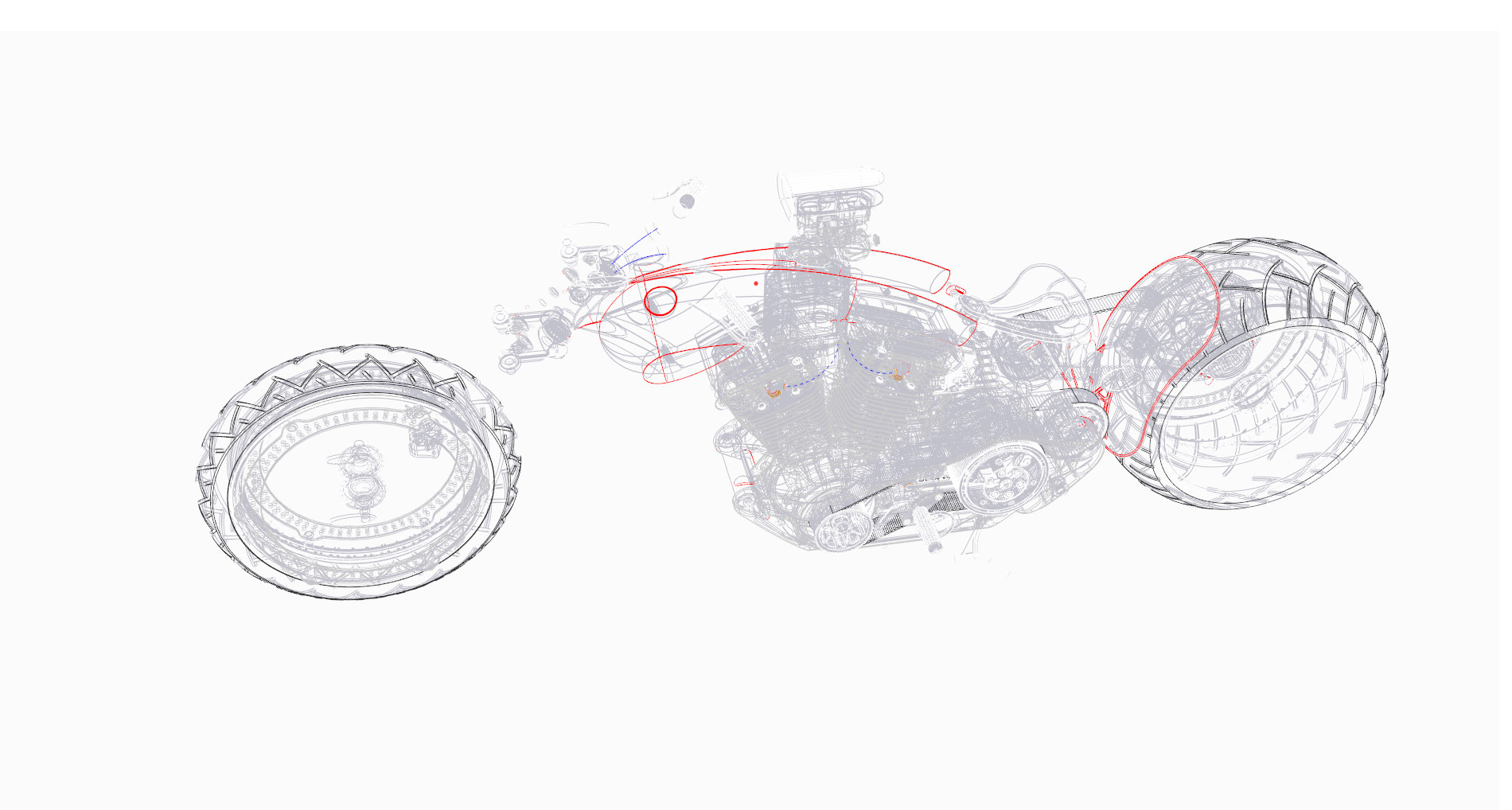

14	Creo_02_test_14	79.92	3.34	1225	15.33	05/10/18 13:43:34

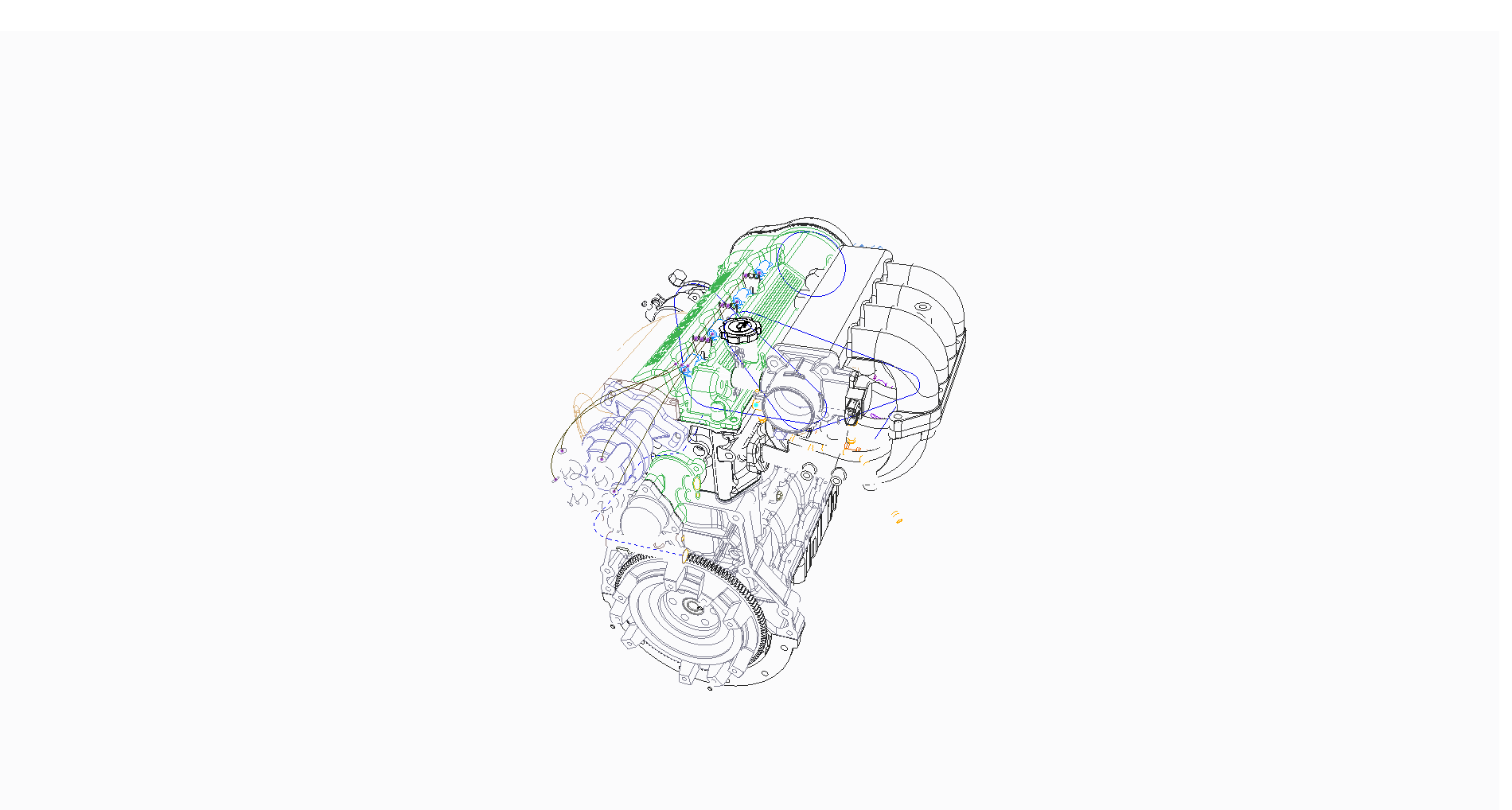

15	Creo_02_test_15	114.44	3.33	1890	16.51	05/10/18 13:43:53

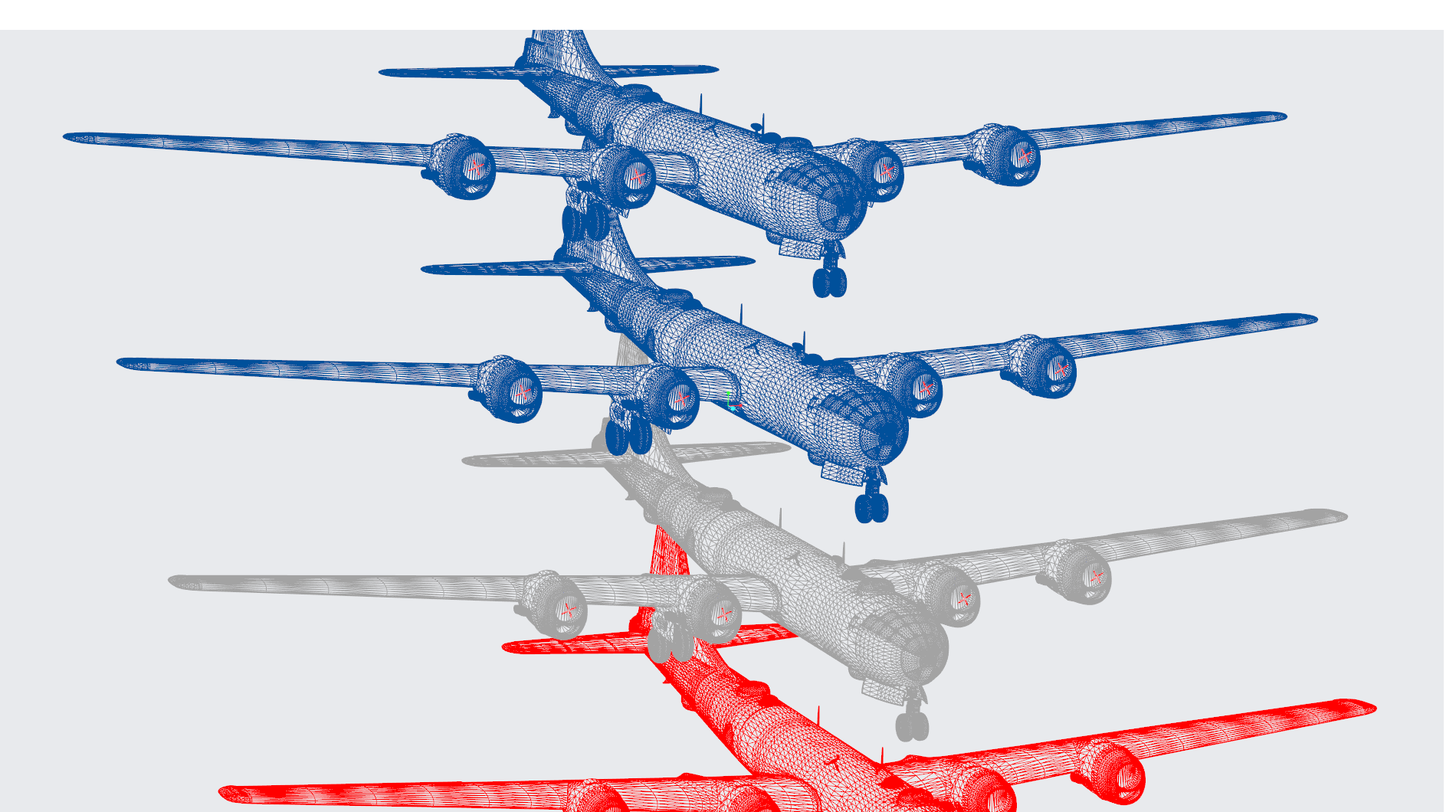

16	Creo_060_16	103.6	3.33	1554	15	05/10/18 13:44:10

Screen Grabs Folder
Text Log File
XML Result File

energy-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	Test1	4.74	16.67	180	37.95	05/10/18 13:44:50
2	Test2	3.82	16.67	180	47.17	05/10/18 13:45:40

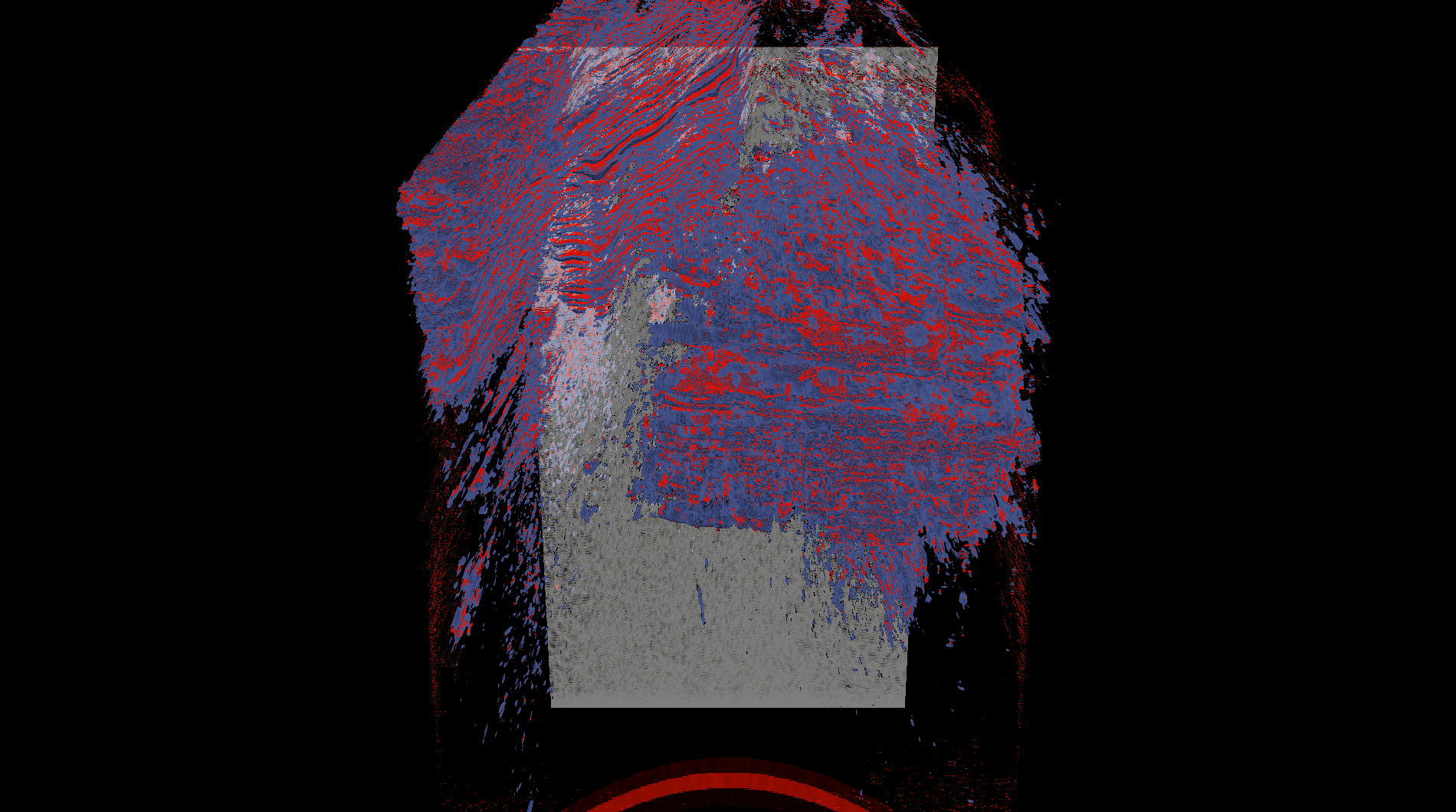

3	Test3	2.45	16.67	90	36.78	05/10/18 13:46:26
4	Test4	6.42	16.67	180	28.05	05/10/18 13:46:56

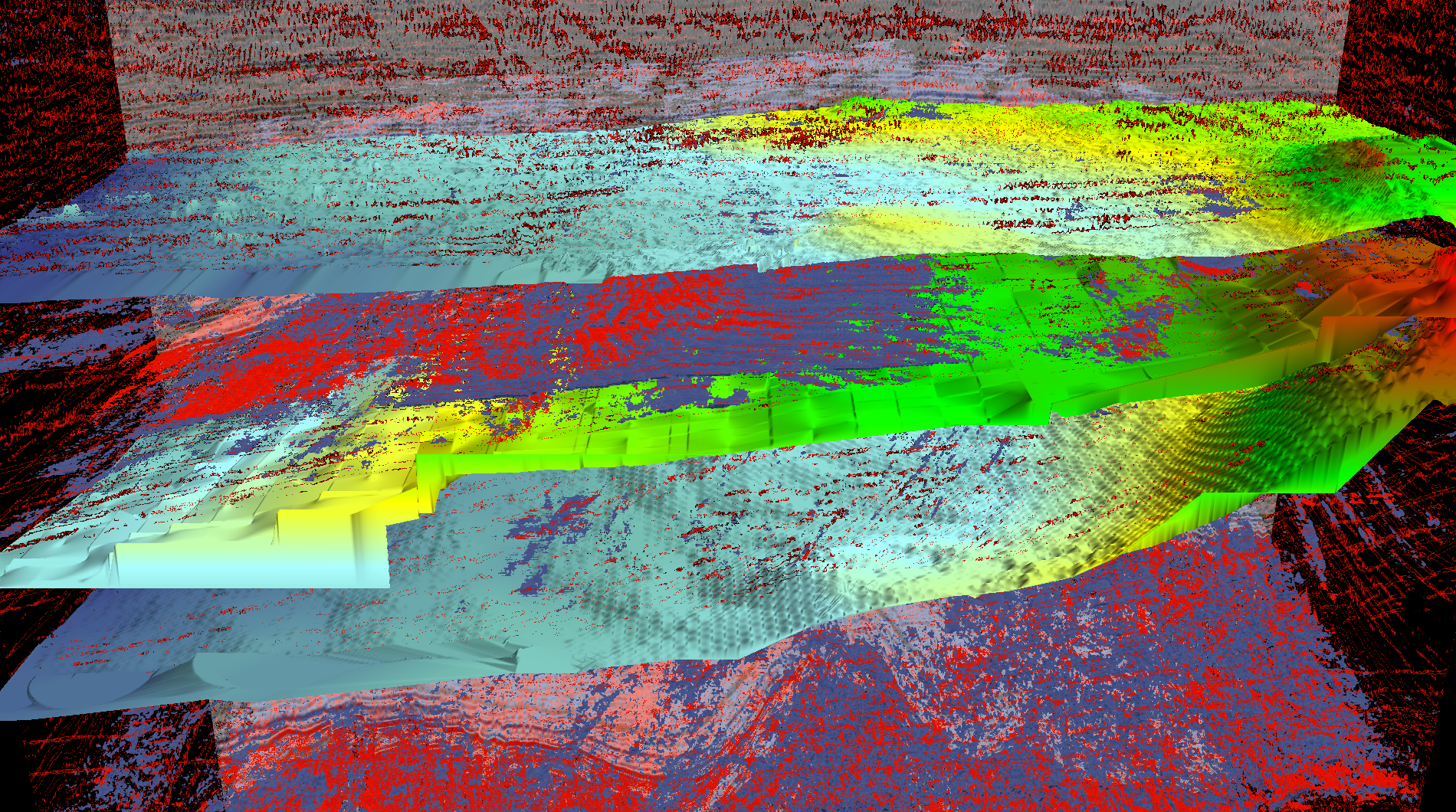

5	Test5	4.86	16.66	180	37.05	05/10/18 13:47:36
6	Test6	3.81	16.66	90	23.64	05/10/18 13:48:02

Screen Grabs Folder
Text Log File
XML Result File

maya-05

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

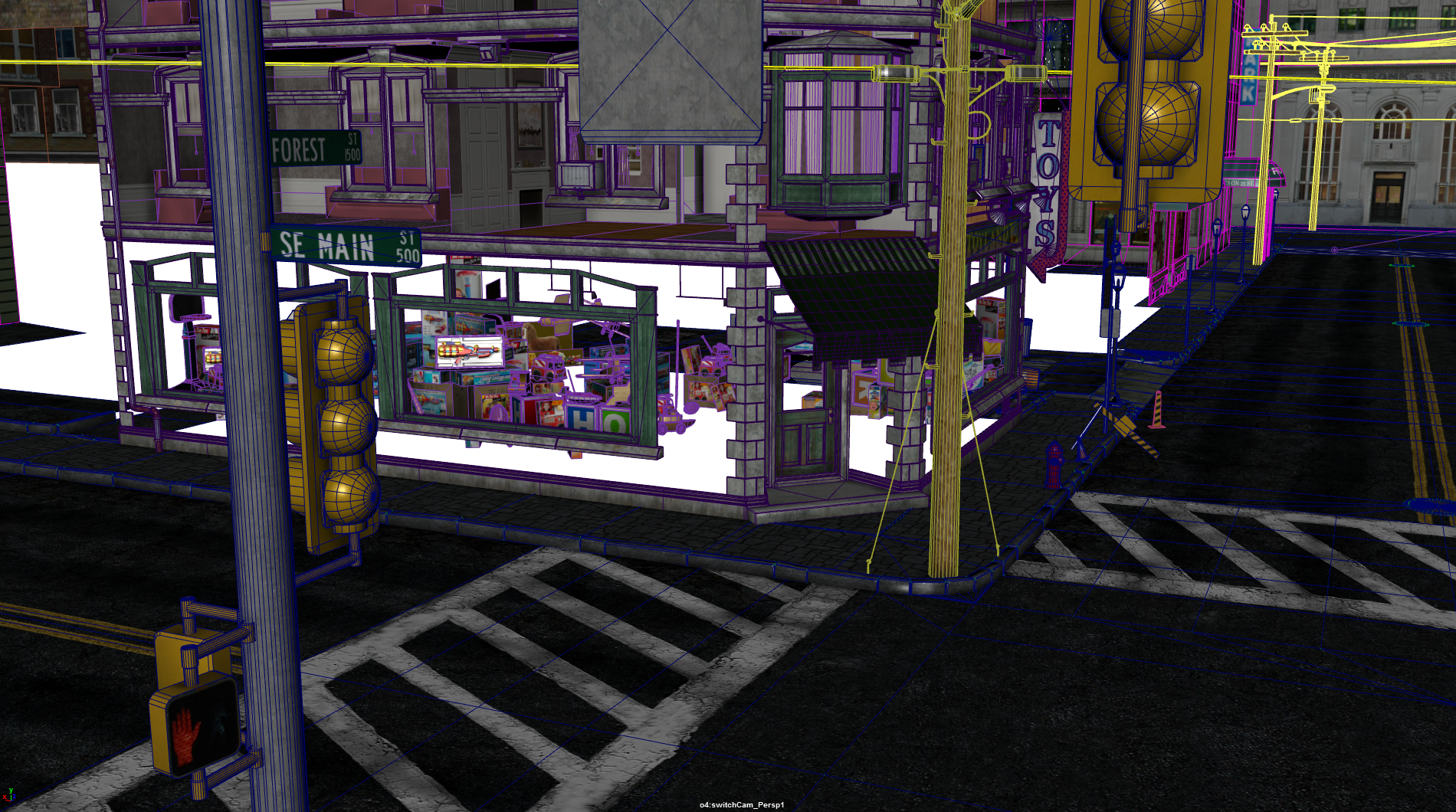

1	Maya_01	33.84	8.33	590	17.44	05/10/18 13:48:25

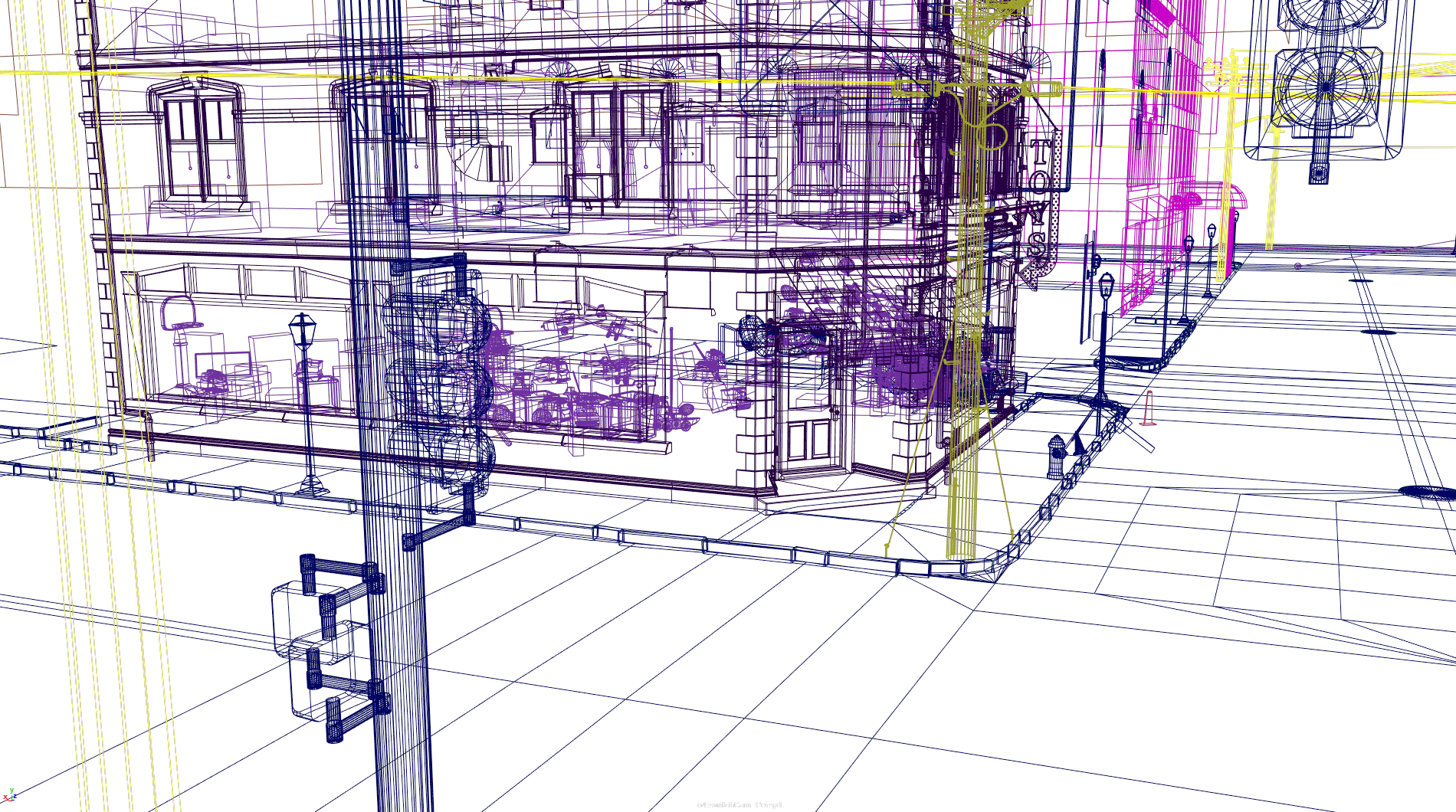

2	Maya_02	250.45	8.33	3792	15.14	05/10/18 13:48:42

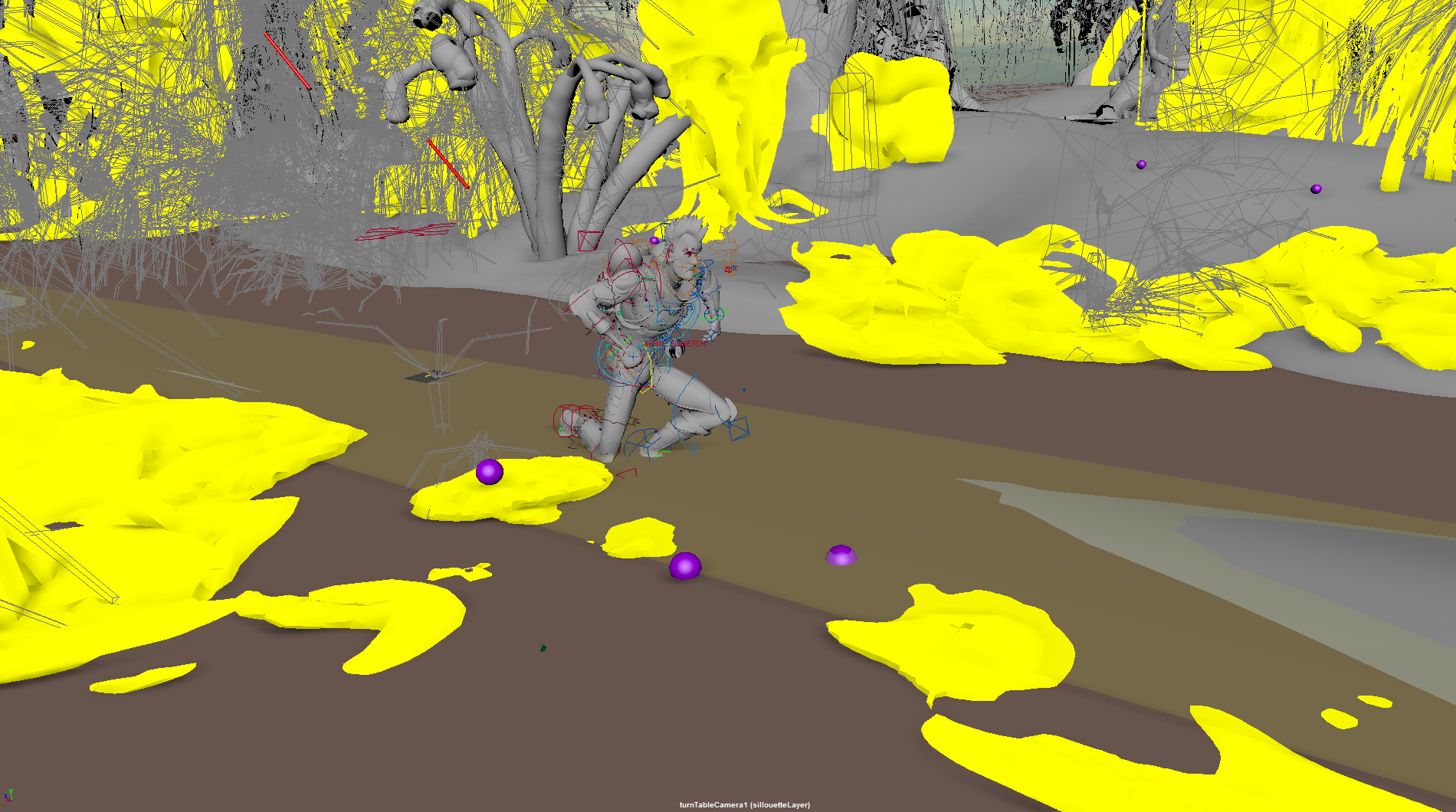

3	Maya_03	15.52	12.5	316	20.36	05/10/18 13:49:18

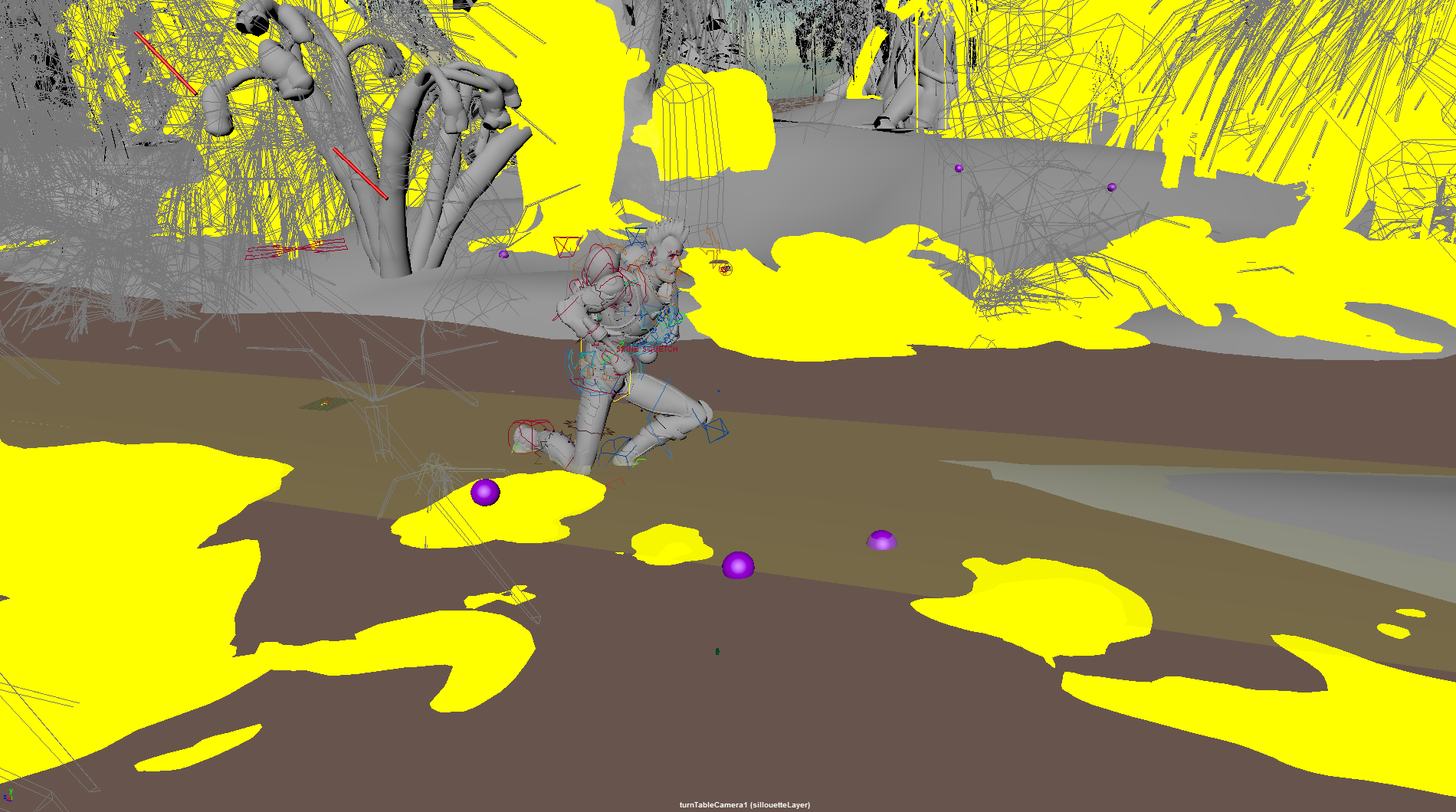

4	Maya_04	56.18	12.5	948	16.88	05/10/18 13:49:40
5	Maya_07	58.9	12.5	948	16.09	05/10/18 13:50:01

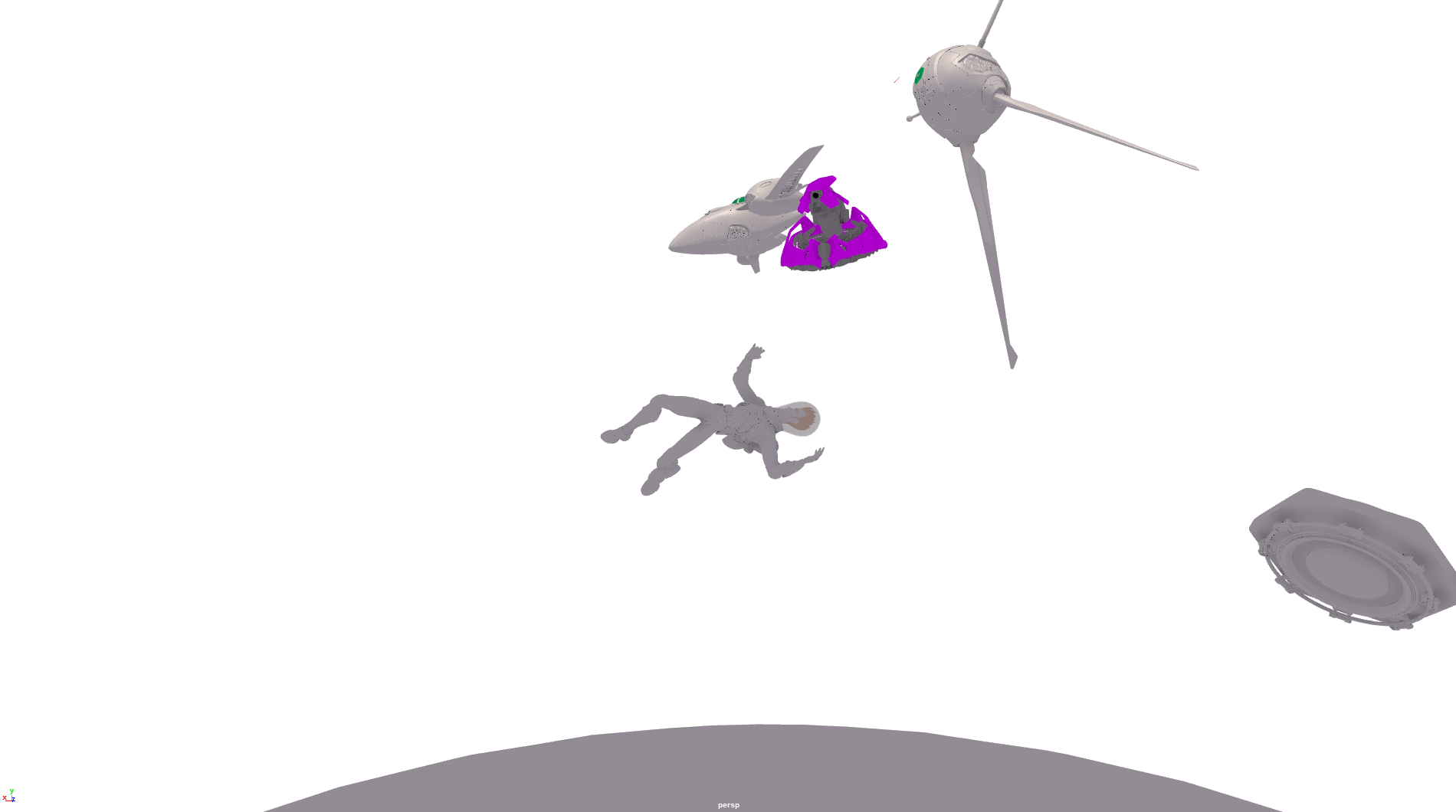

6	Maya_08	33.21	8.33	632	19.03	05/10/18 13:50:23

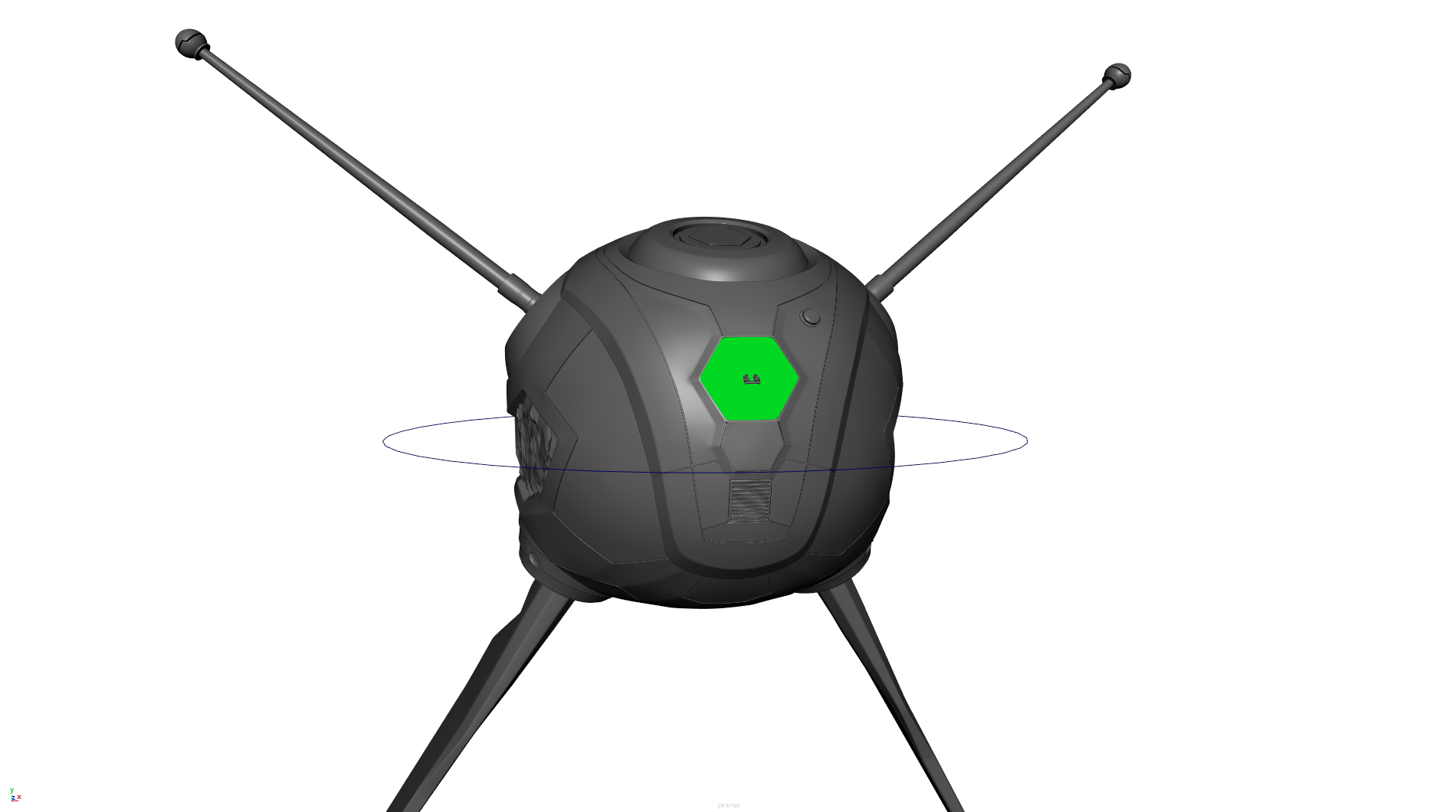

7	Maya_09	127.75	8.33	2054	16.08	05/10/18 13:50:41

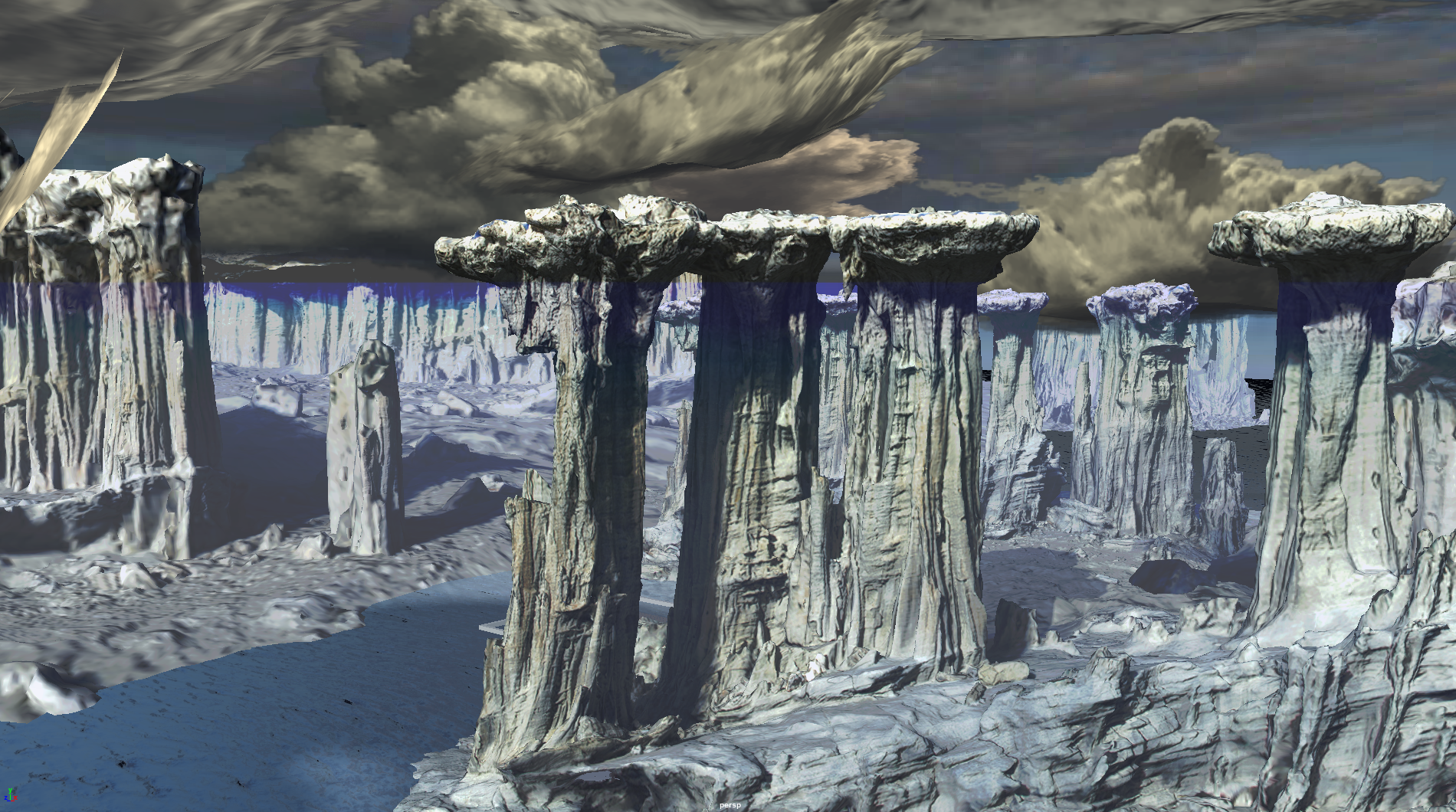

8	Maya_10	56.27	12.5	845	15.02	05/10/18 13:51:00
9	Maya_11	20.33	8.34	316	15.55	05/10/18 13:51:20

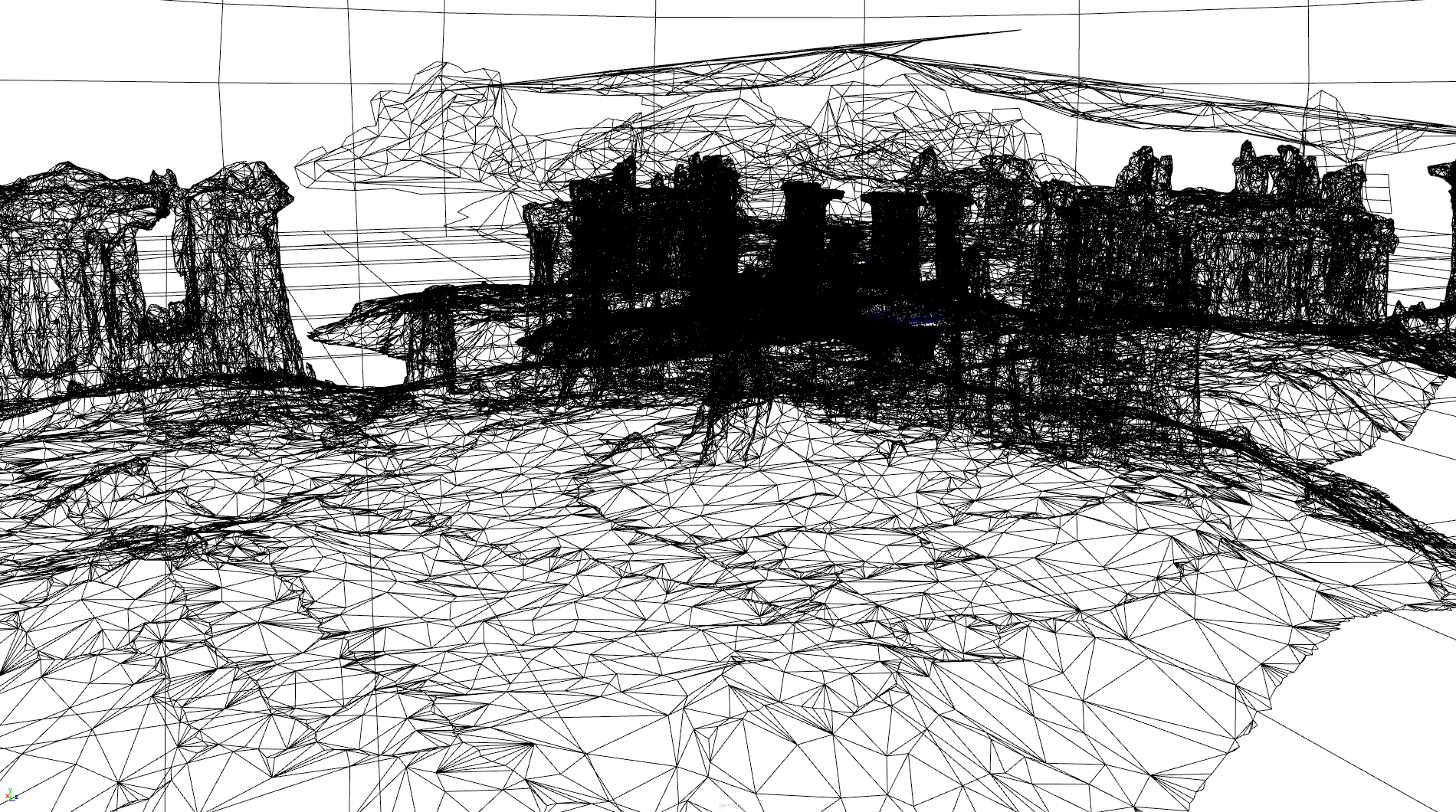

10	Maya_12	212.13	8.34	3318	15.64	05/10/18 13:51:37

Screen Grabs Folder
Text Log File
XML Result File

medical-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	Test1	39.6	12.5	542	13.69	05/10/18 13:51:53

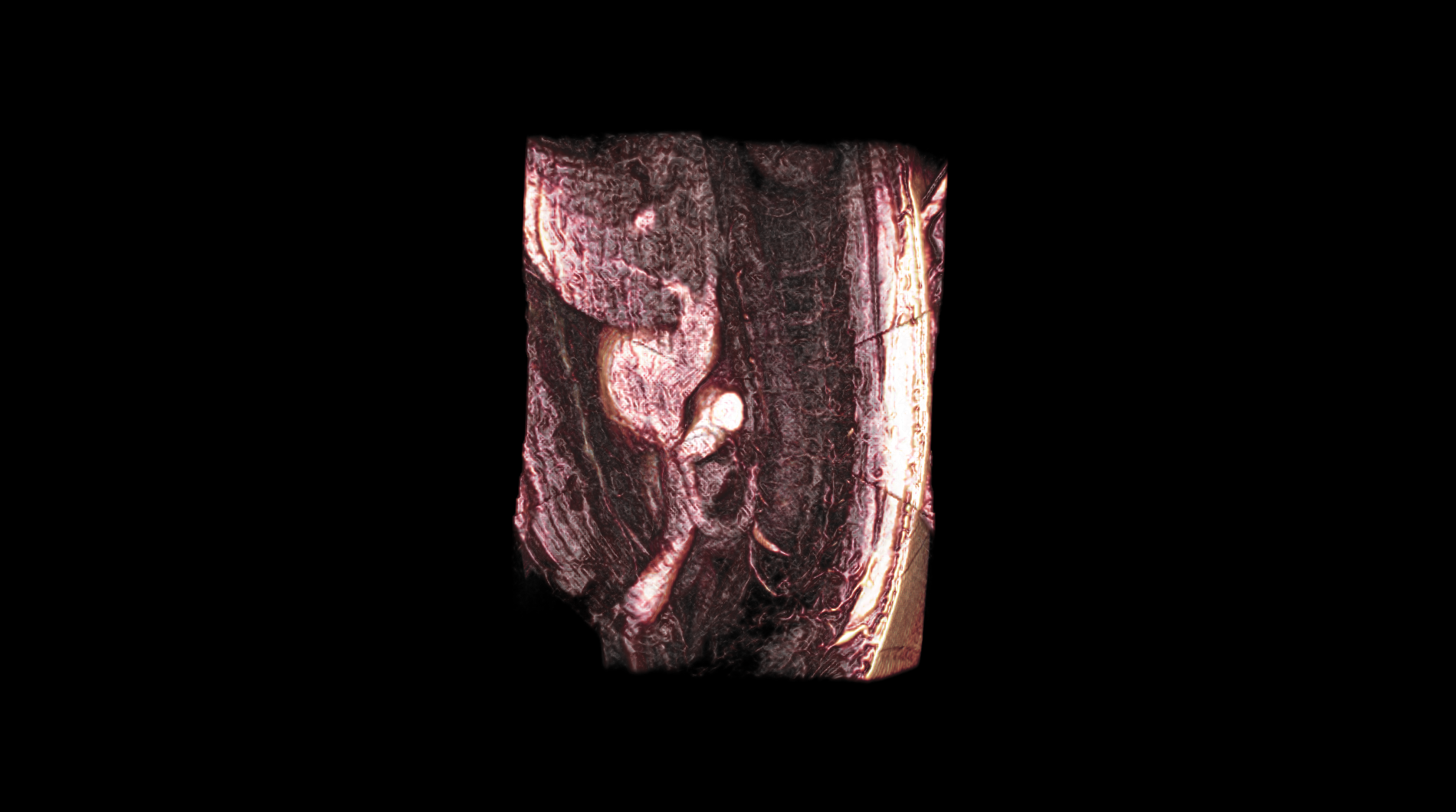

2	Test2	37.62	12.5	542	14.41	05/10/18 13:52:09

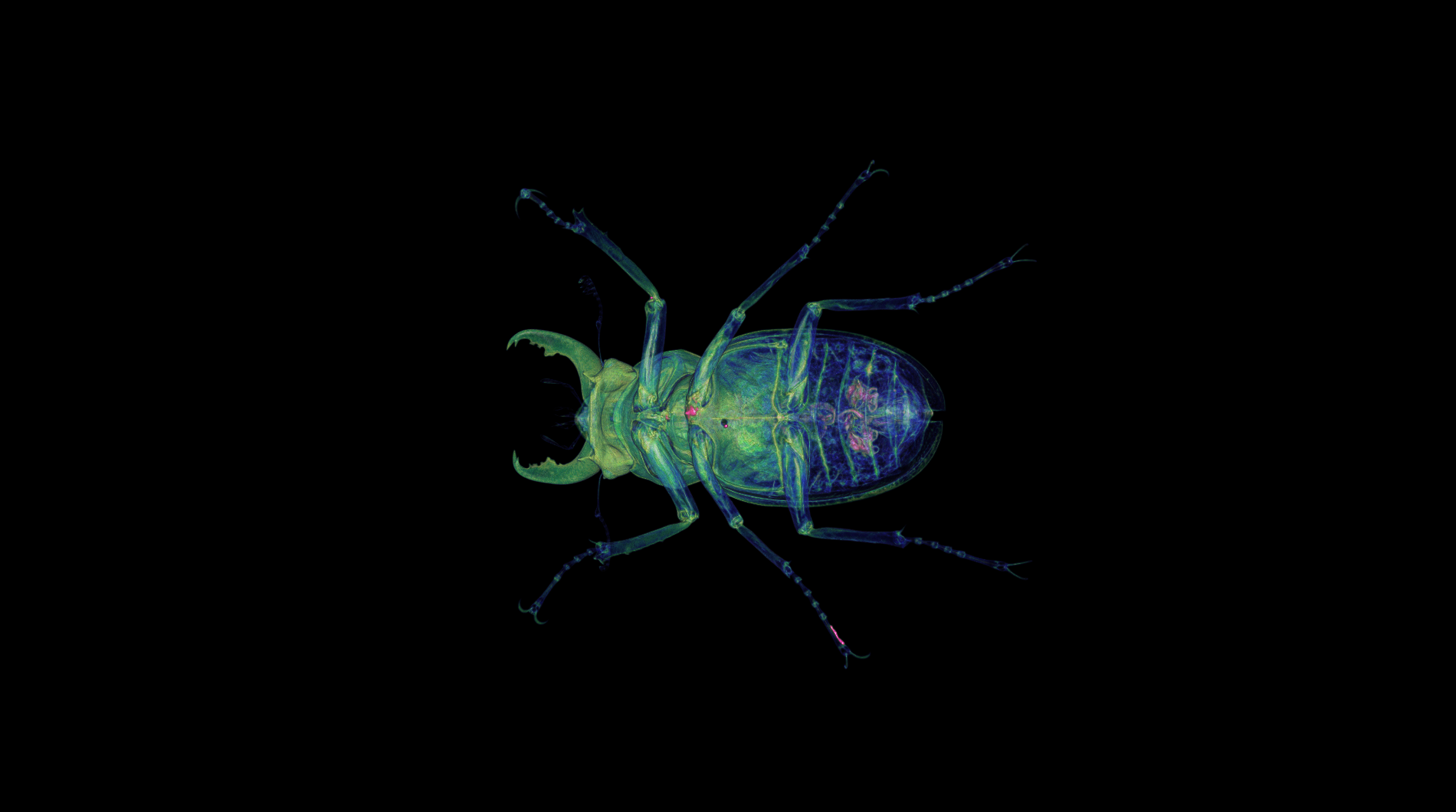

3	Test3	8.93	12.5	112	12.55	05/10/18 13:52:25

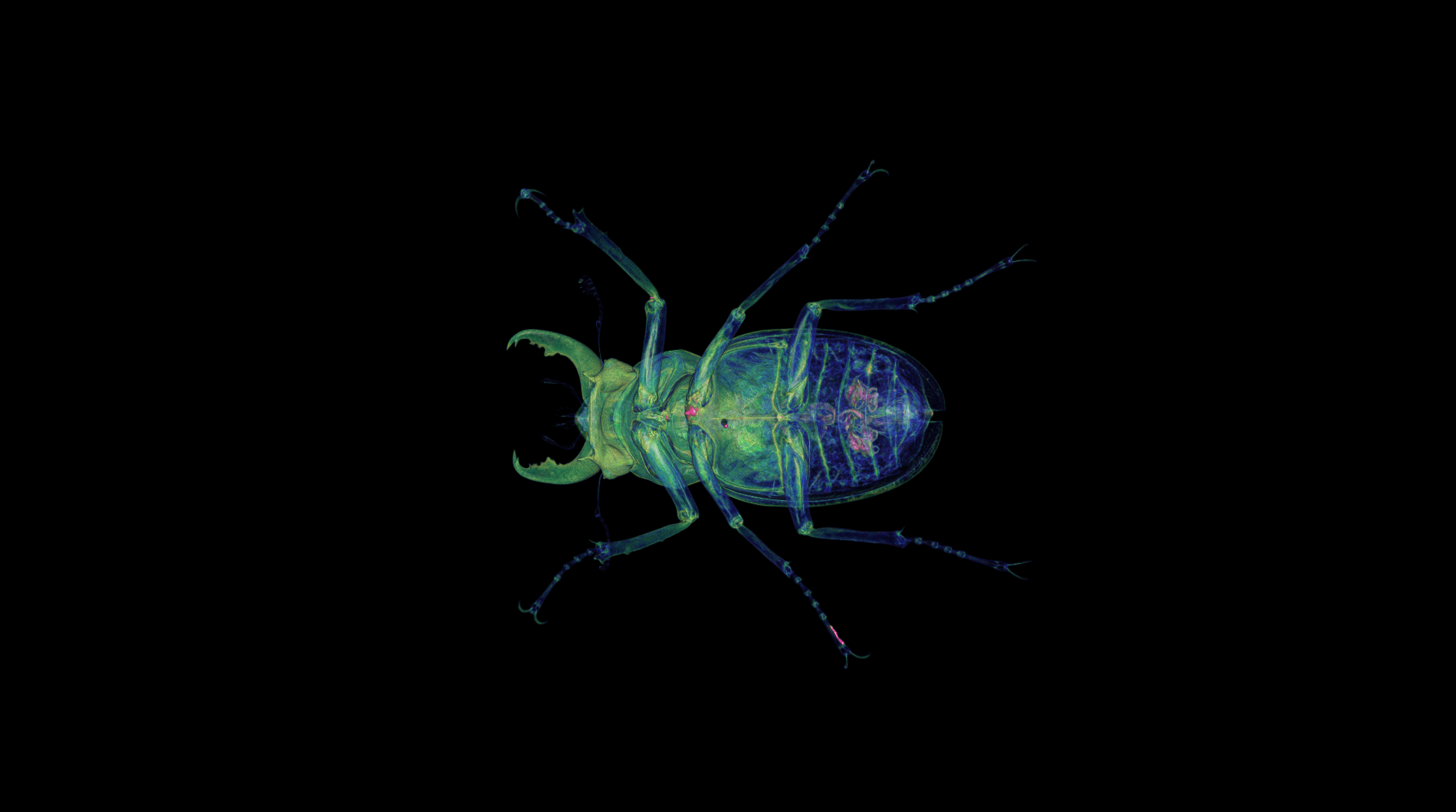

4	Test4	5.22	12.5	116	22.23	05/10/18 13:52:51

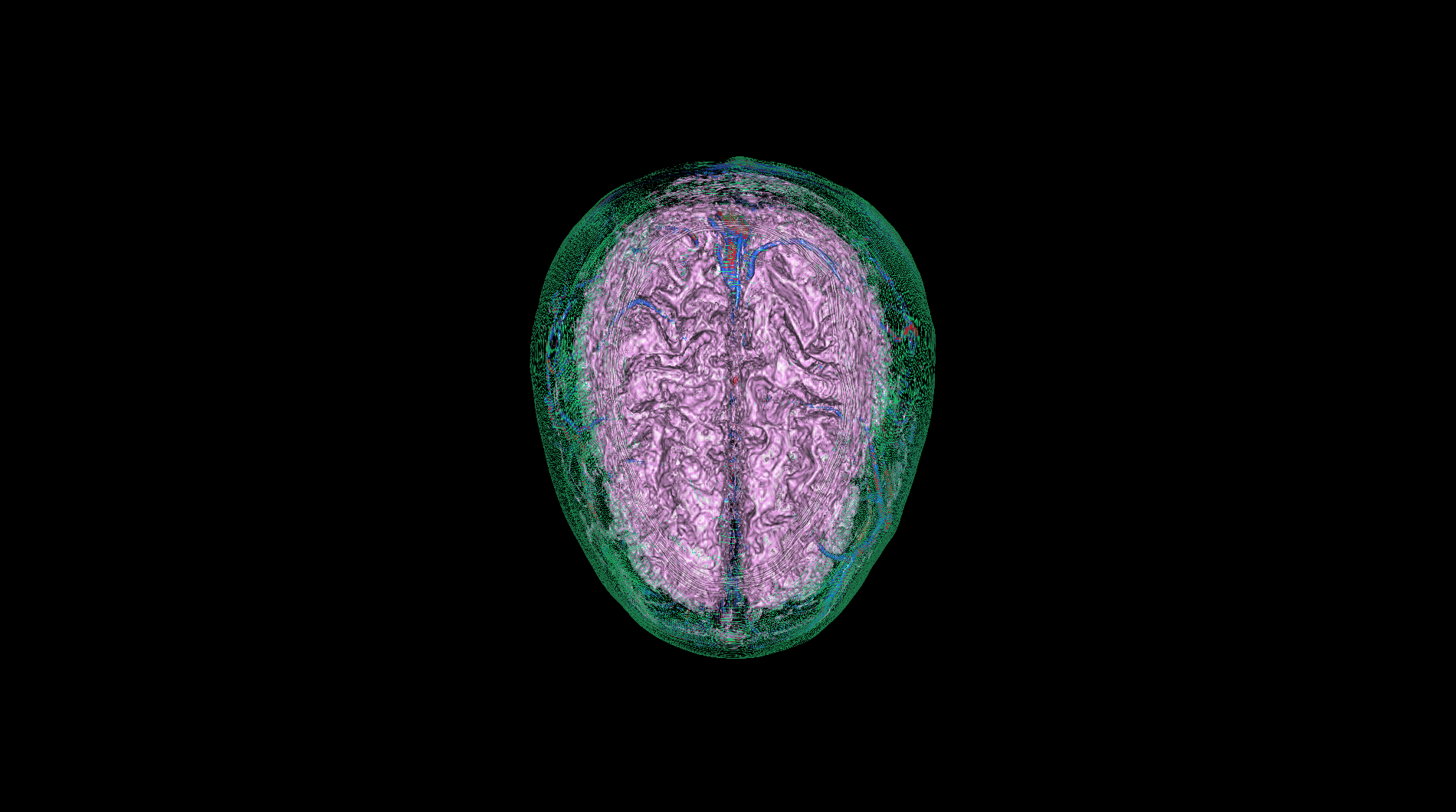

5	Test5	8.64	12.5	112	12.97	05/10/18 13:53:06

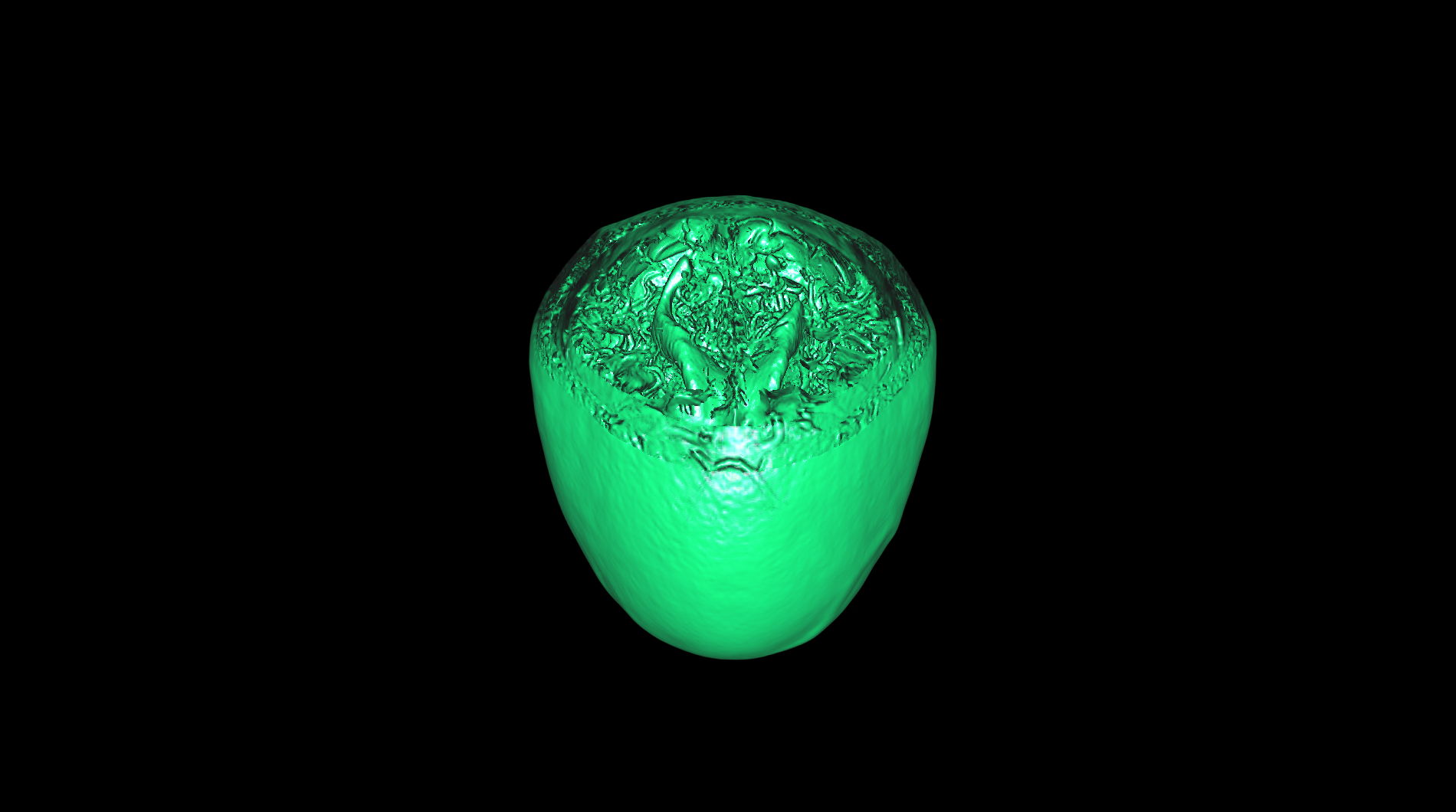

6	Test6	15.89	12.5	224	14.09	05/10/18 13:53:21

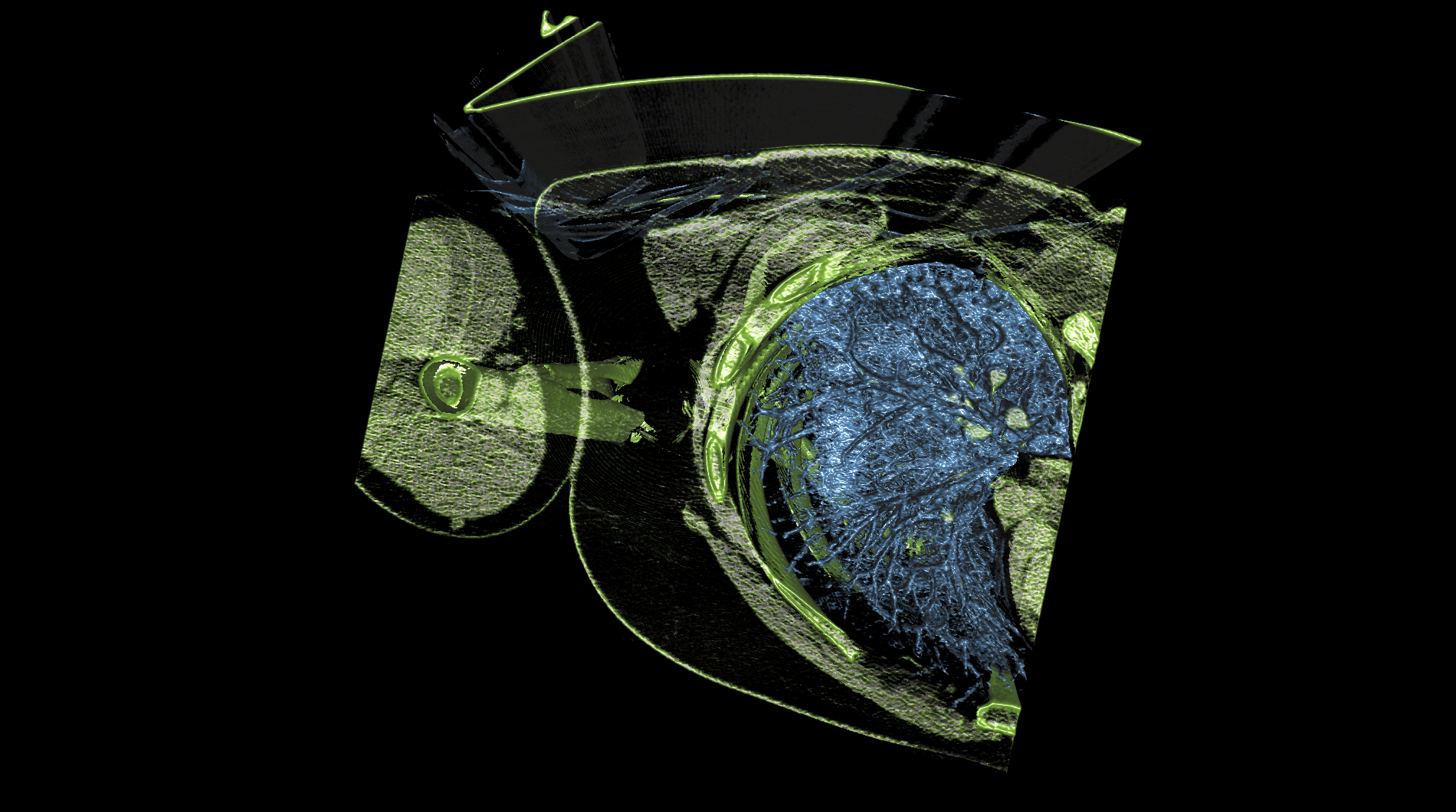

7	Test7	3	12.5	46	15.33	05/10/18 13:53:40

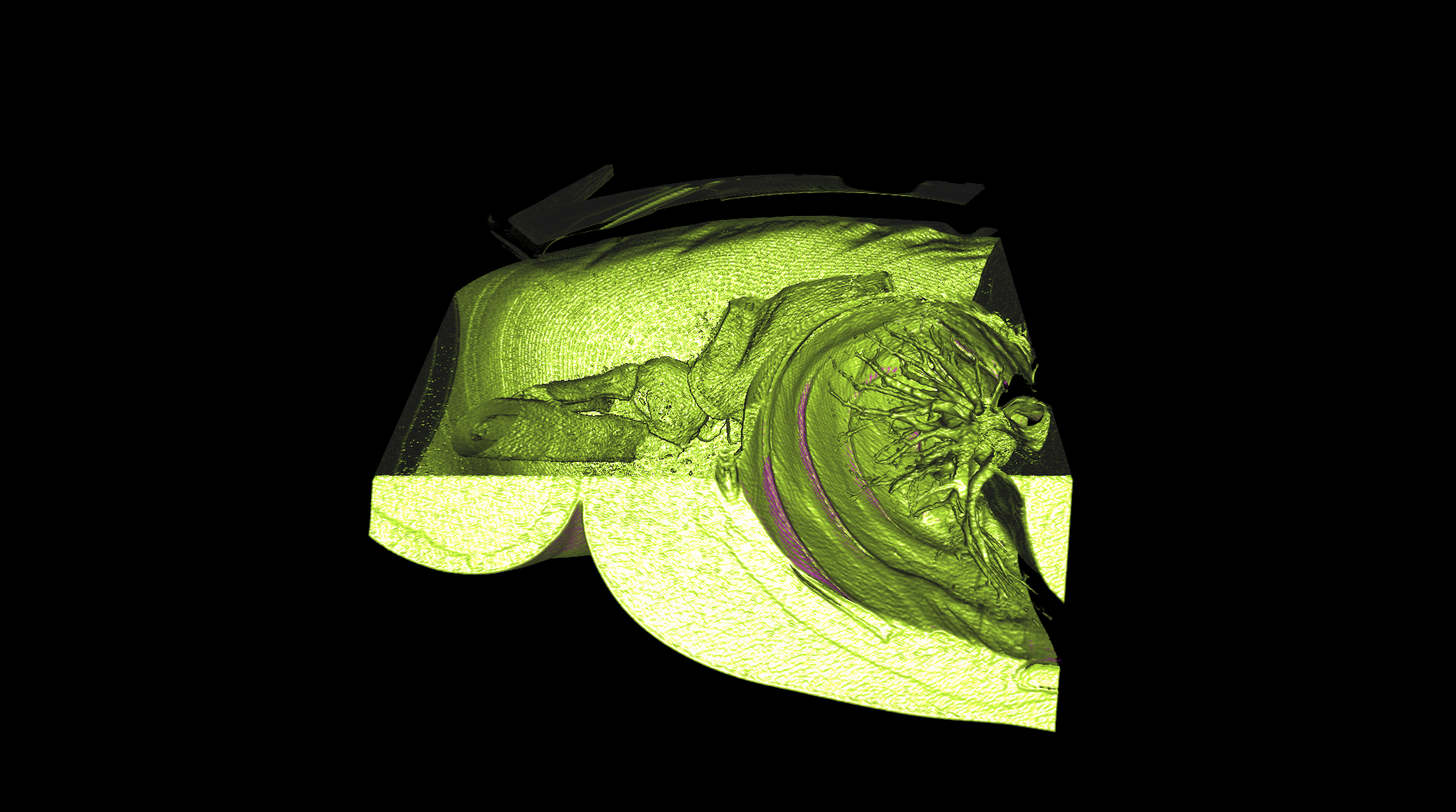

8	Test8	5.62	12.5	70	12.45	05/10/18 13:53:54

Screen Grabs Folder
Text Log File
XML Result File

showcase-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	Showcase_AmbientShadows	18.79	25	300	15.97	05/10/18 13:54:17

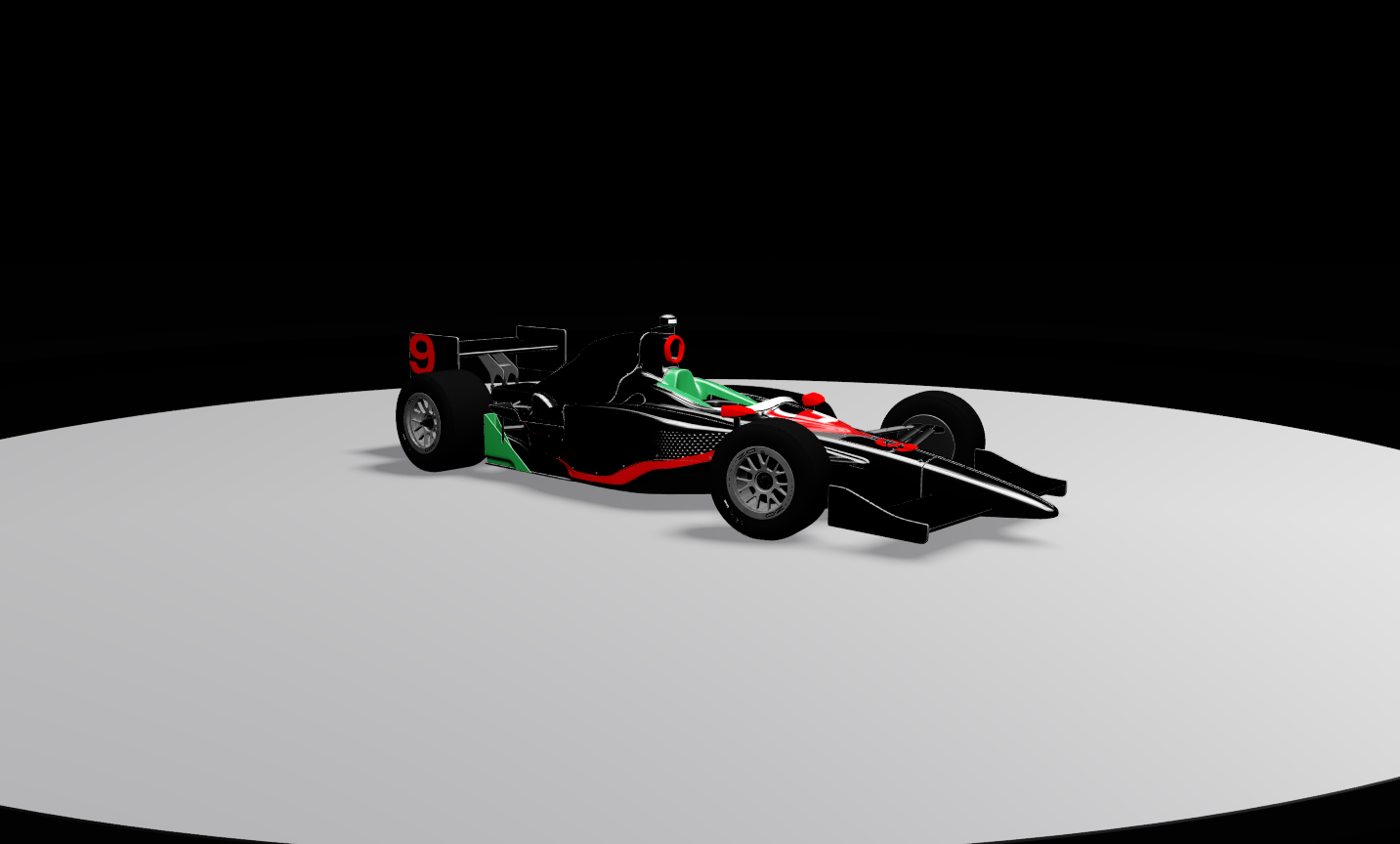

2	Showcase_bothShadows	18.64	25	300	16.09	05/10/18 13:54:39

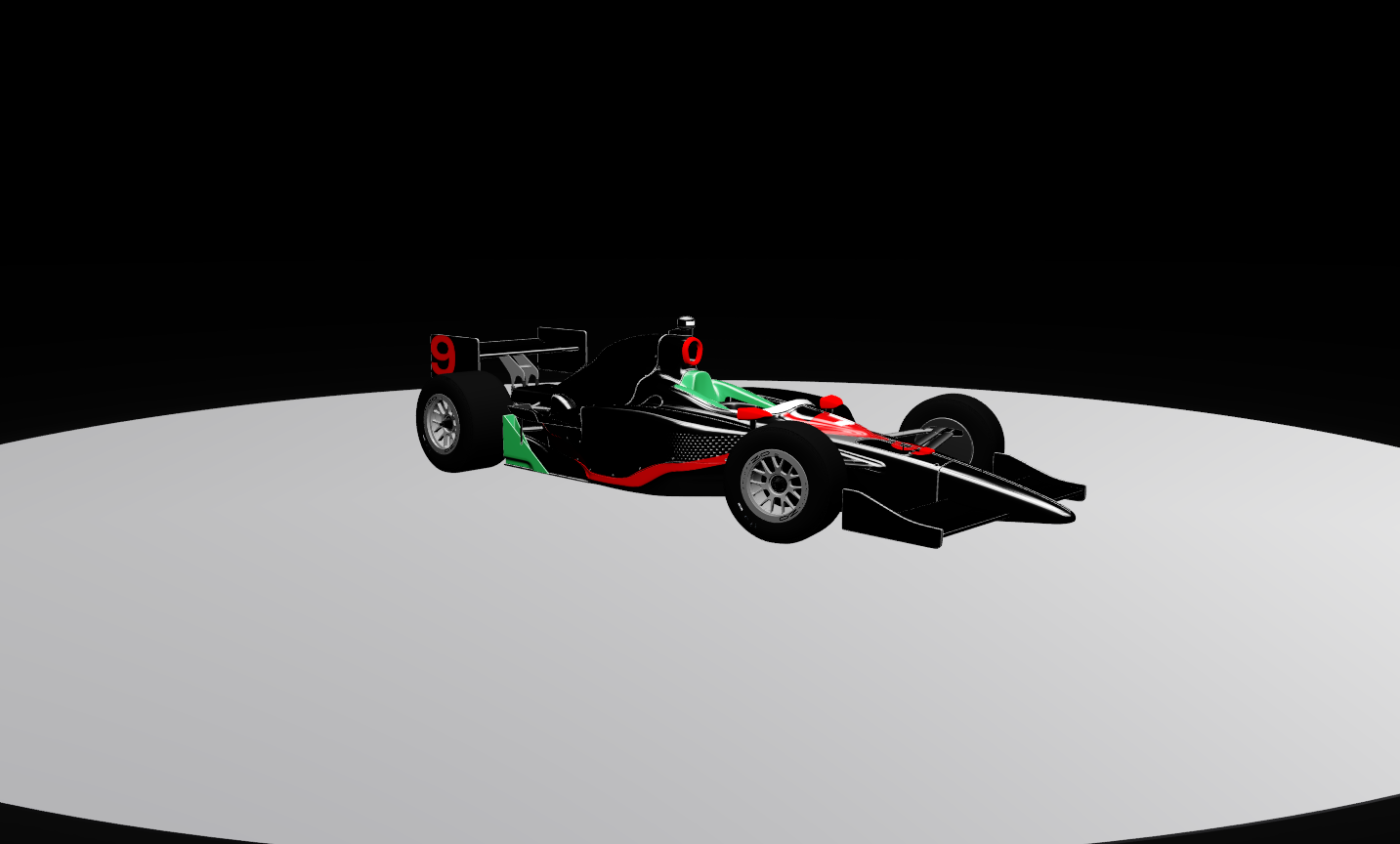

3	Showcase_NoShadows	19.18	25	300	15.64	05/10/18 13:55:02

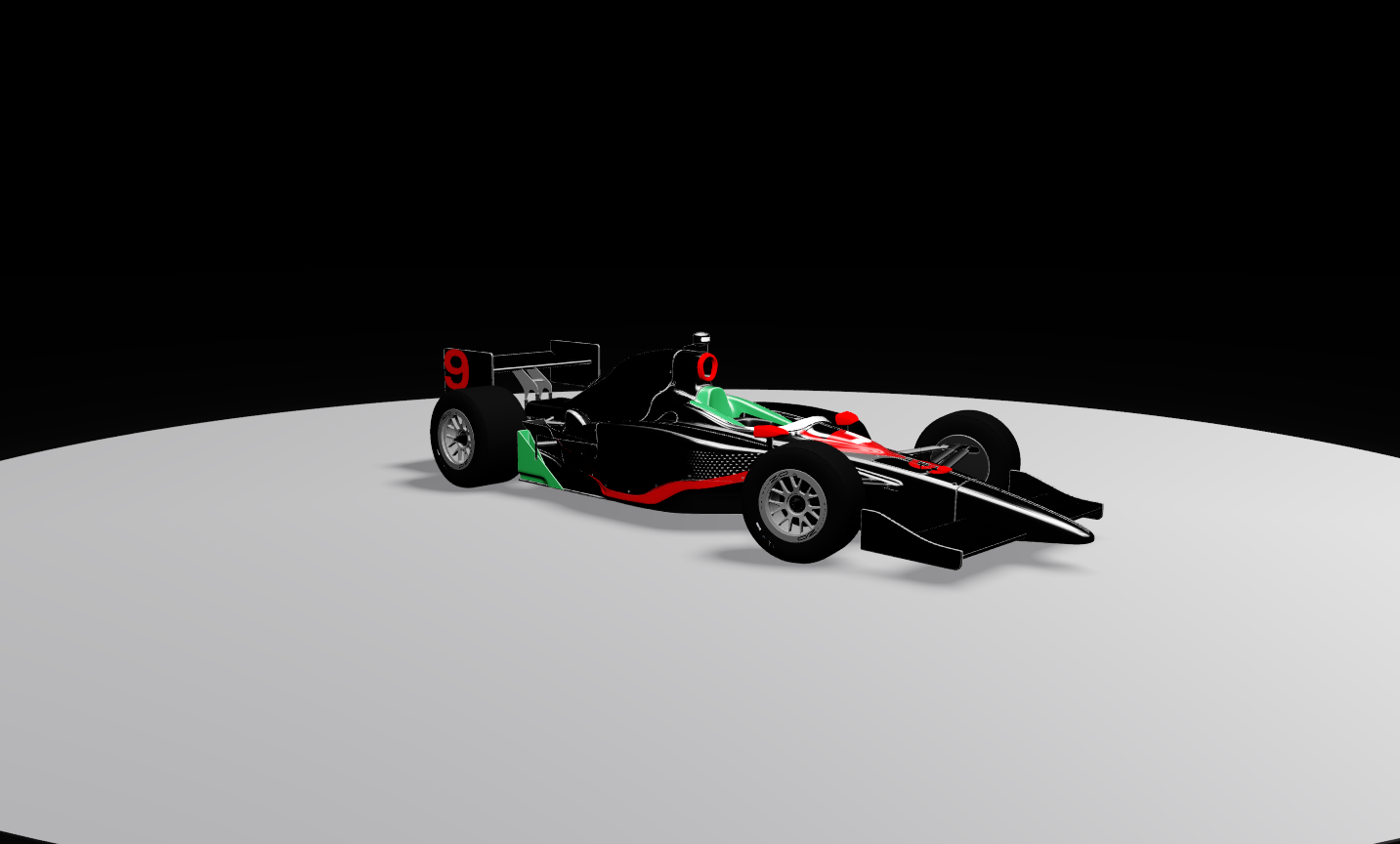

4	Showcase_Shadows	18.68	25	300	16.06	05/10/18 13:55:26

Screen Grabs Folder
Text Log File
XML Result File

snx-03

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

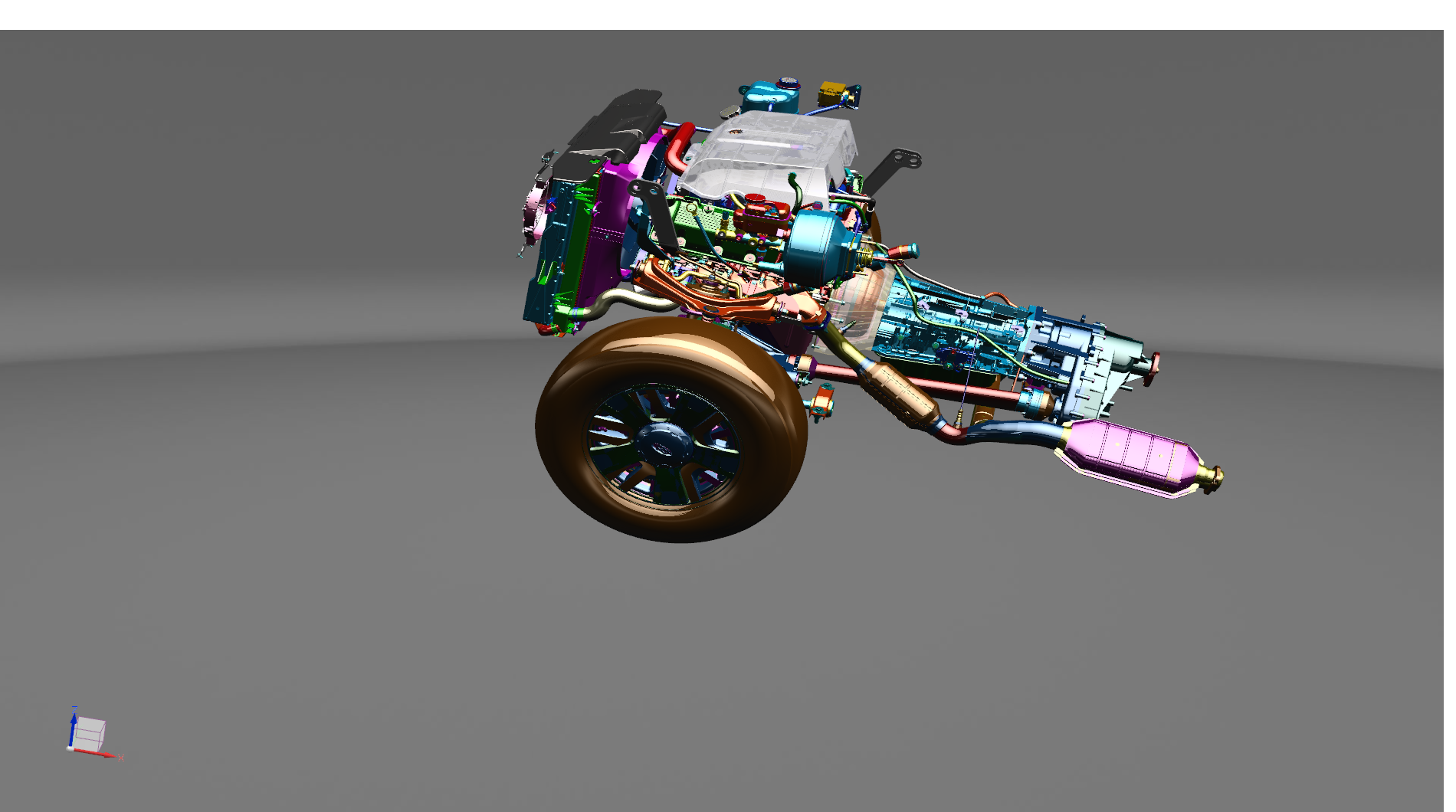

1	NX8_AdvancedStudioAA	37.31	7.5	720	19.3	05/10/18 13:55:50

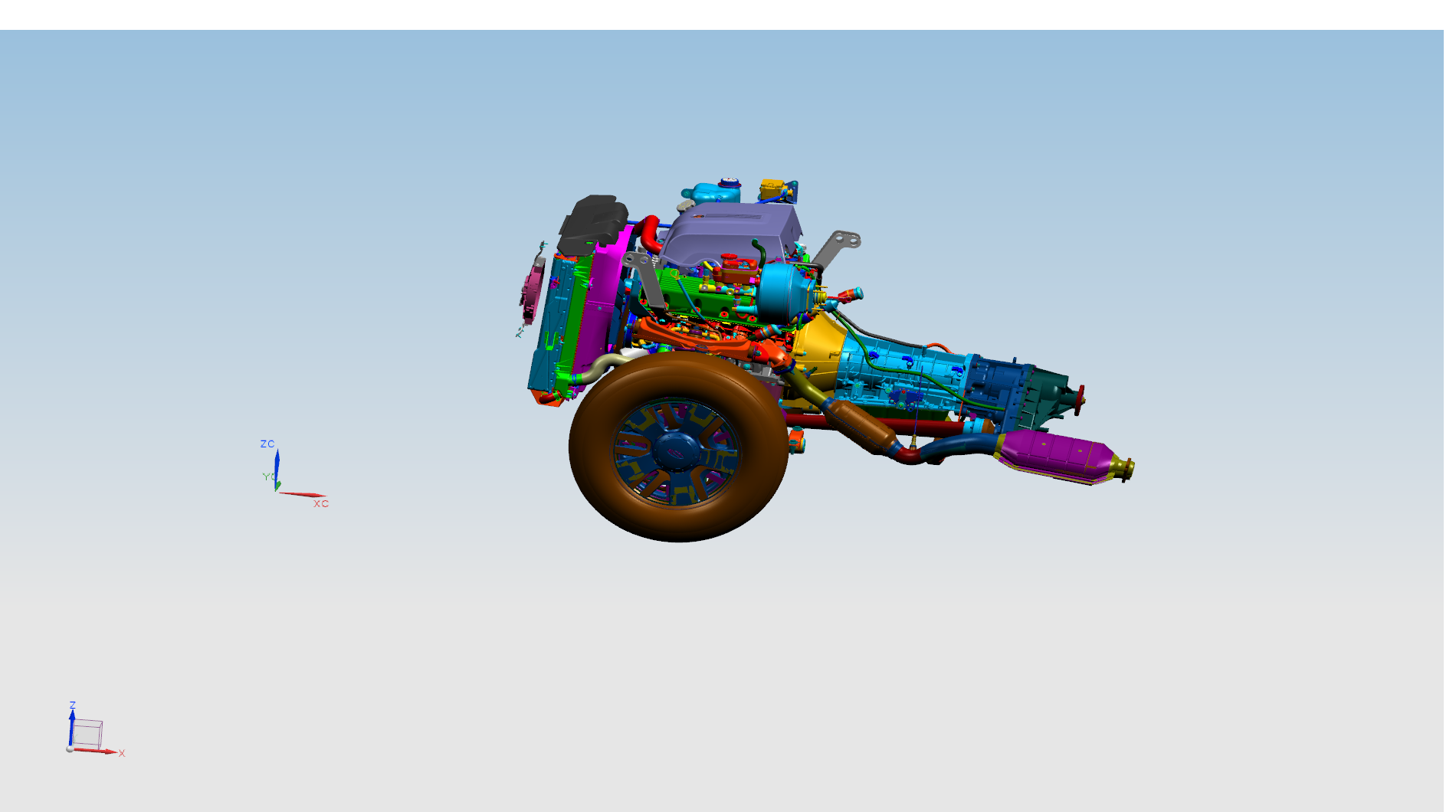

2	NX8_ShadedAA	61.52	10	1440	23.41	05/10/18 13:56:17

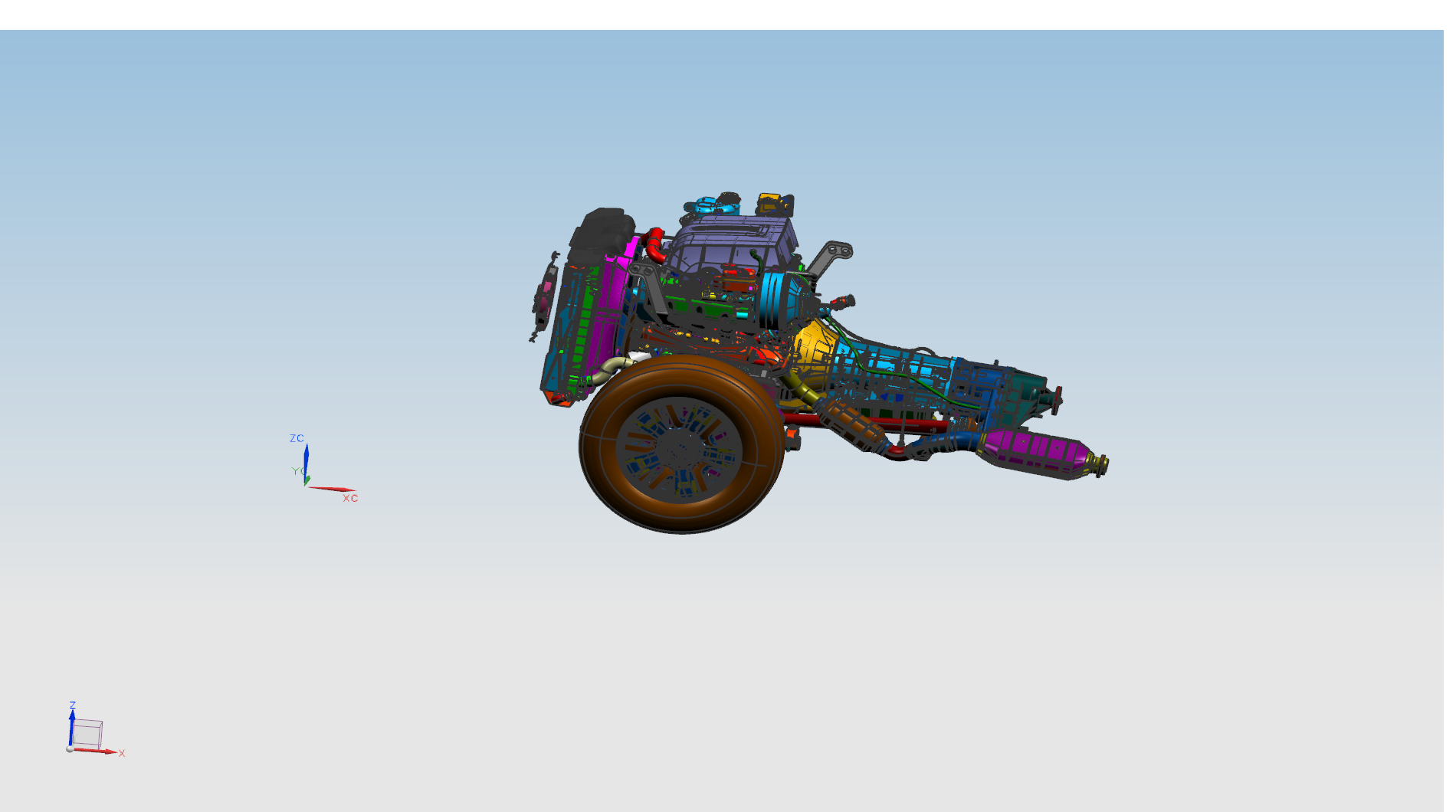

3	NX8_ShadedWithEdgeAA	47.36	20	720	15.2	05/10/18 13:56:35

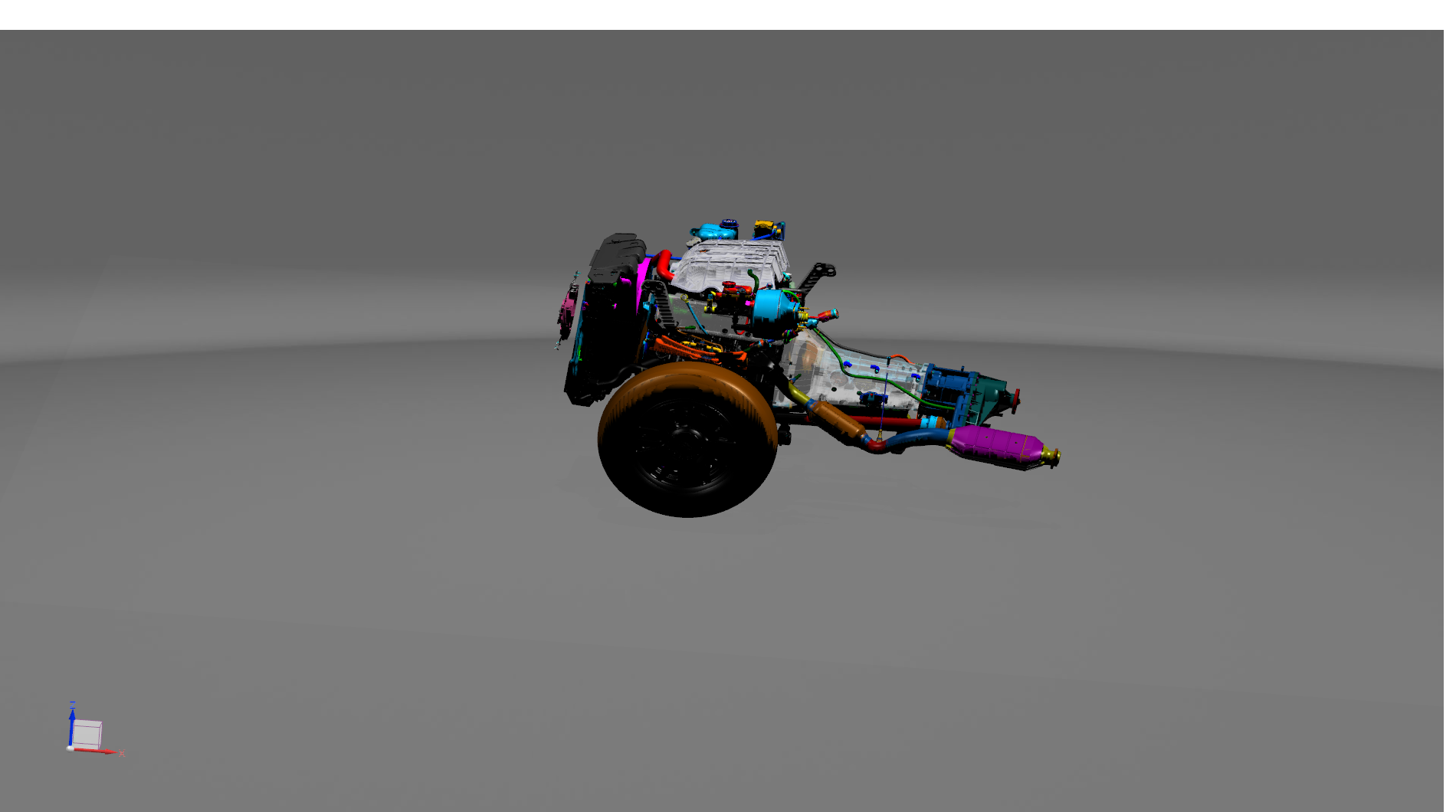

4	NX8_StudioAA	36.17	5	720	19.91	05/10/18 13:56:59

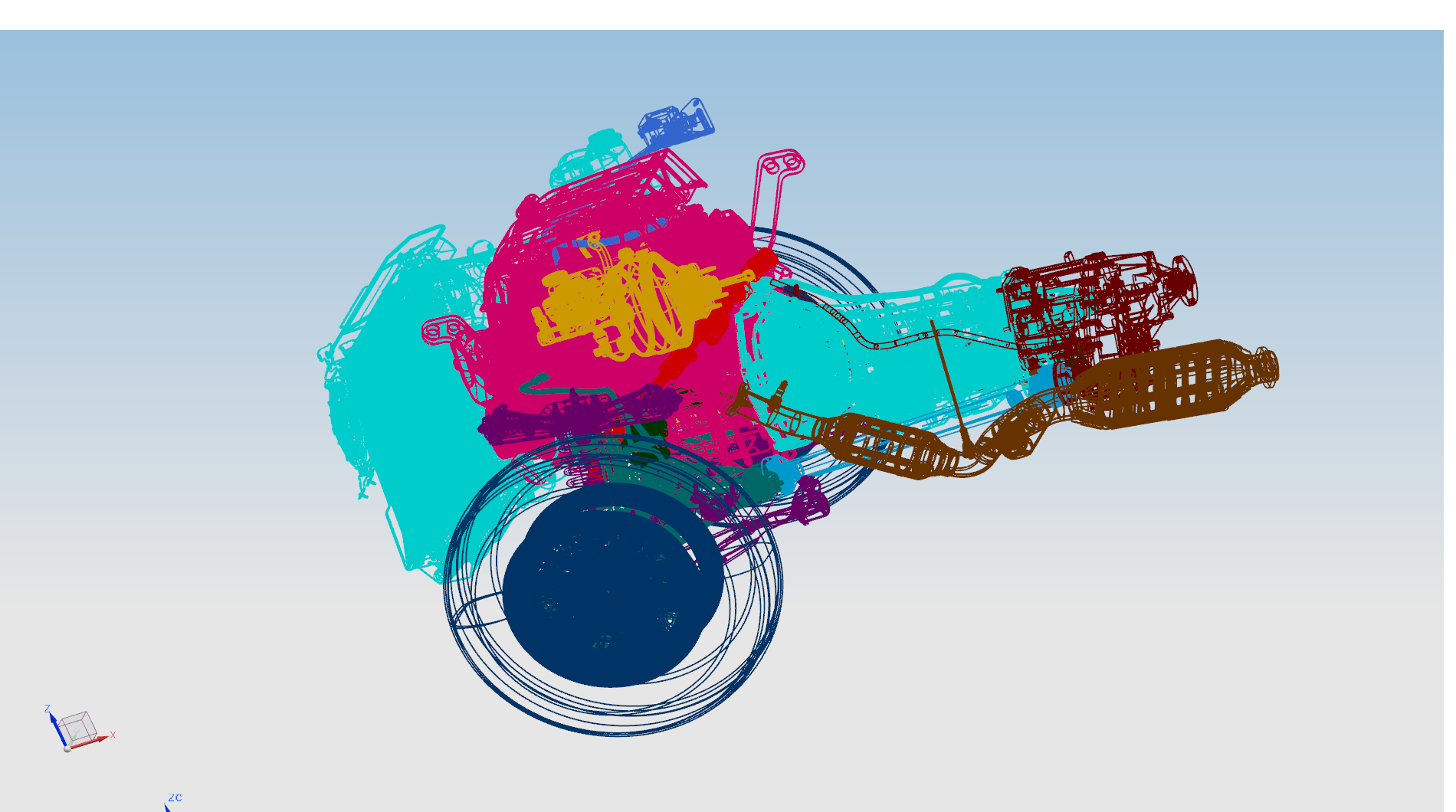

5	NX8_powerTrain_Wireframe	108.78	7.5	1800	16.55	05/10/18 13:57:20

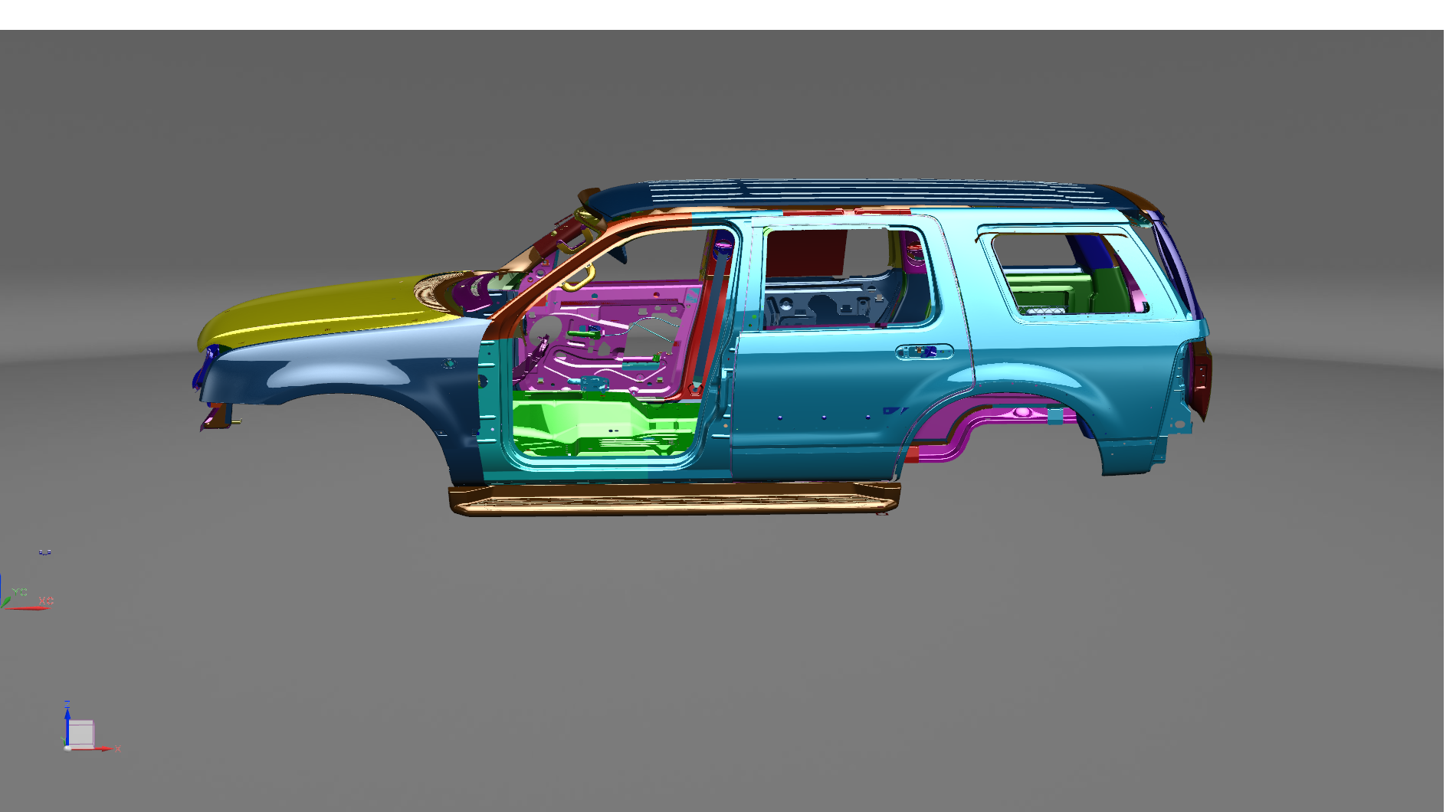

6	NX8_suvAdvancedStudio	84.63	7.5	1440	17.01	05/10/18 13:57:41
7	NX8_suvShaded	84.79	10	1440	16.98	05/10/18 13:58:01

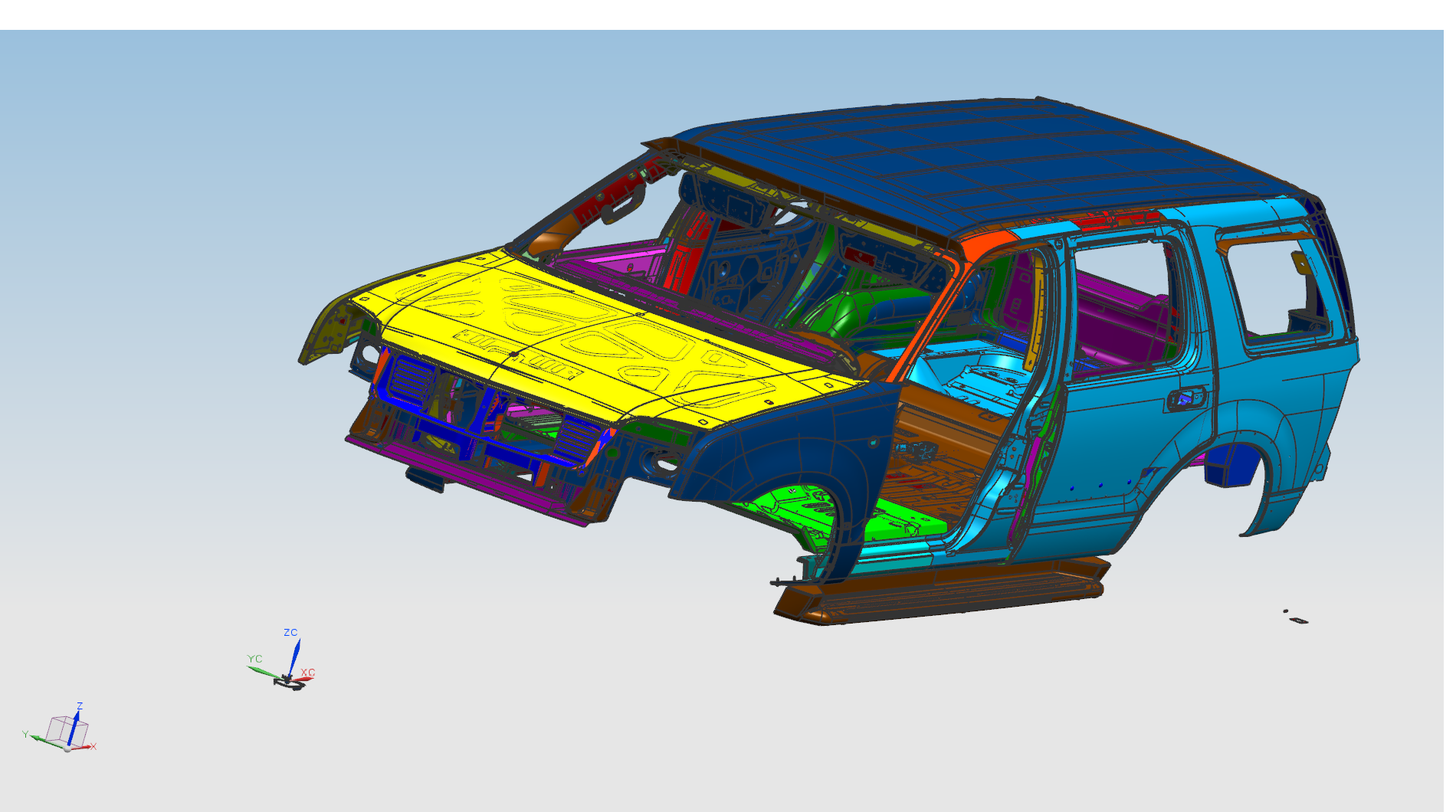

8	NX8_suvShadedWithEdge	63.78	20	1440	22.58	05/10/18 13:58:26

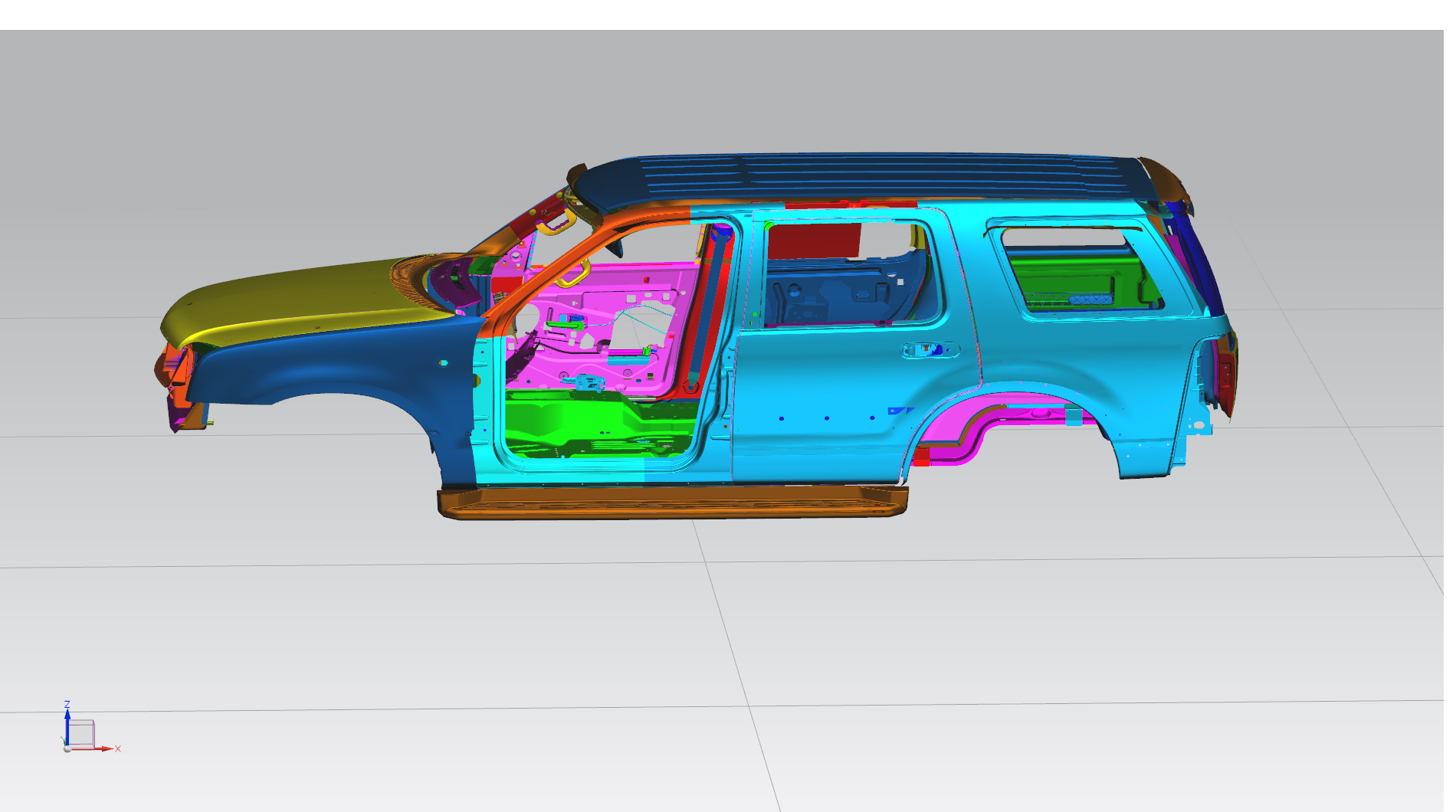

9	NX8_suvStudio2	40.96	5	720	17.58	05/10/18 13:58:47

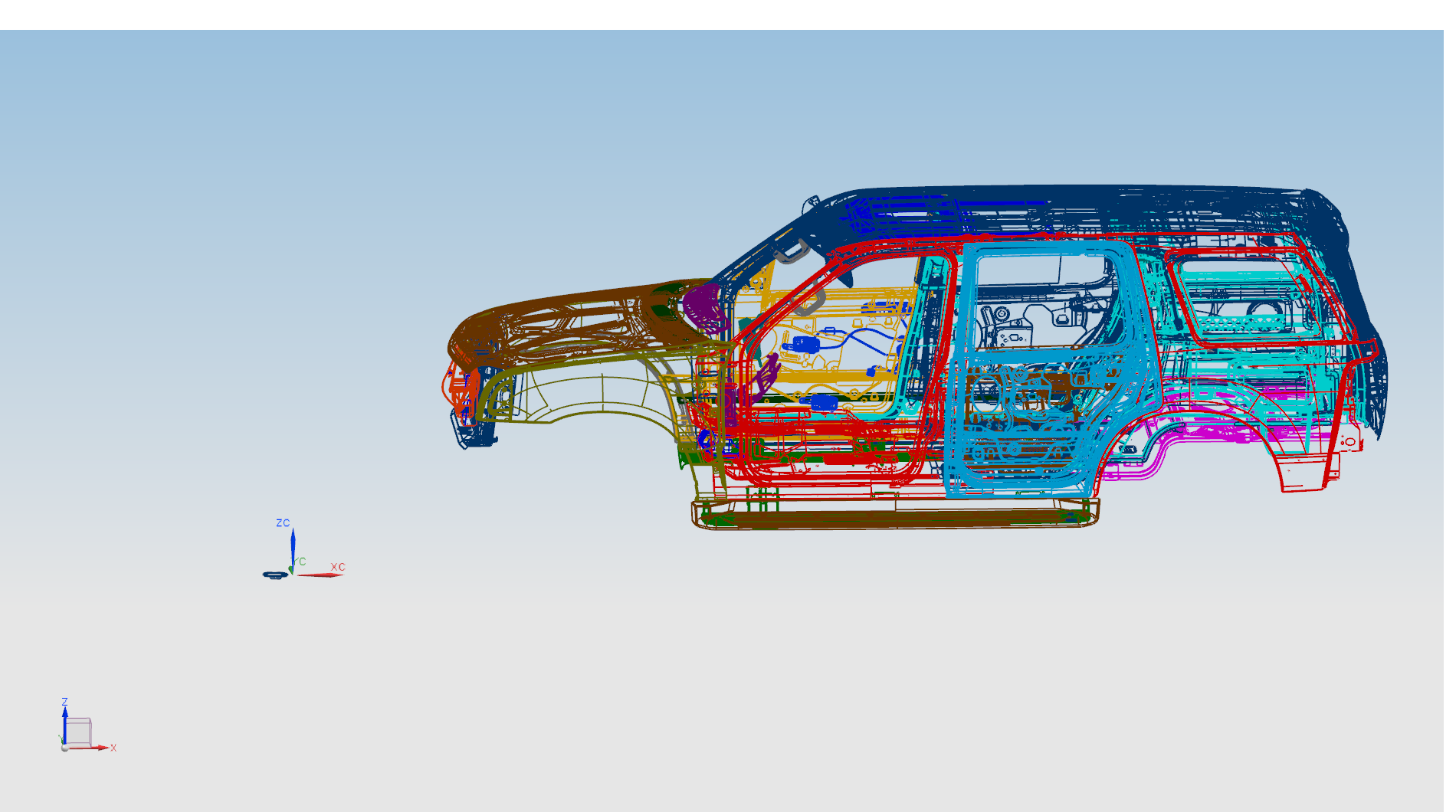

10	NX8_suvWireframe	179.29	7.5	2880	16.06	05/10/18 13:59:07

Screen Grabs Folder
Text Log File
XML Result File

sw-04

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

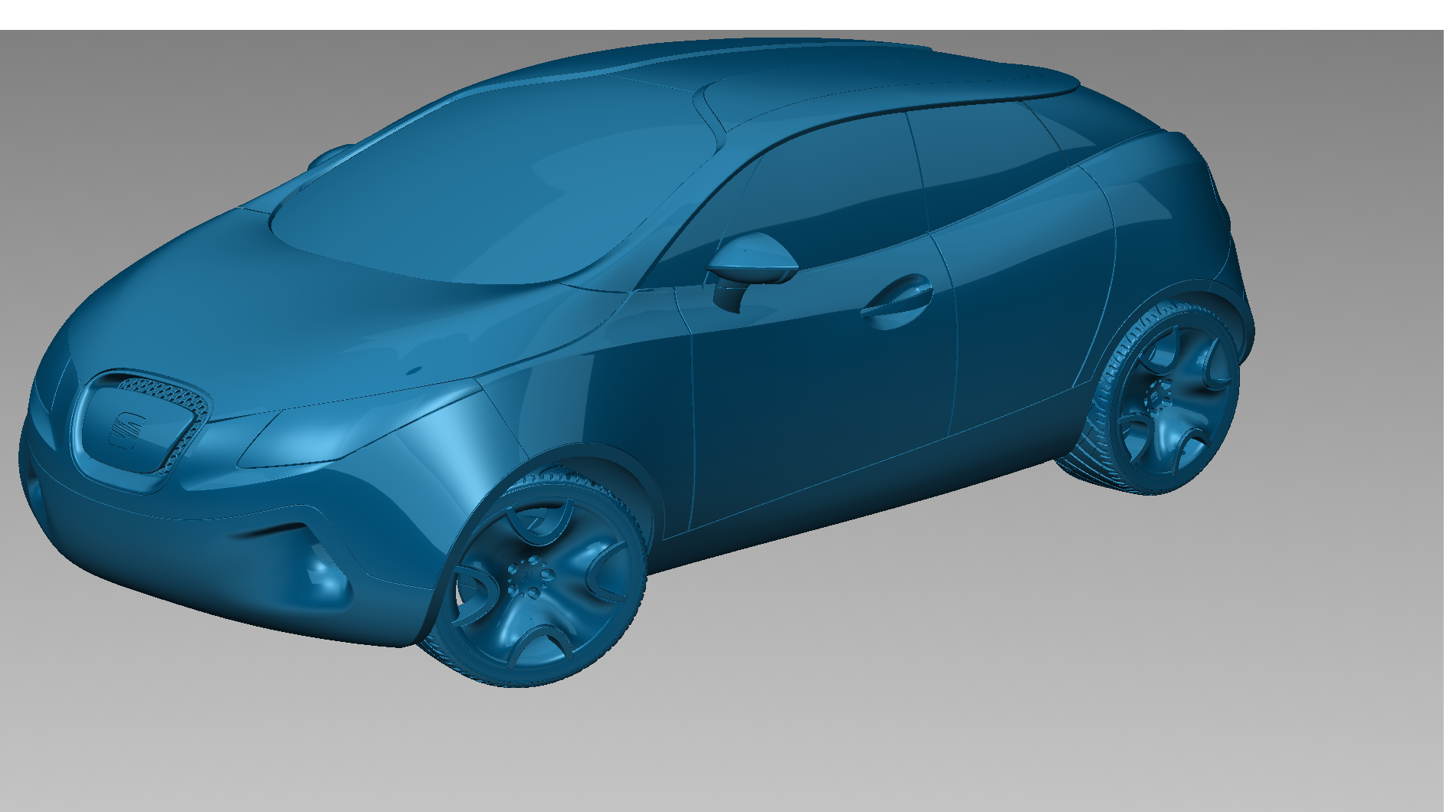

1	SW2012_shaded	124.43	12	2160	17.36	05/10/18 13:59:26

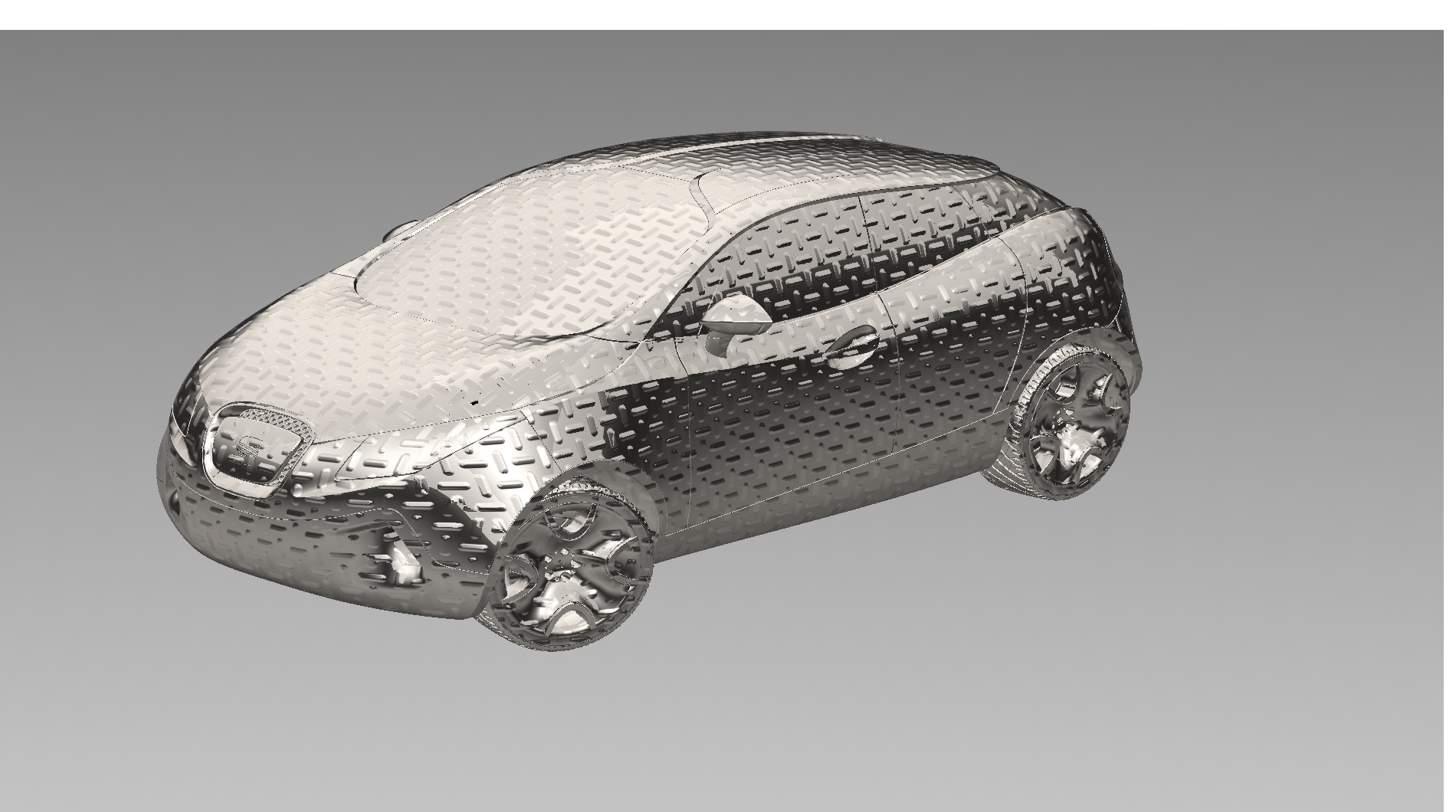

2	SW2012_plax	110.34	8	1800	16.31	05/10/18 13:59:44
3	SW2012_ssao	32.31	10	720	22.28	05/10/18 14:00:08

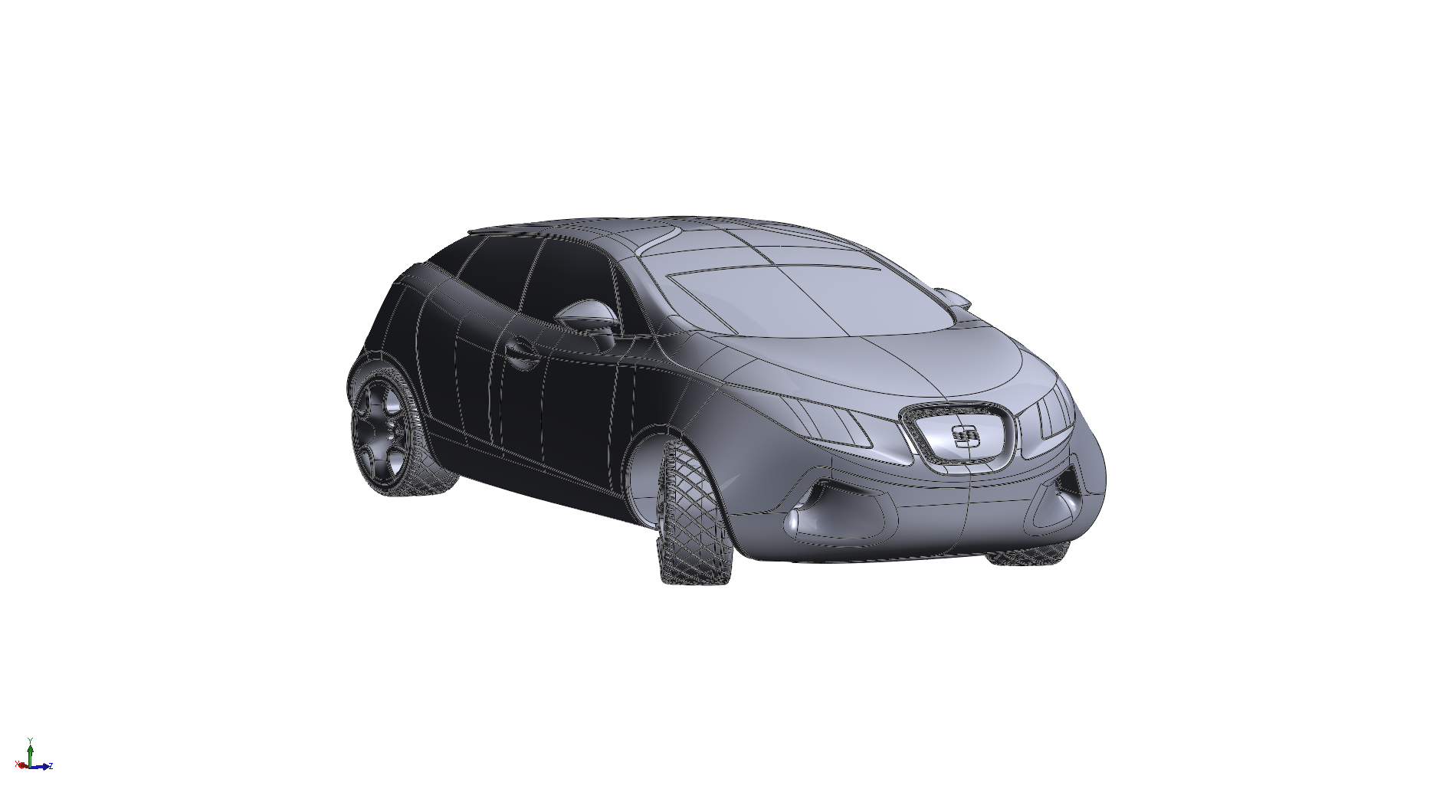

4	SW2012_edges	107.17	15	1800	16.8	05/10/18 14:00:26

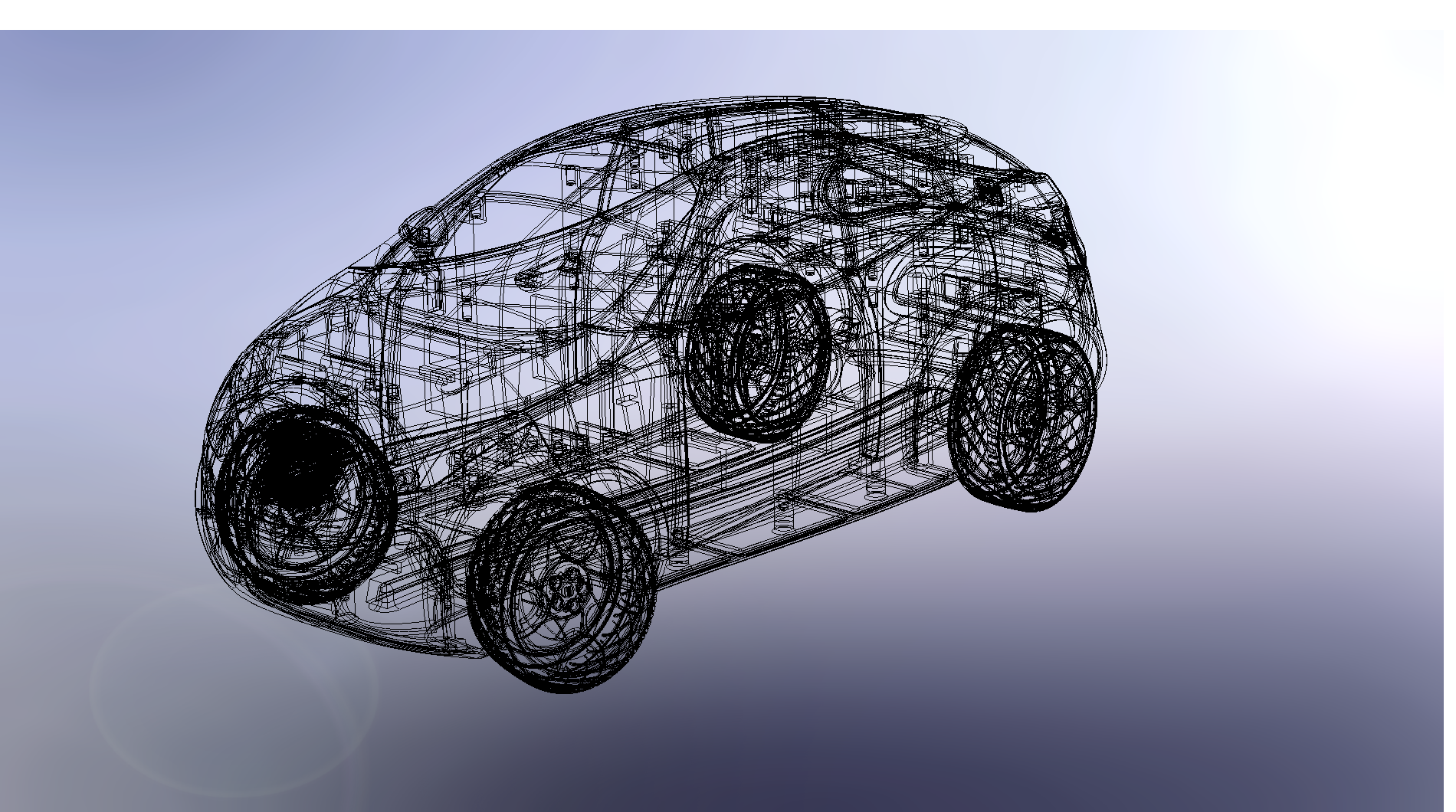

5	SW2012_wireframe	44.91	8	720	16.03	05/10/18 14:00:46

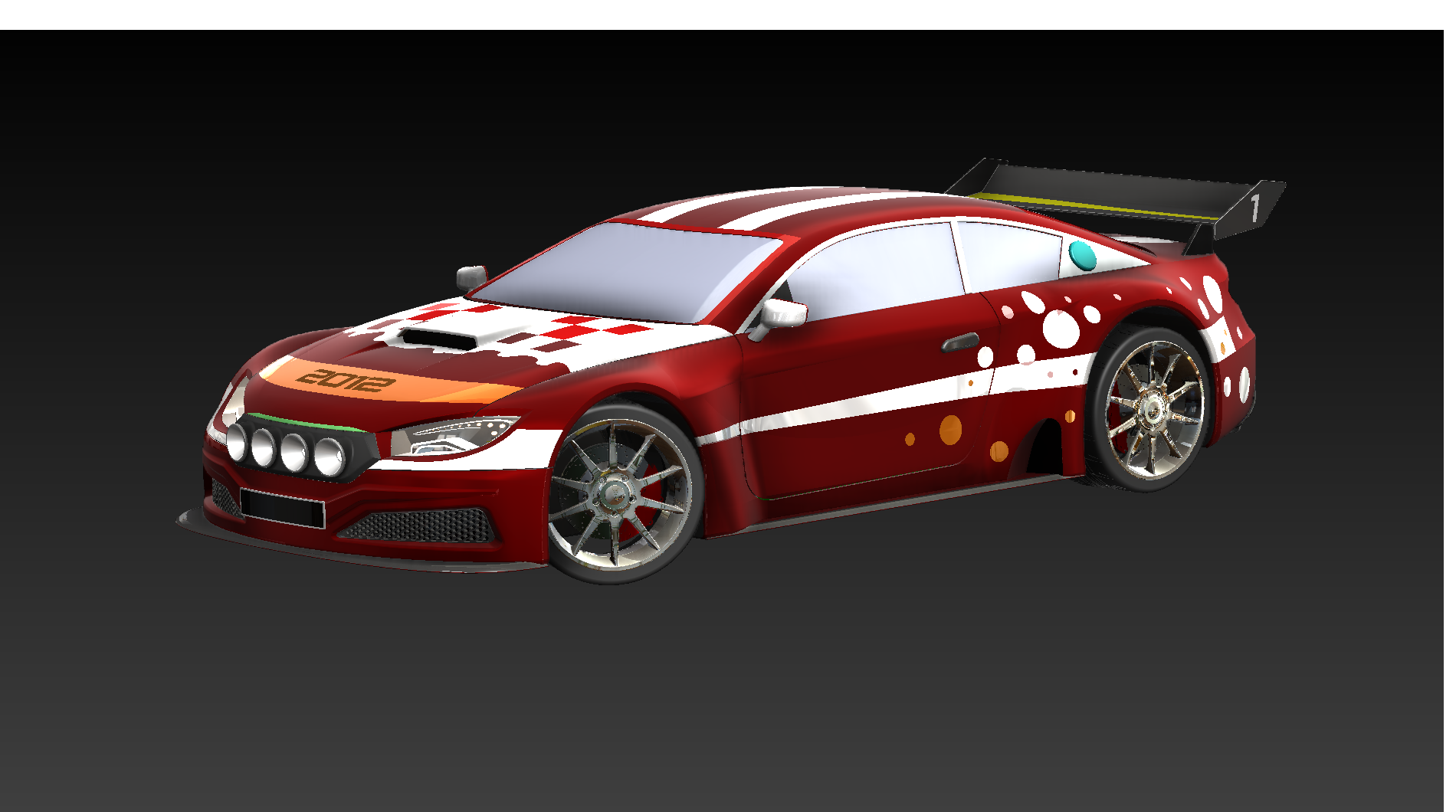

6	SW2012_rallyCar_AO	41.63	10	720	17.3	05/10/18 14:01:06

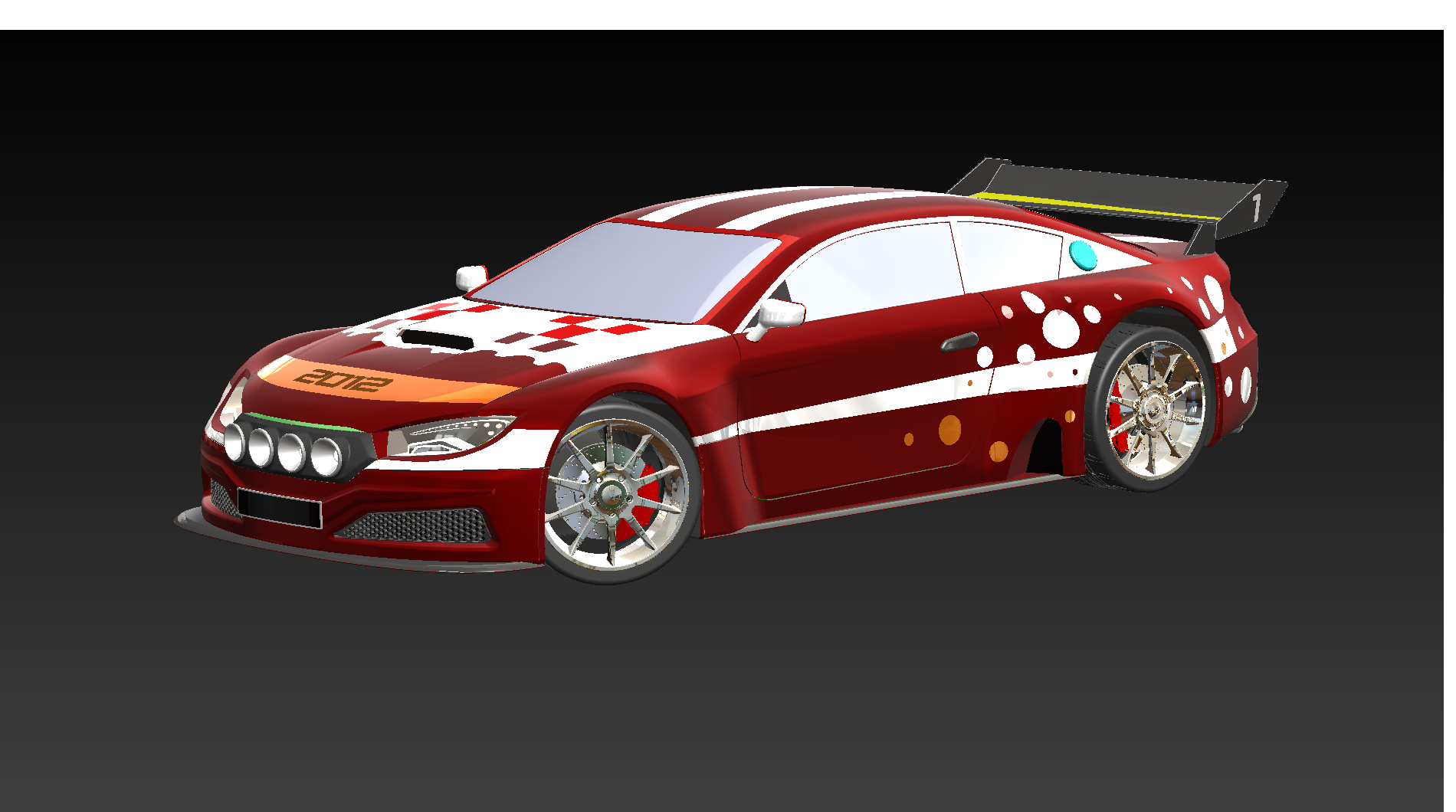

7	SW2012_rallyCar_shaded	48.78	12	1080	22.14	05/10/18 14:01:29

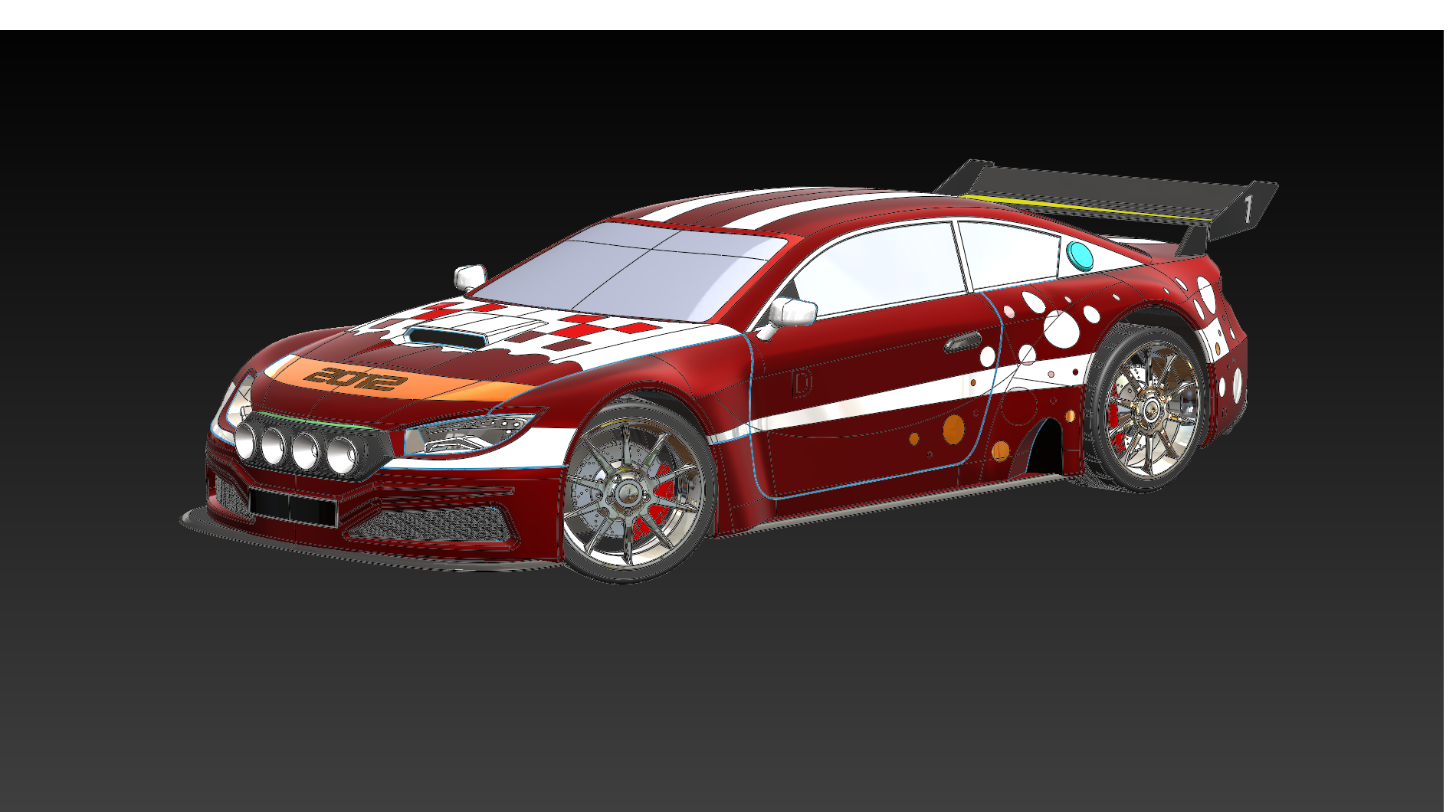

8	SW2012_rallyCar_ShadedEdges	40.1	15	720	17.95	05/10/18 14:01:48

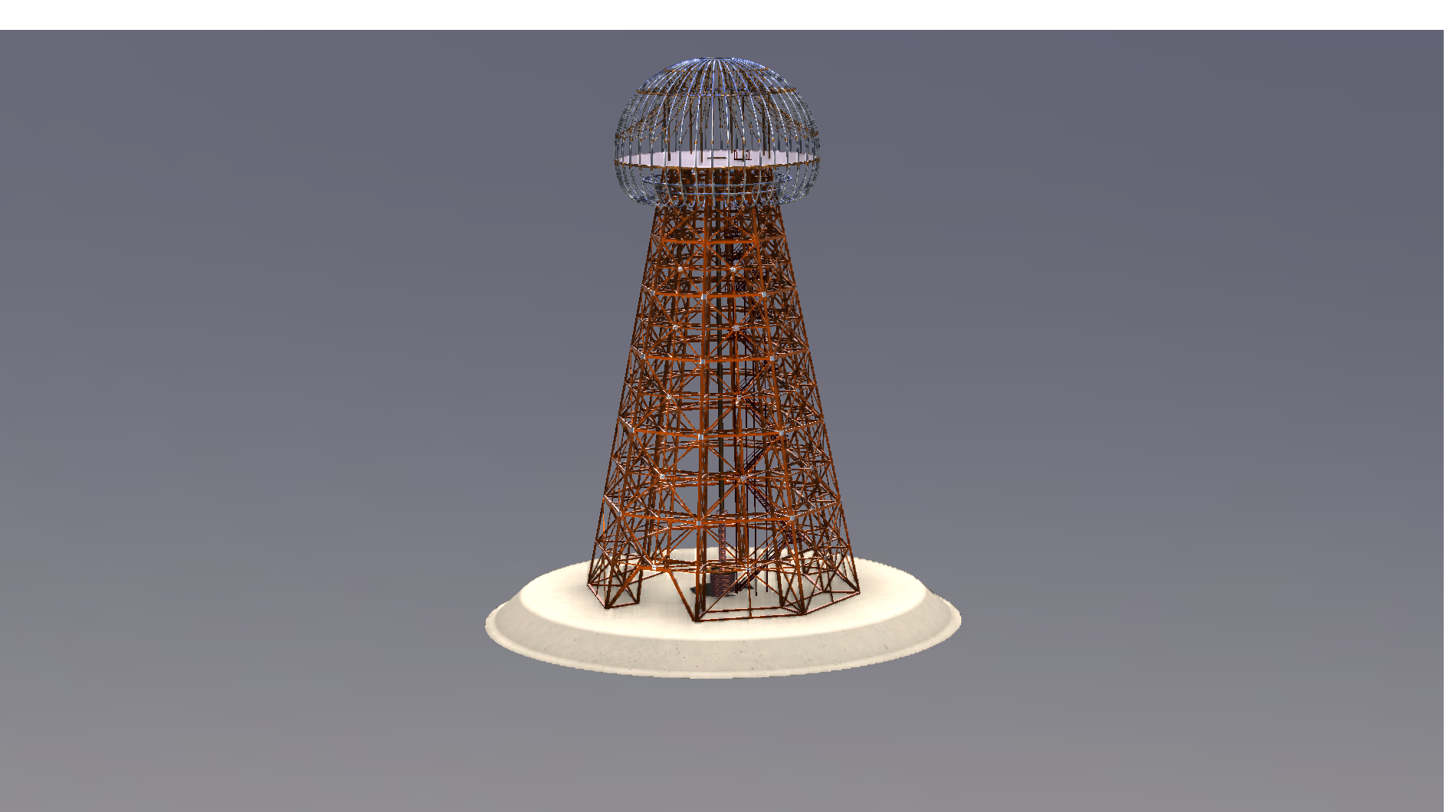

9	SW2012_teslaTower_AO	190.22	10	2880	15.14	05/10/18 14:02:05

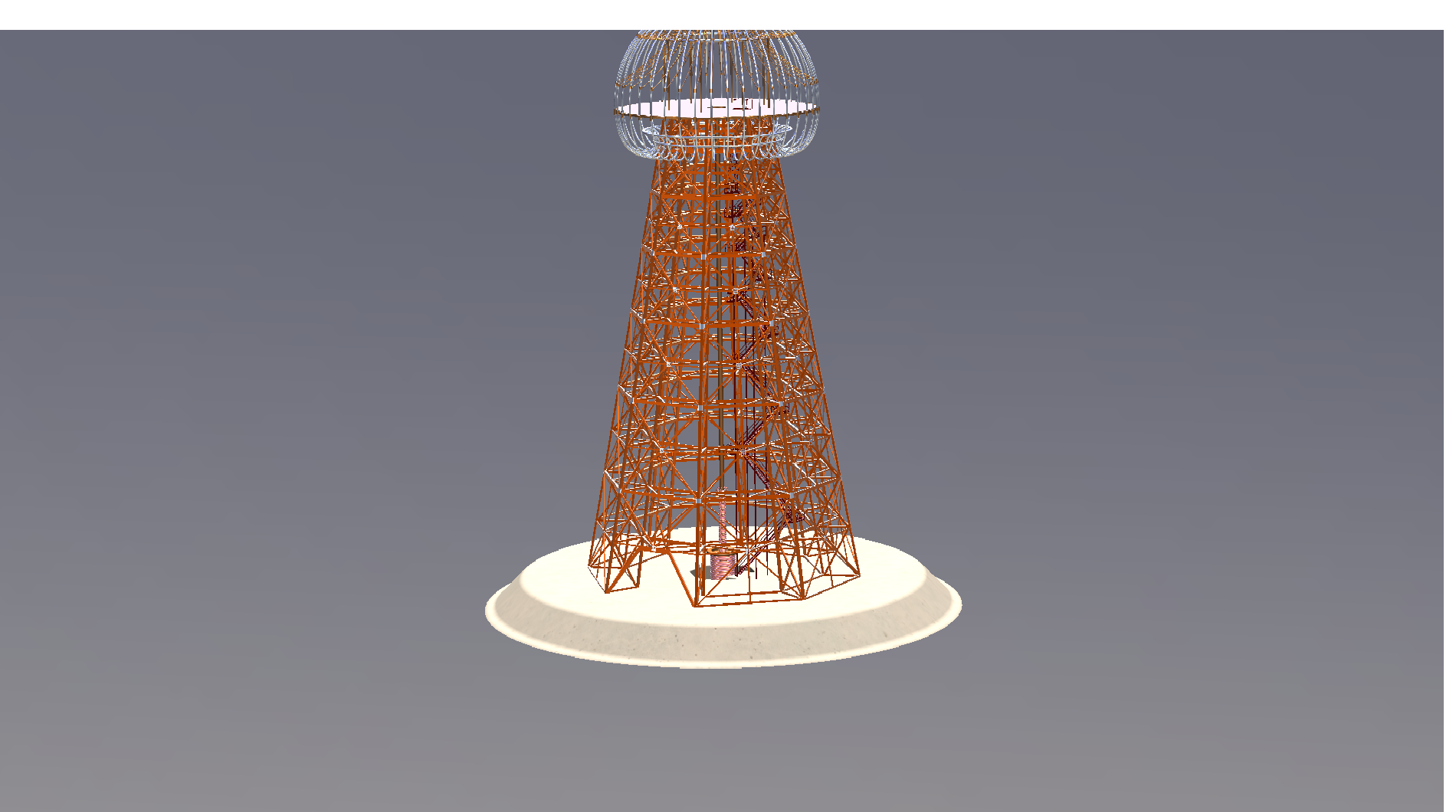

10	SW2012_teslaTower_shaded	630.92	0	9720	15.41	05/10/18 14:02:21

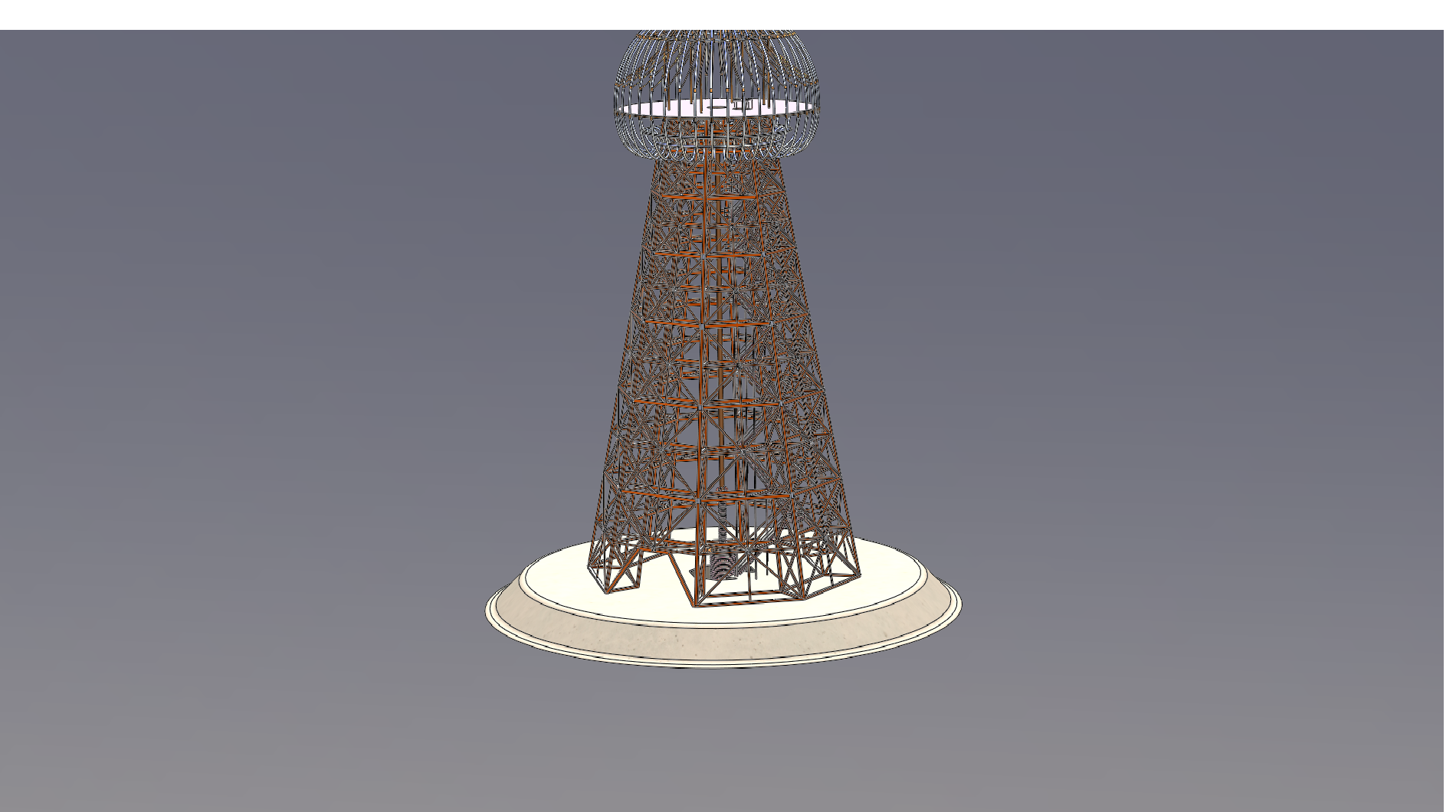

11	SW2012_teslaTower_ShadedEdges	511.46	0	7920	15.48	05/10/18 14:02:38

Screen Grabs Folder
Text Log File
XML Result File
