SPECviewperf 13 Results

http://www.spec.org/gwpg

Scores Configuration catia-05creo-02energy-02maya-05medical-02snx-03sw-04

Composite Scores

SPECviewperf measures the frame rate, or frames per second (FPS), at which your graphics card can render scenes across a wide variety of applications and usage models. Each viewset represents an application or a usage model, and each composite score below is based on a weighted geometric mean of many different scenes and rendering modes.

Composites by Viewset

To explore a viewset in more detail, including the measured frame rate for each test of which the composite score is comprised, click on the viewset name in the menu to the left.

Viewset	Composite Score	Window
catia-05	286.61	1900 x 1060
creo-02	200.04	1900 x 1060
energy-02	20.48	1900 x 1060
maya-05	301.74	1900 x 1060
medical-02	82.53	1900 x 1060
snx-03	355.69	1900 x 1060
sw-04	245.36	1900 x 1060

Benchmark Information

Benchmark
Name	SPECgpc SPECviewperf 13 Benchmark
Version	13.0.0
Submission
Test Date	Wed Feb 27 2019 10:03:20 GMT-0500 (EST)
Submission Candidate	Yes
Submitting Company	Lenovo
Comments	Driver Download, https://www.nvidia.com/Download/driverResults.aspx/142958/en-us. Nvidia OpenGL setting, unchecked SYNC to VBlank and set Image Settings to High performance.Set display Scale for Menu and Title Bars to 0.625

System Configuration

Workstation
Manufacturer	LENOVO
Model	ThinkStation P520
Manufacturer	LENOVO
Version	S03KT22A
OS Name	GNU/Linux
Build Number	4.4.0-142-generic
Graphics
Name	Quadro RTX 4000
Resolution	1920 x 1080
Driver Version	4.6.0 NVIDIA 418.43
DPI	96 (Scale Factor: 100%)
Processor
Name	Intel(R) Xeon(R) W-2125 CPU @ 4.00GHz
Address Width	64-bit
Nominal Clock Speed	4500 MHz
Number Of Cores	4
Number Of Logical Processors	8
Memory
DIMM Name	Physical Memory
Memory Capacity	15 GB
Disk Drives
Drive Model	DVDROM DH60N
Drive Capacity	1024.00 GB
Drive Model	LENSE30512GMSP34MEAT3TA
Drive Capacity	476.94 GB
Display
Generic X display	1920 x 1080

catia-05

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

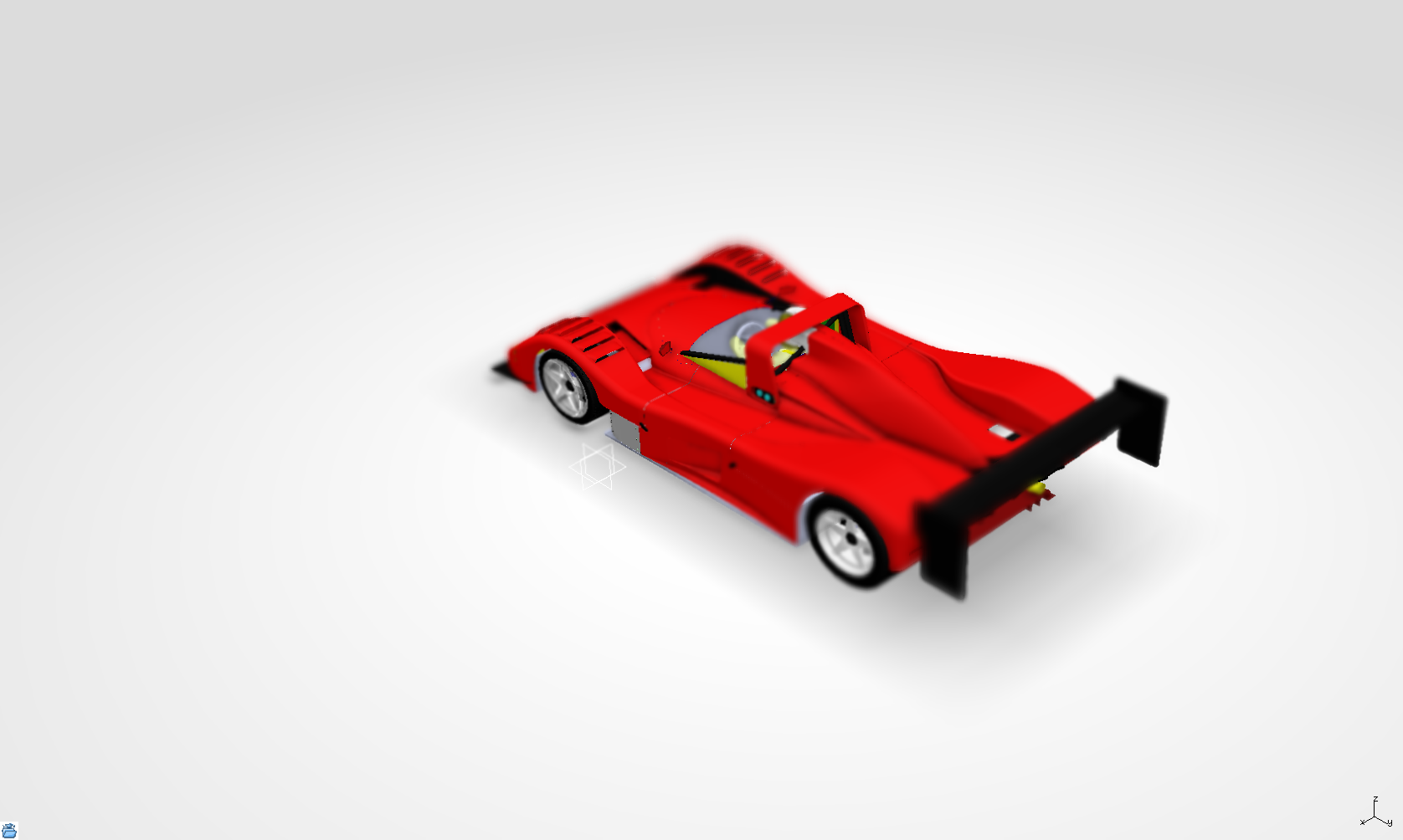

1	CATIA_car_dof	299.83	2.75	5040	16.81	02/27/19 10:49:09

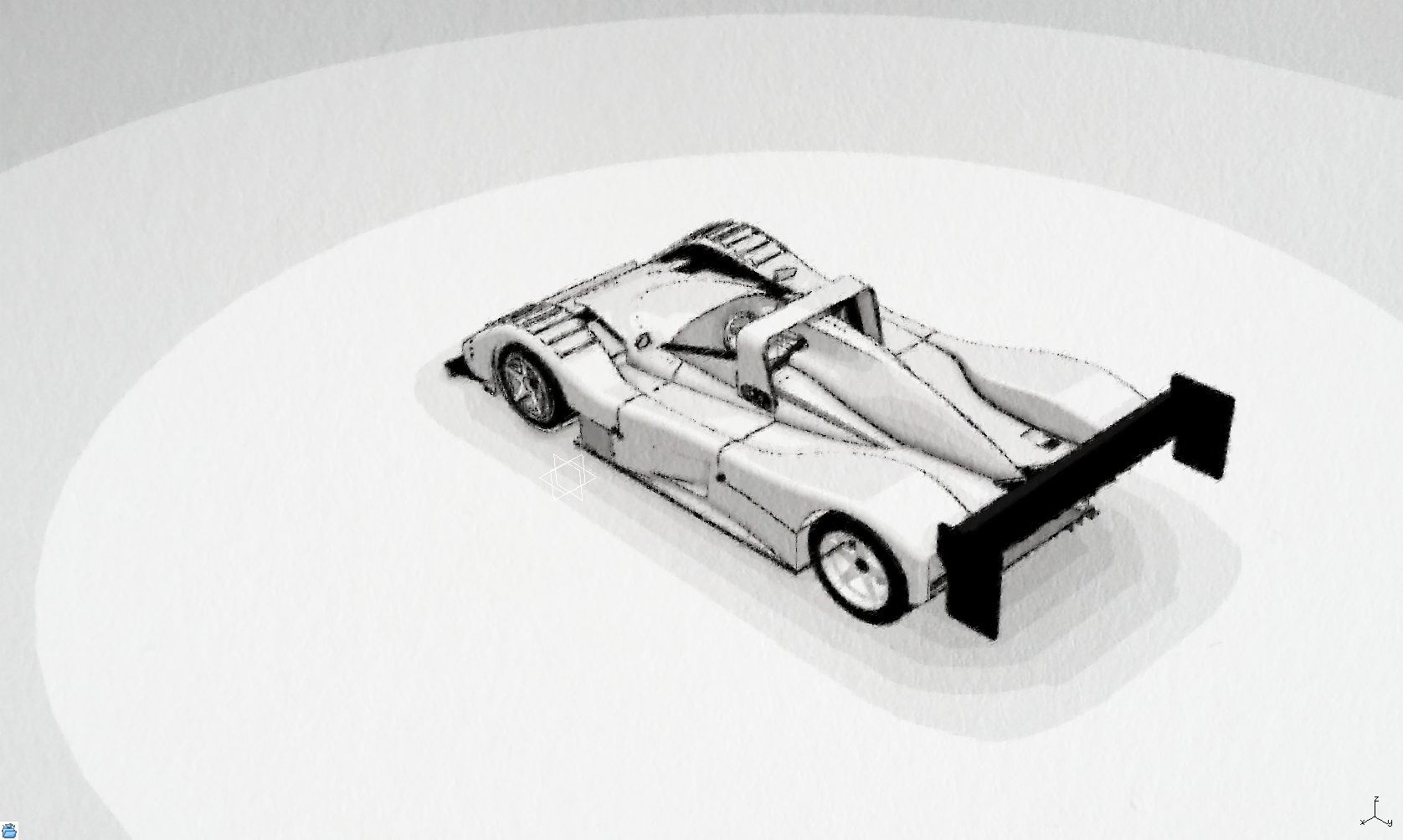

2	CATIA_car_pencil	321.92	2.75	5040	15.66	02/27/19 10:49:26

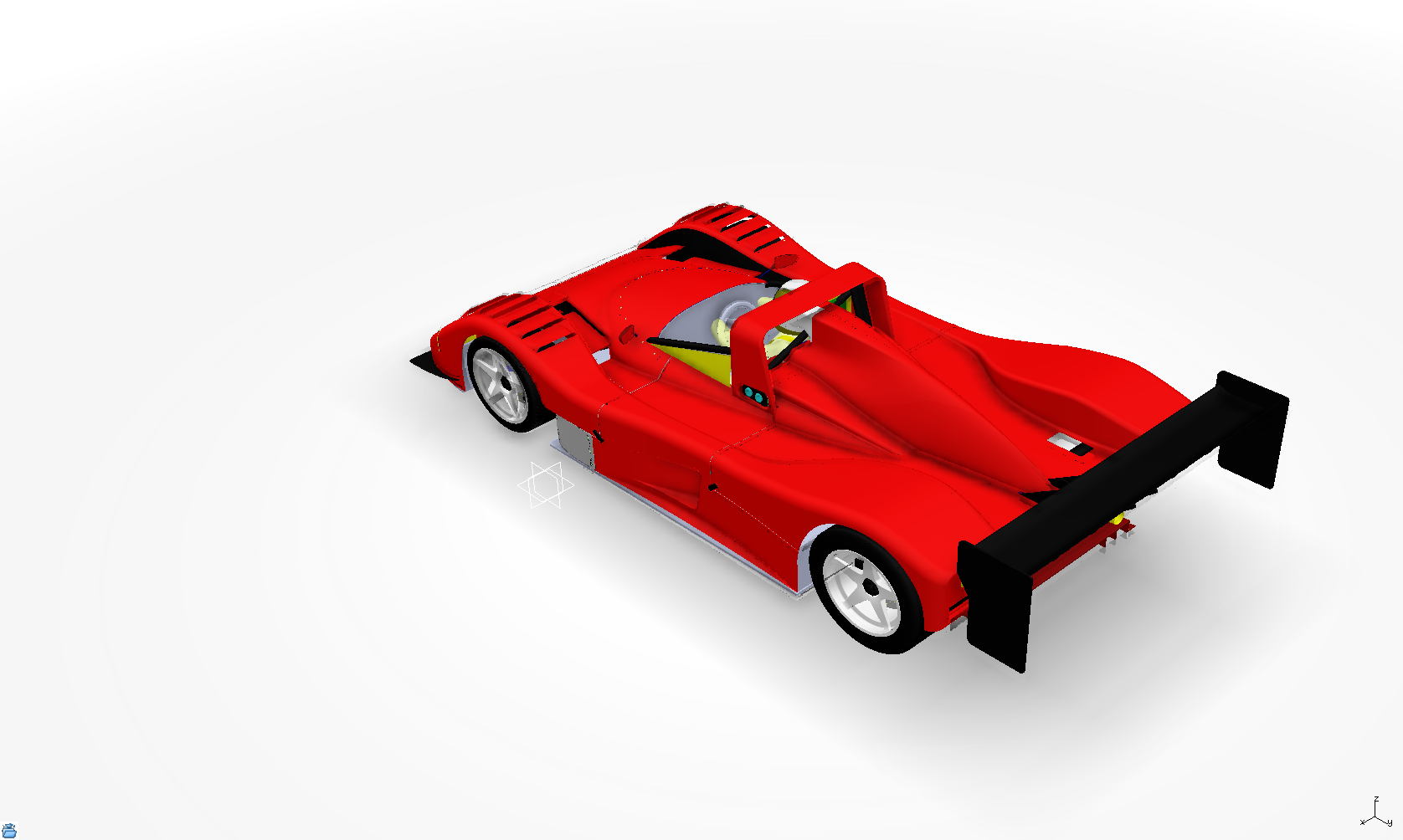

3	CATIA_car_ssao	433.51	9.89	7200	16.61	02/27/19 10:49:43

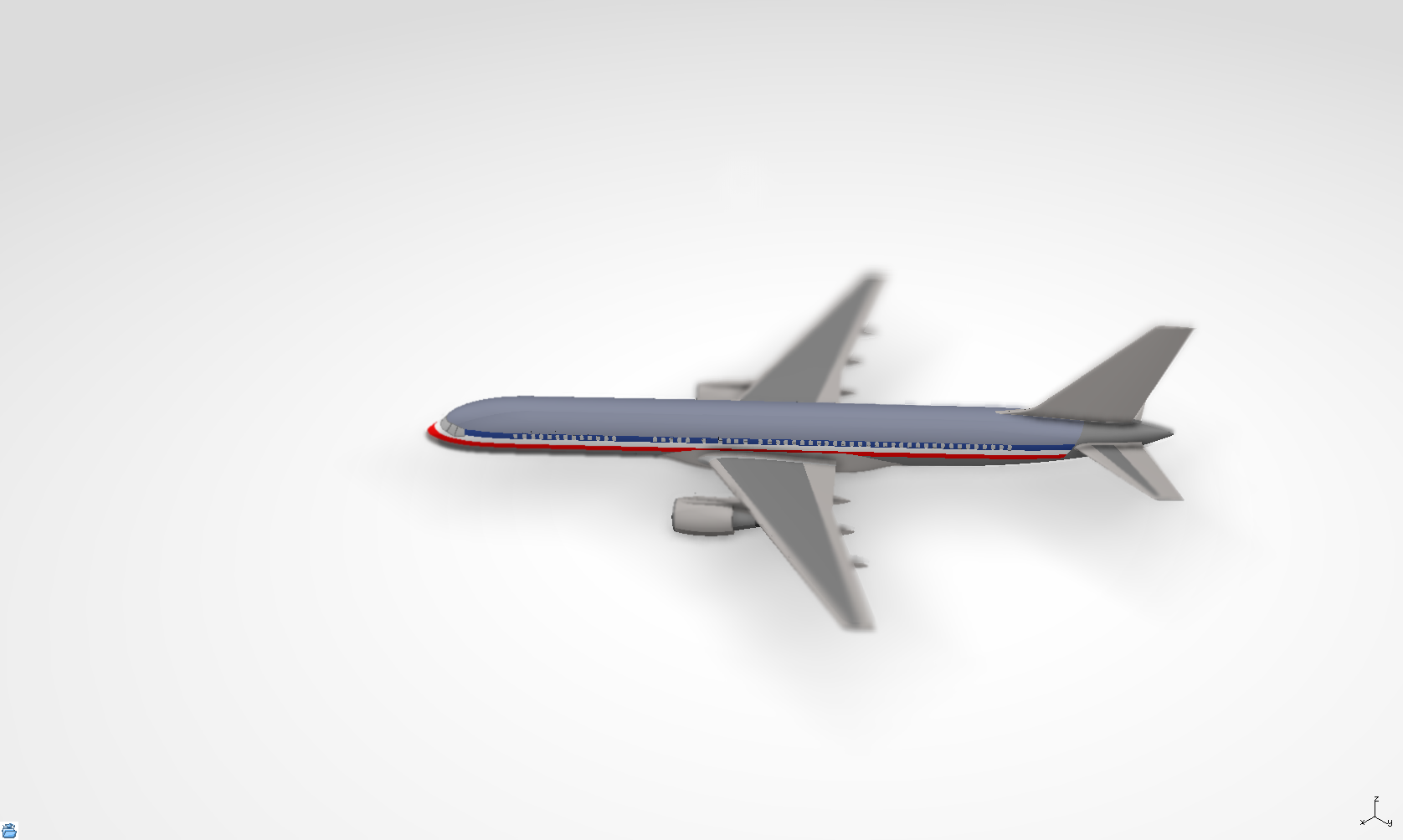

4	CATIA_plane_dof	328.93	2.75	5040	15.32	02/27/19 10:49:59

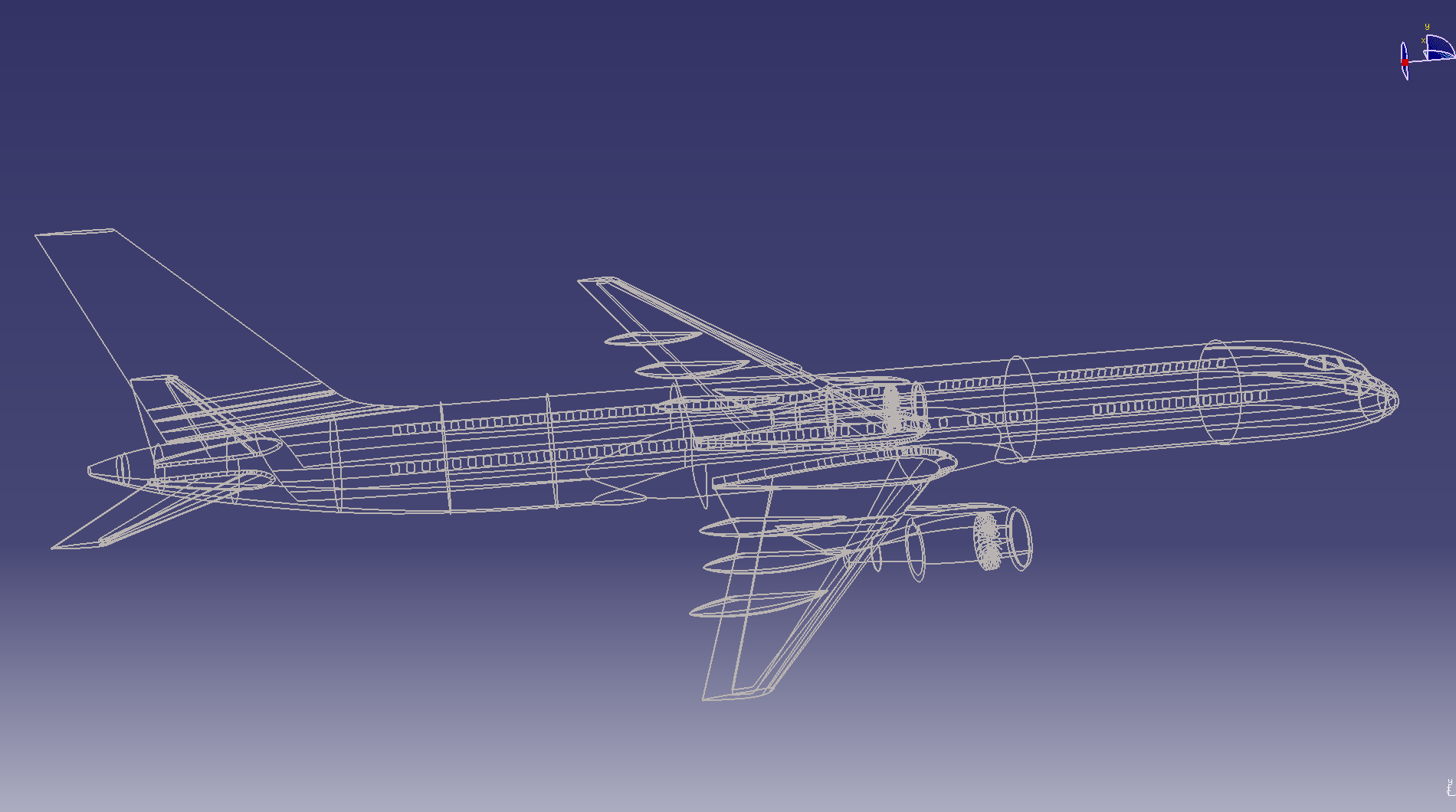

5	CATIA_plane_edges	2243.33	0	40320	17.97	02/27/19 10:50:18
6	CATIA_plane_pencil	362.38	2.75	5760	15.9	02/27/19 10:50:35
7	CATIA_plane_shaded	762.4	9.89	11520	15.11	02/27/19 10:50:51

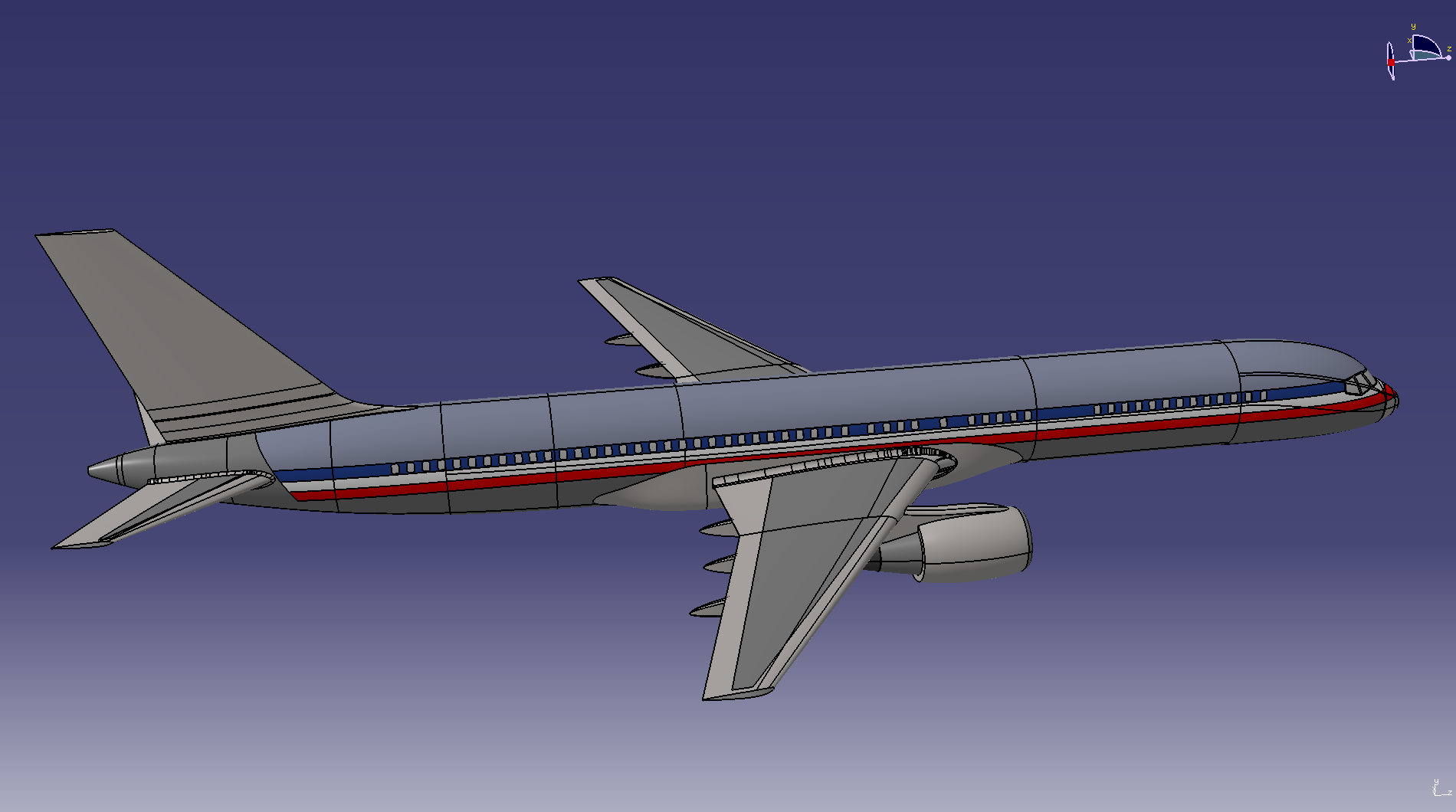

8	CATIA_plane_shadedEdges	741.52	9.89	11520	15.54	02/27/19 10:51:07

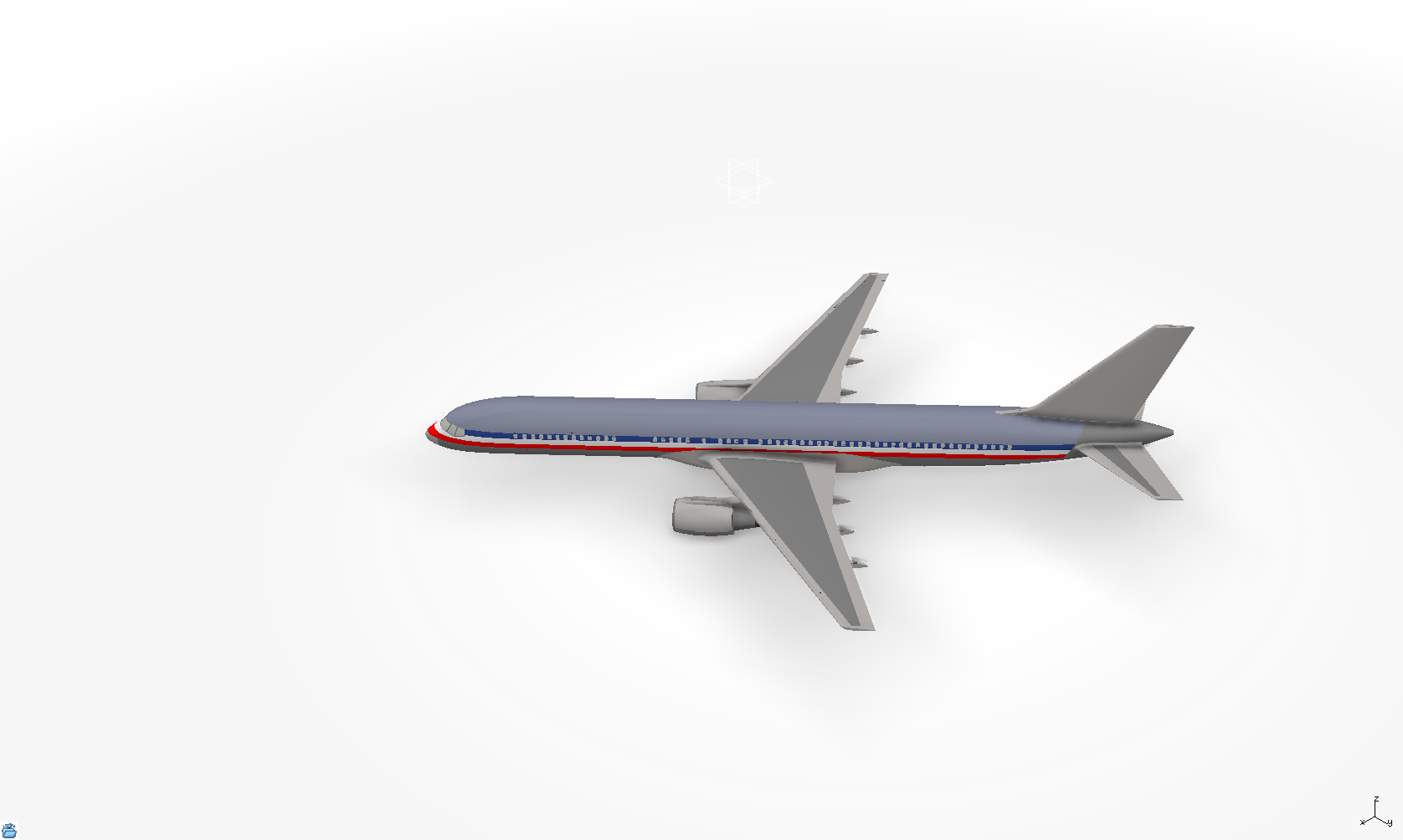

9	CATIA_plane_ssao	527	9.89	8640	16.39	02/27/19 10:51:24

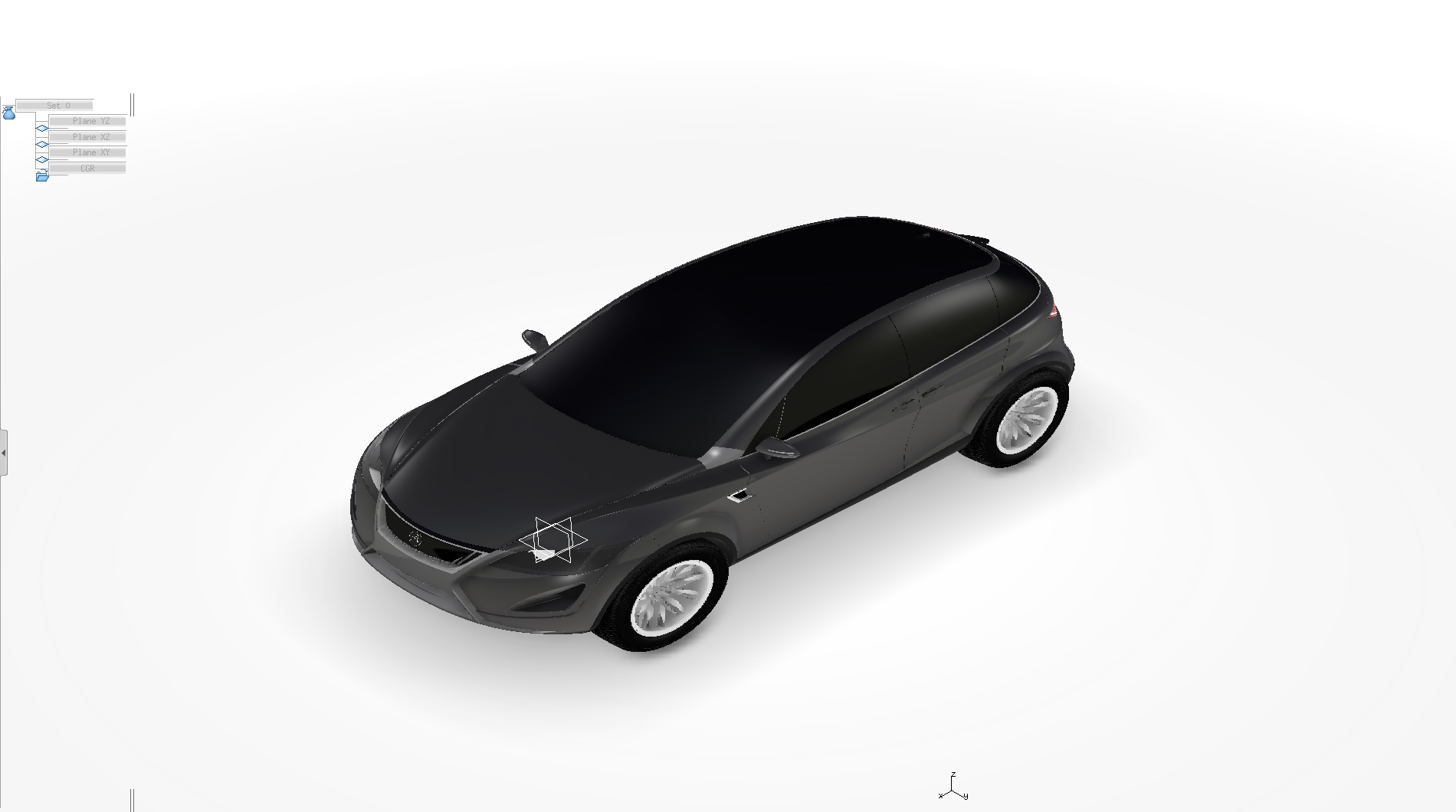

10	CATIA_car_01	197.67	9.89	3240	16.39	02/27/19 10:51:43
11	CATIA_car_02	296.6	9.89	4680	15.78	02/27/19 10:52:00

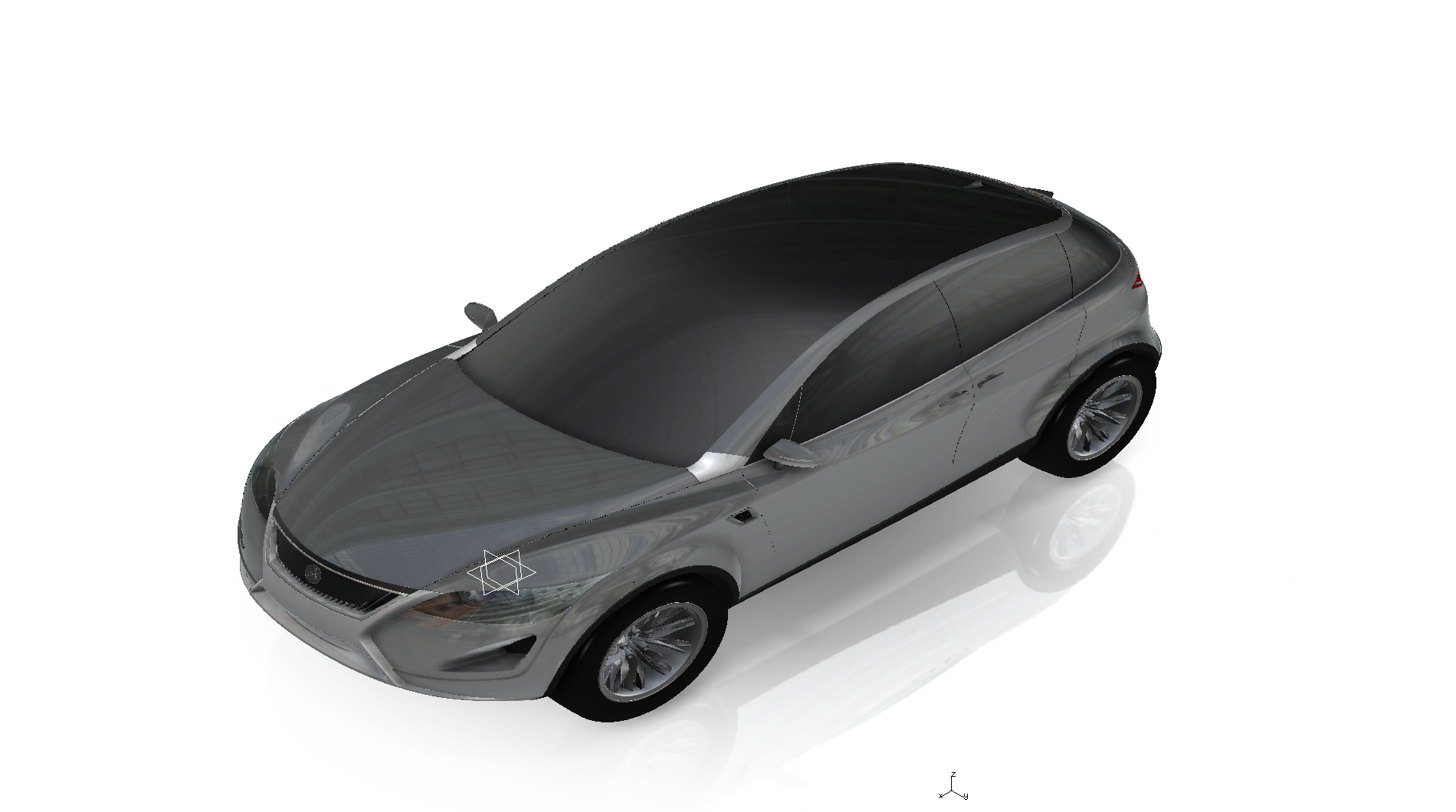

12	CATIA_car_04	179.49	9.88	2880	16.05	02/27/19 10:52:19
13	CATIA_plane_01	102.56	9.89	1800	17.55	02/27/19 10:52:38

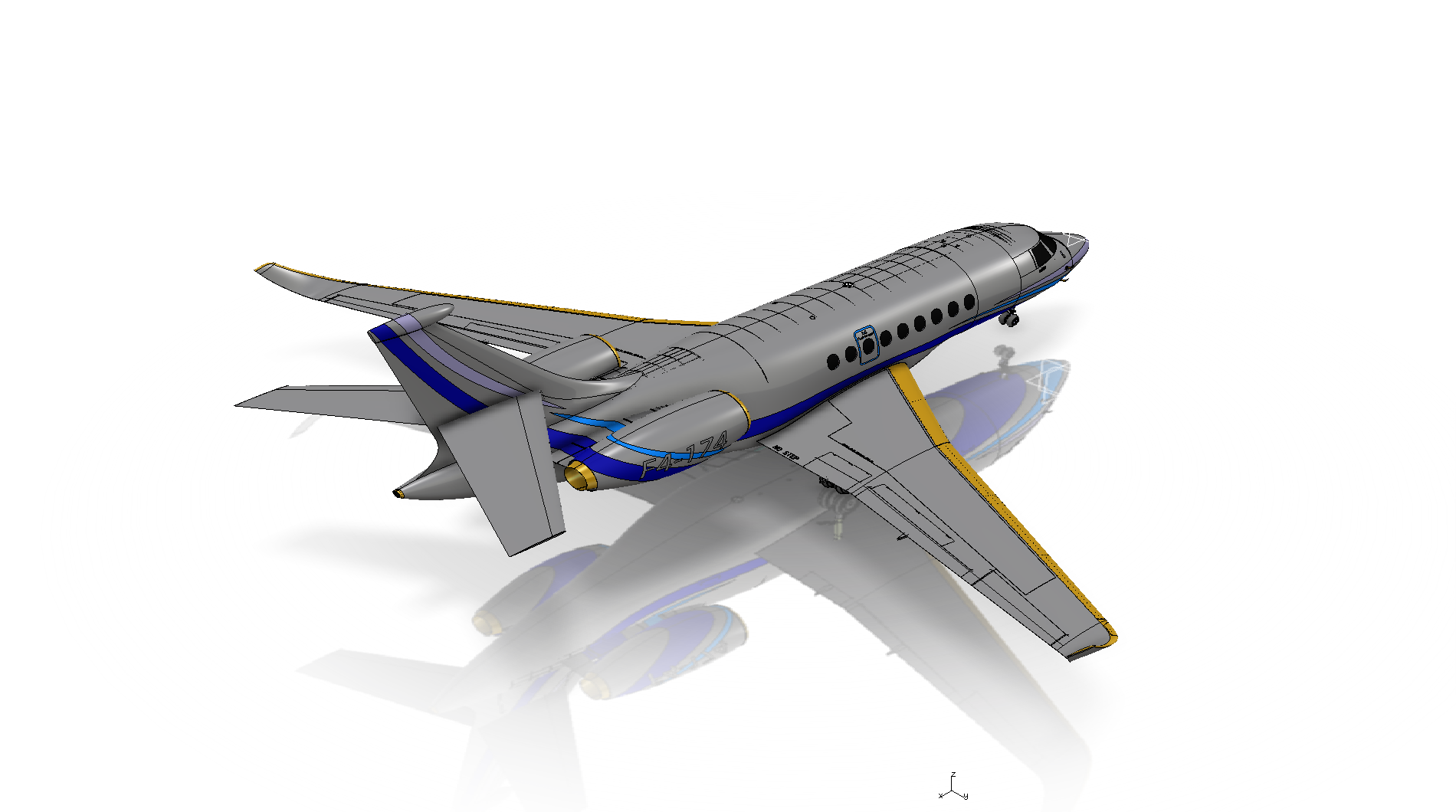

14	CATIA_plane_02	80.67	9.89	1440	17.85	02/27/19 10:52:58

Screen Grabs Folder
Text Log File
XML Result File

creo-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

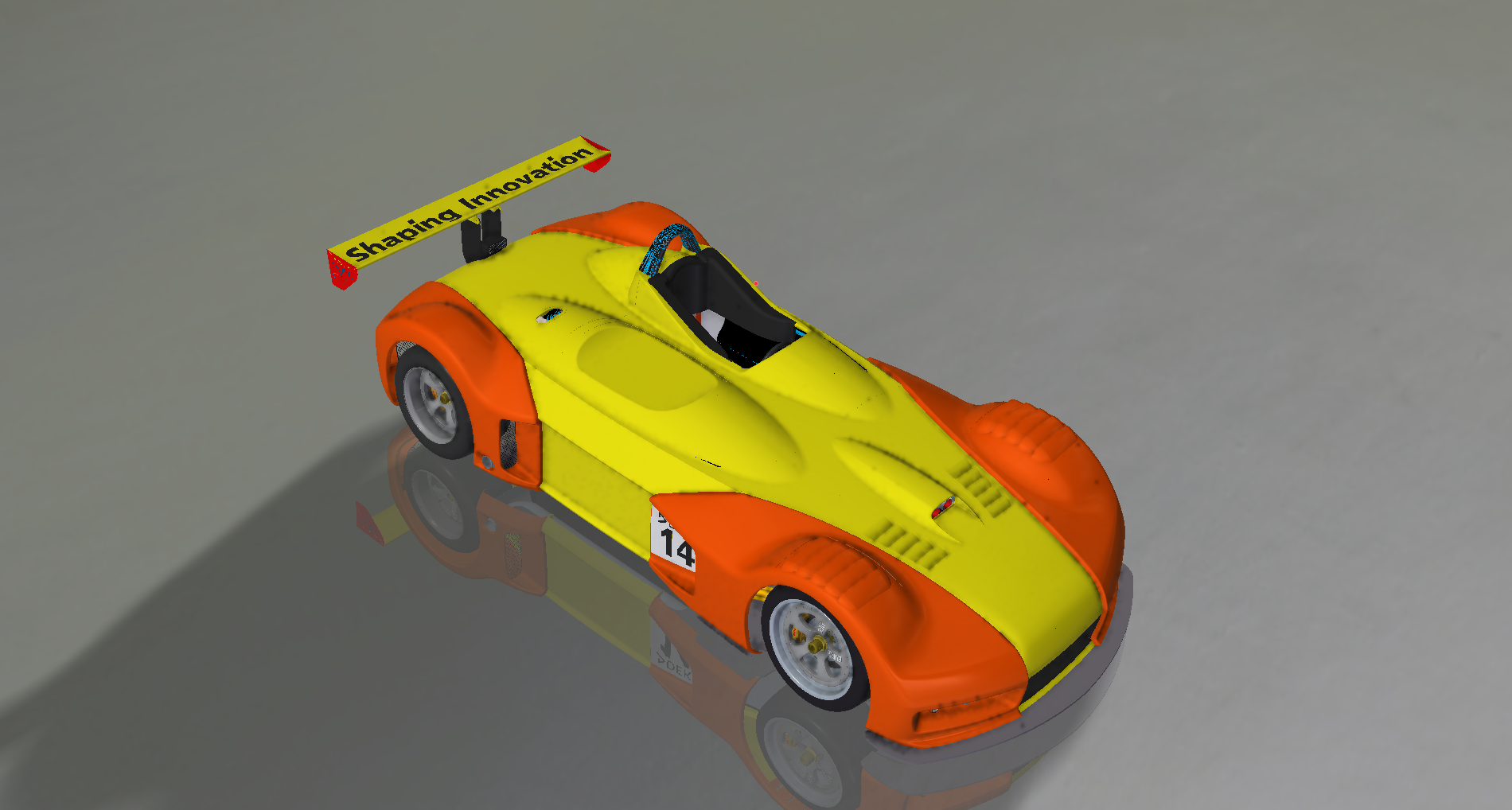

1	Creo_02_test_01	66.31	6.66	1044	15.74	02/27/19 10:53:20

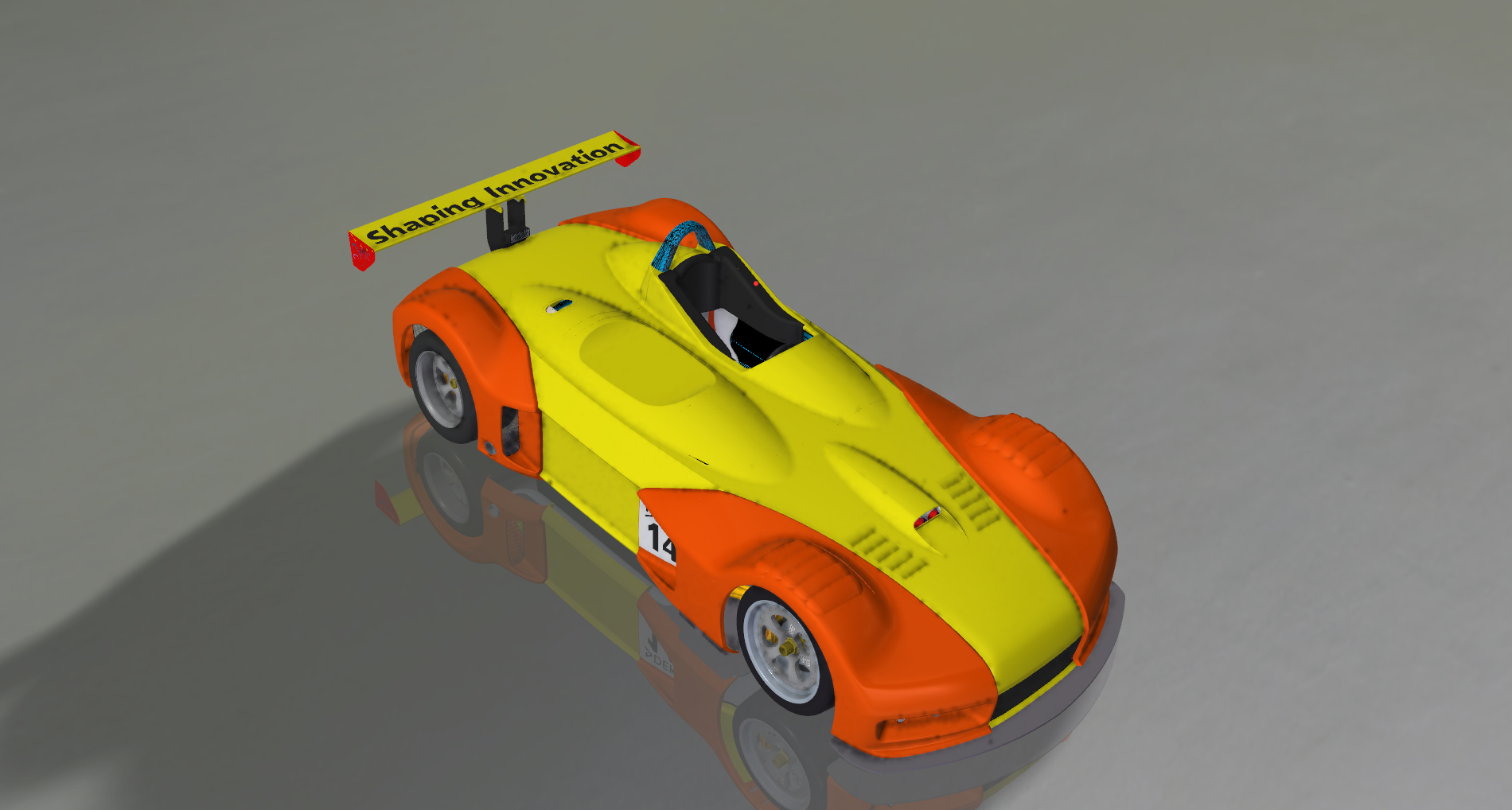

2	Creo_02_test_02	59.64	6.67	1044	17.51	02/27/19 10:53:43
3	Creo_02_test_03	47.57	6.67	870	18.29	02/27/19 10:54:05

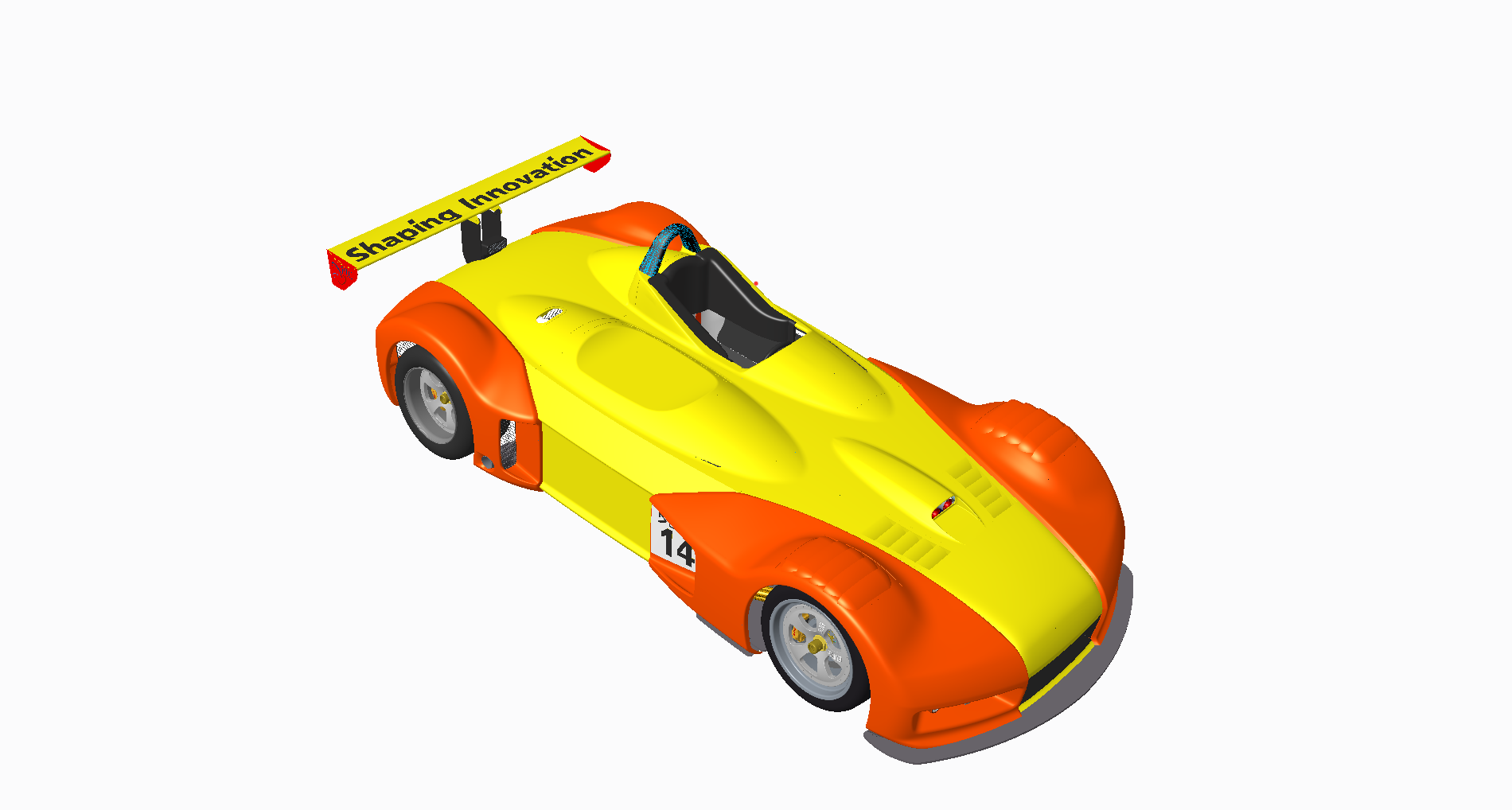

4	Creo_02_test_04	267.24	10	4025	15.06	02/27/19 10:54:23

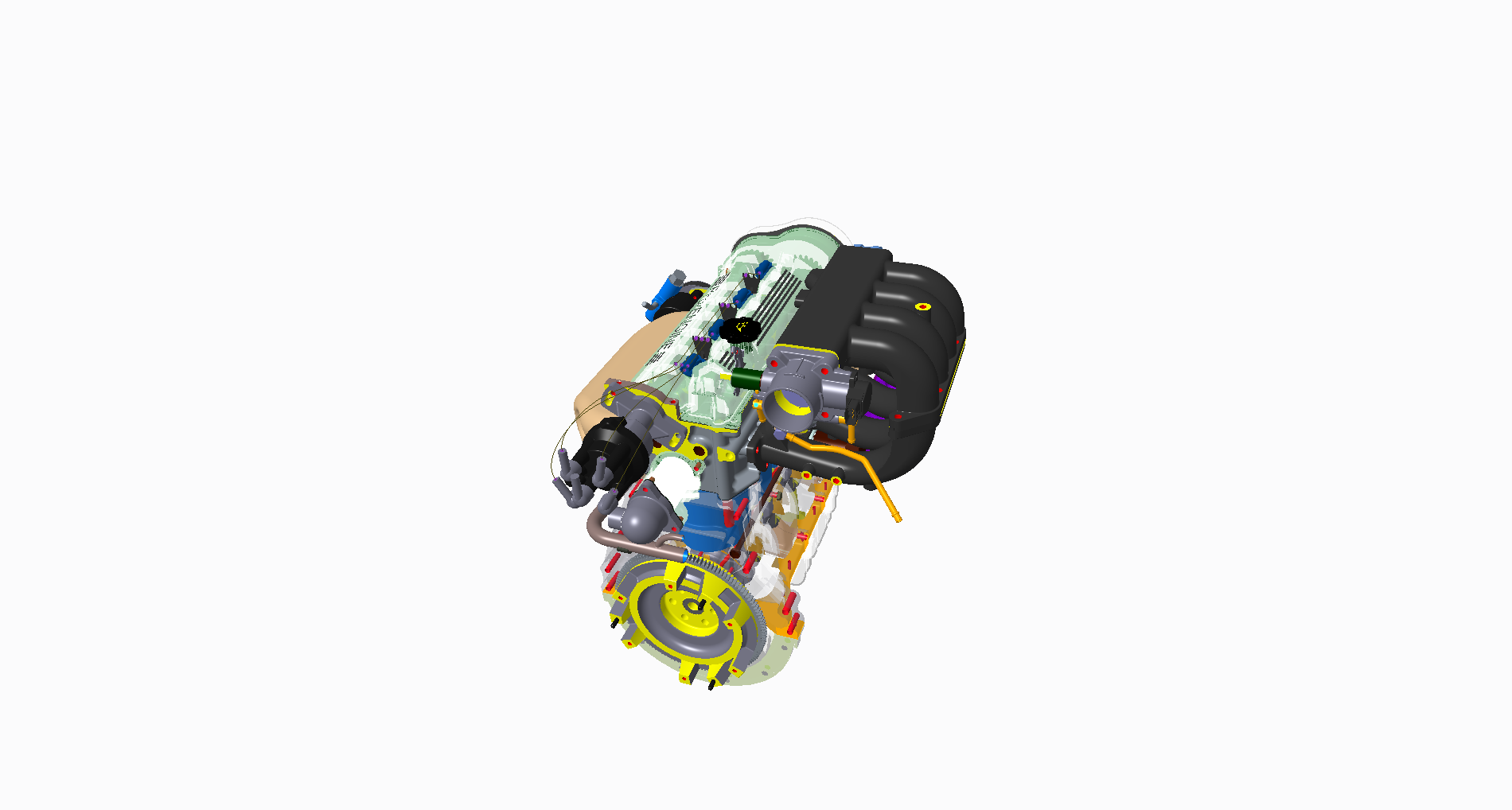

5	Creo_02_test_05	450.96	10	6804	15.09	02/27/19 10:54:40

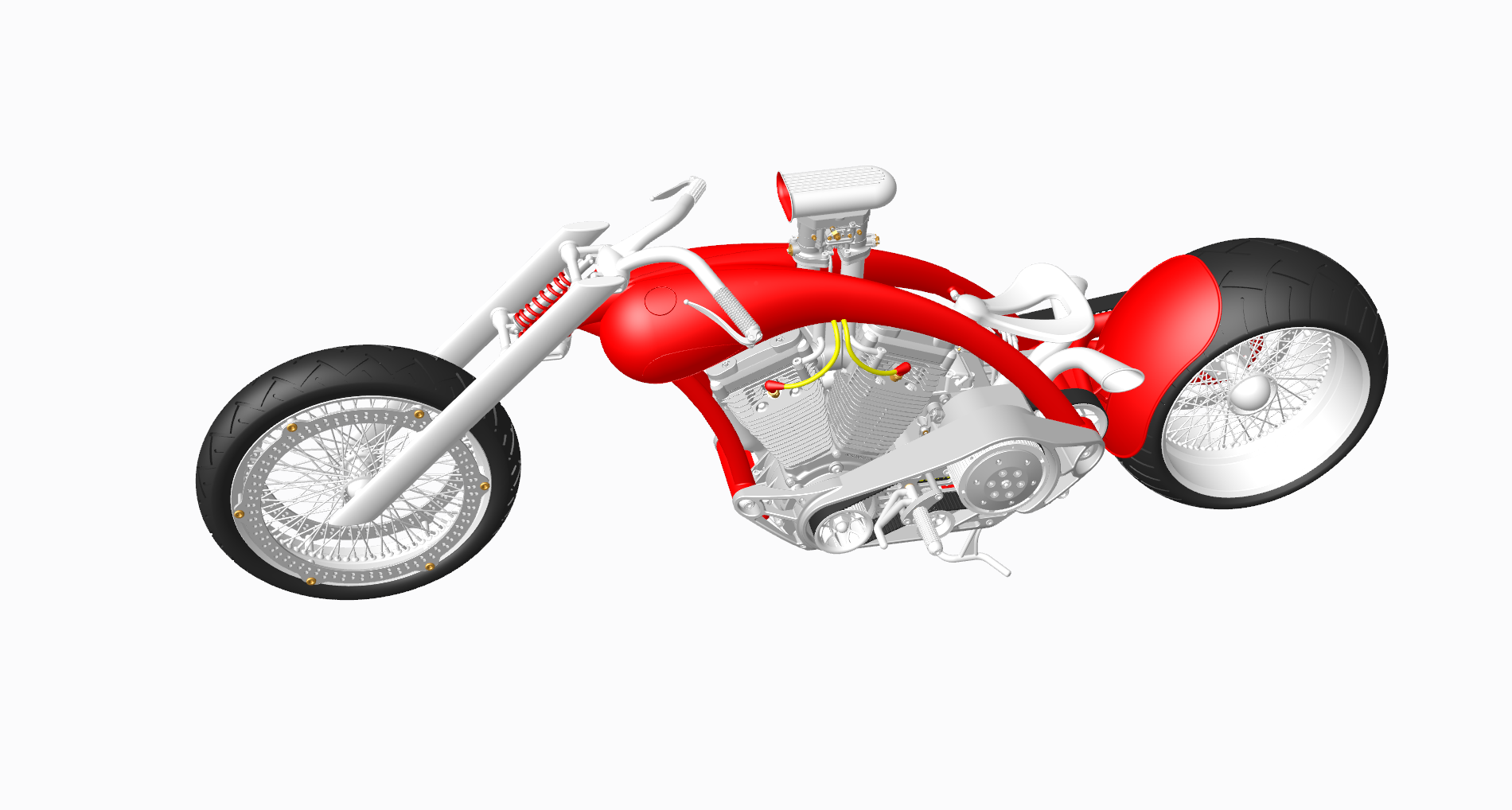

6	Creo_02_test_06	336.46	10	5075	15.08	02/27/19 10:54:57

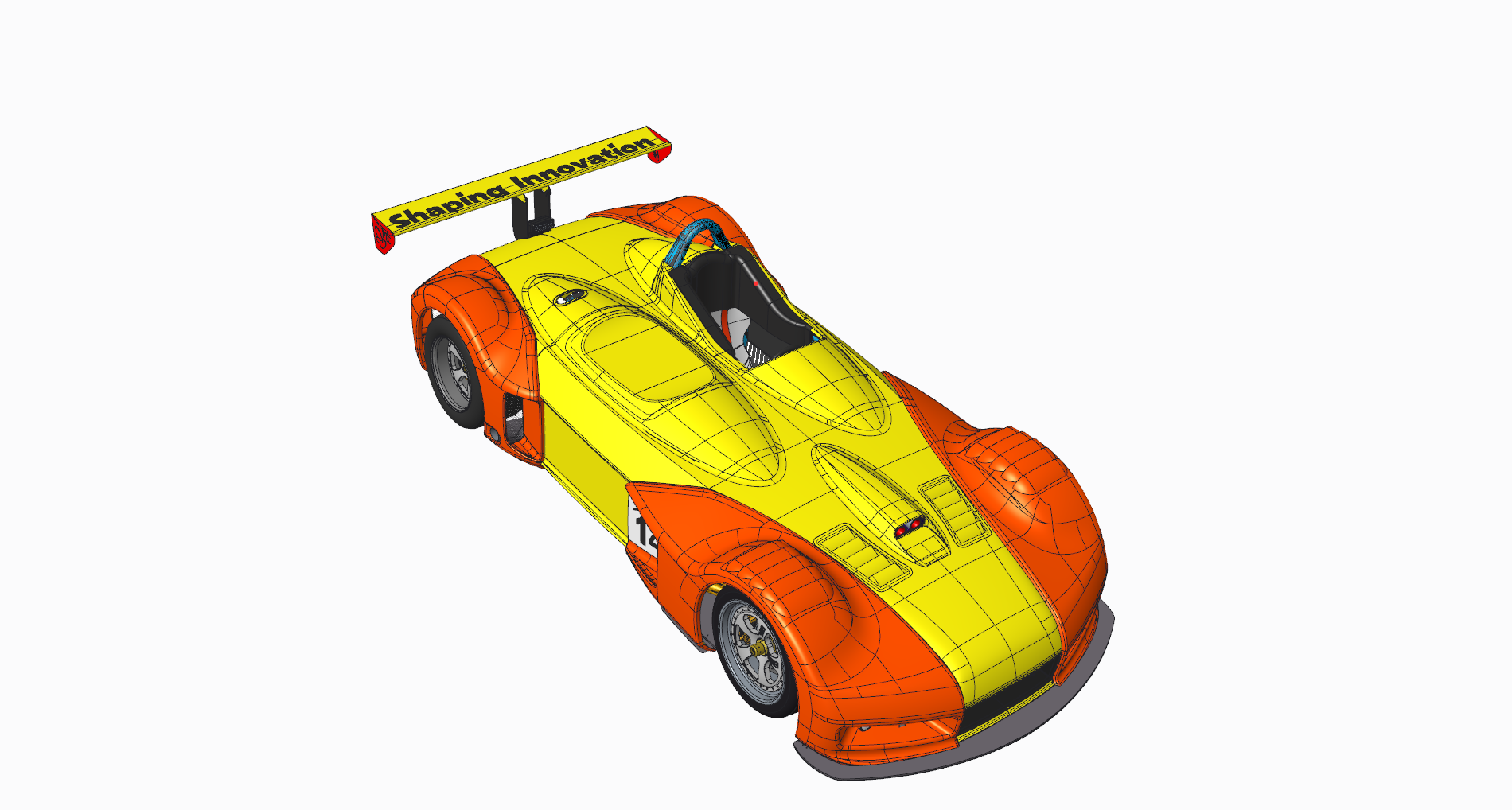

7	Creo_02_test_07	81.6	7.5	1225	15.01	02/27/19 10:55:16
8	Creo_02_test_08	373.85	7.5	5670	15.17	02/27/19 10:55:34
9	Creo_02_test_09	474.33	7.5	7175	15.13	02/27/19 10:55:51

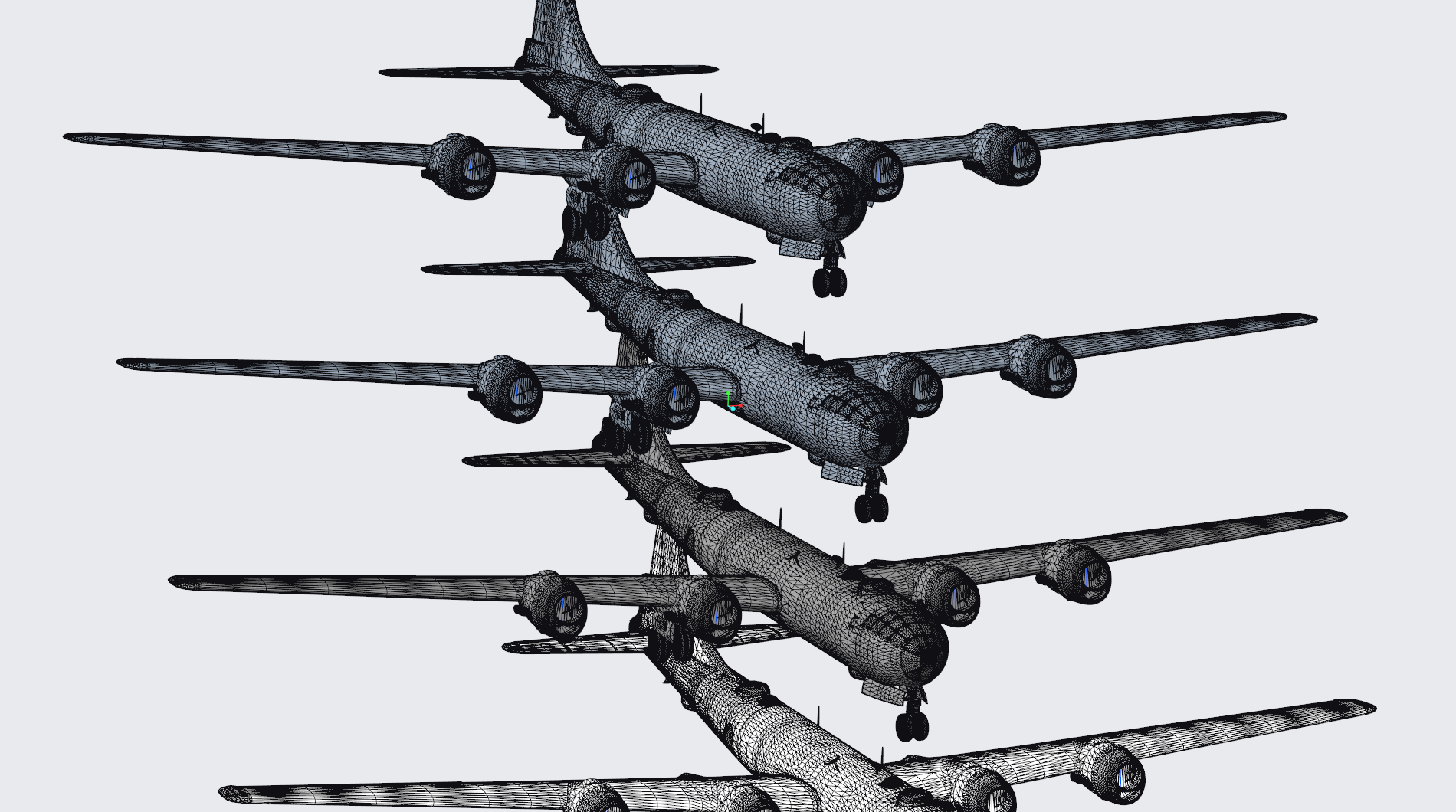

10	Creo_059_10	139.65	7.5	2097	15.02	02/27/19 10:56:07

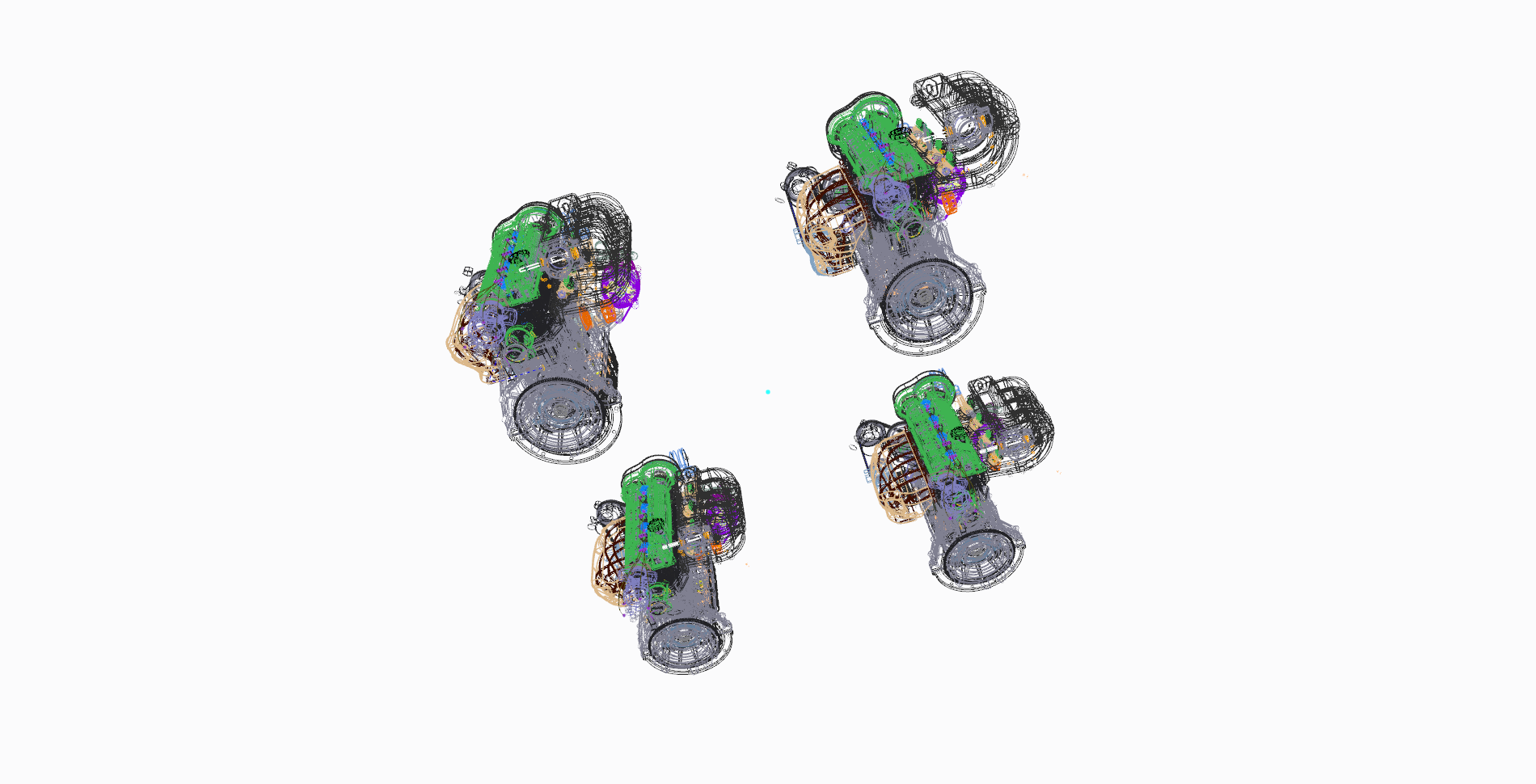

11	Creo_02_test_11	510.24	3.33	7790	15.27	02/27/19 10:56:24

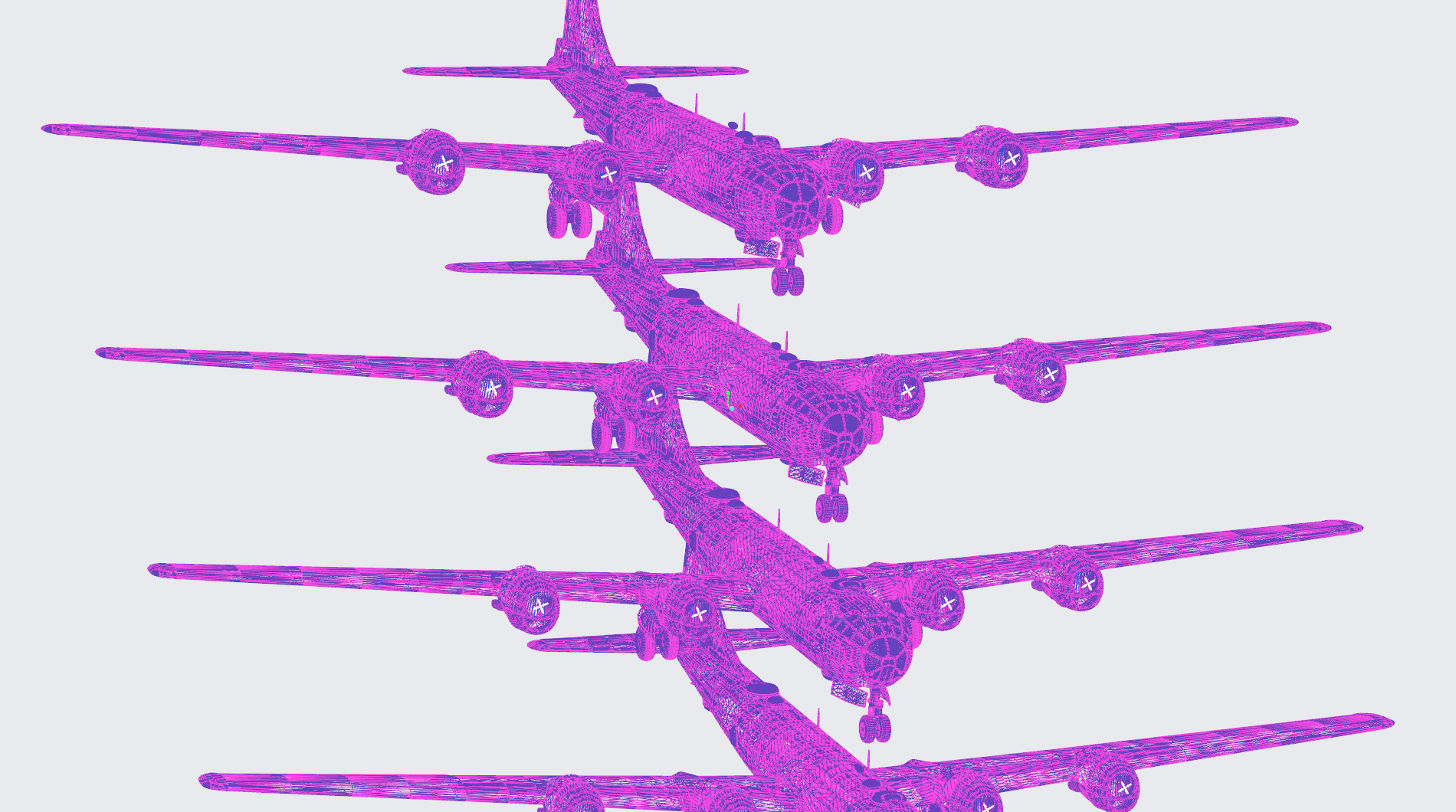

12	Creo_057_12	517.93	3.34	7771	15	02/27/19 10:56:42

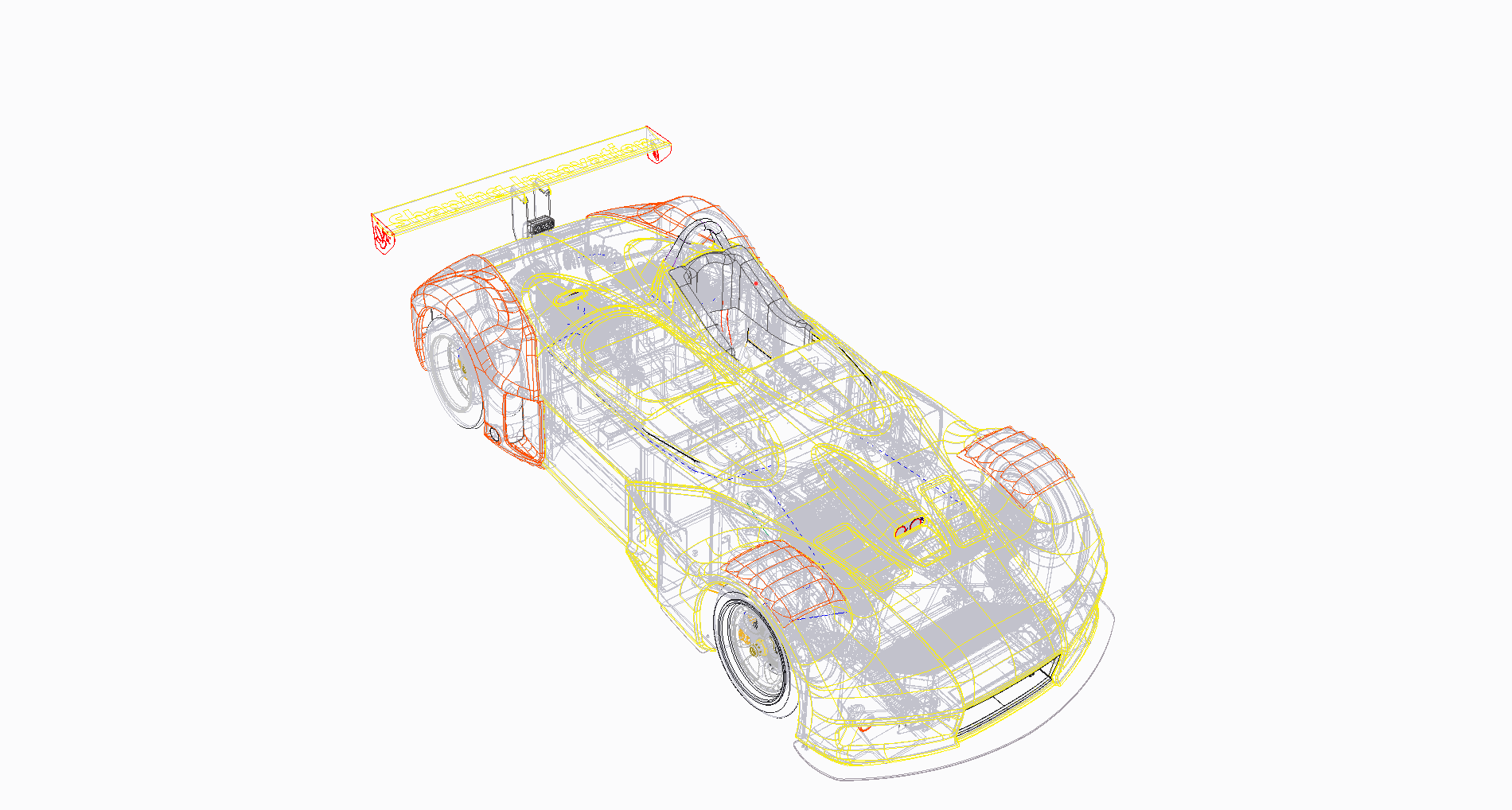

13	Creo_02_test_13	136.2	3.33	2100	15.42	02/27/19 10:57:01

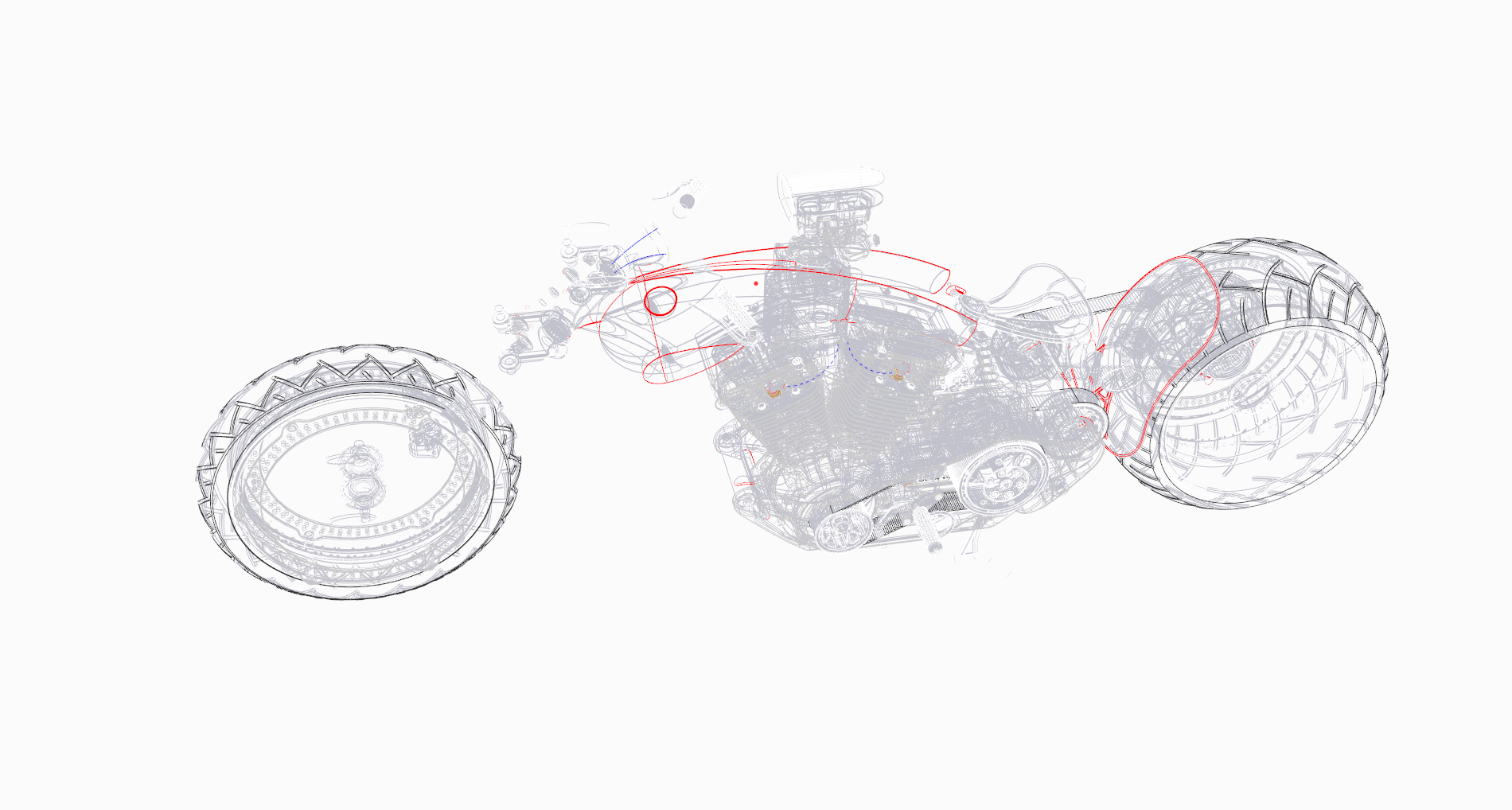

14	Creo_02_test_14	161.23	3.34	2450	15.2	02/27/19 10:57:19

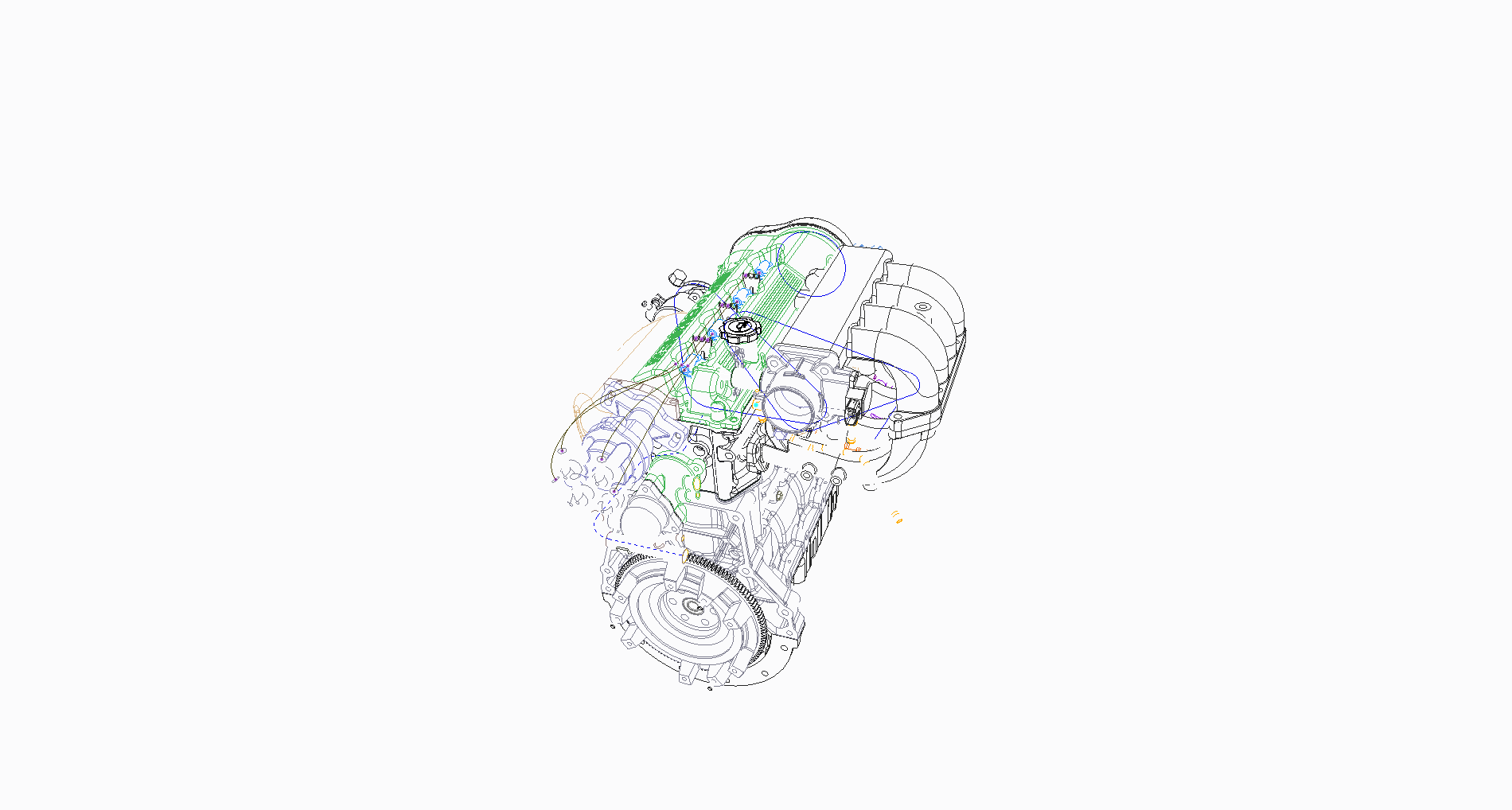

15	Creo_02_test_15	584.7	3.33	8883	15.19	02/27/19 10:57:36

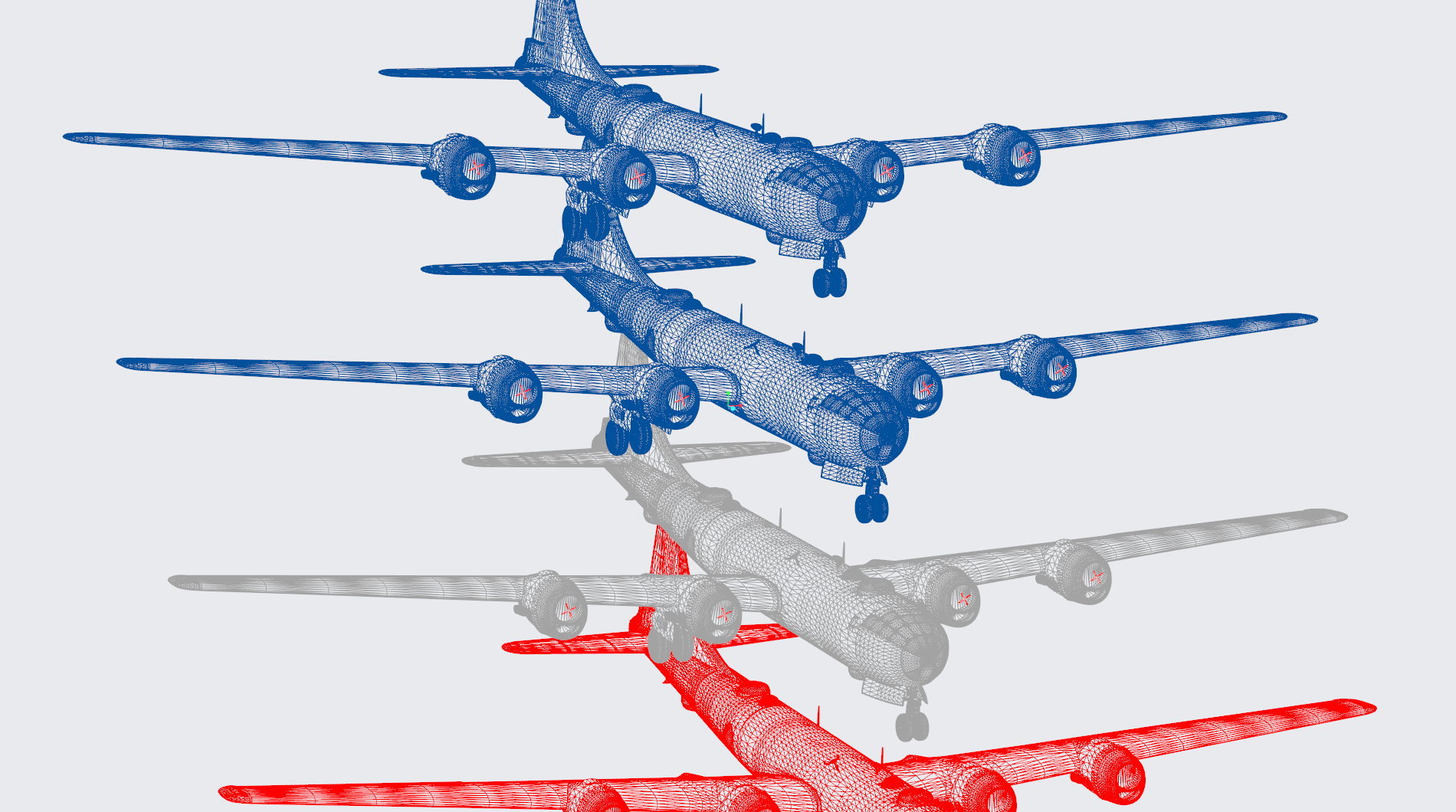

16	Creo_060_16	155.9	3.33	2340	15.01	02/27/19 10:57:52

Screen Grabs Folder
Text Log File
XML Result File

energy-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

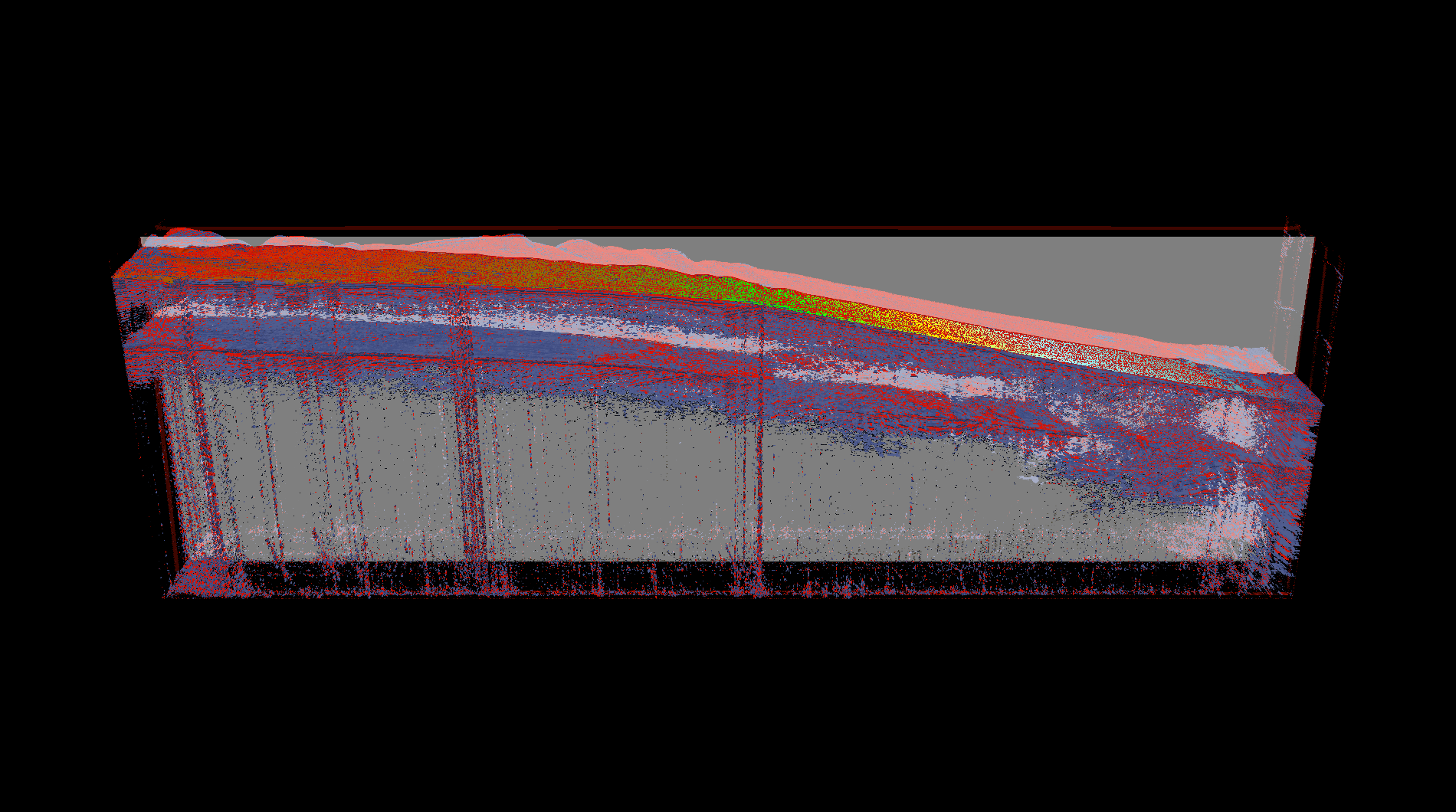

1	Test1	30.37	16.67	540	17.78	02/27/19 10:58:11
2	Test2	13.76	16.67	360	26.16	02/27/19 10:58:40
3	Test3	14.18	16.67	270	19.05	02/27/19 10:59:04
4	Test4	38.89	16.67	720	18.51	02/27/19 10:59:23

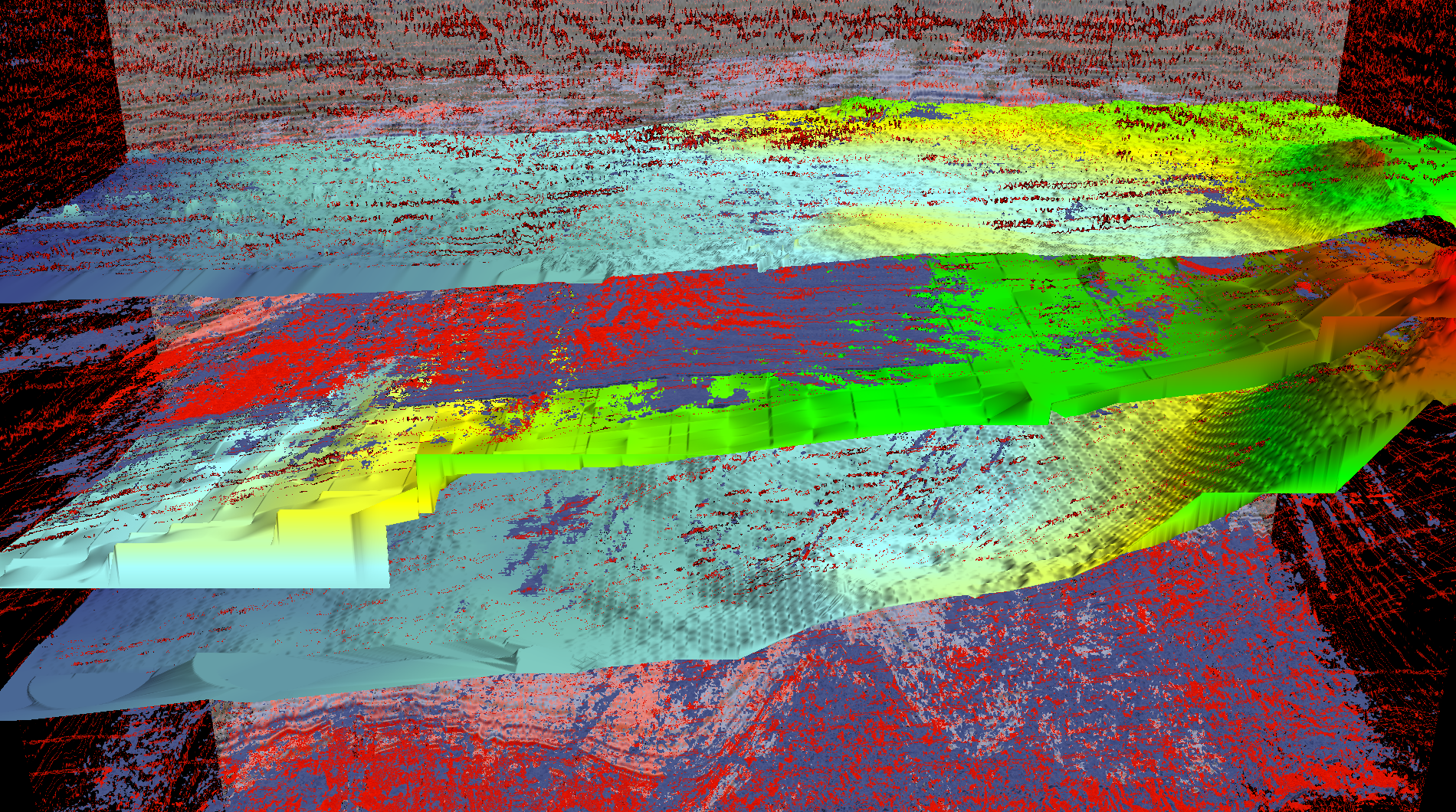

5	Test5	17.35	16.66	360	20.75	02/27/19 10:59:46

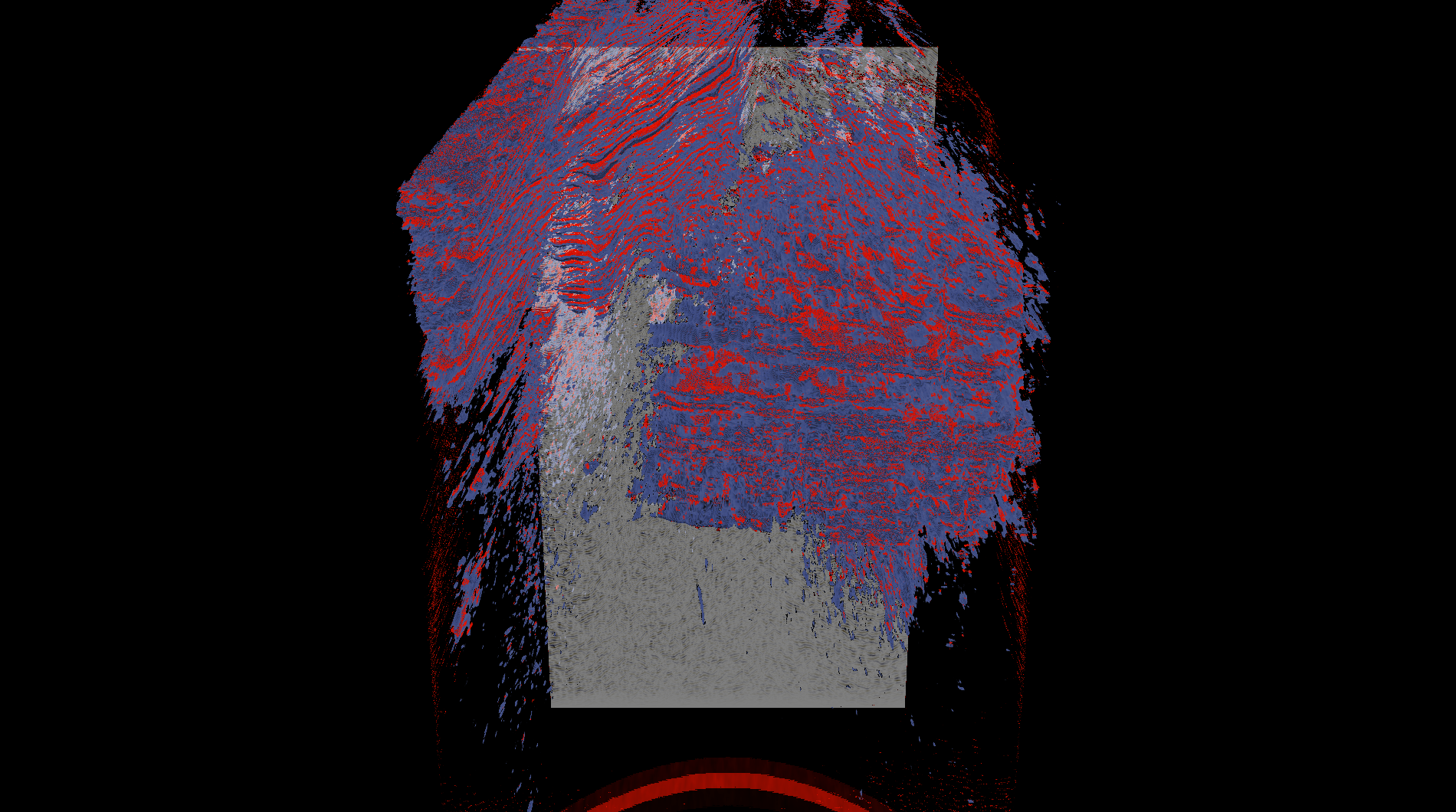

6	Test6	18.47	16.66	360	19.49	02/27/19 11:00:08

Screen Grabs Folder
Text Log File
XML Result File

maya-05

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

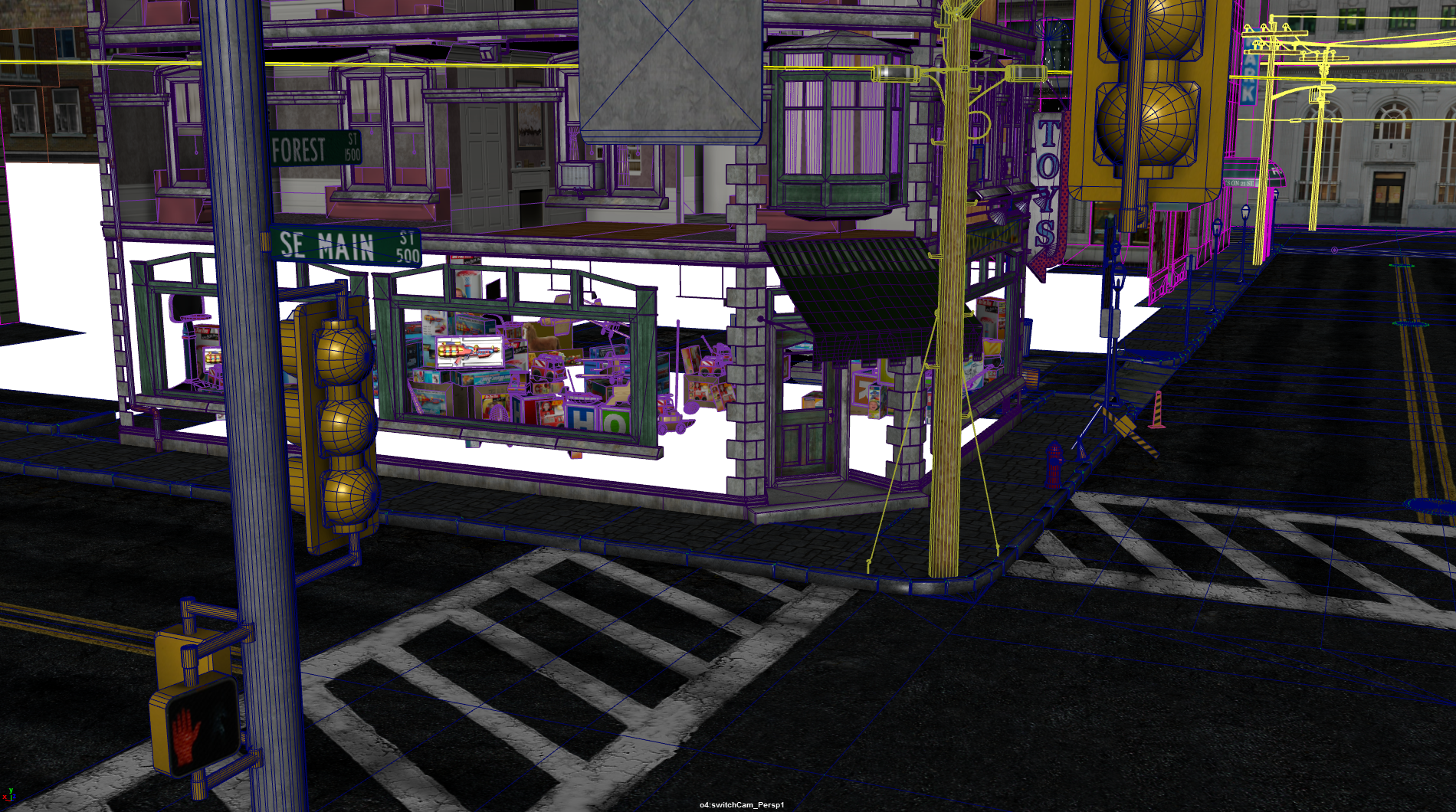

1	Maya_01	143.22	8.33	2242	15.65	02/27/19 11:00:26
2	Maya_02	1062.87	8.33	15958	15.01	02/27/19 11:00:41

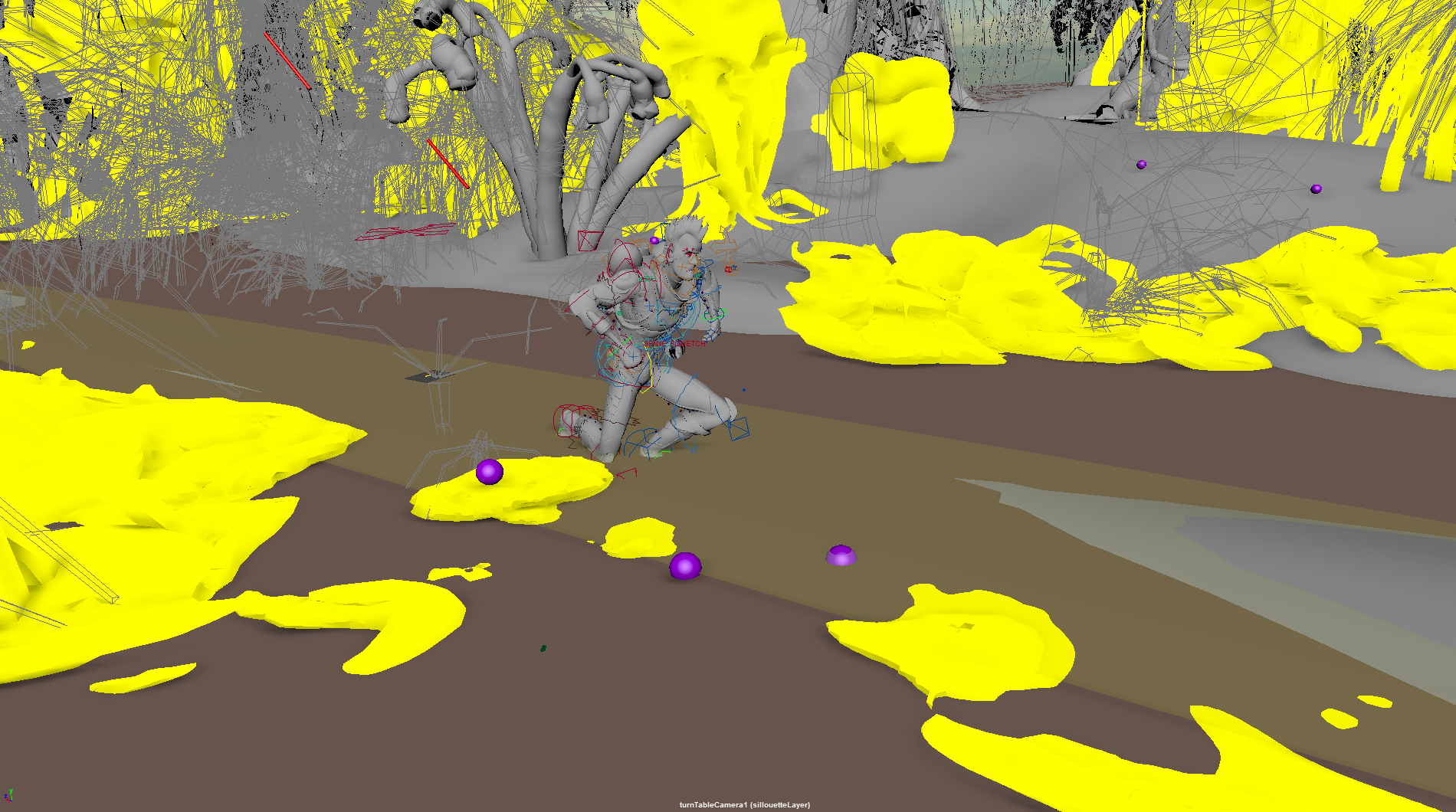

3	Maya_03	99.91	12.5	1580	15.81	02/27/19 11:01:06
4	Maya_04	381.84	12.5	5846	15.31	02/27/19 11:01:23

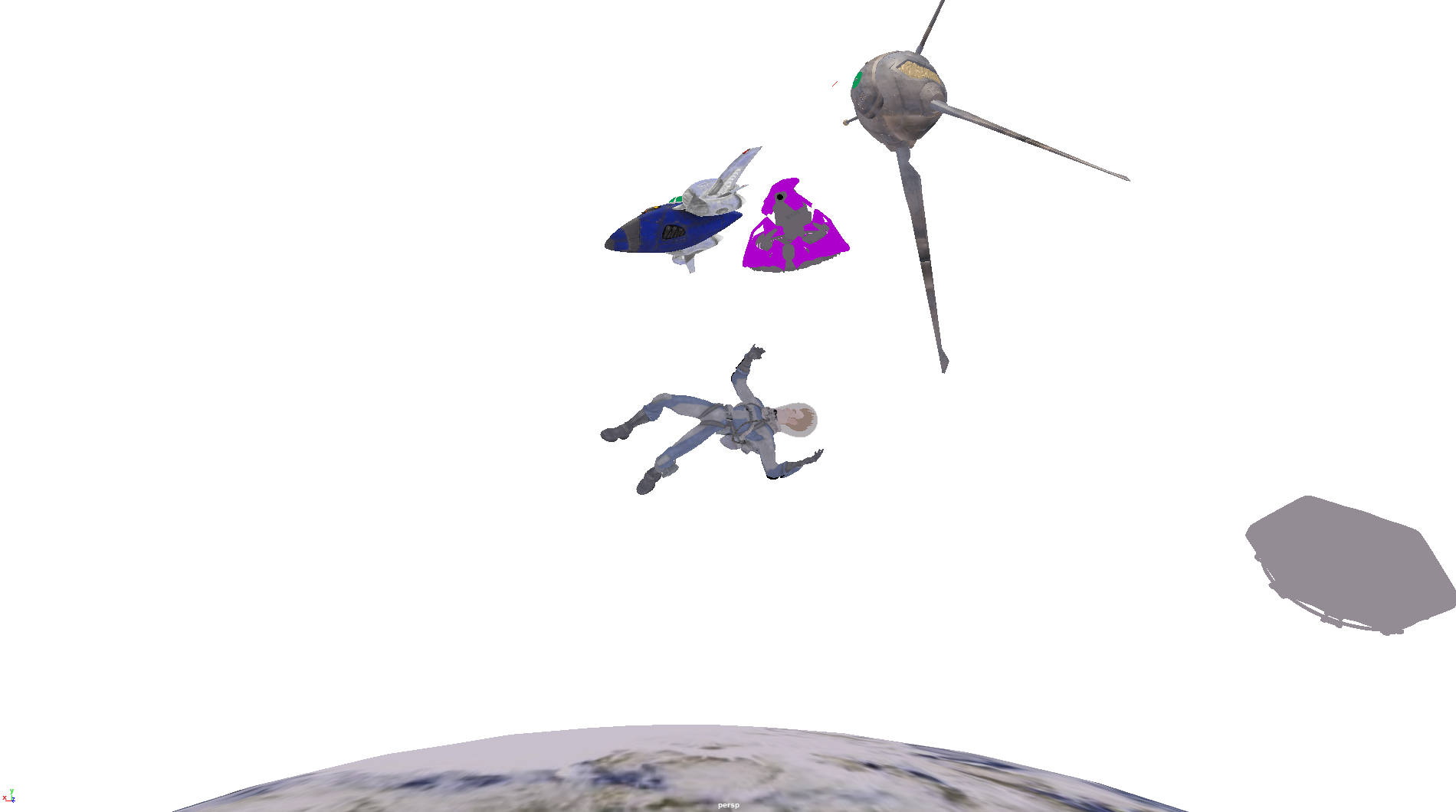

5	Maya_07	368.48	12.5	5530	15.01	02/27/19 11:01:40

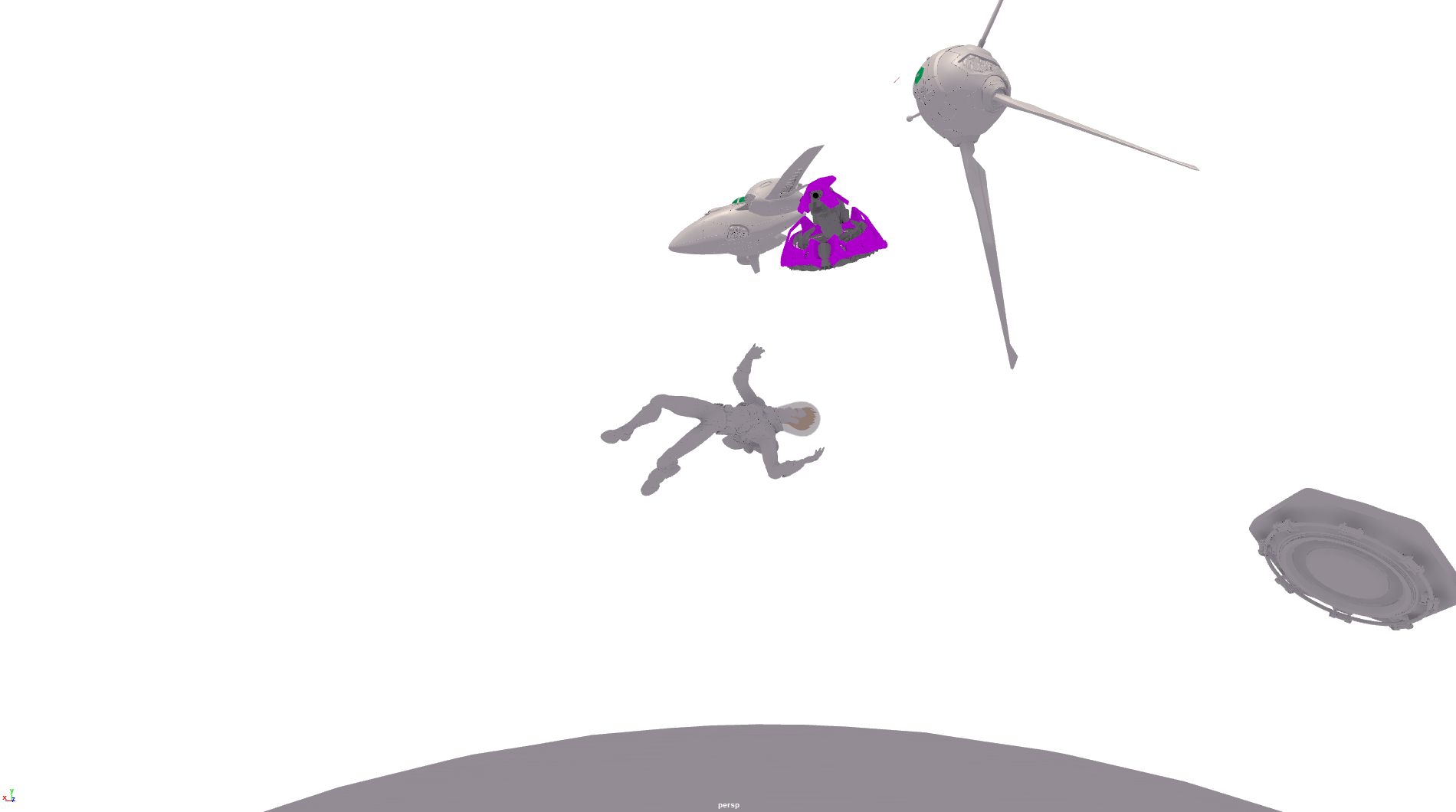

6	Maya_08	210.67	8.33	3318	15.75	02/27/19 11:01:57
7	Maya_09	772.12	8.33	11692	15.14	02/27/19 11:02:13
8	Maya_10	306.46	12.5	4599	15.01	02/27/19 11:02:29

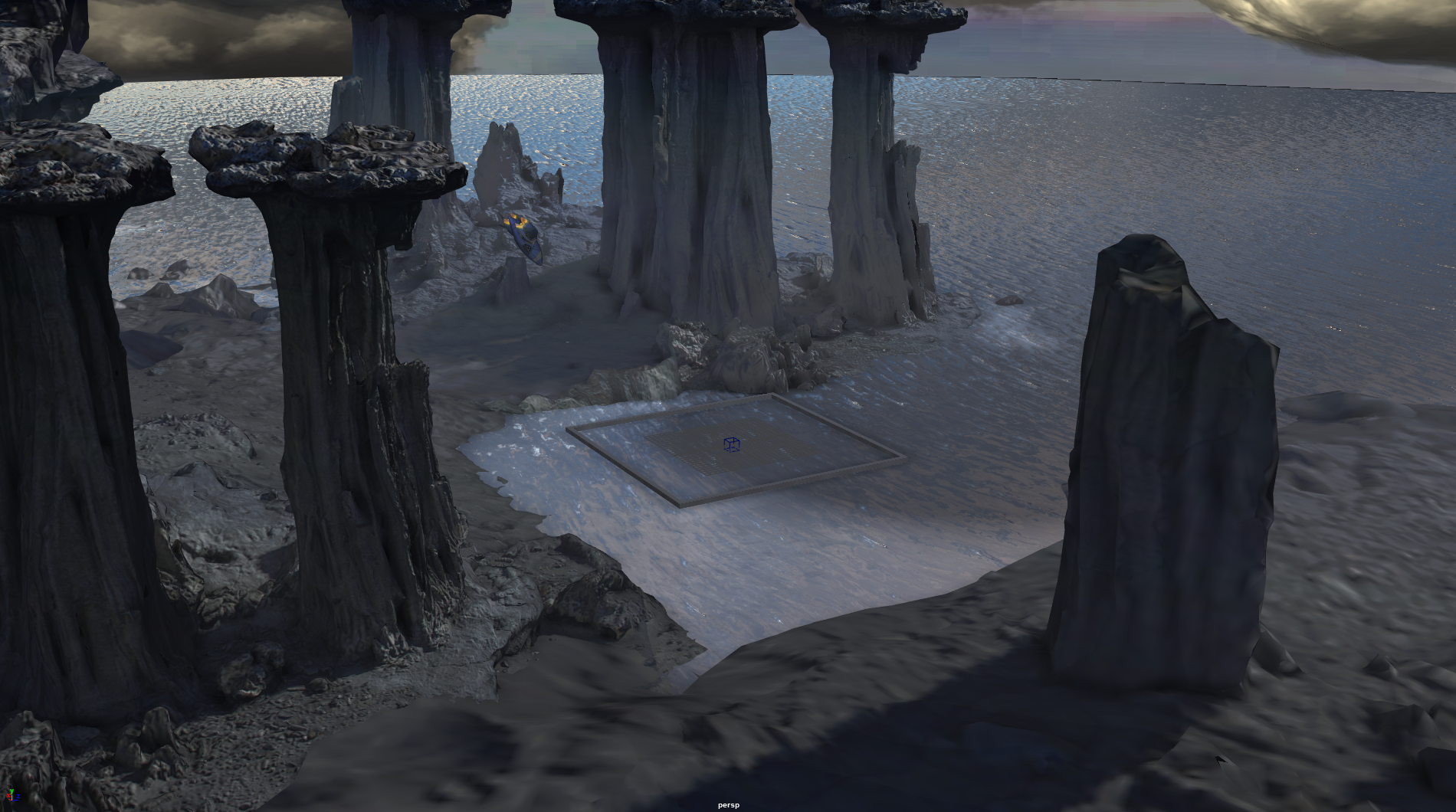

9	Maya_11	97.69	8.34	1580	16.17	02/27/19 11:02:47

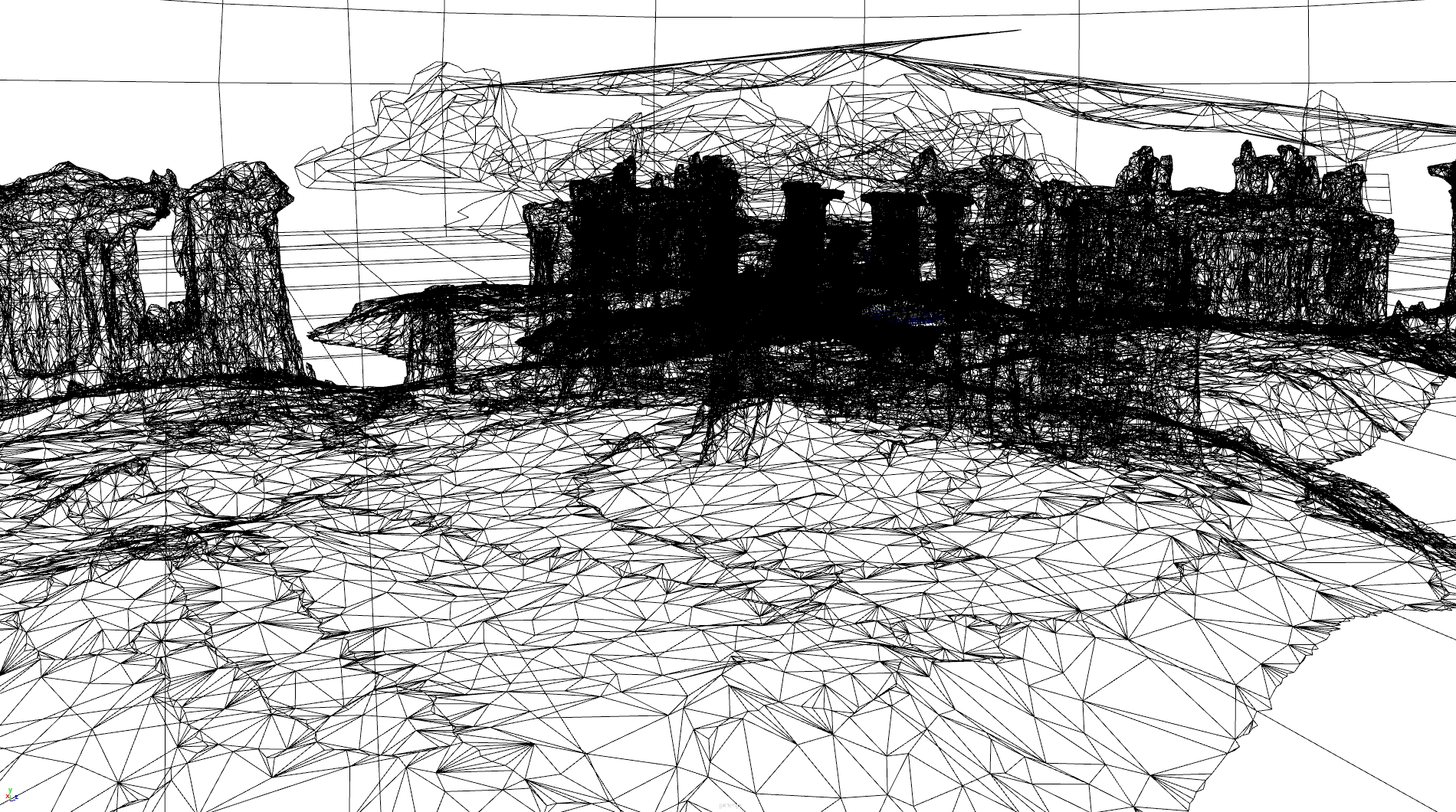

10	Maya_12	833.45	8.34	12640	15.17	02/27/19 11:03:03

Screen Grabs Folder
Text Log File
XML Result File

medical-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

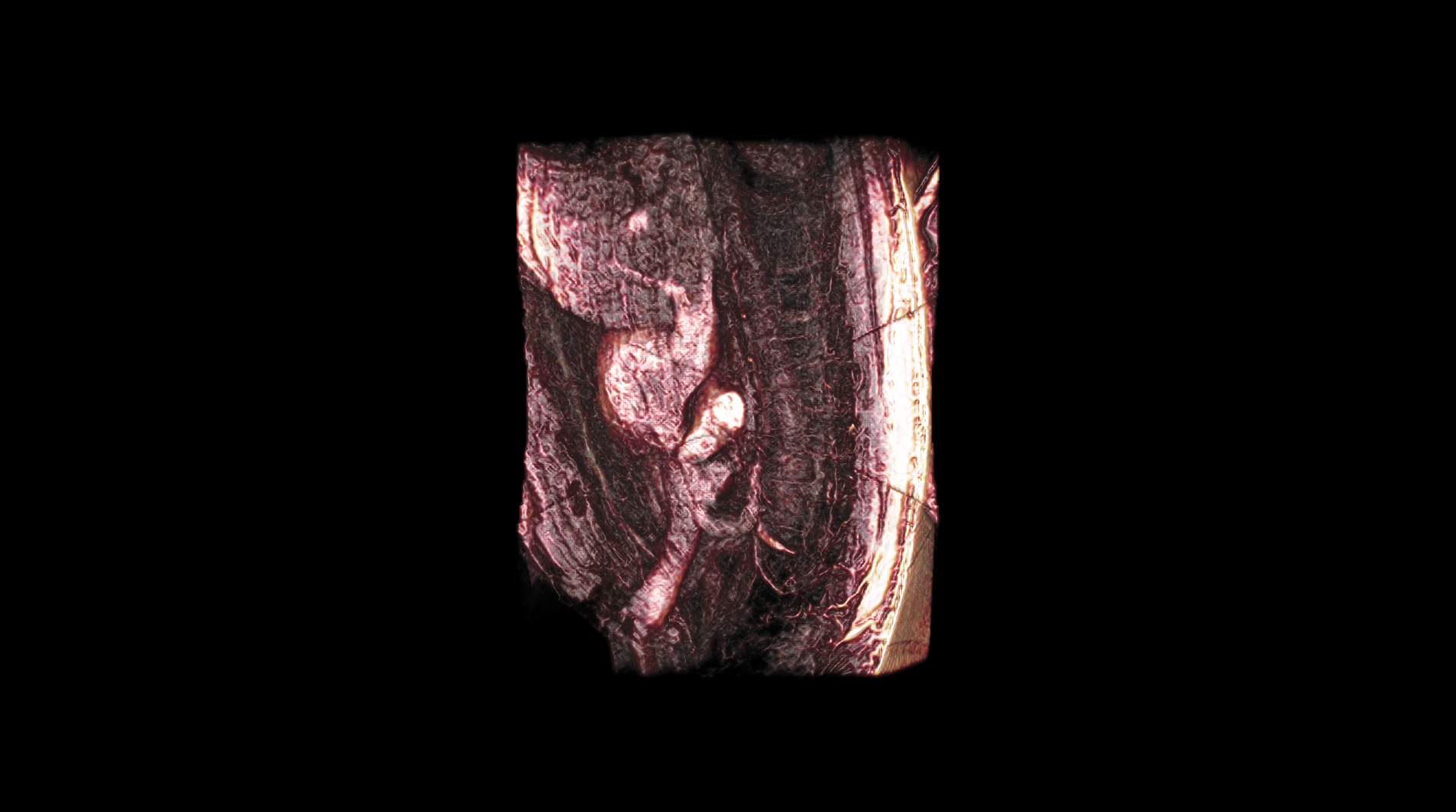

1	Test1	205.18	12.5	3252	15.85	02/27/19 11:03:19
2	Test2	290.38	12.5	4607	15.87	02/27/19 11:03:36

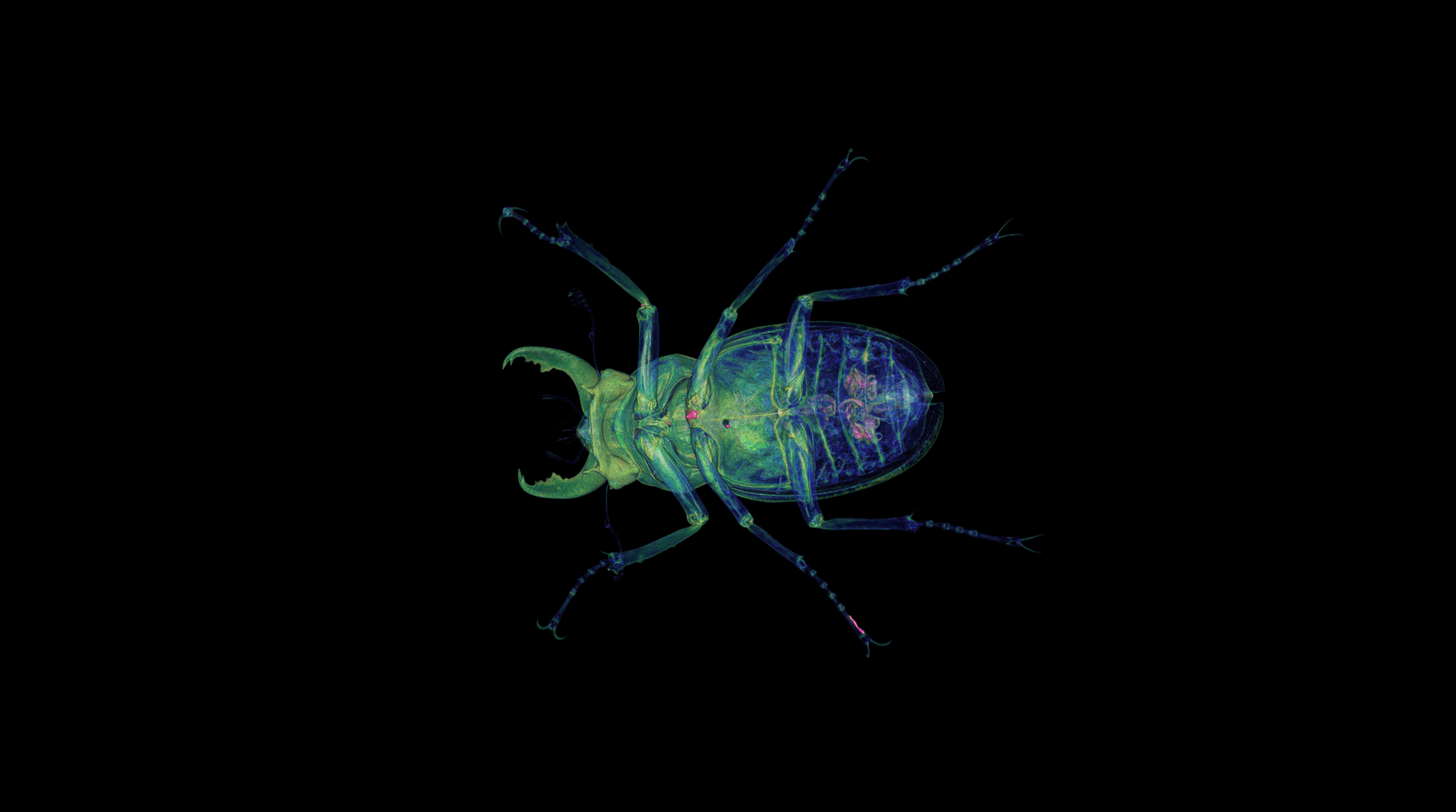

3	Test3	72.93	12.5	1120	15.36	02/27/19 11:03:52

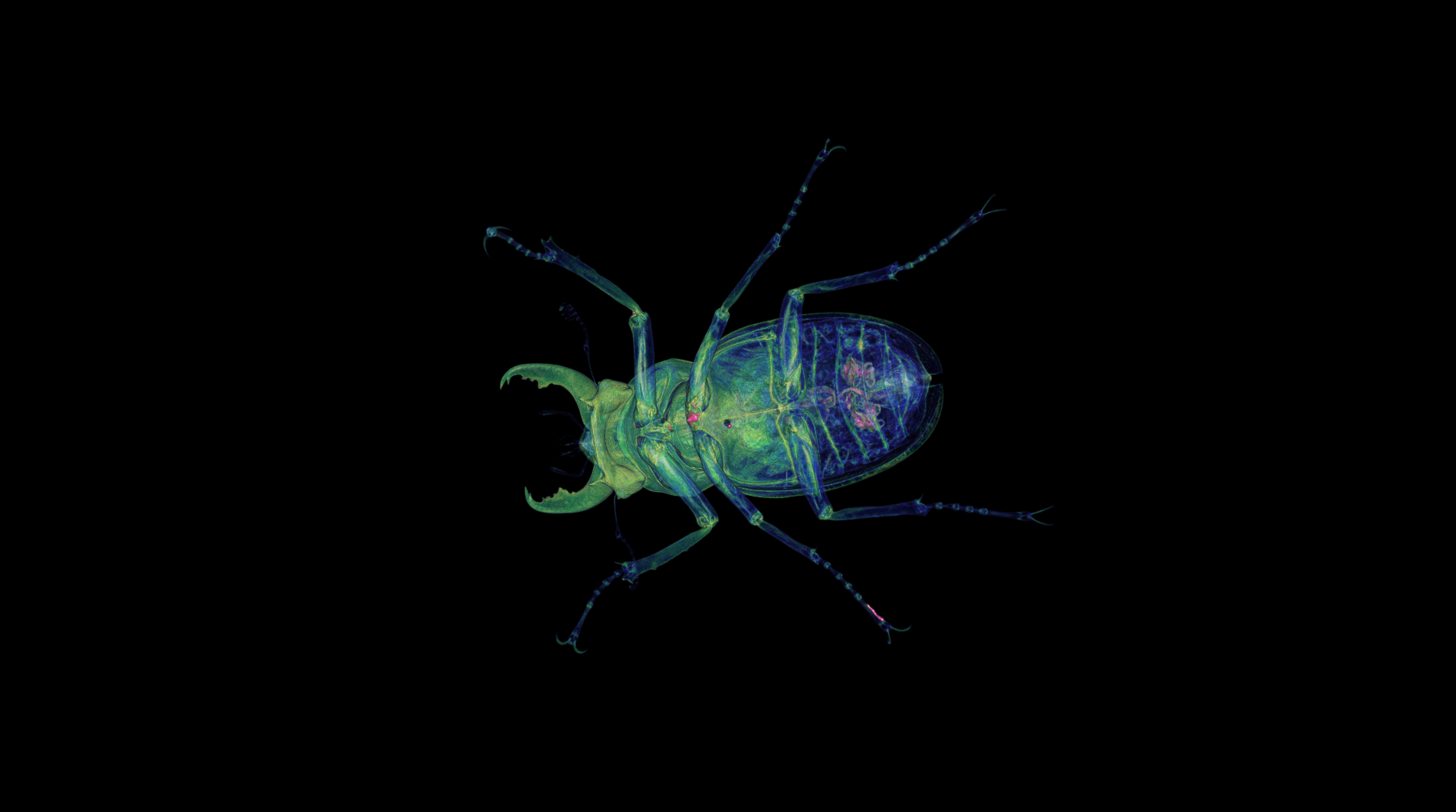

4	Test4	33.38	12.5	522	15.64	02/27/19 11:04:09

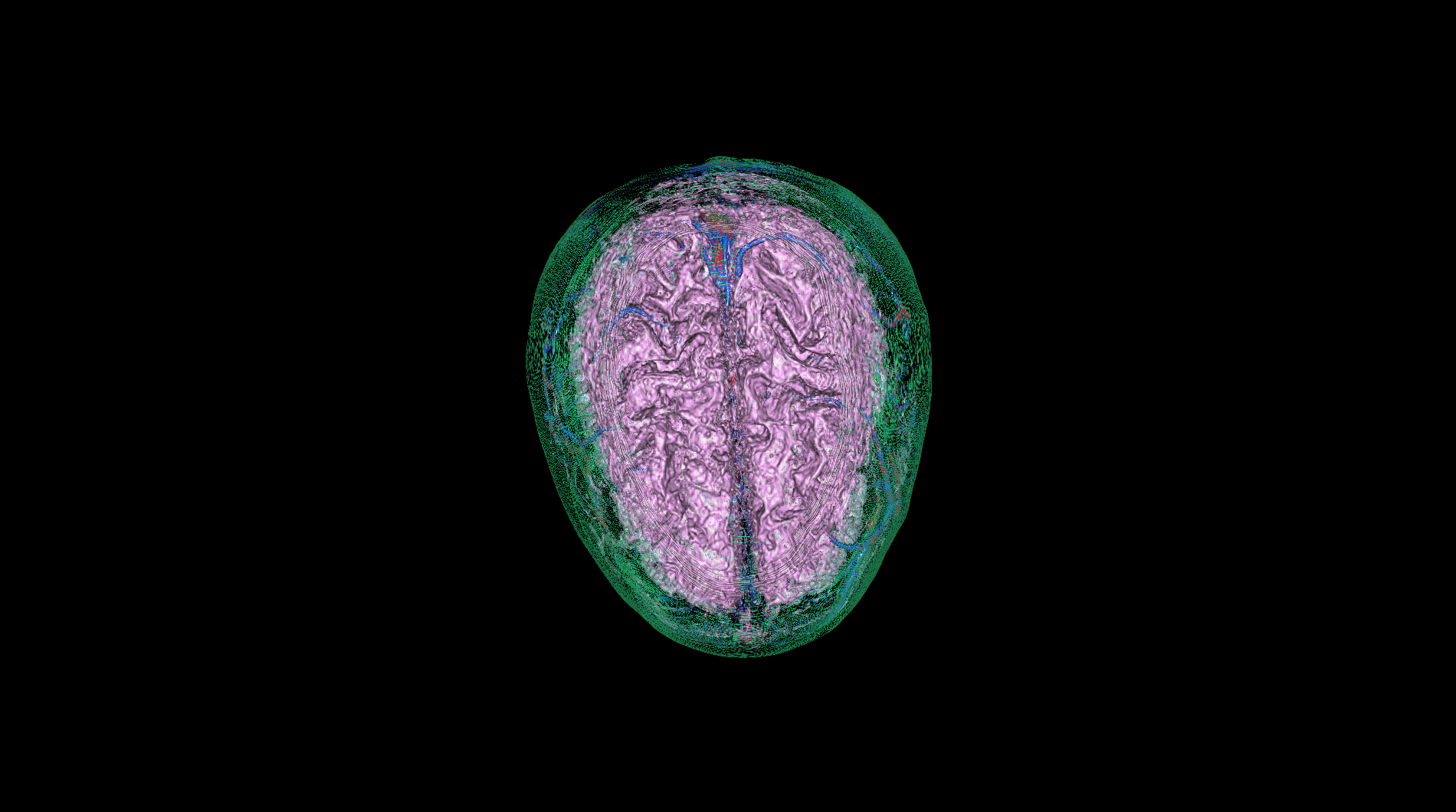

5	Test5	111.52	12.5	1680	15.07	02/27/19 11:04:25

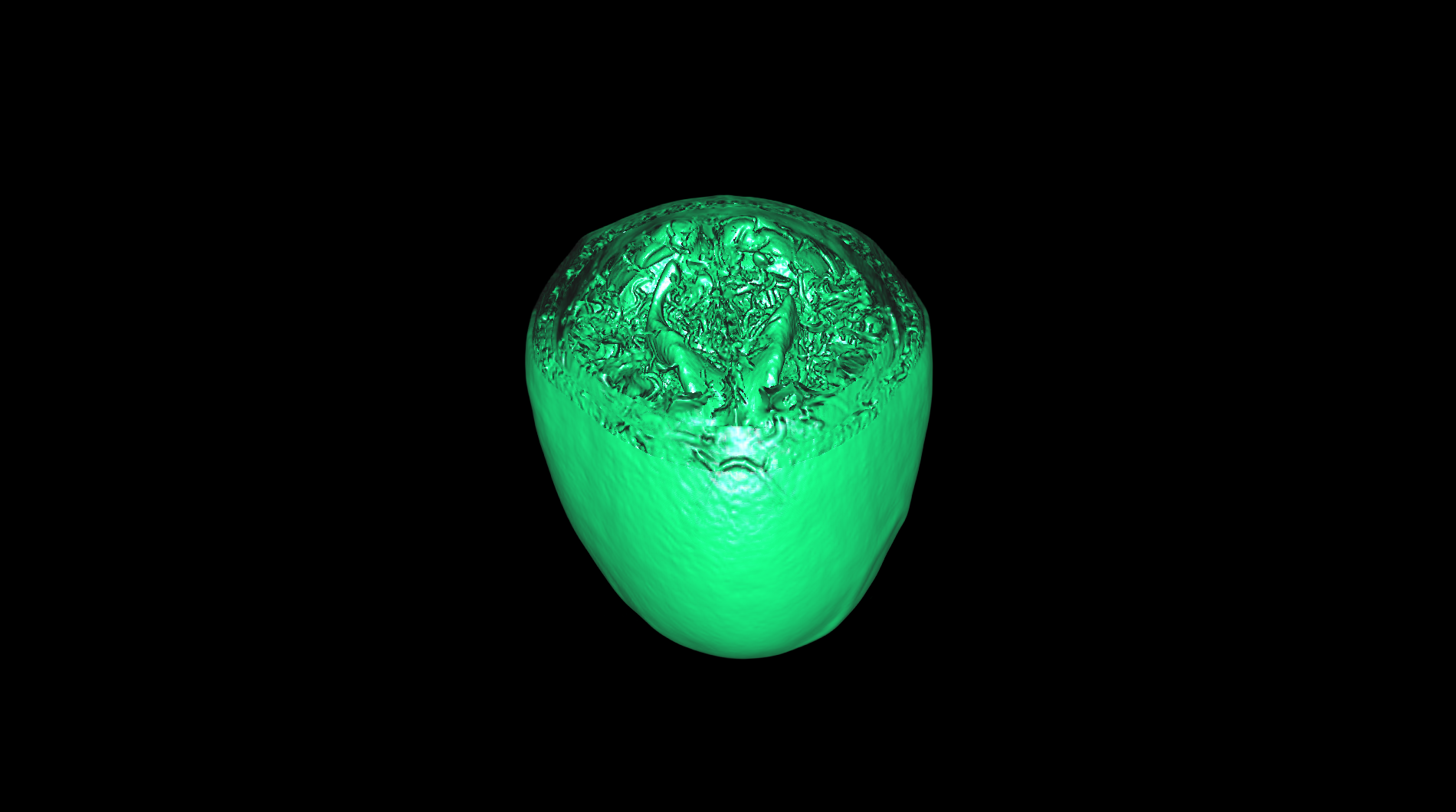

6	Test6	81.47	12.5	1232	15.12	02/27/19 11:04:40

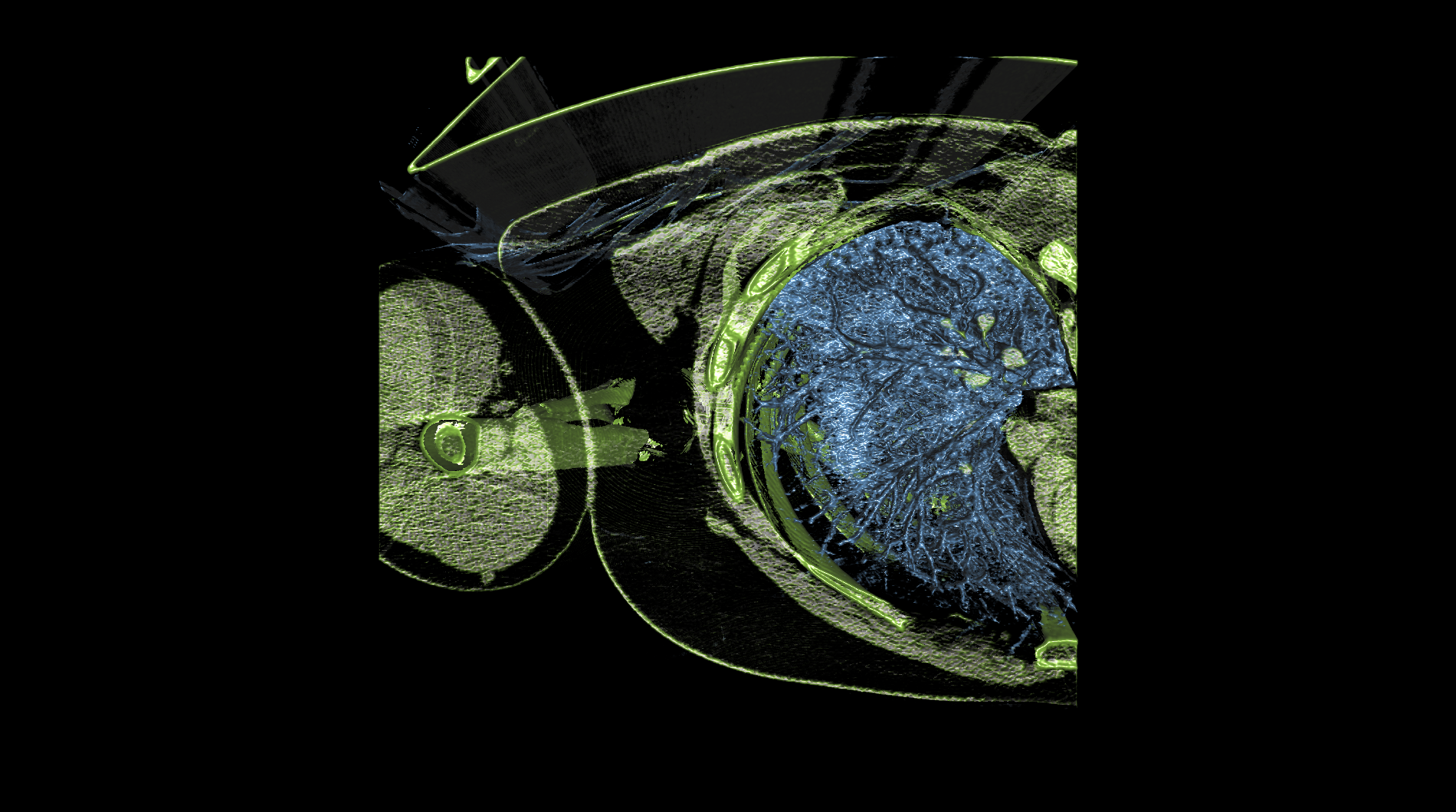

7	Test7	32.89	12.5	506	15.38	02/27/19 11:04:56

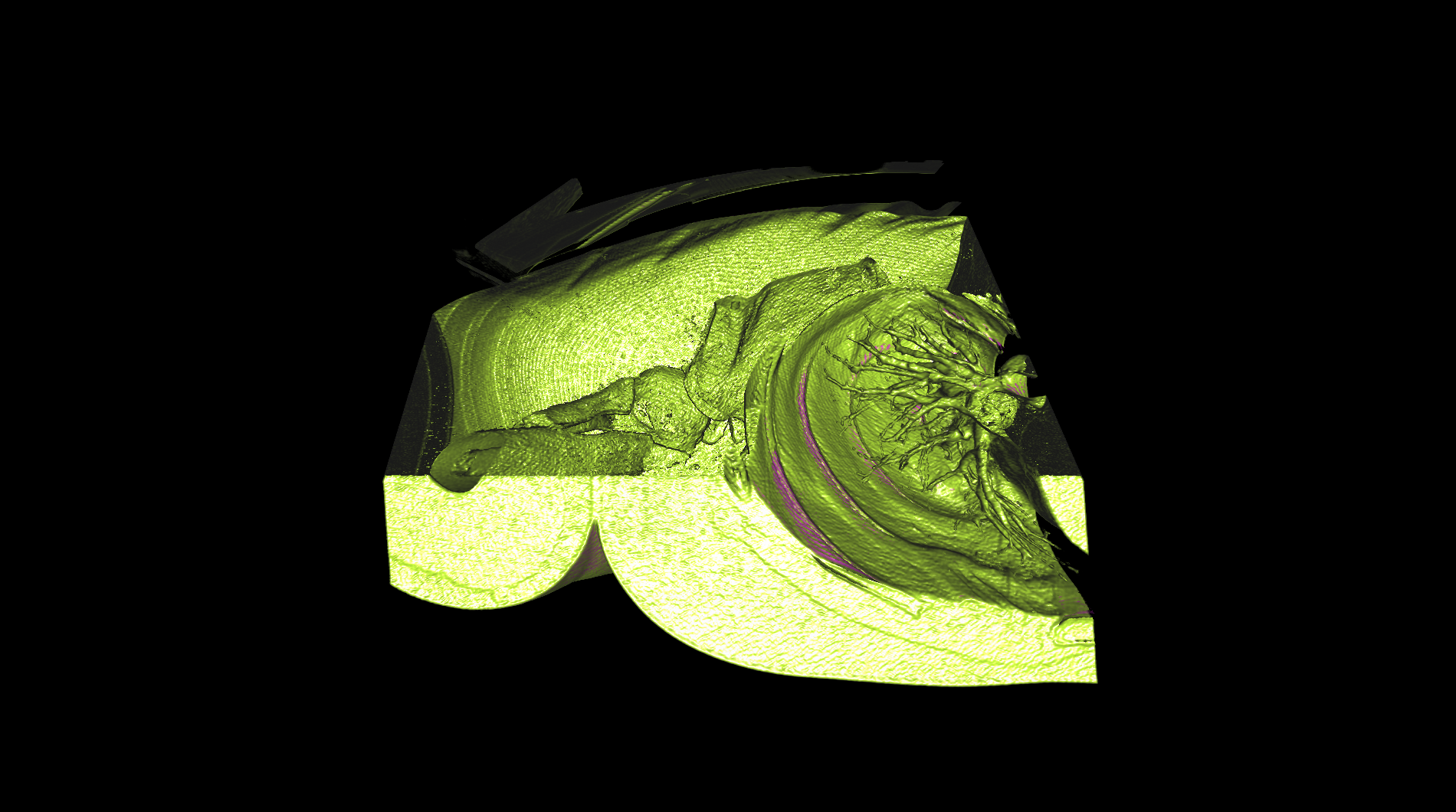

8	Test8	49.64	12.5	770	15.51	02/27/19 11:05:12

Screen Grabs Folder
Text Log File
XML Result File

snx-03

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

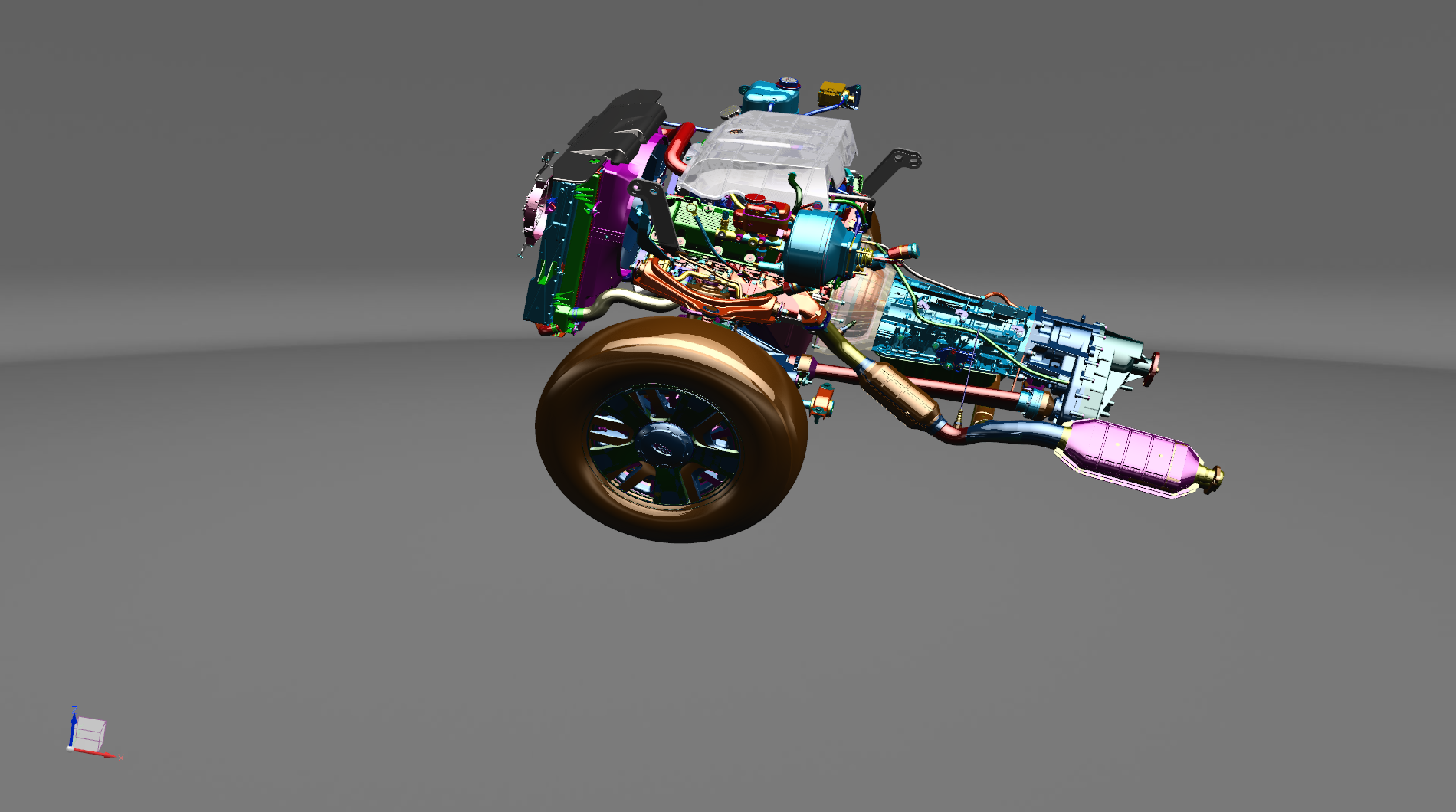

1	NX8_AdvancedStudioAA	209.57	7.5	3600	17.18	02/27/19 11:05:32

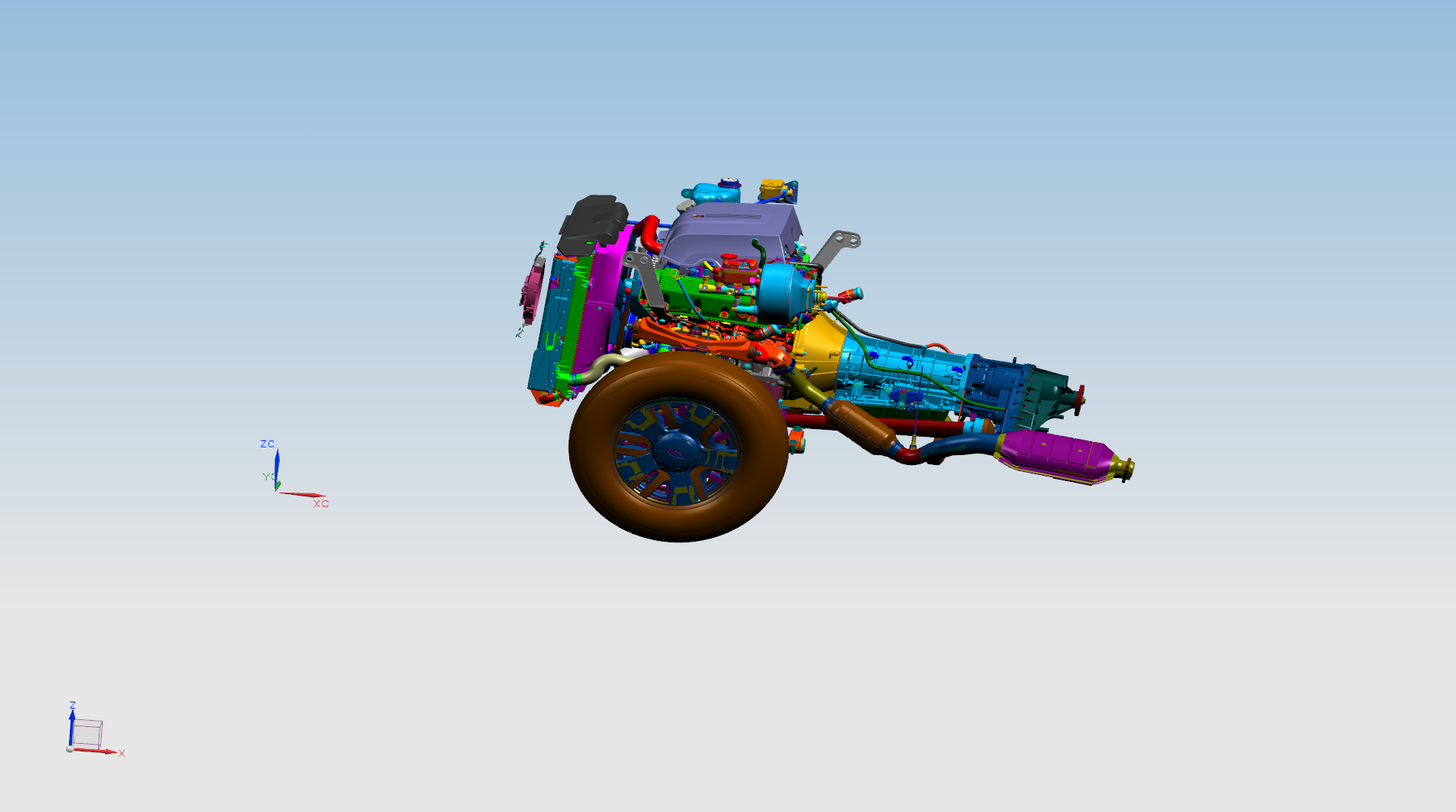

2	NX8_ShadedAA	411.8	10	6480	15.74	02/27/19 11:05:51

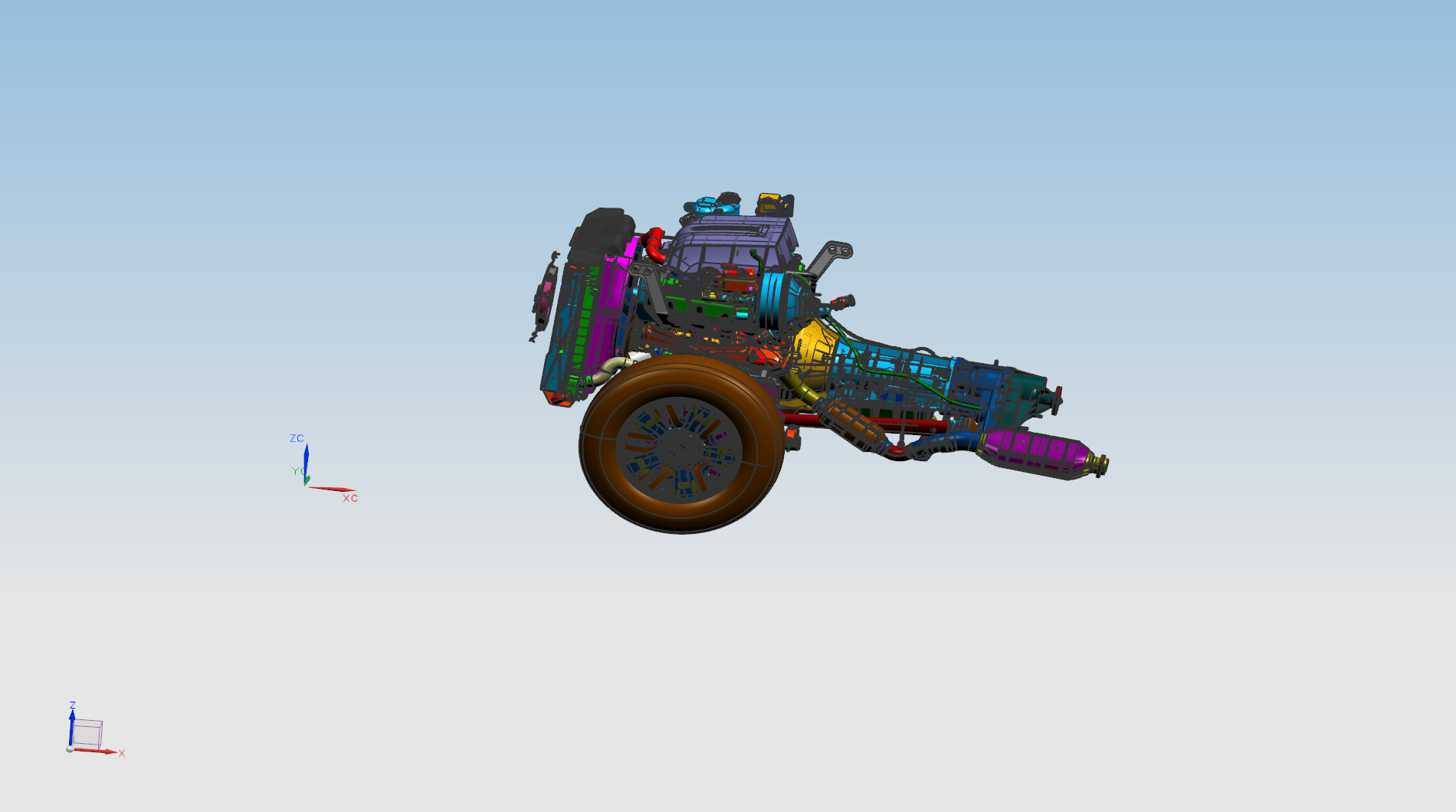

3	NX8_ShadedWithEdgeAA	287.39	20	4320	15.03	02/27/19 11:06:08

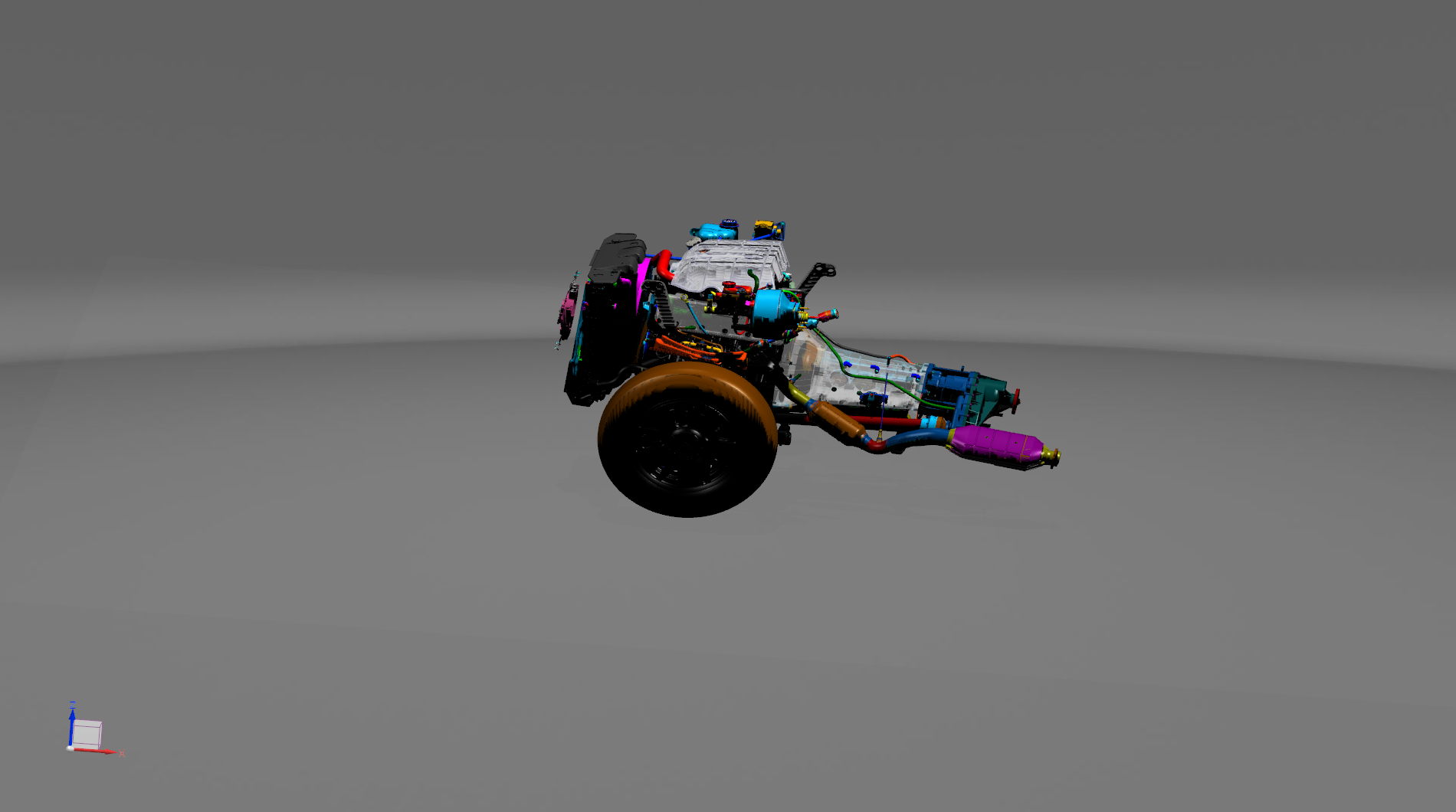

4	NX8_StudioAA	232	5	3600	15.52	02/27/19 11:06:27

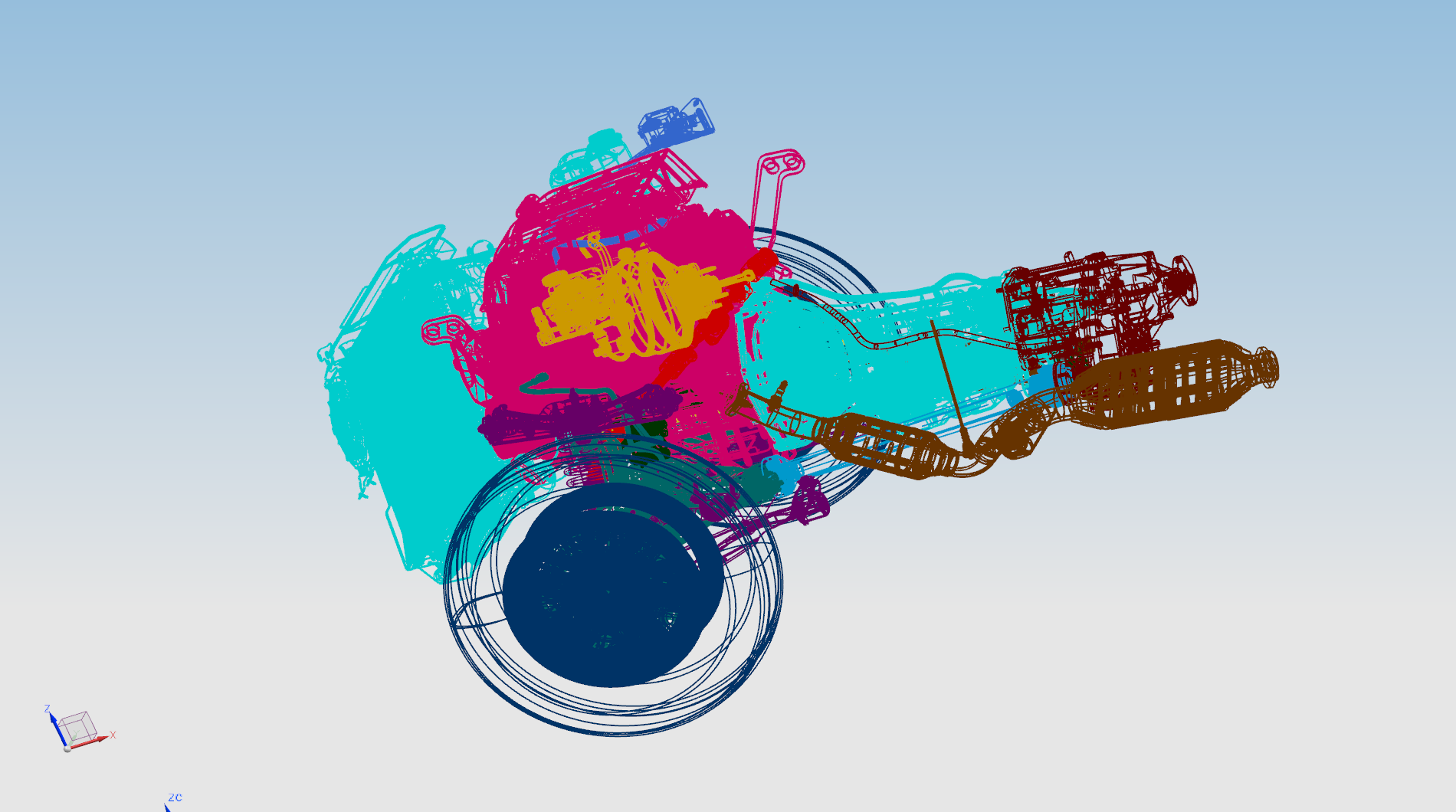

5	NX8_powerTrain_Wireframe	427.22	7.5	6480	15.17	02/27/19 11:06:45

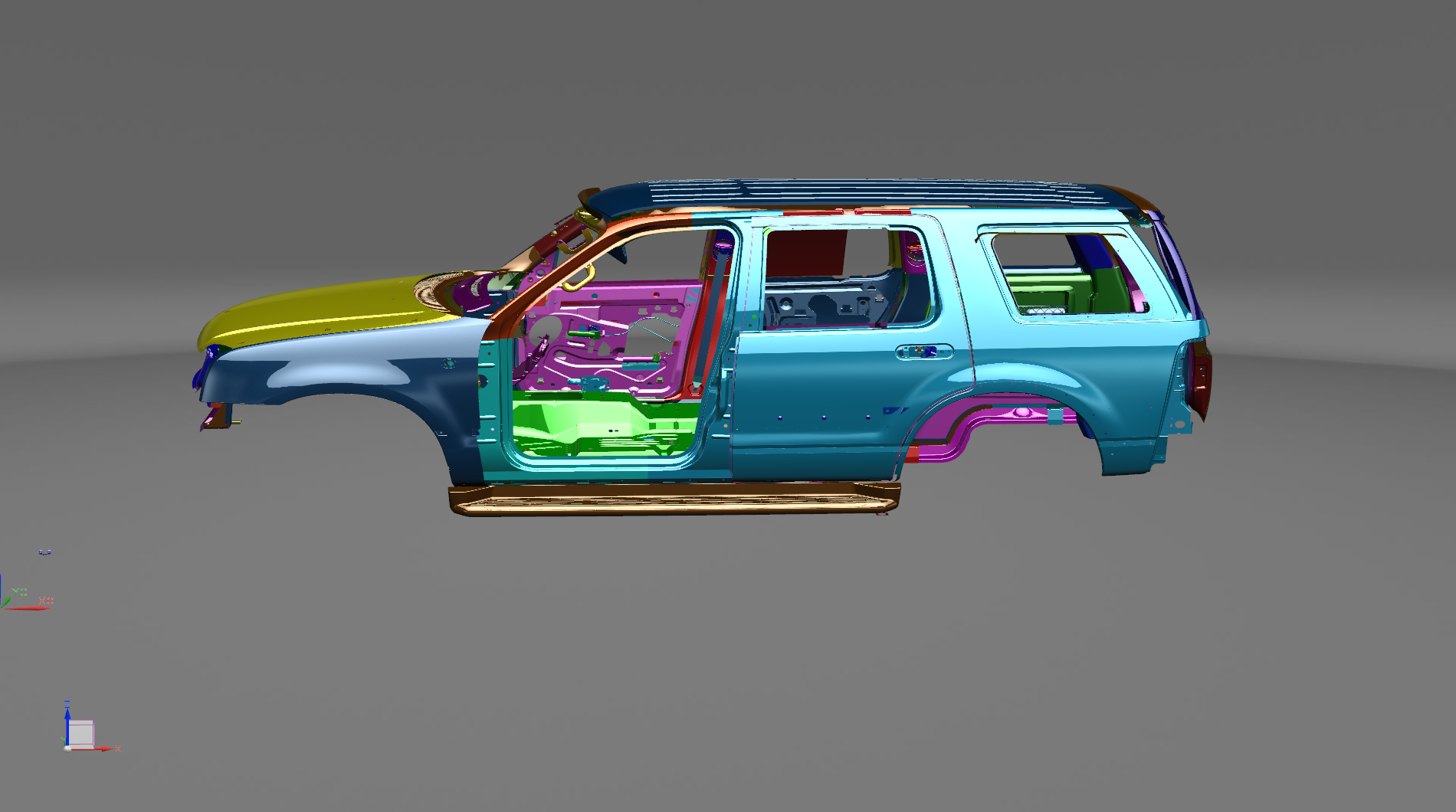

6	NX8_suvAdvancedStudio	485.32	7.5	7920	16.32	02/27/19 11:07:03

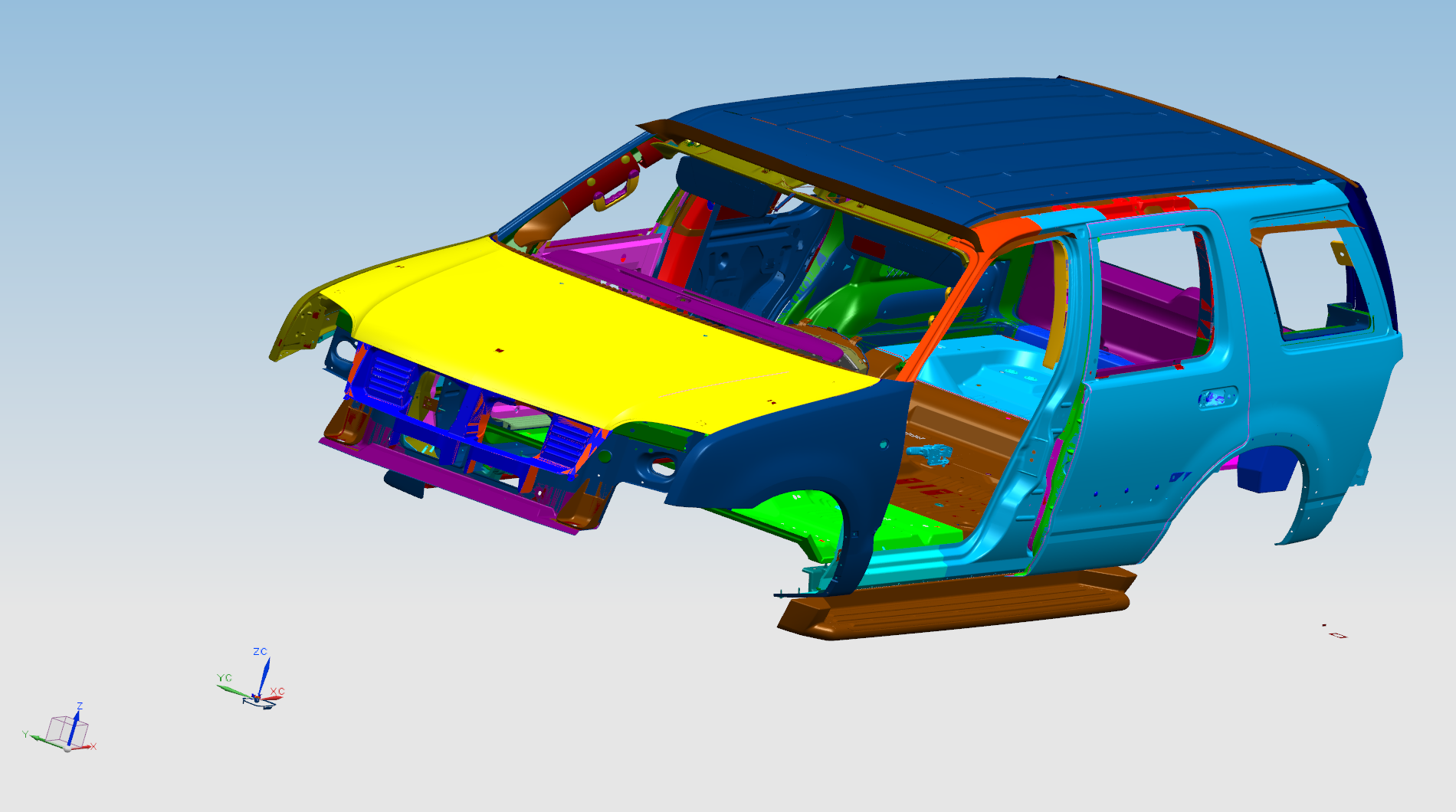

7	NX8_suvShaded	485.64	10	7920	16.31	02/27/19 11:07:22

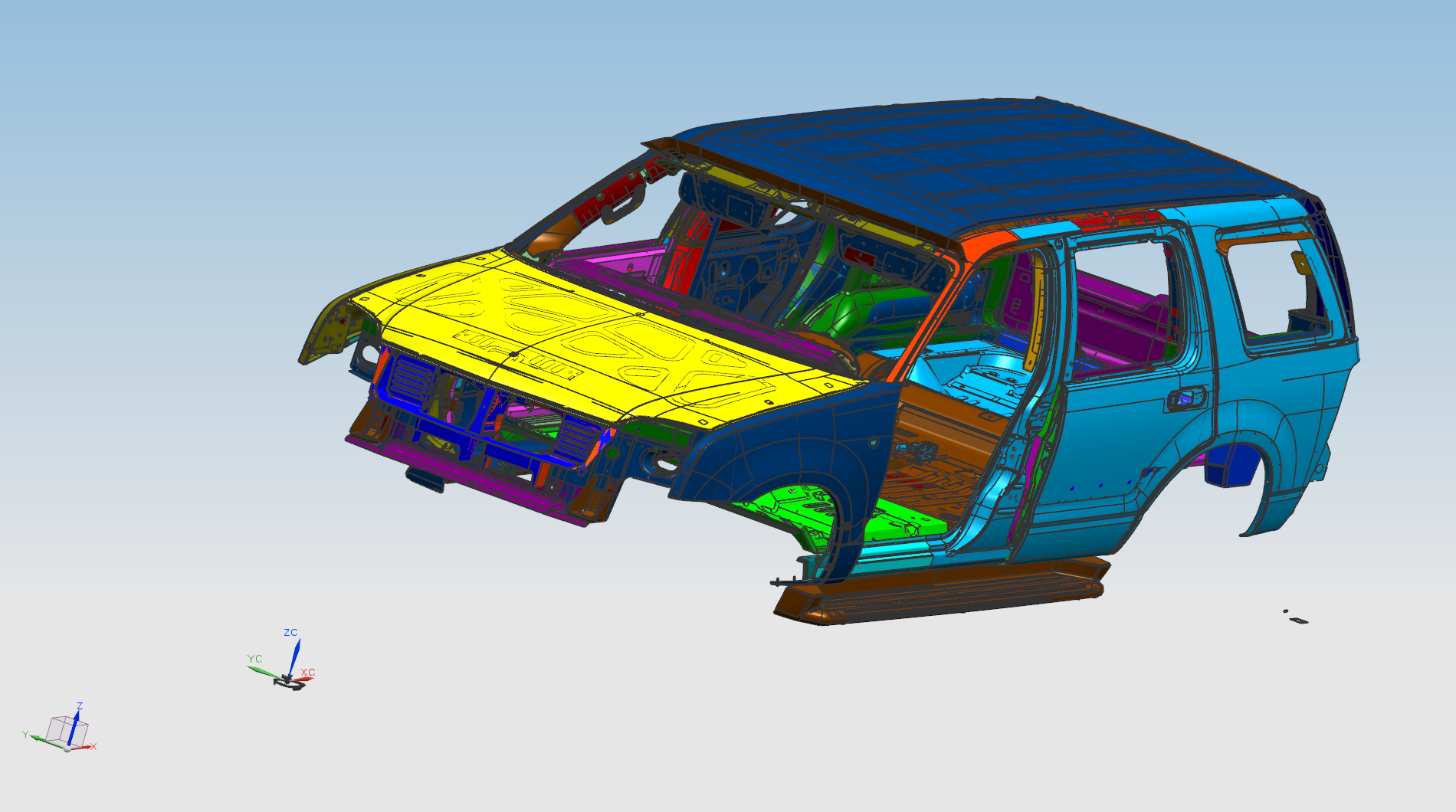

8	NX8_suvShadedWithEdge	345.4	20	5760	16.68	02/27/19 11:07:41
9	NX8_suvStudio2	269.2	5	4320	16.05	02/27/19 11:07:59

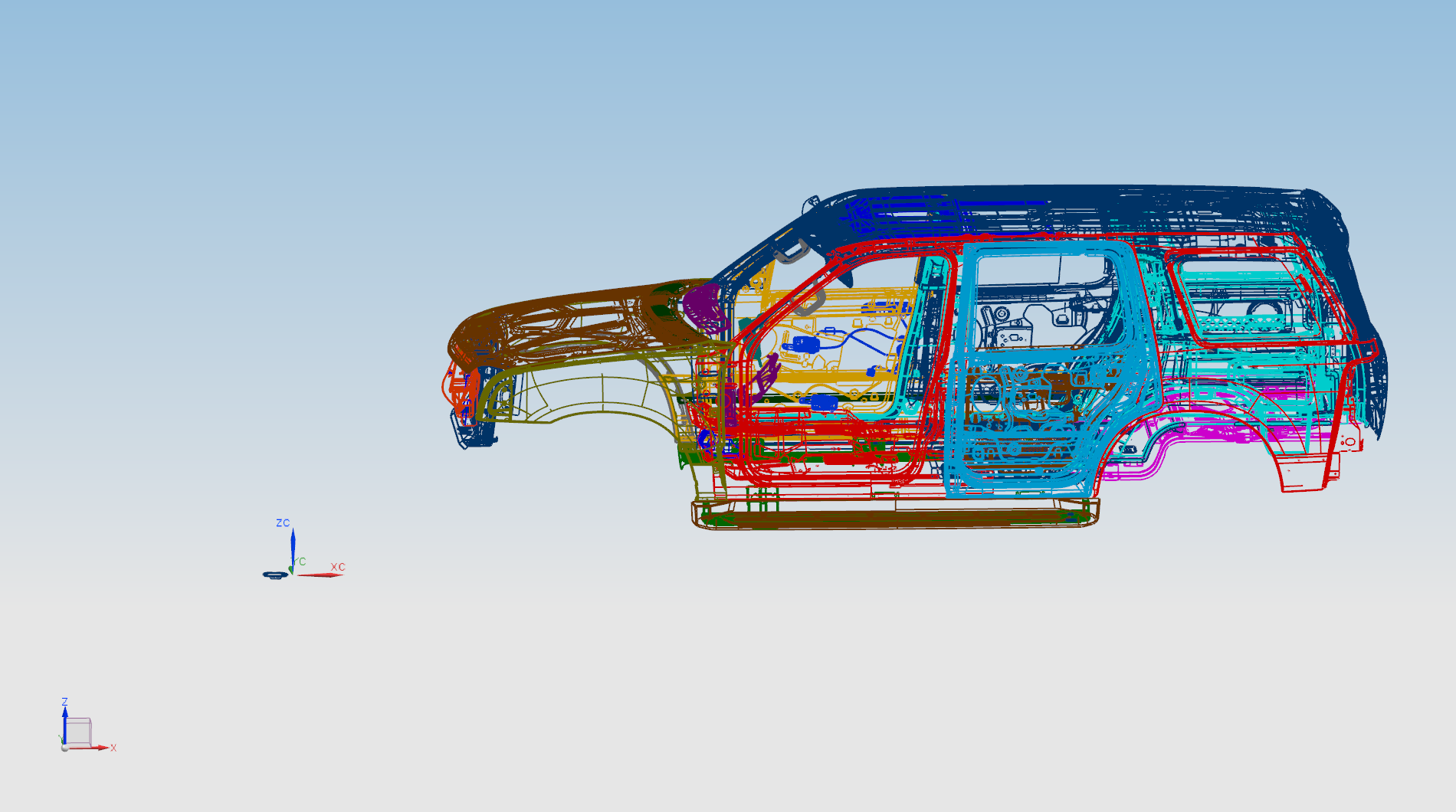

10	NX8_suvWireframe	611.48	7.5	9360	15.31	02/27/19 11:08:16

Screen Grabs Folder
Text Log File
XML Result File

sw-04

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

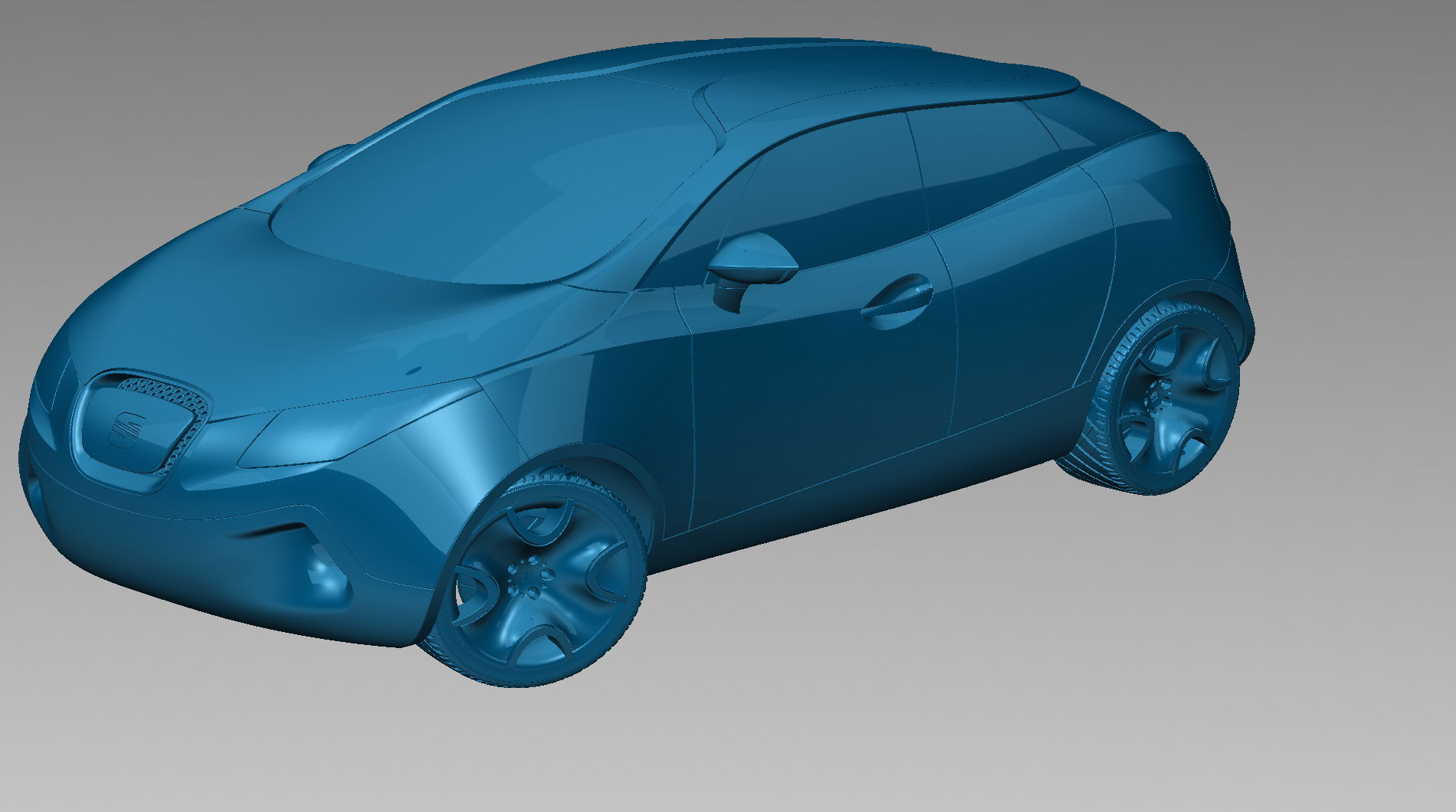

1	SW2012_shaded	872.1	12	13320	15.27	02/27/19 11:08:33

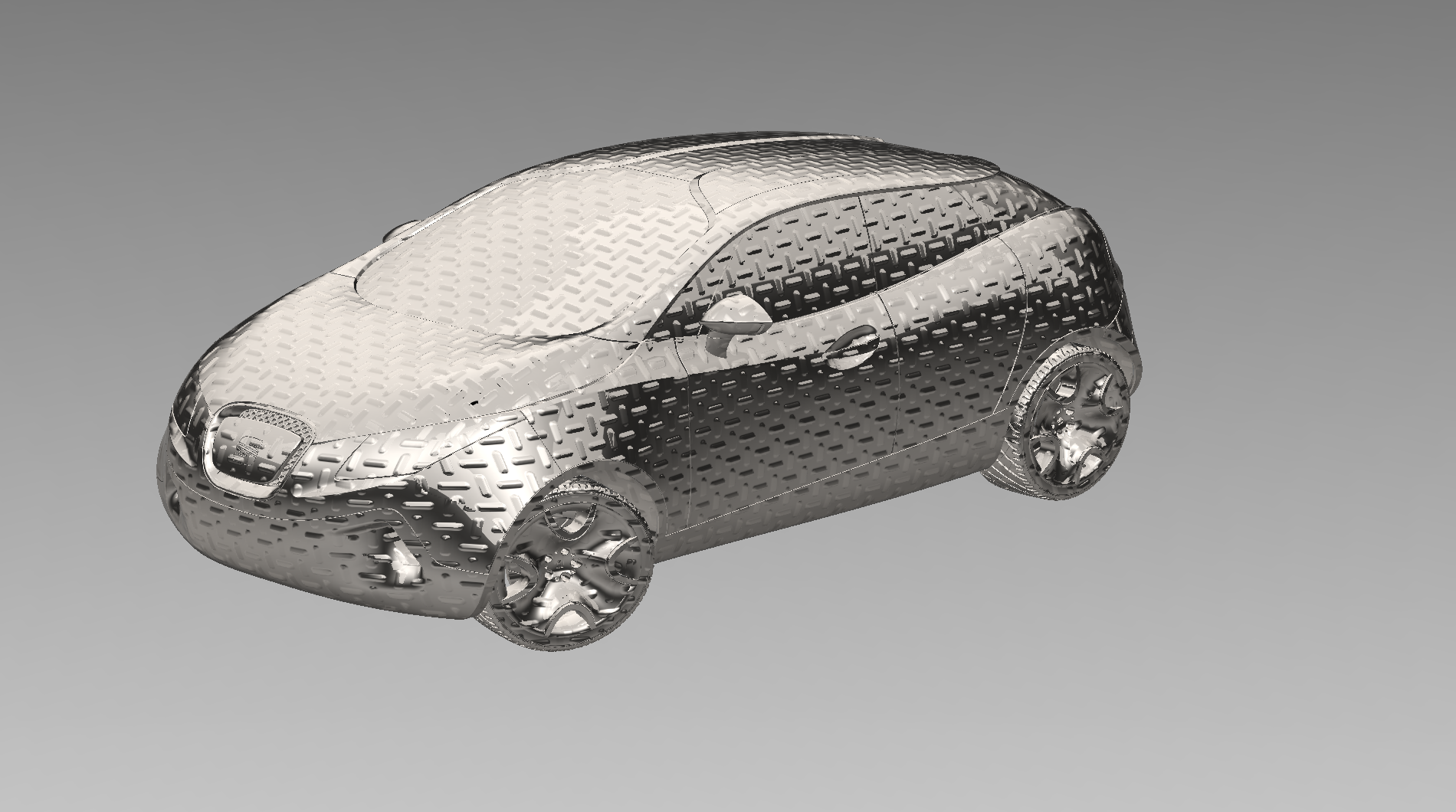

2	SW2012_plax	704.83	8	10800	15.32	02/27/19 11:08:49

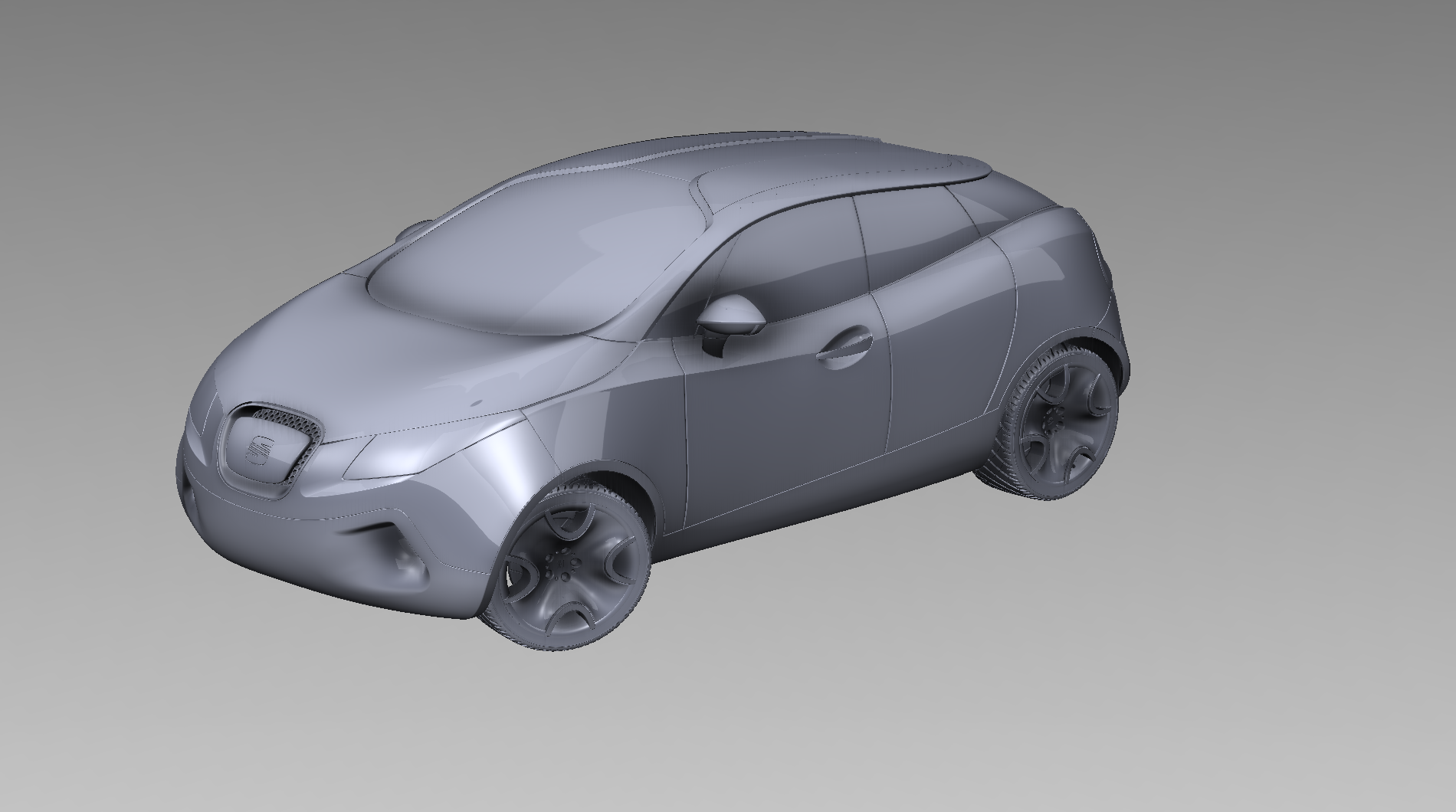

3	SW2012_ssao	249.68	10	3960	15.86	02/27/19 11:09:06

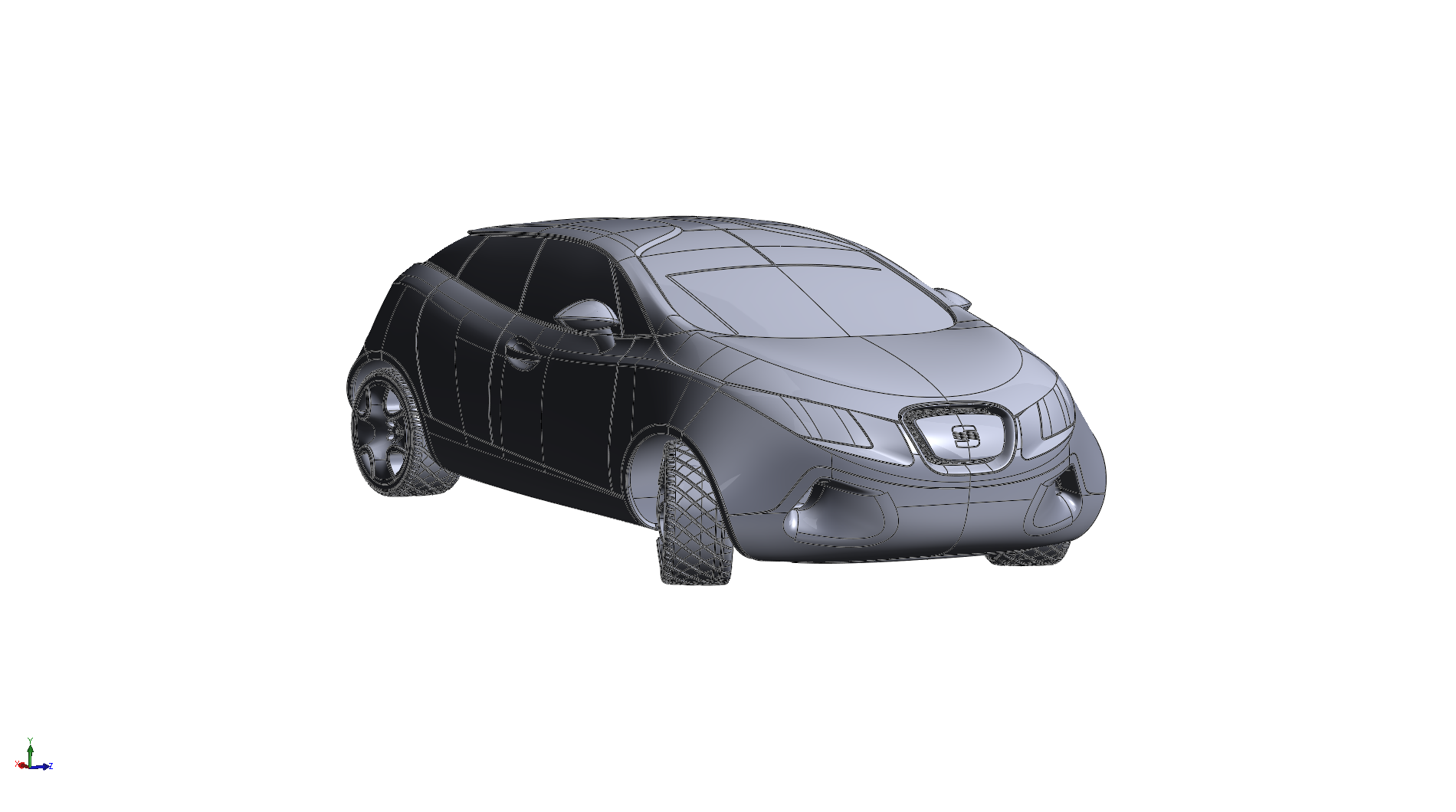

4	SW2012_edges	726.14	15	11160	15.37	02/27/19 11:09:23

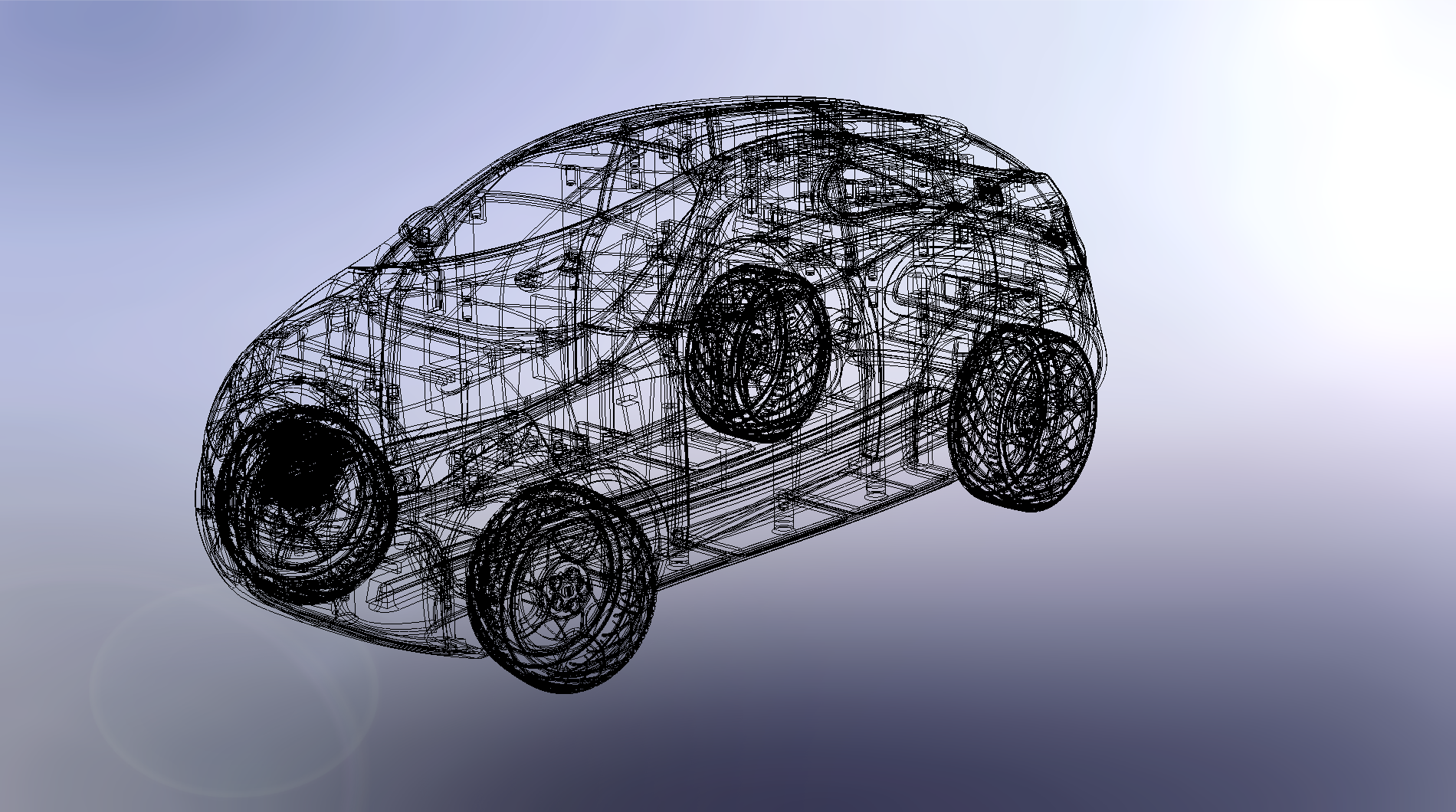

5	SW2012_wireframe	35.74	8	720	20.15	02/27/19 11:09:44
6	SW2012_rallyCar_AO	115.89	10	1800	15.53	02/27/19 11:10:01
7	SW2012_rallyCar_shaded	126.43	12	2160	17.08	02/27/19 11:10:19

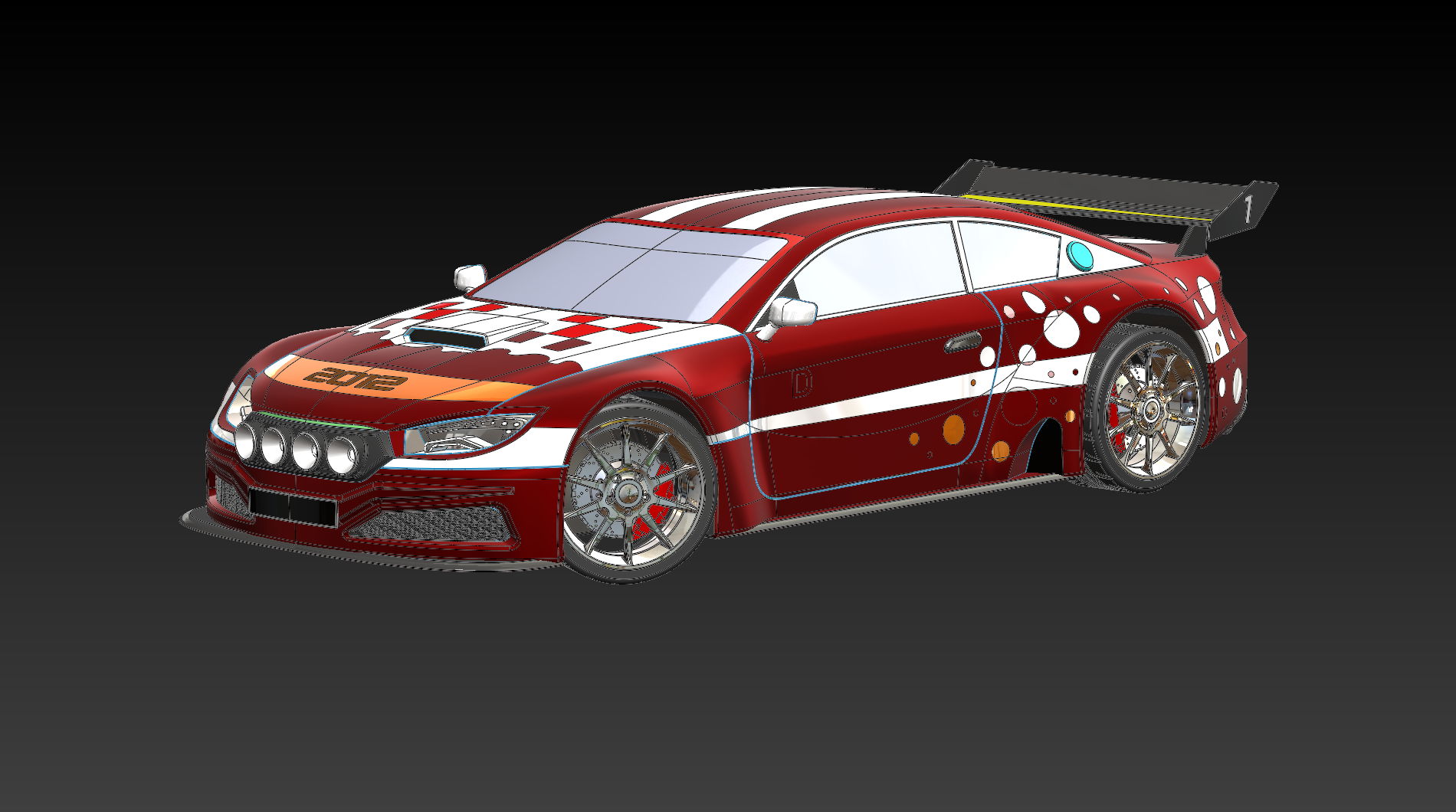

8	SW2012_rallyCar_ShadedEdges	72.54	15	1440	19.85	02/27/19 11:10:40

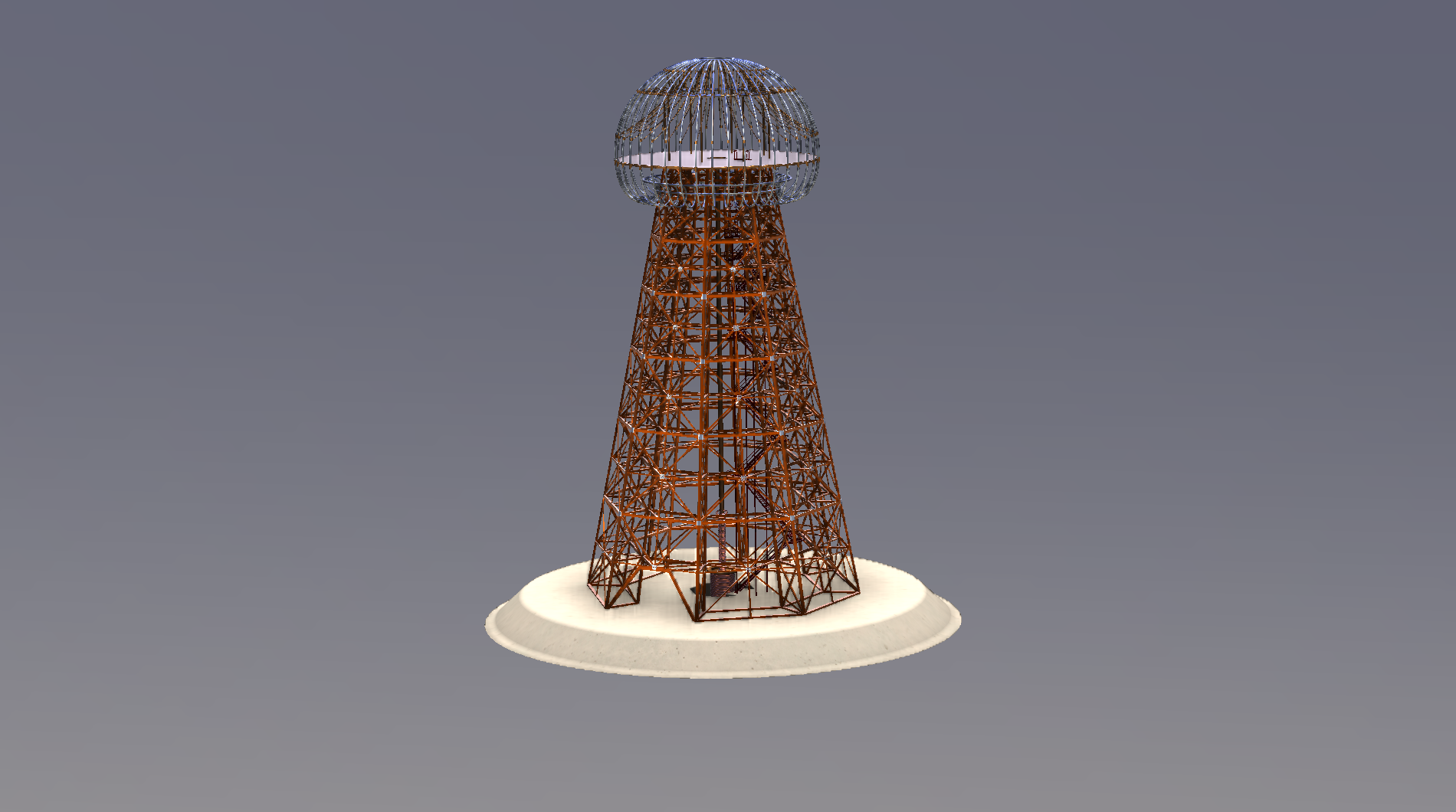

9	SW2012_teslaTower_AO	605.74	10	9360	15.45	02/27/19 11:10:56

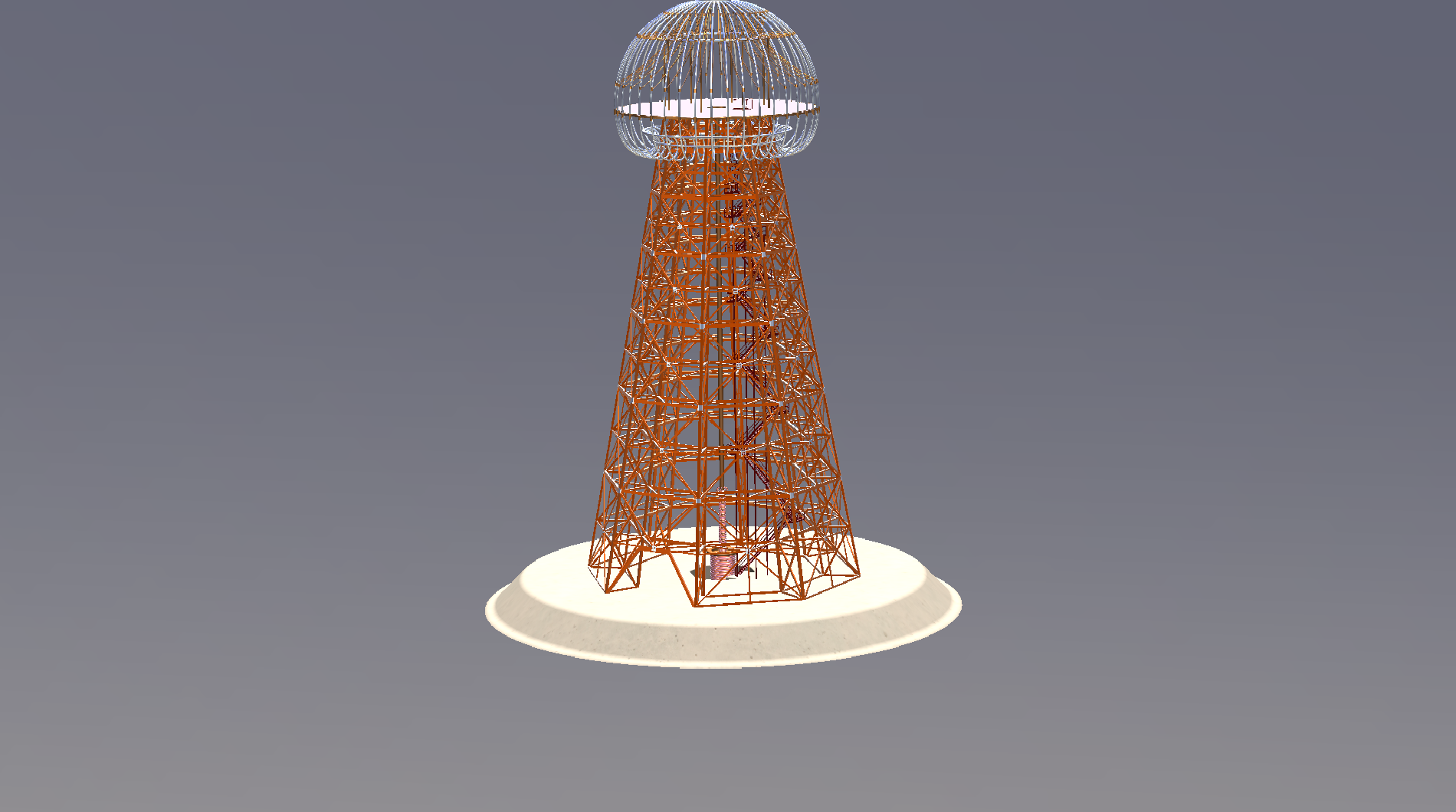

10	SW2012_teslaTower_shaded	819.07	0	12600	15.38	02/27/19 11:11:12

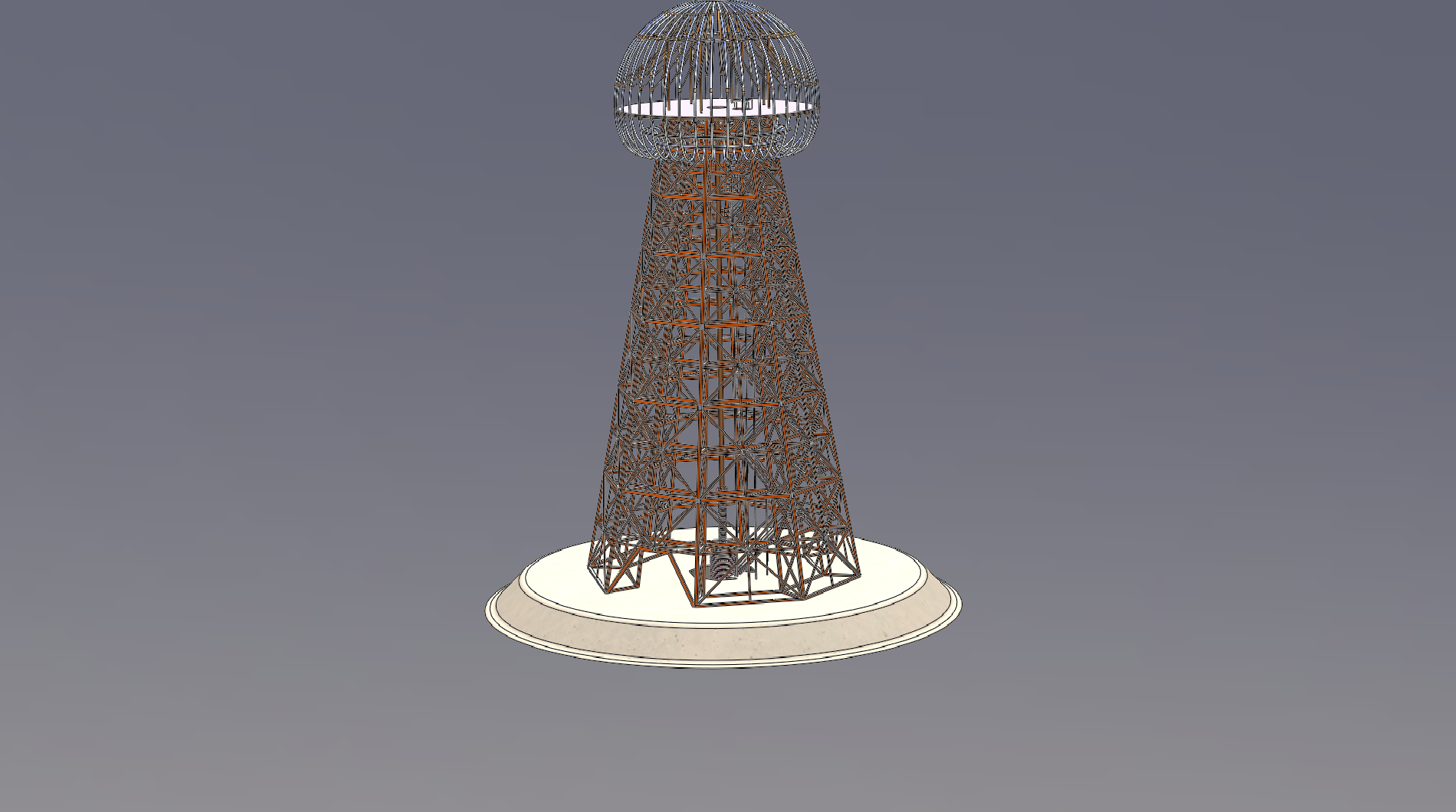

11	SW2012_teslaTower_ShadedEdges	799.31	0	12240	15.31	02/27/19 11:11:28

Screen Grabs Folder
Text Log File
XML Result File
