SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
xFusion xFusion 2488H V6 425348 SPECjbb2015-MultiJVM max-jOPS
217181 SPECjbb2015-MultiJVM critical-jOPS
Tested by: xFusion Test Sponsor: xFusion Test location: Shenzhen, China Test date: Jul 27, 2022
SPEC license #: 6488 Hardware Availability: Apr-2021 Software Availability: May-2022 Publication: Thu Aug 25 16:38:46 EDT 2022
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 8)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorxFusion
Vendor URLhttp://xfusion.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NamexFusion 2488H V6
VendorxFusion
Vendor URLhttp://xfusion.com/
AvailableApr-2021
ModelxFusion 2488H V6
Form Factor2U
CPU NameIntel Xeon Platinum 8380H
CPU Characteristics28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
Version0.87 released May-2022
CPU Frequency (MHz)2900
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1MB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 1.7TB SAS HDD 10K RPM
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)48 x 32GB
Memory Details48 x 32GB 2Rx4 PC4-3200AA-R;
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 2000w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.4 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-305.el8.x86_64
AvailableMay-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.3.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 17.0.3.1
AvailableMay-2022
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Performance Profile Set to Performance
  • SNC Set to Enabled SNC2 (2-clusters)
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • ulimit -n 655360
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx29g -Xms29g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=28 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:LoopUnrollLimit=20 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:+UseRTMDeopt -XX:AllocatePrefetchInstr=2 -XX:UseAVX=0
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 420774 425348 429921 434495 439068
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 134922 180658 235542 276704 304146 217181
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 13721 / 18295 4574 / 9147 - / 4574 - / 4574 - / 4574 - / 4574
1000us 164651 / 109767 32015 / 36589 18295 / 22868 13721 / 18295 4574 / 9147 - / 4574
5000us 352170 / 356743 301860 / 306433 205813 / 210387 164651 / 169224 86899 / 91473 13721 / 9147
10000us 361317 / 365890 329301 / 333875 269844 / 274418 237829 / 242402 132635 / 137209 13721 / 9147
25000us 365890 / 370464 352170 / 356743 306433 / 311007 278991 / 283565 178372 / 182945 13721 / 9147
50000us 370464 / 375038 356743 / 361317 329301 / 333875 301860 / 306433 233255 / 237829 13721 / 9147
75000us 375038 / 379611 361317 / 365890 338449 / 343022 320154 / 324728 274418 / 278991 59457 / 9147
100000us 375038 / 379611 365890 / 370464 347596 / 352170 333875 / 338449 301860 / 306433 109767 / 22868
200000us 393332 / 397906 375038 / 379611 365890 / 370464 365890 / 370464 356743 / 361317 242402 / 228681
500000us 420774 / 425348 402479 / 407053 388759 / 393332 388759 / 393332 379611 / 384185 365890 / 370464
1000000us 425348 / - 425348 / - 416200 / 420774 416200 / 420774 411627 / 416200 388759 / 393332

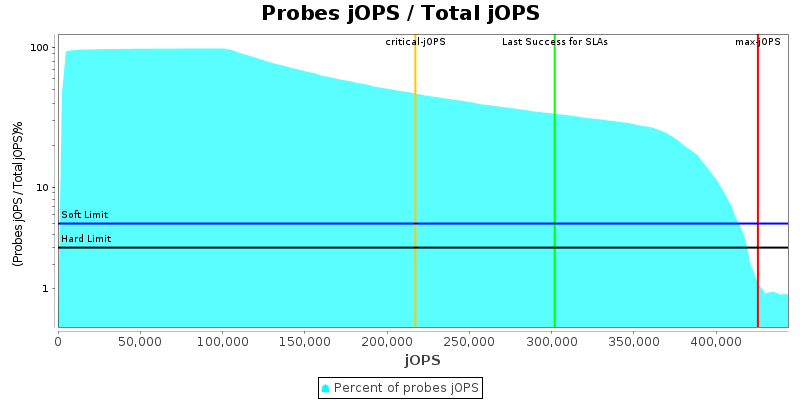

Number of probes
Probes jOPS / Total jOPS

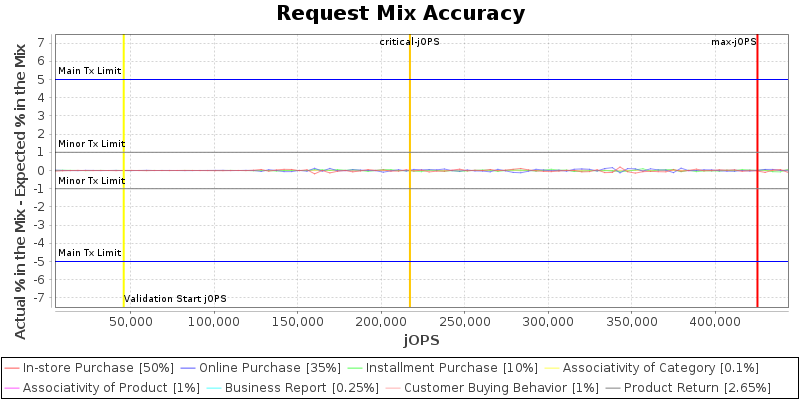

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

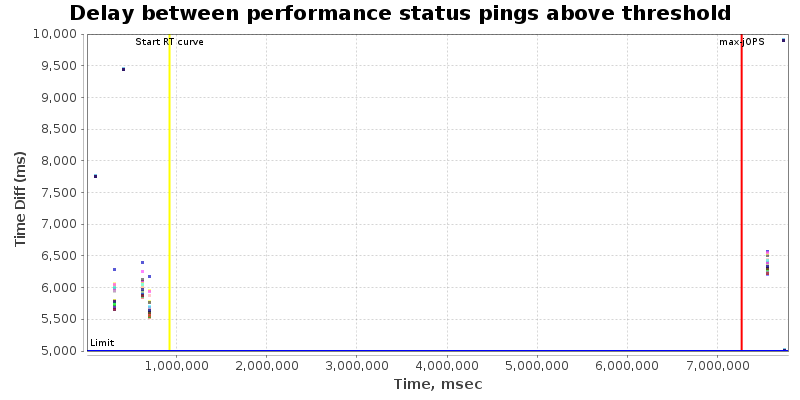

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 224
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 224 {Tier1=180, Tier2=56, Tier3=28}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 224 4
specjbb.txi.pergroup.count 1 2
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 457363 IR
High-bound (settled) is 442743 IR
Copyright © 2015-2022 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
