SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
KTNF KE780S1 187136 SPECjbb2015-Distributed max-jOPS
122885 SPECjbb2015-Distributed critical-jOPS
Tested by: Telecommunications Technology Association Test Sponsor: Telecommunications Technology Association Test location: TTA, Seongnam-city, Korea Test date: Aug 17, 2023
SPEC license #: A83 Hardware Availability: Aug-2023 Software Availability: Jul-2023 Publication: Thu Oct 5 14:37:10 EDT 2023
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 4)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorKTNF
Vendor URLhttp://www.ktnf.co.kr/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes4
All Nodes IdenticalYES
Nodes Per System4
Total Chips4
Total Cores48
Total Threads96
Total Memory Amount (GB)1024
Total OS Images4
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameKE780S1
VendorKTNF
Vendor URLhttp://www.ktnf.co.kr/
AvailableAug-2023
ModelKE780S1
Form Factor6U Half-Rack
CPU NameIntel Xeon Silver 4410Y
CPU Characteristics12 Core, 2.0 GHz, 30 MB L3 Cache (Turbo Boost Technology up to 3.9 GHz)
Number of Systems1
Nodes Per System4
Chips Per System4
Cores Per System48
Cores Per Chip12
Threads Per System96
Threads Per Core2
VersionVersion 1.0
CPU Frequency (MHz)2000
Primary Cache576KB(I)+384KB(D) per core
Secondary Cache24MB (I+D) per core
Tertiary Cache30MB (I+D) on chip per chip
Other CacheNone
Disk1x 512GB NVMe SSD
File SystemXFS
Memory Amount (GB)1024GB
# and size of DIMM(s)32 x 32GB
Memory Details2Rx8 PC5-4800B-R
# and type of Network Interface Cards (NICs)2 x 100 Gbit NICs
Power Supply Quantity and Rating (W)2200w Dual Redundant
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRocky Enterprise Linux Server release 9.0
VendorRocky
Vendor URLhttp://rockylinux.org
Version5.14.0-70.17.1.el9_0.x86_64
AvailableJul-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.8
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.8
AvailableJul-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameKR580S1
VendorKTNF
Vendor URLhttp://www.ktnf.co.kr/
AvailableApr-2021
ModelKR580S1
Form Factor2U
CPU NameIntel(R) Xeon(R) Gold 6140
CPU Characteristics18 Core, 2.30 GHz, 24.75 MB L3 Cache (Turbo boost Technology up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionVersion 1.0
CPU Frequency (MHz)2300
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache25344 KB (I+D) on chip per chip
Other CacheNone
Disk2x 600GB HDD U.2
File SystemZFS
Memory Amount (GB)384
# and size of DIMM(s)24 x 16GB
Memory Details1Rx4 RDIMM PC4-2666 ECC
# and type of Network Interface Cards (NICs)2 x 100 Gbit NICs
Power Supply Quantity and Rating (W)3 x 800w Dual Redundant
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameRocky Enterprise Linux Server release 9.0
VendorRocky
Vendor URLhttp://rockylinux.org
Version5.14.0-70.17.1.el9_0.x86_64
AvailableJul-2022
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 17.0.8
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.8
AvailableJul-2023
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Energy_Perf_BIAS_CFG_mode performance
  • Enhanced Halt State (C1E) Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(4)
OS Image Description os_1
Tuning
  • ulimit -n unlimited
  • ulimit -d unlimited
  • ulimit -f unlimited
  • ulimit -u unlimited
  • ulimit -v unlimited
  • ulimit -x unlimited
  • ulimit -l 800000000
  • cpupower frequency-set -g performance
  • tuned-adm profile=throughput-performance
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms217g -Xmx217g -Xmn215g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=24 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseAdaptiveNUMAChunkSizing -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=99 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=64m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning None
Notes None
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description os_2
Tuning
  • ulimit -n unlimited
  • ulimit -d unlimited
  • ulimit -f unlimited
  • ulimit -u unlimited
  • ulimit -v unlimited
  • ulimit -x unlimited
  • ulimit -l 800000000
  • cpupower frequency-set -g performance
  • tuned-adm profile=throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 185033 187136 189238 191341 193444
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 92691 116035 132767 136955 143287 122885
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2103 - / 2103 - / 2103 - / 2103 - / 2103 - / 2103
1000us 77798 / 79901 6308 / 8411 - / 2103 - / 2103 - / 2103 - / 2103
5000us 176623 / 178725 153493 / 155596 90414 / 92517 77798 / 71490 52566 / 54669 6308 / 8411
10000us 176623 / 178725 168212 / 170315 140878 / 136672 124056 / 119851 94619 / 71490 29437 / 14719
25000us 178725 / 180828 172417 / 174520 159801 / 151391 155596 / 136672 126159 / 71490 39950 / 14719
50000us 178725 / 180828 174520 / 176623 161904 / 164007 159801 / 151391 142980 / 71490 39950 / 14719
75000us 180828 / 182931 176623 / 178725 164007 / 166109 159801 / 151391 147185 / 71490 63079 / 14719
100000us 180828 / 182931 176623 / 178725 168212 / 166109 161904 / 151391 155596 / 71490 88311 / 58874
200000us 182931 / 185033 176623 / 178725 174520 / 176623 170315 / 151391 159801 / 136672 145083 / 71490
500000us 187136 / - 182931 / 185033 176623 / 178725 176623 / 178725 176623 / 151391 168212 / 119851
1000000us 187136 / - 187136 / - 185033 / 187136 182931 / 185033 182931 / 178725 176623 / 151391

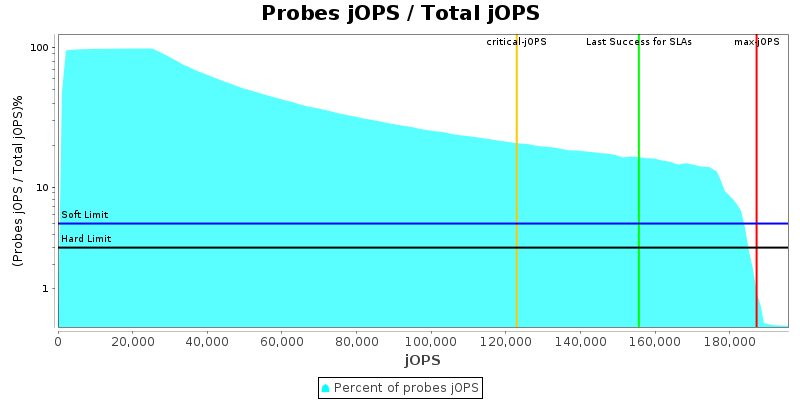

Number of probes
Probes jOPS / Total jOPS

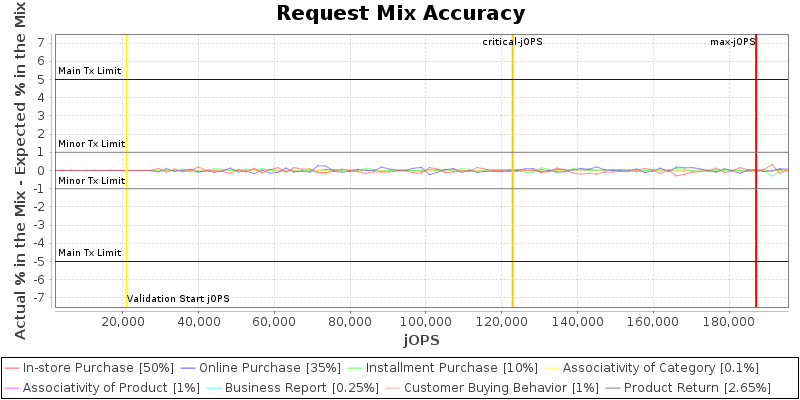

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

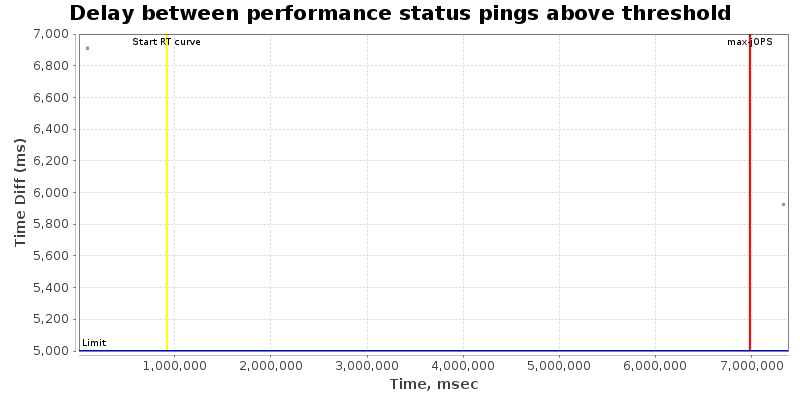

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

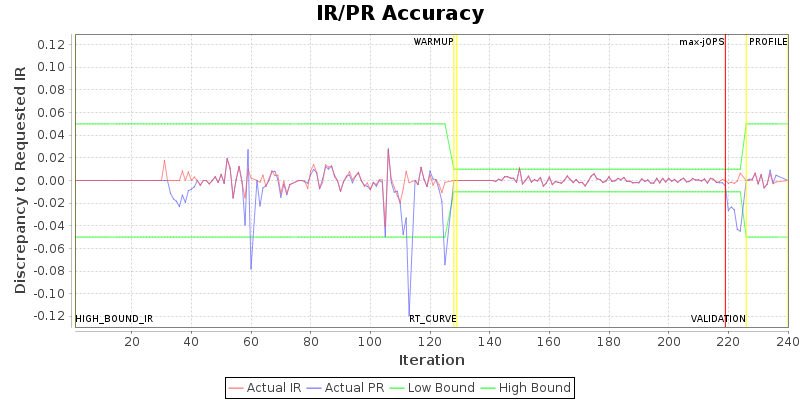

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.controller.host localhost 10.10.10.20
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 210265 IR
High-bound (settled) is 202634 IR
Copyright © 2015-2023 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
