SPECjbb2015
Copyright © 2015-2025 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SD535 V3 533276 SPECjbb2015-MultiJVM max-jOPS
468022 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Jan 6, 2025
SPEC license #: 9017 Hardware Availability: Feb-2025 Software Availability: Dec-2024 Publication: Thu Jan 23 15:12:30 EST 2025
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 6)

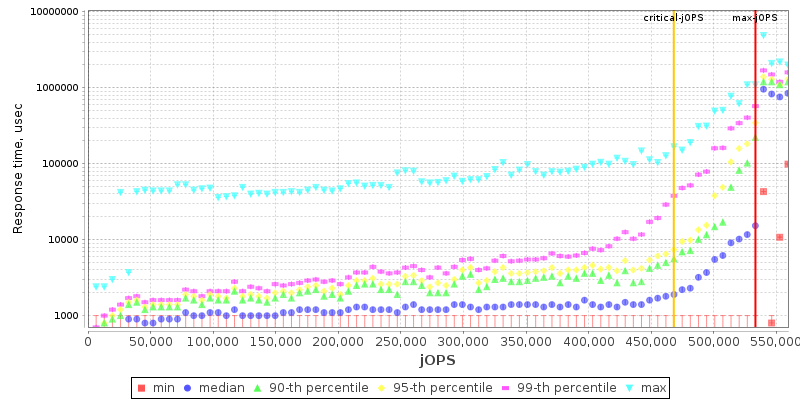

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores192
Total Threads384
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SD535 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableFeb-2025
ModelThinkSystem SD535 V3
Form Factor1U
CPU NameAMD EPYC 9965
CPU Characteristics192 Core, 2.25 GHz, 384 MB L3 Cache(Max. Boost Clock Up to 3.7 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System192
Cores Per Chip192
Threads Per System384
Threads Per Core2
VersionGPE113I
CPU Frequency (MHz)2250
Primary Cache32KB(I)+48KB(D) on chip per core
Secondary Cache1MB (I+D) on chip per core
Tertiary Cache384MB (I+D) on chip per chip
Other CacheNone
Disk1 x 1.92 TB M.2 NVME SSD
File SystemNTFS
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-6400B-R, running at 6000 MHz
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)2 x 2700W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.2966)
AvailableDec-2024
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 23.0.1
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 23.0.1
AvailableOct-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Socket set to NPS2
  • P-State set to Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(6), jvm_TxInjector_1(6)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=64 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32
Tuning Affinitized three Backend JVMs to a one memory node.
  • start /b /NODE 0
  • start /b /NODE 0
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 1
  • start /b /NODE 1
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning Affinitize three TxInjector JVMs to one memory node.
  • start /b /NODE 0
  • start /b /NODE 0
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 1
  • start /b /NODE 1
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 526772 533276 539779 546282 552786
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 419466 458487 477997 491003 497507 468022
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 143074 / 78040 6503 / 13007 6503 / 13007 - / 6503 - / 6503 - / 6503
1000us 481249 / 487752 149577 / 78040 26013 / 32517 19510 / 26013 13007 / 19510 - / 6503
5000us 533276 / - 494255 / 500759 461739 / 468242 442228 / 429222 318665 / 299155 32517 / 26013
10000us 533276 / - 513765 / 520269 481249 / 487752 481249 / 487752 416215 / 422718 32517 / 26013
25000us 533276 / - 533276 / - 507262 / 513765 494255 / 500759 455235 / 461739 32517 / 26013
50000us 533276 / - 533276 / - 513765 / 520269 507262 / 513765 474745 / 481249 240624 / 71537
75000us 533276 / - 533276 / - 513765 / 520269 507262 / 513765 487752 / 494255 364188 / 247128
100000us 533276 / - 533276 / - 520269 / 526772 507262 / 513765 494255 / 500759 435725 / 331671
200000us 533276 / - 533276 / - 526772 / 533276 526772 / 533276 507262 / 513765 481249 / 487752
500000us 533276 / - 533276 / - 533276 / - 533276 / - 526772 / 533276 500759 / 507262
1000000us 533276 / - 533276 / - 533276 / - 533276 / - 533276 / - 520269 / 526772

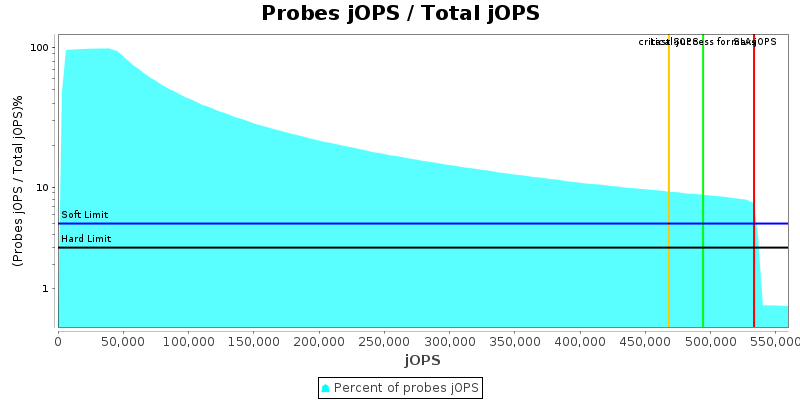

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 300 48 48 48 48 48 48 48 48 48 48 48 48
specjbb.comm.connect.selector.runner.count 0 24 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.comm.connect.worker.pool.max 256 150 60 60 60 60 60 60 60 60 60 60 60 60
specjbb.comm.connect.worker.pool.min 1 10 40 40 40 40 40 40 40 40 40 40 40 40
specjbb.customerDriver.threads 64 {probe=72, saturate=128}
specjbb.forkjoin.workers 64 {Tier1=84, Tier2=4, Tier3=8}
specjbb.group.count 1 6
specjbb.mapreducer.pool.size 64 24
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 650336 IR
High-bound (settled) is 591270 IR
