SPECjbb2015 Report for jbb2015-20250903-01641 : 894230 max-jOPS ; 808865 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR860 V4
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Nov-2025
Model	ThinkSystem SR860 V4
Form Factor	4U
CPU Name	Intel Xeon 6768P
CPU Characteristics	64 Core, 2.40 GHz, 336 MB L3 Cache(Max. Boost Clock Up to 3.90 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	256
Cores Per Chip	64
Threads Per System	512
Threads Per Core	2
Version	RVE103X
CPU Frequency (MHz)	2400
Primary Cache	64KB(I)+48KB(D) on chip per core
Secondary Cache	2MB (I+D) on chip per core
Tertiary Cache	336MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480 GB M.2 NVME SSD
File System	NTFS
Memory Amount (GB)	4096
# and size of DIMM(s)	32 x 128 GB
Memory Details	128 GB 2Rx4 PC5-6400B-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	4 x 2700W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2025 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 24H2(OS Build 26100.4946)
Available	Aug-2025
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 24.0.2
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 24.0.2
Available	Jul-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Workload Profile set to General Computing - Max Performance and then set to Custom Uncore Frequency Scaling set to Disabled Latency Optimized Mode set to Enabled Adjacent Cache Prefetch set to Disabled AMP Prefetch set to Disabled SNC set to Enabled UPI Prefetcher set to Disabled Page Policy set to Adaptive Patrol Scrub set to Disabled Workload Configuration set to I/O sensitive
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms480g -Xmx480g -Xmn478g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=180 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=64 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120 -Xnoclassgc -XX:+UseNUMA
Tuning	Affinitized each Backend JVM to a single memory node. start /b /NODE 0 start /b /NODE 1 start /b /NODE 2 start /b /NODE 3 start /b /NODE 4 start /b /NODE 5 start /b /NODE 6 start /b /NODE 7
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m
Tuning	Affinitize each TxInjector JVM to a single memory node. start /b /NODE 0 start /b /NODE 1 start /b /NODE 2 start /b /NODE 3 start /b /NODE 4 start /b /NODE 5 start /b /NODE 6 start /b /NODE 7
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	882464	894230	905997	917763	929529

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	676556	802454	841282	864815	876581	808865

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	35299 / 47065	11766 / 23532	- / 11766	- / 11766	- / 11766	- / 11766
1000us	788335 / 800101	47065 / 58831	23532 / 35299	23532 / 35299	11766 / 23532	- / 11766
5000us	894230 / -	894230 / -	611842 / 588309	435349 / 376518	270622 / 176493	23532 / 35299
10000us	894230 / -	894230 / -	870698 / 835399	811867 / 823633	682439 / 670673	152960 / 70597
25000us	894230 / -	894230 / -	882464 / 894230	882464 / 894230	811867 / 764802	176493 / 70597
50000us	894230 / -	894230 / -	882464 / 894230	882464 / 894230	835399 / 847166	176493 / 70597
75000us	894230 / -	894230 / -	882464 / 894230	882464 / 894230	858932 / 870698	505946 / 164727
100000us	894230 / -	894230 / -	894230 / -	882464 / 894230	870698 / 882464	623608 / 270622
200000us	894230 / -	894230 / -	894230 / -	882464 / 894230	882464 / 894230	811867 / 764802
500000us	894230 / -	894230 / -	894230 / -	882464 / 894230	882464 / 894230	882464 / 858932
1000000us	894230 / -	894230 / -	894230 / -	894230 / -	882464 / 894230	882464 / 894230

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	384	120	96	120	96	120	96	120	96	120	96	120	96	120	96	120	96
specjbb.comm.connect.selector.runner.count	0	8	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.comm.connect.worker.pool.max	256	150	65	65	65	65	65	65	65	65	65	65	65	65	65	65	65	65
specjbb.comm.connect.worker.pool.min	1	16	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50
specjbb.customerDriver.threads	64	{probe=73, saturate=124}
specjbb.forkjoin.workers	64	{Tier1=64, Tier2=18, Tier3=5}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	64	12
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1176619 IR

High-bound (settled) is 980649 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Lenovo Global Technology ThinkSystem SR860 V4	894230 SPECjbb2015-MultiJVM max-jOPS 808865 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Aug 28, 2025
SPEC license #: 9017	Hardware Availability: Nov-2025	Software Availability: Aug-2025	Publication: Thu Sep 18 17:57:21 EDT 2025

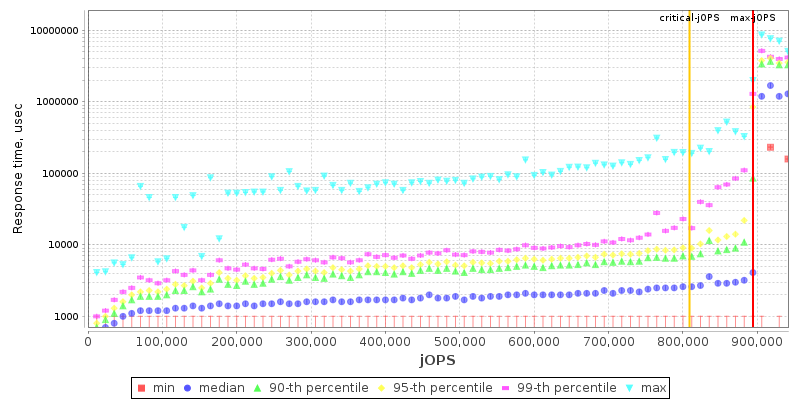

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 8) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
