Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) ssj_ops@100% = 525,522
ssj_ops@100% per JVM = 131,381
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     529,733
Calibration 2     531,994
Calibration 3     527,145
ssj_ops@calibrated=529,570
100% 99.2% 529,570 525,522
90% 90.2% 476,613 477,901
80% 79.9% 423,656 423,328
70% 69.7% 370,699 369,000
60% 60.1% 317,742 318,393
50% 50.0% 264,785 264,934
40% 39.7% 211,828 210,131
30% 30.0% 158,871 158,971
20% 19.8% 105,914 104,789
10% 9.9% 52,957 52,561
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: Set of 38 identically configured PRIMERGY CX120 S1 servers
# of Identical Nodes: 38
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY CX120 S1 (Intel Xeon L5530)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots B1, C1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Fujitsu Technology Solutions DPS-460GP A
Disk Drive: 1 x 160GB HDD SATA (2.5", 5.4krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0x000F,0x00F0,0x0F00,0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.46
Management Firmware Version: 0.48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-36.001 133,504
Node-36.002 125,861
Node-36.003 132,859
Node-36.004 133,298
ssj_ops@100% 525,522
ssj_ops@100% per JVM 131,381

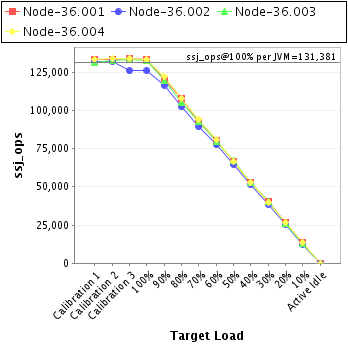

Graph of per-instance results
JVM 'Node-36.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,448
Calibration 2     133,566
Calibration 3     134,114
ssj_ops@calibrated=133,840
100% 99.7% 133,840 133,504
90% 89.7% 120,456 120,013
80% 80.7% 107,072 108,003
70% 69.4% 93,688 92,941
60% 60.2% 80,304 80,535
50% 49.6% 66,920 66,418
40% 39.3% 53,536 52,576
30% 30.0% 40,152 40,198
20% 19.7% 26,768 26,342
10% 10.2% 13,384 13,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

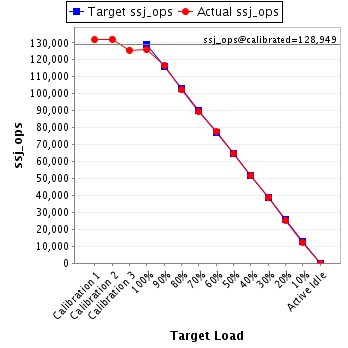

JVM 'Node-36.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,783
Calibration 2     132,165
Calibration 3     125,734
ssj_ops@calibrated=128,949
100% 97.6% 128,949 125,861
90% 90.4% 116,054 116,573
80% 79.3% 103,160 102,289
70% 69.4% 90,265 89,449
60% 60.3% 77,370 77,715
50% 50.2% 64,475 64,740
40% 39.9% 51,580 51,475
30% 30.0% 38,685 38,687
20% 19.8% 25,790 25,482
10% 9.7% 12,895 12,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

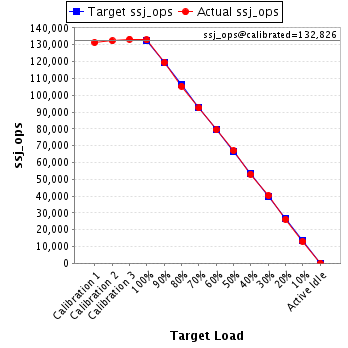

JVM 'Node-36.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,341
Calibration 2     132,300
Calibration 3     133,351
ssj_ops@calibrated=132,826
100% 100.0% 132,826 132,859
90% 90.0% 119,543 119,489
80% 79.3% 106,261 105,303
70% 69.6% 92,978 92,411
60% 59.8% 79,696 79,448
50% 50.4% 66,413 66,926
40% 39.9% 53,130 52,944
30% 30.3% 39,848 40,216
20% 19.7% 26,565 26,118
10% 9.8% 13,283 13,000
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-36.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,162
Calibration 2     133,962
Calibration 3     133,946
ssj_ops@calibrated=133,954
100% 99.5% 133,954 133,298
90% 90.9% 120,559 121,826
80% 80.4% 107,163 107,732
70% 70.3% 93,768 94,199
60% 60.2% 80,373 80,695
50% 49.9% 66,977 66,851
40% 39.7% 53,582 53,137
30% 29.8% 40,186 39,869
20% 20.0% 26,791 26,848
10% 10.0% 13,395 13,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
