Hewlett-Packard Company ProLiant DL170e G6 ssj_ops@100% = 721,253
ssj_ops@100% per JVM = 120,209
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Nov 13, 2010
Hardware Availability: Nov-2010 Software Availability: Sep-2009 Publication: Dec 1, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     718,592
Calibration 2     723,364
Calibration 3     724,480
ssj_ops@calibrated=723,922
100% 99.6% 723,922 721,253
90% 89.7% 651,530 649,625
80% 79.7% 579,137 576,938
70% 69.9% 506,745 506,202
60% 60.1% 434,353 435,383
50% 49.9% 361,961 361,548
40% 40.1% 289,569 290,545
30% 29.9% 217,177 216,643
20% 19.9% 144,784 144,319
10% 9.9% 72,392 71,680
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL170e G6
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL170e G6
Form Factor: 2U
CPU Name: Intel Xeon L5640
CPU Characteristics: Six-Core, 2.27 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2267
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC CL5; slots 1, 5, populated per proc
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB SATA SSD, HP Part #539557-010
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x HP NC362i Integrated Dual Port Gigabit Server Adapter
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1600m -Xms2000m -Xmx2000m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 2000
JVM Maximum Heap (MB): 2000
JVM Address Bits: 64
Boot Firmware Version: 034 10/25/10
Management Firmware Version: 4.21 7/16/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-1-optimus.001 121,159
Node-1-optimus.002 119,600
Node-1-optimus.003 120,122
Node-1-optimus.004 120,048
Node-1-optimus.005 121,416
Node-1-optimus.006 118,908
ssj_ops@100% 721,253
ssj_ops@100% per JVM 120,209
Graph of per-instance results
JVM 'Node-1-optimus.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,660
Calibration 2     122,118
Calibration 3     122,200
ssj_ops@calibrated=122,159
100% 99.2% 122,159 121,159
90% 90.1% 109,943 110,079
80% 79.6% 97,727 97,192
70% 70.4% 85,511 86,006
60% 60.3% 73,296 73,688
50% 50.0% 61,080 61,036
40% 40.6% 48,864 49,646
30% 29.5% 36,648 36,063
20% 19.8% 24,432 24,197
10% 9.8% 12,216 12,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

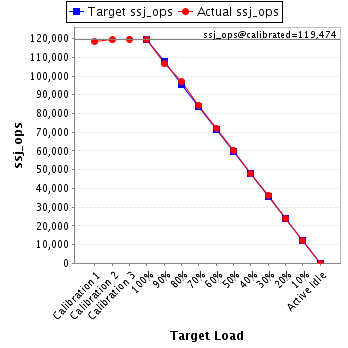

JVM 'Node-1-optimus.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,434
Calibration 2     119,253
Calibration 3     119,696
ssj_ops@calibrated=119,474
100% 100.1% 119,474 119,600
90% 89.2% 107,527 106,564
80% 81.1% 95,579 96,889
70% 70.6% 83,632 84,331
60% 60.4% 71,685 72,199
50% 50.4% 59,737 60,167
40% 40.0% 47,790 47,780
30% 30.2% 35,842 36,119
20% 19.8% 23,895 23,676
10% 10.0% 11,947 11,895
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-1-optimus.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,458
Calibration 2     120,737
Calibration 3     120,557
ssj_ops@calibrated=120,647
100% 99.6% 120,647 120,122
90% 89.2% 108,582 107,643
80% 78.9% 96,518 95,224
70% 69.1% 84,453 83,332
60% 59.7% 72,388 71,994
50% 50.3% 60,323 60,692
40% 40.0% 48,259 48,316
30% 29.8% 36,194 35,902
20% 20.2% 24,129 24,388
10% 9.8% 12,065 11,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-1-optimus.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,685
Calibration 2     120,725
Calibration 3     120,469
ssj_ops@calibrated=120,597
100% 99.5% 120,597 120,048
90% 89.6% 108,537 108,009
80% 79.4% 96,478 95,704
70% 70.1% 84,418 84,507
60% 59.7% 72,358 72,033
50% 49.5% 60,299 59,666
40% 40.5% 48,239 48,786
30% 30.5% 36,179 36,781
20% 19.9% 24,119 23,949
10% 9.9% 12,060 11,974
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-1-optimus.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,555
Calibration 2     121,642
Calibration 3     121,799
ssj_ops@calibrated=121,720
100% 99.8% 121,720 121,416
90% 90.6% 109,548 110,308
80% 79.2% 97,376 96,403
70% 69.5% 85,204 84,546
60% 60.0% 73,032 73,088
50% 49.8% 60,860 60,584
40% 39.6% 48,688 48,182
30% 29.8% 36,516 36,218
20% 20.1% 24,344 24,460
10% 9.9% 12,172 12,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-1-optimus.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,800
Calibration 2     118,889
Calibration 3     119,759
ssj_ops@calibrated=119,324
100% 99.7% 119,324 118,908
90% 89.7% 107,391 107,021
80% 80.1% 95,459 95,526
70% 70.0% 83,527 83,481
60% 60.7% 71,594 72,381
50% 49.8% 59,662 59,403
40% 40.1% 47,730 47,835
30% 29.8% 35,797 35,560
20% 19.8% 23,865 23,649
10% 10.0% 11,932 11,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
