IBM Corporation IBM System x3200 M2 SPECpower_ssj2008 = 605 overall ssj_ops/watt
Test Sponsor: Intel Corp. SPEC License #: 3184 Test Method: Single Node
Tested By: Principled Technologies, Inc. Test Location: Durham, NC, USA Test Date: Jan 19, 2011
Hardware Availability: Jan-2008 Software Availability: May-2009 Publication: Feb 17, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 116 25.8
Calibration 2 117 26.1
Calibration 3 117 26.2
100% 117 26.6
90% 115 26.7
80% 112 26.8
70% 109 26.9
60% 105 26.9
50% 100 26.9
40% 94.9 26.9
30% 89.6 26.6
20% 84.1 26.3
10% 78.2 26.2
Active Idle 75.2 26.0

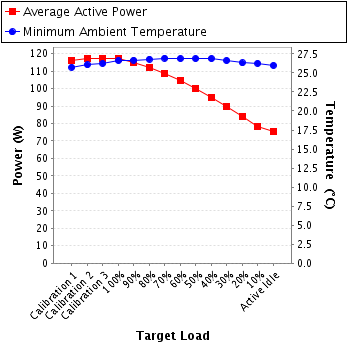

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45373
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 07-1673
Date of Calibration: 28-Jul-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main air intake
Notes
Used USB-to-Serial converter, Model Sabrent SBT-USC1M (driver version 2.0.2.1), to connect power analyzer to the controller.

This benchmark result is intended to provide perspective on past power and/or performance using the historical hardware and/or software described on this result page.

The system as described on this result page was formerly generally available. At the time of this publication, it may not be shipping, and/or may not be supported, and/or may fail to meet other tests of General Availability described in the SPEC OSG Policy document, http://www.spec.org/osg/policy.html

This measured result may not be representative of the result that would be measured were this benchmark run with hardware and software available as of the publication date.

Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 123 150.0 1.00 2.0 0.943 116 0.4%
Calibration 2 123 150.0 1.01 2.0 0.944 117 0.4%
Calibration 3 123 150.0 1.01 2.0 0.944 117 0.4%
100% 123 150.0 1.01 2.0 0.944 117 0.4%
90% 123 150.0 0.994 2.0 0.942 115 0.4%
80% 123 150.0 0.973 2.0 0.938 112 0.4%
70% 123 150.0 0.945 2.0 0.933 109 0.5%
60% 123 150.0 0.916 2.0 0.928 105 0.5%
50% 123 150.0 0.883 2.0 0.921 100 0.5%
40% 124 150.0 0.841 2.0 0.914 94.9 0.5%
30% 123 150.0 0.802 2.0 0.907 89.6 0.5%
20% 123 150.0 0.758 2.0 0.901 84.1 0.6%
10% 123 150.0 0.709 2.0 0.894 78.2 0.6%
Active Idle 123 150.0 0.687 2.0 0.888 75.2 0.6%

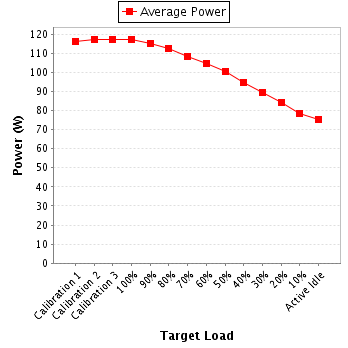

Power details for pwr1
