Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,697
ssj_ops@100% per JVM = 63,849
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,698
Calibration 2     128,203
Calibration 3     128,071
ssj_ops@calibrated=128,137
100% 99.7% 128,137 127,697
90% 90.9% 115,323 116,493
80% 79.9% 102,510 102,331
70% 71.1% 89,696 91,042
60% 59.8% 76,882 76,675
50% 49.3% 64,068 63,226
40% 40.3% 51,255 51,699
30% 30.2% 38,441 38,657
20% 20.0% 25,627 25,640
10% 10.0% 12,814 12,804
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI12.001 64,207
HITACHI12.002 63,491
ssj_ops@100% 127,697
ssj_ops@100% per JVM 63,849

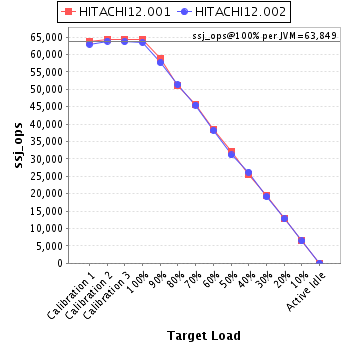

Graph of per-instance results
JVM 'HITACHI12.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,763
Calibration 2     64,380
Calibration 3     64,406
ssj_ops@calibrated=64,393
100% 99.7% 64,393 64,207
90% 91.4% 57,954 58,838
80% 79.2% 51,515 51,014
70% 70.8% 45,075 45,573
60% 59.8% 38,636 38,489
50% 49.9% 32,197 32,109
40% 39.7% 25,757 25,539
30% 30.3% 19,318 19,508
20% 20.0% 12,879 12,882
10% 9.9% 6,439 6,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI12.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,935
Calibration 2     63,823
Calibration 3     63,665
ssj_ops@calibrated=63,744
100% 99.6% 63,744 63,491
90% 90.4% 57,369 57,655
80% 80.5% 50,995 51,318
70% 71.3% 44,621 45,469
60% 59.9% 38,246 38,186
50% 48.8% 31,872 31,118
40% 41.0% 25,497 26,160
30% 30.0% 19,123 19,149
20% 20.0% 12,749 12,758
10% 10.0% 6,374 6,400
Active Idle   0 0

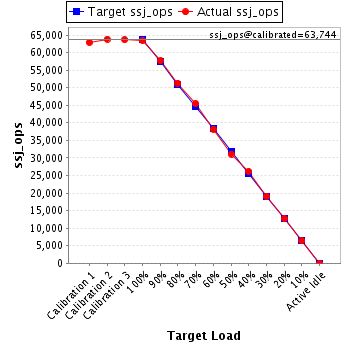

Graph of results
See the JVM Instance Performance Report for additional details.
