SPECpower_ssj2008
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY TX140 S1 (Intel Xeon E3-1260L) | SPECpower_ssj2008 = 4,549 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Mar 24, 2011 |
| Hardware Availability: | Jun-2011 | Software Availability: | Apr-2011 | Publication: | Apr 27, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

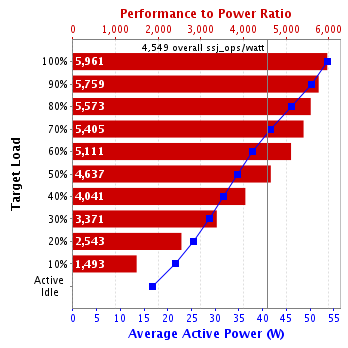

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.7% | 319,659 | 53.6 | 5,961 |
| 90% | 90.2% | 289,242 | 50.2 | 5,759 |
| 80% | 80.1% | 256,908 | 46.1 | 5,573 |
| 70% | 70.1% | 224,882 | 41.6 | 5,405 |
| 60% | 60.3% | 193,244 | 37.8 | 5,111 |
| 50% | 50.2% | 160,961 | 34.7 | 4,637 |
| 40% | 40.0% | 128,122 | 31.7 | 4,041 |
| 30% | 30.2% | 96,961 | 28.8 | 3,371 |
| 20% | 20.1% | 64,362 | 25.3 | 2,543 |
| 10% | 10.1% | 32,286 | 21.6 | 1,493 |
| Active Idle | 0 | 16.8 | 0 | |
| ∑ssj_ops / ∑power = | 4,549 | |||
| Set Identifier: | TX140 S1 |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY TX140 S1 (Intel Xeon E3-1260L) |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon E3-1260L |
| CPU Characteristics: | Quad-Core, 2.40GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2400 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E ECC CL9; slots 1A, 1B populated |
| Power Supply Quantity and Rating (W): | 1 x 300 |
| Power Supply Details: | Fujitsu Technology Solutions S26113-E581-V50-02 |
| Disk Drive: | 1 x Intel 64GB, SSD, 2.5" SATA (Fujitsu S26361-F3298-E64) |
| Disk Controller: | Integrated SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82574L and 1 x Intel 82579LM Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Fujitsu Enhanced Power Settings" power plan) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise with SP1 |
| OS Version: | Version 6.1.7601 Service Pack 1 Build 7601 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25 |
| JVM Command-line Options: | -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=65 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts |
| JVM Affinity: | None |
| JVM Instances: | 1 |
| JVM Initial Heap (MB): | 6144 |
| JVM Maximum Heap (MB): | 6144 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 0.99.18 |
| Management Firmware Version: | 6.14A |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX100 S3 |
| CPU Description: | Pentium D 950 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 Enterprise Edition + SP1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91HA48097 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Kalibrierdienst Stenger |
| Calibration Label: | 10119075 |
| Date of Calibration: | 16-Nov-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 53.6 | 20.6 |
| 90% | 50.2 | 20.6 |
| 80% | 46.1 | 20.6 |
| 70% | 41.6 | 20.6 |
| 60% | 37.8 | 20.6 |
| 50% | 34.7 | 20.6 |
| 40% | 31.7 | 20.6 |
| 30% | 28.8 | 20.6 |
| 20% | 25.3 | 20.6 |
| 10% | 21.6 | 20.5 |
| Active Idle | 16.8 | 20.5 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 20.5 | 117 |

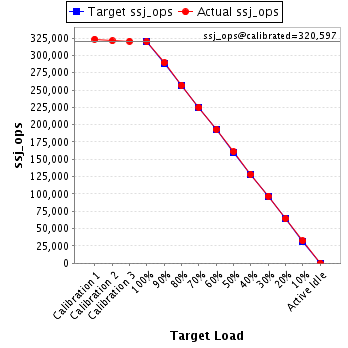

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 323,354 | ||
| Calibration 2 | 320,802 | ||
| Calibration 3 | 320,393 | ||
| ssj_ops@calibrated=320,597 | |||
| 100% | 99.7% | 320,597 | 319,659 |
| 90% | 90.2% | 288,538 | 289,242 |
| 80% | 80.1% | 256,478 | 256,908 |
| 70% | 70.1% | 224,418 | 224,882 |
| 60% | 60.3% | 192,358 | 193,244 |
| 50% | 50.2% | 160,299 | 160,961 |
| 40% | 40.0% | 128,239 | 128,122 |
| 30% | 30.2% | 96,179 | 96,961 |
| 20% | 20.1% | 64,119 | 64,362 |
| 10% | 10.1% | 32,060 | 32,286 |
| Active Idle | 0 | 0 | |
