Dell Inc. PowerEdge M710HD ssj_ops@100% = 946,374
ssj_ops@100% per JVM = 473,187
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 30, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Sep 21, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     957,051
Calibration 2     947,493
Calibration 3     952,212
ssj_ops@calibrated=949,852
100% 99.6% 949,852 946,374
90% 89.7% 854,867 851,829
80% 80.0% 759,882 759,936
70% 70.0% 664,897 665,219
60% 60.0% 569,911 569,831
50% 50.1% 474,926 475,778
40% 40.1% 379,941 380,745
30% 29.9% 284,956 283,805
20% 20.2% 189,970 191,843
10% 10.0% 94,985 94,562
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M710HD
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M710HD
Form Factor: Blade
CPU Name: Intel Xeon X5675 (3.06 GHz)
CPU Characteristics: 6 Core, 3.06 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 3060
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1, A2, A3, B1, B2, B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: PERC H200 Modular
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command-line Options: -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=55 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [FFF, FFF000]
JVM Instances: 2
JVM Initial Heap (MB): 6144
JVM Maximum Heap (MB): 6144
JVM Address Bits: 64
Boot Firmware Version: 3.0.1
Management Firmware Version: iDRAC 3.21 build 48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Disabled Adjacent Cache Line Prefetch in BIOS.
  • Disabled Hardware Prefetcher in BIOS.
  • Disabled DCU Streamer Prefetcher in BIOS.
  • Disabled Data Reuse in BIOS
  • Disabled Turbo Mode in BIOS
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M710HD-6.001 472,991
    M710HD-6.002 473,383
    ssj_ops@100% 946,374
    ssj_ops@100% per JVM 473,187
    Graph of per-instance results
    JVM 'M710HD-6.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     478,855
    Calibration 2     474,581
    Calibration 3     475,313
    ssj_ops@calibrated=474,947
    100% 99.6% 474,947 472,991
    90% 89.8% 427,452 426,554
    80% 80.2% 379,958 380,699
    70% 70.2% 332,463 333,436
    60% 60.0% 284,968 285,116
    50% 50.1% 237,474 237,987
    40% 40.1% 189,979 190,584
    30% 29.9% 142,484 141,899
    20% 20.2% 94,989 95,858
    10% 10.0% 47,495 47,493
    Active Idle   0 0

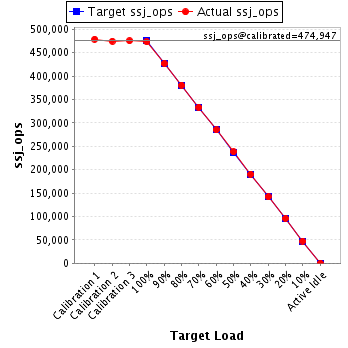

    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M710HD-6.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     478,196
    Calibration 2     472,912
    Calibration 3     476,899
    ssj_ops@calibrated=474,905
    100% 99.7% 474,905 473,383
    90% 89.5% 427,415 425,275
    80% 79.9% 379,924 379,237
    70% 69.9% 332,434 331,783
    60% 60.0% 284,943 284,715
    50% 50.1% 237,453 237,791
    40% 40.0% 189,962 190,161
    30% 29.9% 142,472 141,906
    20% 20.2% 94,981 95,984
    10% 9.9% 47,491 47,069
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
